Intel Innovation DN2800MT Desktop Motherboard - Intel NM10 Express Chipset - 10 x Bulk Pack

Be the first to review this product...

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

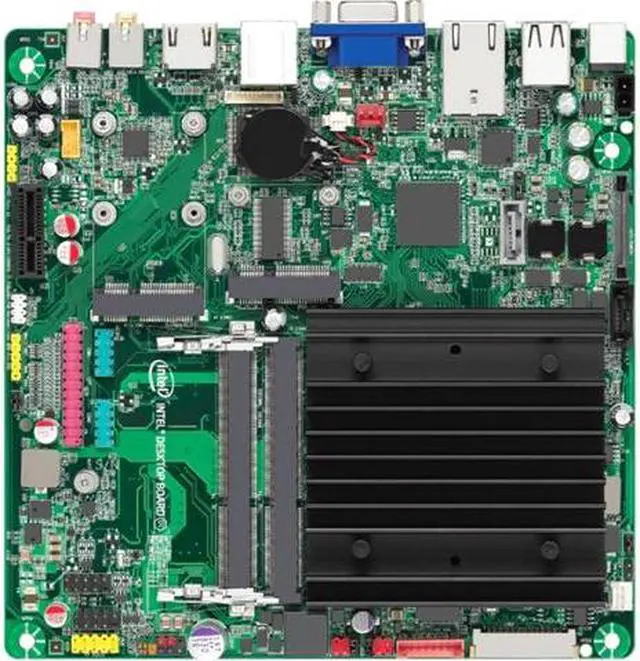

Intel Desktop Board DN2800MT is integrated with the new Intel Atom processor D2800 and the Intel NM10 Express Chipset to offer a thin mini-ITX desktop computer system. The board features a 10/100/1000 integrated Intel LAN, 1080 high-definition playback with HDMI, and Intel High Definition Audio (Intel HD Audio).

With the new low-power silicon, the Intel Desktop Board DN2800MT can be used in chassis that require no fan for heat dissipation. This board is designed for ultra small form factor (~1 liter) and All-In-One chassis.

While this desktop board is small in size, it delivers a rich multimedia and Internet experience with the support of 1080 high-definition video playback.

Model
Brand	Intel
Model	DN2800MT

Memory
Number of Memory Slots	2
Maximum Memory Supported	4GB

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	Yes

Rear Panel Ports
Back I/O Ports	1 x HDMI / 4 x USB 2.0/1.1
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	Width:6.7" Depth:6.7"

Features
Features	Number of Network (RJ-45) Ports:1 Integrated Processor Cache:1 MB Number of SATA Interfaces:2 Number of Total Expansion Slots:3 Total Number of PCI Express Slots:3 Total Number of Onboard USB Ports:4 Number of Onboard USB 2.0 Ports:4 Integrated Processor Type:Atom Integrated Processor Type:Atom Memory Technology:DDR3 SDRAM Memory Technology:DDR3 SDRAM Integrated Processor Core:Dual-core (2 Core) Integrated Processor Core:Dual-core (2 Core) Chipset Manufacturer:Intel Integrated Processor Manufacturer:Intel Integrated Processor Manufacturer:Intel Controller Type:mSATA Serial ATA/300 Integrated Processor Model:N2800 Integrated Processor Model:N2800 Chipset Model:NM10 Express Onboard Video:On-board Video Chipset Onboard Video:On-board Video Chipset PCI Express Standard:PCI Express 1.0a Memory Form Factor:SoDIMM 64-bit Processing:Yes Network (RJ-45):Yes

Packaging
Package Contents	Innovation DN2800MT Desktop Motherboard 10 x Back Panel DC Jack Cover 20 x Cable, Serial ATA, Latching 10 x DVD, Express Installer 10 x Configuration Label 10 x I/O Shield - Full Height 10 x I/O Shield - Half-Height 1 x Quick Reference Guide

Additional Information
First Listed on Newegg	October 28, 2012
