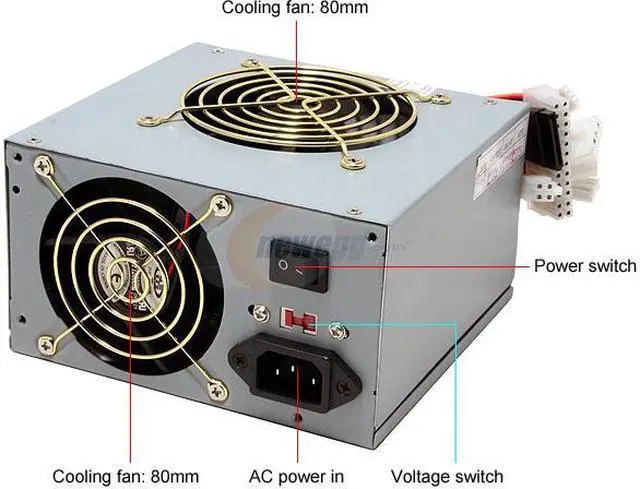

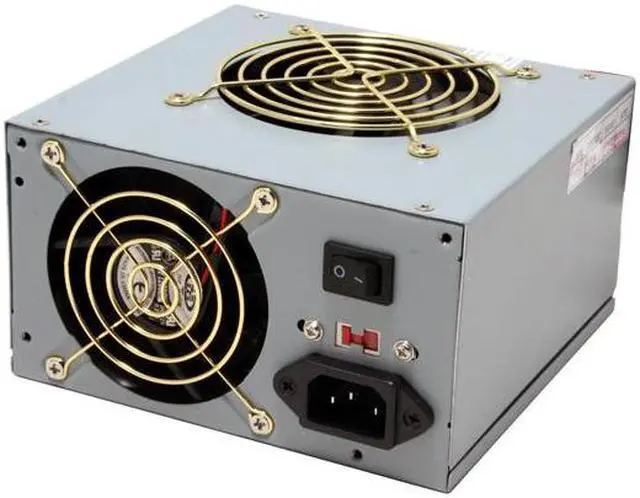

DYNAPOWER USA EP-50X.C563-BX 500 W ATX12V Power Supply

Name: DYNAPOWER USA EP-50X.C563-BX 500 W Power Supply
Brand: Dynapower USA
SKU: N82E16817255010
Rating: 4 (219 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (219)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Dynapower USA EP-50X.C563-BX

General
Brand	DYNAPOWER USA
Model	EP-50X.C563-BX

Details
Type	ATX12V
Maximum Power	500 W
Fans	2
PFC	No

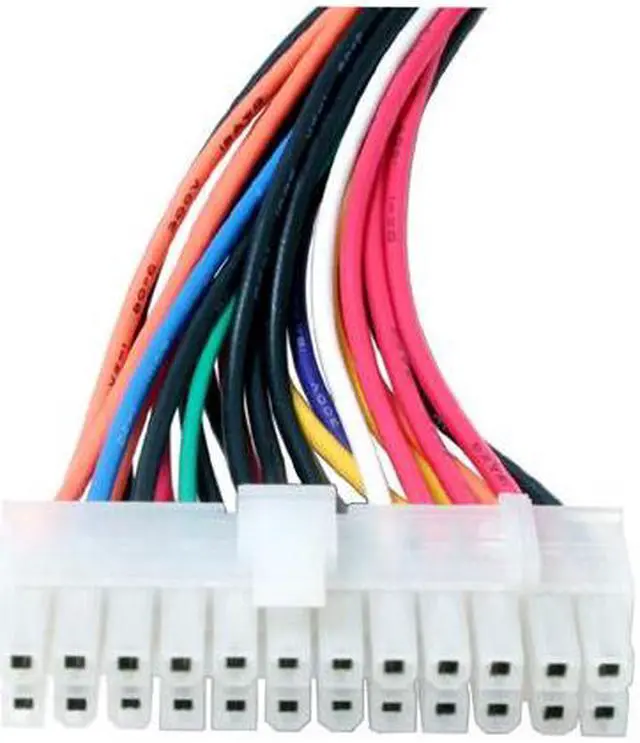

Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	No
SATA Power Connector	1
SLI	No
CrossFire	No
Modular	No
Efficiency	> 68%
Input Voltage	110 - 230V
Input Frequency Range	50/60 Hz
Input Current	9 /6A

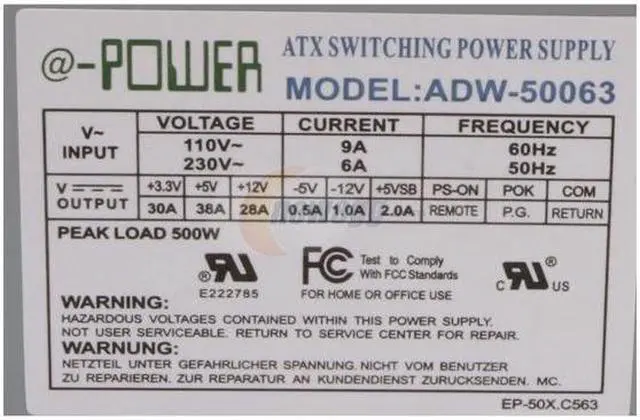

Output	+3.3V@30A,+5V@38A,+12@28A,-12V@1A,+5VSB@2A
MTBF	>100,000 Hours
Approvals	UL/cUL E222785, TUV and CB EN 60950 certified

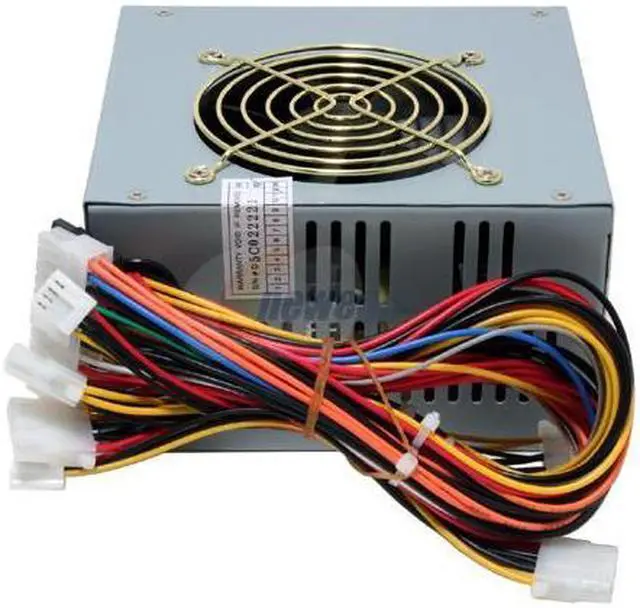

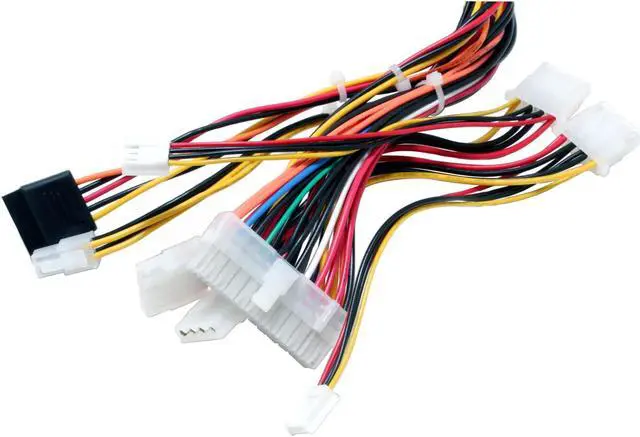

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 4 x peripheral 1 x SATA 2 x Floppy

Features
Features	Operating temperature range from 0°C to 50°C Build in DC remote ON/OFF , PG/PF TTL signal Compiles with FCC Class B,CISPR Pub. 22, EN55022 Class B, and CE requirements Leakage Current 3.5mA max SATA connectors

Additional Information
First Listed on Newegg	January 27, 2006
