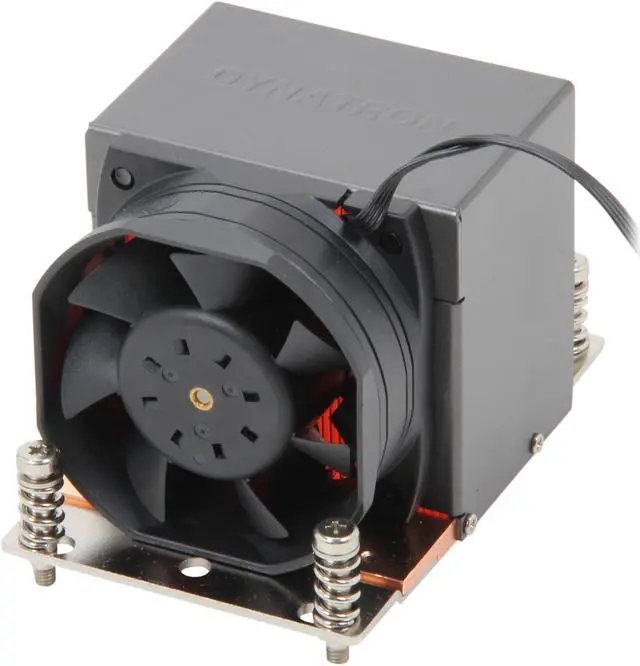

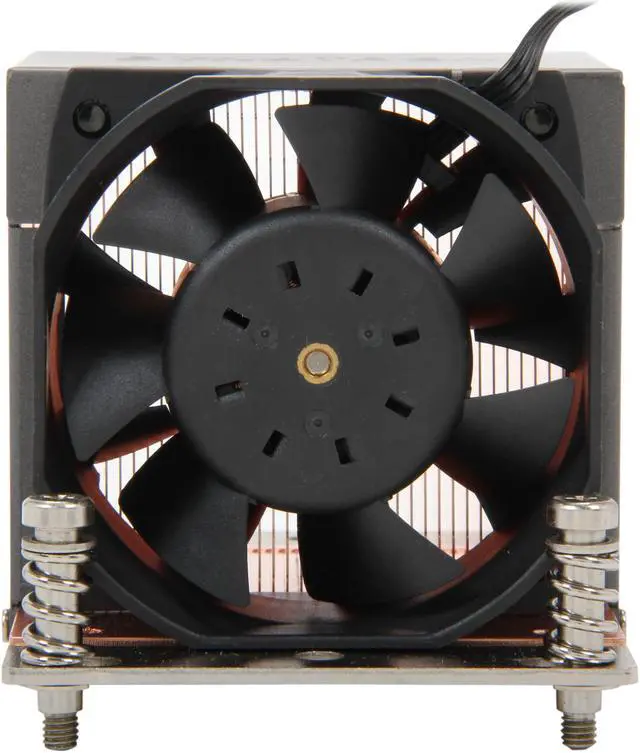

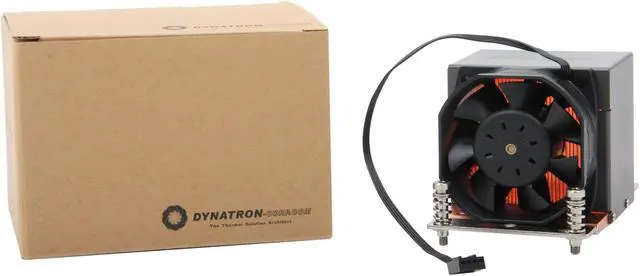

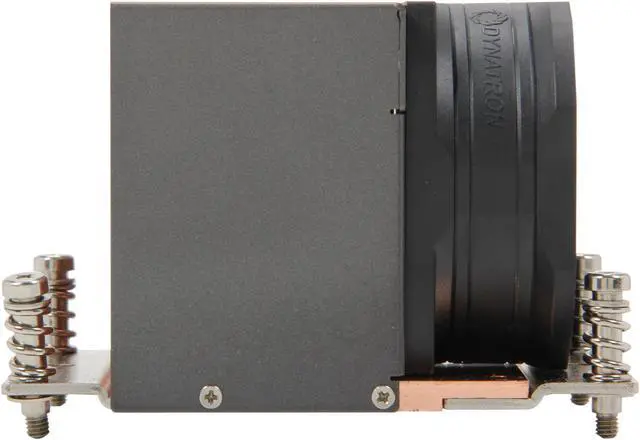

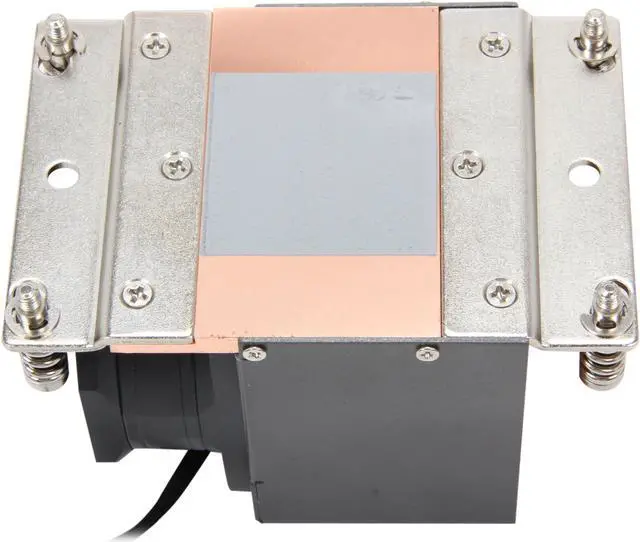

    Dynatron R14 60mm 2 Ball Intel Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 150 Watts

    (6) Write a Review
    • At Duty Cycle 20%: 1500 RPM
    • At Duty Cycle 50%: 3500 RPM
    • At Duty Cycle 100%: 7000 RPM
    • At Duty Cycle 20%: 8.8 CFM
    • At Duty Cycle 50%: 20.3 CFM
    • At Duty Cycle 100%: 40.5 CFM
    • Copper Heatsink with Stacked Fins
    +
    +
    Specs
    Reviews (6)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Dynatron R14

    Model
    Brand Dynatron
    Model R14
    Details
    Color Black
    Type Fan & Heatsinks
    Fan Size 60mm
    CPU Socket Compatibility Intel LGA 2011 (Narrow Type)
    Bearing Type 2 Ball
    RPM At Duty Cycle 20%: 1500 RPM
    At Duty Cycle 50%: 3500 RPM
    At Duty Cycle 100%: 7000 RPM
    Air Flow At Duty Cycle 20%: 8.8 CFM
    At Duty Cycle 50%: 20.3 CFM
    At Duty Cycle 100%: 40.5 CFM
    Noise Level At Duty Cycle 20%: 16.0 dBA
    At Duty Cycle 50%: 32.9 dBA
    At Duty Cycle 100%: 47.5 dBA
    Power Connector 4 Pin
    Heatsink Material Copper Heatsink with Stacked Fins
    Fan Mounting Types to Heatsink Horizontal
    Dimensions & Weight
    Max CPU Cooler Height 67 mm
    Fan Dimensions 60 x 60 x 28 mm
    Weight 660g
    Features
    Features Intel Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 150 Watts for socket 2011 2U&Up Server Solution

    Solution: 2U Solution

    Rated Voltage: 12 V

    Power:
    At Duty Cycle 20%: 0.6 W
    At Duty Cycle 50%: 2.16 W
    At Duty Cycle 100%: 7.2 W

    Air Pressure:
    At Duty Cycle 20%: 0.7 mm-H2O
    At Duty Cycle 50%: 3.6 mm-H2O
    At Duty Cycle 100%: 14.3 mm-H2O

    *Note:
    Support CPU Power up to 150 Watts
    Pre-print thermal compound Shin-Etsu G751
    RoHS Compliance
    Backplate is not included.
    Additional Information
    First Listed on Newegg February 14, 2020
