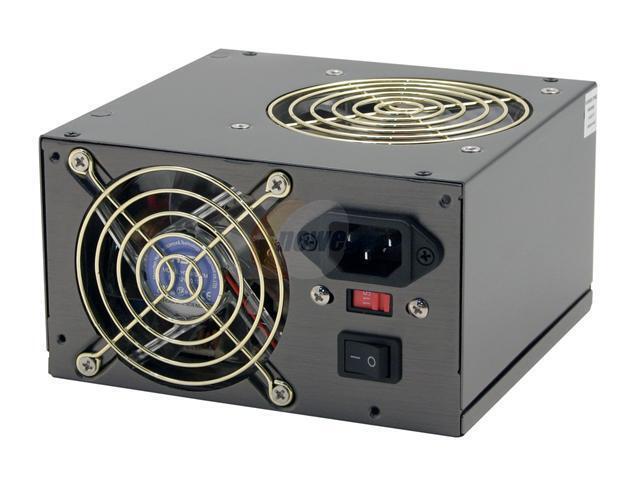

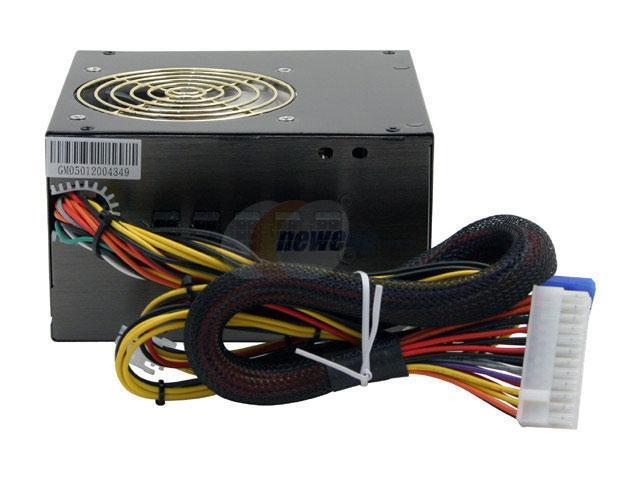

Eagle Tech ATX-GM520SC 520W ATX 12V Version 2.0 ; EPS 12V Version 2.1 Modular Power Supply

OUT OF STOCK.
  • ATX 12V Version 2.0 ; EPS 12V Version 2.1
  • Modular
  • 115 / 230 V 50/60 Hz
  • +3.3V@38A, +5V@40A, +12V1@18A, +12V2@16A, -5V@1.0A,-12V@1.5A,+5VSB@2.5A
Specs
Reviews

Learn more about the EAGLE TECH ATX-GM520SC

General
Brand Eagle Tech
Model ATX-GM520SC
Details
Type ATX 12V Version 2.0 ; EPS 12V Version 2.1
Maximum Power 520 W
Fans Dual Clear Ball-Bearing Fan
PFC No
Main Connector 20+4Pin
+12V Rails Yes
SLI No
Modular Modular
Over Voltage Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 6A @ 230V

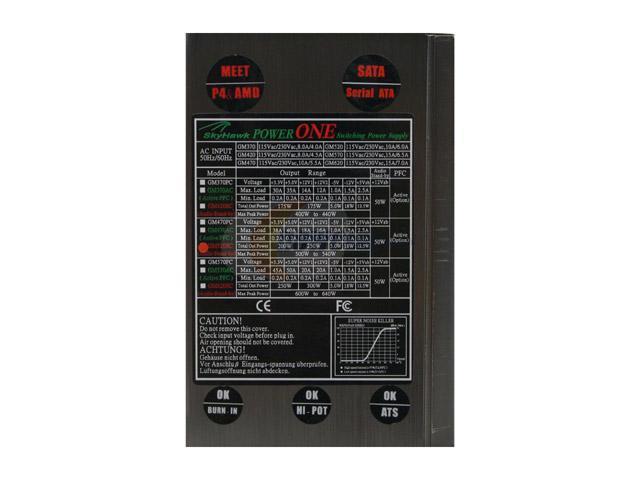

Output +3.3V@38A, +5V@40A, +12V1@18A, +12V2@16A, -5V@1.0A,-12V@1.5A,+5VSB@2.5A
Approvals CE . FCC

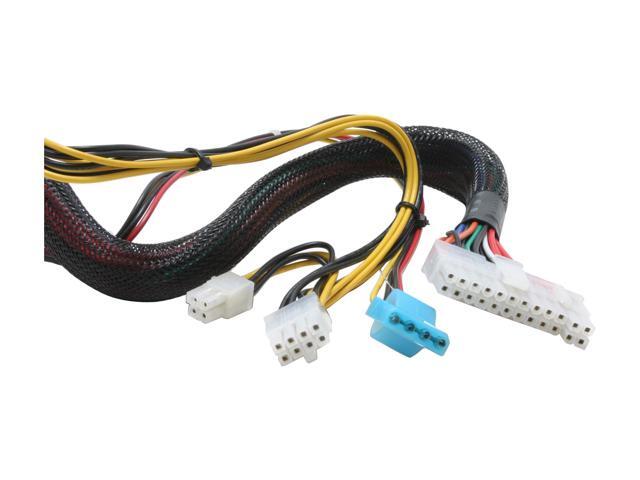

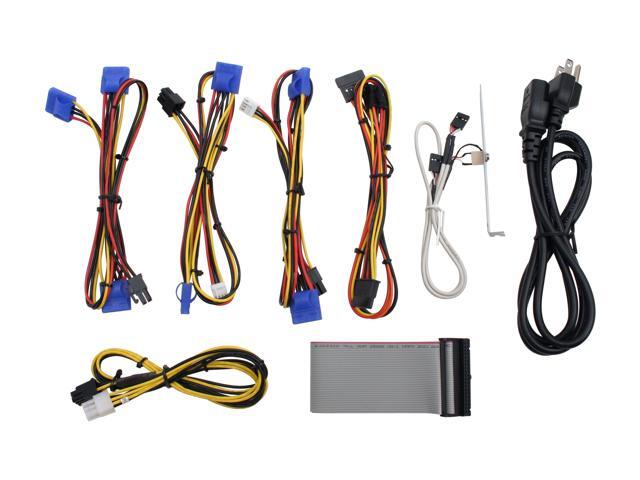

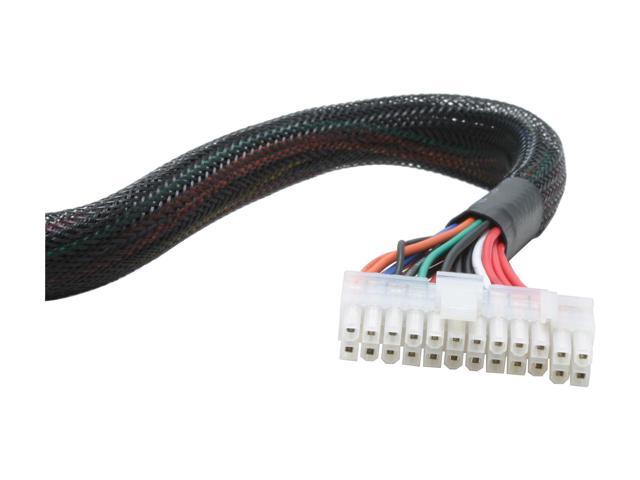

Connectors 1 x Main connector (20+4 pin)
1 x 12V (8pin)
1 x 12V (P4)
7 x peripheral
2 x SATA
2 x Floppy
1 x PCI-E
Features
Features Blue LED light
PCI Express Ready
High Efficiency & Energy Star
Heavy duty steel housing with Hairline treatments and gun metallic plating
Smart Audio standby
Smart Thermal Fan Control
Additional Information
Date First Available March 07, 2005
