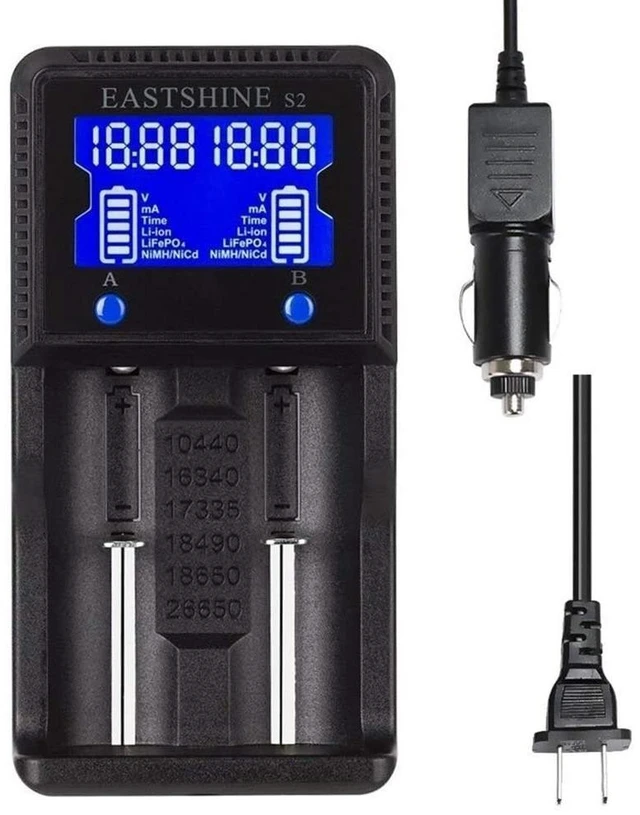

Universal Battery Charger S2 LCD Display Speedy Smart Charger for Rechargeable Batteries Ni-MH Ni-Cd AA AAA Li-ion LiFePO4 IMR 10440 14500 16340 18650 RCR123 26650 18500 21700 & Car Adapter

EASTSHINE S2 Battery Charger Can Work with the Following Batteries:

1. Compatible with Different Brand Li-ion / LiFePO4 Batteries Included But NOT Limited:

(1) Sanyo: UR18650W 1600mAh, UR18650RX 2000mAh, UR18650A 2200mAh, UR18650F 2400mAh, UR18650NSX / UR18650FM 2600mAh, UR18650ZT 2800mAh, UR18650ZTA 3000mAh.

(2) Samsung: INR18650 15R 1500mAh, 22P / 22F 2200mAh 10A, 24F 2400mAh, 26F / 26H / 26HM 2600mAh, 28A 2800mAh, 32E / 32A 3200mAh, 25R 2500mAh 20A, 29E 2900mAh, 30Q 15A / SDI 30A 3000mAh.

(3) LG: HD2 2000mAh 25A, HD2C 2100mAh 20A, ICR18650 MF1 / MF2 2200mAh 10A, S3 2300mAh, HE2 / HE4 2500mAh 20A, A4 2400mAh, ABB4 2600mAh, ABC21865 2800mAh, MG1 / HG2 / E1 2900mAh 20A, ABD11865 3000mAh, MH1 3200mAh, F1L / MJ1 3500mAh.

(4) Panasonic: CGR18650CG / CGR18650CH 2250mAh, CGR18650DA 2450mAh, NCR18650PF 2900mAh, NCR18650A 3100mAh, NCR18650BE / NCR18650BD 3200mAh, NCR18650BF 3400mAh, NCR18650GA 3500mAh 10A.

(5) Sony: US18650 VTC4 2100mAh, VTC5 2600mAh 30A, VTC6 3000mAh 30A, US18650GR G5 2150mAh, G6 2350mAh, G7 2400mAh, 8A 2600mAh, US18650V3 2250mAh.

(6) Nitecore: IMR18650 2500mAh 35A / 2600mAh 40A / 3100mAh 35A, NL1823-2300mAh, NL1826 / NL1826R 2600mAh, NL1829LTHP / NL1829LTP / NL1829RLTP 2900mAh, NL1832-3200mAh, NL1834 / NL1834R 3400mAh, NL1835 / NL1835HP / NL1835R 3500mAh.

(7) Fenix: ARB-L18-2300 2300mAh, ARB-L18-2600 / ARB-L18-2600U 2600mAh, ARB-L18-2900 / ARB-L18-2900L 2900mAh, ARB-L18-3400 3400mAh, ARB-L18-3500 / ARB-L18-3500U 3500mAh, ARB-L4-4800 4800mAh 26650.

(8) Surefire: SF18650B 18650, Streamlight, Olight, Jetbeam, Xtar, ORBTRONIC and so on Different Brand / Different Capacity Rechargeable Li-ion / LiFepo4 Batteries.

2. Compatible with Different Brand Ni-MH / Ni-Cad Batteries Included But NOT Limited:

(1) Basics: HR6 AA 1900mAh / 2000mAh / 2400mAh, HR03 750mAh / 800mAh.

(2) Panasonic / Eneloop: 1st / 2nd / 3rd / 4th Generation AA 1900mAh / 2000mAh / 2550mAh, AAA 750mAh / 800mAh / 950mAh.

(3) Energizer: NM15 AA 2000mAh / 2300mAh, AAA 700mAh / 800mAh.

(4) EBL: AA 2300mAh / 2500mAh / 2800mAh, AAA 800mAh / 1100mAh, Duracell: AA 2500mAh / AAA 800mAh, Rayovac: AA 1350mAh / AAA 600mAh, BONAI, Mr.Batt, Tenergy, Soxono, POWEROWL and so on Different Brand / Different Capacity Rechargeable NI-MH / NI-CD Batteries.

18650 battery charger 2 bay aa charger 21700 battery charger for 18650 rechargeable batteries 18500

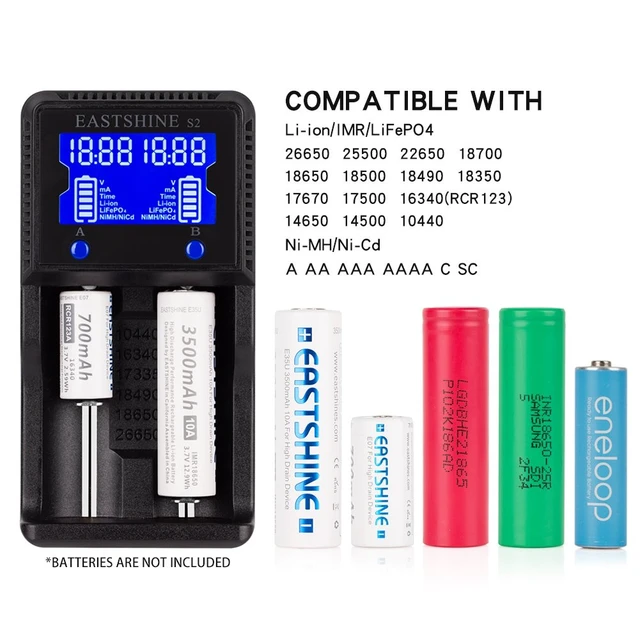

Compatible with:

(1) Lithium-ion / IFR / IMR / INR / ICR / LiFepo4: 21700, 20700, 18650, 26650, 18500, 18350, 14500(AA), 10440(AAA), 26500, 22650, 16340(RCR123A), 18490, 14650, 14430

(2) Ni-MH / Ni-cad: AA, AAA, AAAA, C

EASTSHINE S2 DO'S & DONT'S

universal battery charger for all types of batteries 26650 battery charger lithium ion charger 18650

All batteries:

1. Size of cylindrical:

34.0mm < Length <= 70.0mm

9.0mm < Diameter < 26.0mm:

18650, 26650, 16340, 14500, 10440, 21700, 20700 with PCB

2. Voltage & material:

* 1.2V Ni-MH / Ni-Cd,

* 3.2V Lifepo4, 3.6V/3.7V Li ion

3. Discharge current heavy or low: IFR, IMR, INR, ICR, 35A, 20A,10A, 3C, 1C

li-ion battery charger 18650 aa battery charger for 18650 charger 2 slots 3.7 volt battery chargers

Mixed batteries:

2 slots are independent, each slot = One single universal battery charger

1. Only 1 battery once

2. Nimh & liion batteries together

3. 1.2V & 3.7V batteries together

4. A & B brand batteries together

5. Capacity high or low, 500mAh & 5000mAh batteries together

6. With PCB or not, protected & unprotected batteries together

18650 battery chargers 18650 lithium battery charger for 18650 smart charger 26650 battery chargers

NO CHARGING

It may result in battery short-circuit, catch fire or explosion:

1. Non-rechargeable / Unrechargeable battery: 3V / 3.6V Lithium battery CR123, CR 123, CR123A, CR2

2. Inferior, fake quality battery

3. Damaged, outside film broken battery

4. Re-warp, dead-reactivated battery

5. Battery with tabs, privately refitted

6. Battery in wet area and so on

battery 18650 charger 2 bay battery charger 18650 chargers rechargeable battery charger nimh charger

NO CHARGING

1. Ni-Zn / Alkaline battery: Ni-Zn / Alkaline AA, AAA, A

2. Non-cylindrical: button cell 2032, 9V, camera battery pack

3. Small-size: 16250, 14250, 1/2AA, 1/3AA

4. Over-size: 32650, D size,

5. Over-voltage: 6V 4LR44, 8.4V battery pack

6. Other material: Li-polymer battery for RC toy, Li-SOCl2 / Lipo and more

lithium battery charger 18650 car charger 14500 battery charger lithium 18650 battery charger 21700

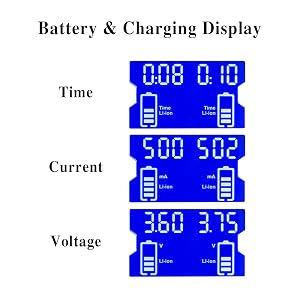

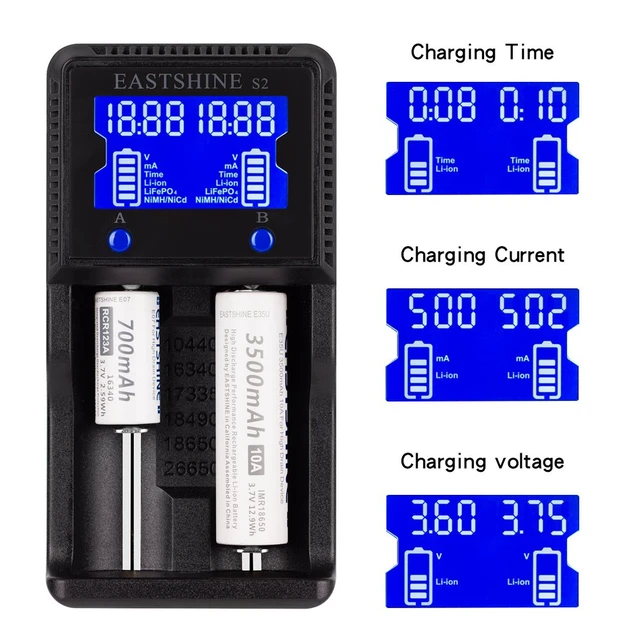

LCD Displays Battery & Charging Parameters Clearly

1. Display: Battery Material & Charging Time / Voltage / Current

2. Battery at Full will be almost:

* 1.2V Ni-MH / Ni-Cad: 1.5V

* 3.2V LiFePO4: 3.7V

* 3.6V / 3.7V Li-ion: 4.2V

3. Charging Current: 500mA is not 500mAh, 1000mA is not 1000mAh, EASTSHINE S2 Charger will NOT Show Batteries' Capacity

20700 battery charger 21700 charger 2 bay 18650 charger 18350 battery charger 26650 charger double a

Micro-computer Chip Controls Charging Intelligently

1. Auto Check: Batteries' Compatibility

2. Auto Show: Charging Status & Battery Level

3. Auto Charge Directly:

* 500mA as Default Setting

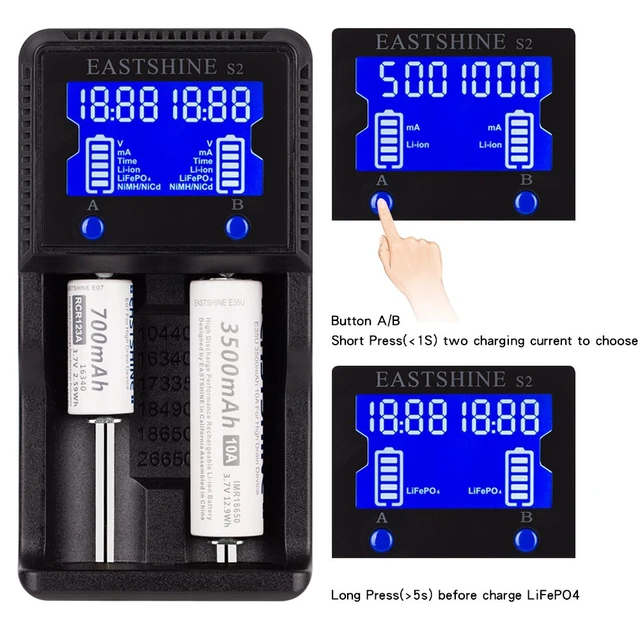

* 500mA Slow or 1000mA Rapid Switch by A / B Button for Each Slot

* 3.2V LiFePO4 Battery need Manual Operation

* Trickle Charging with 3-5mA to Ensure Fully Charged

4. Auto Cutoff: Four Independent Channels will Stop Separately at Full

7 Protection & Package

Multi-protection: Short-circuit / Reverse Polarity / Over-current / Over-voltage / Overheating / Overtime / Overcharge Protection.

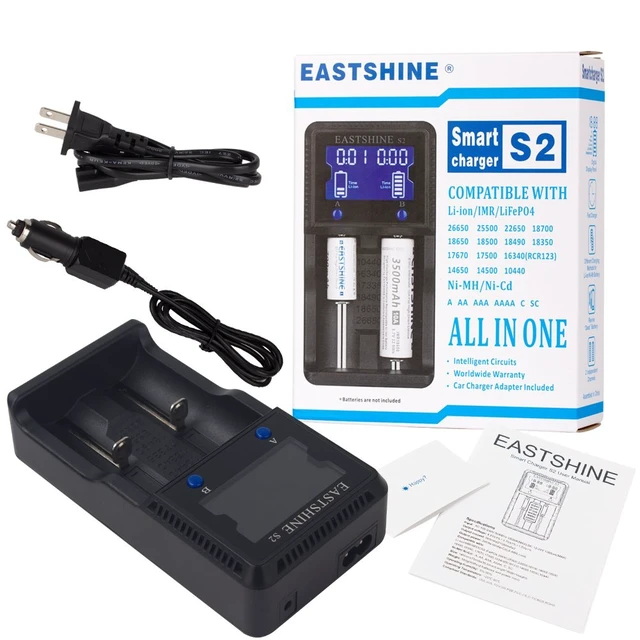

Package Content:

1. 1 X EASTSHINE S2 2 Slots 2021 Version Universal Batteries Charger

2. 1 X US Wall Power Cord

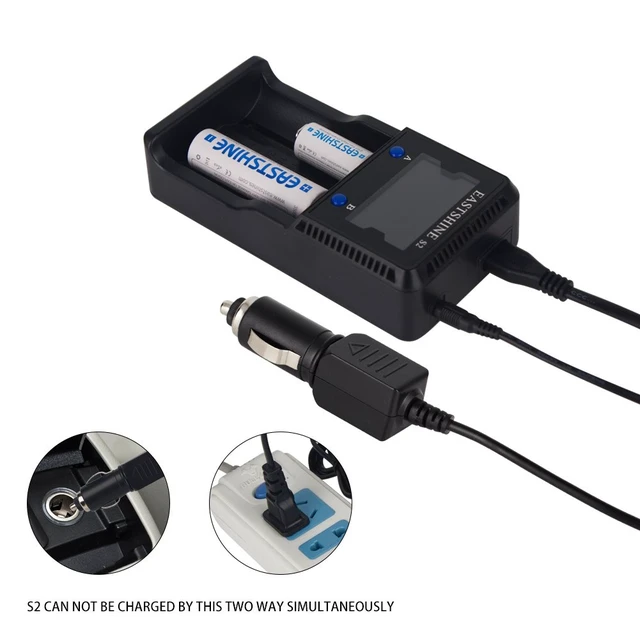

3. 1 X Car Adapter Cord

4. 1 X User Manual
