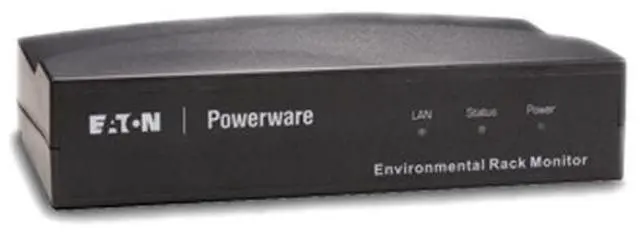

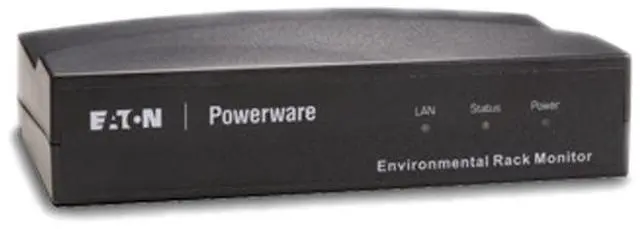

Environmental power quality threats-such as heat-related issues, humidity, water leaks, smoke and cabinet intrusion-can be devastating to IT environments. The Eaton Environmental Rack Monitor (ERM) continuously monitors environmental conditions at the rack level, providing security for critical assets in high-density data centers and other types of environments.
Learn more about the Eaton 103005775
Model
Brand
EATON
Model
103005775
Details
Type
Environmental Rack Monitor
Specifications
CPU: 16-bit micro control
Memory: 2 MB Static RAM / 2 MB Flash ROM
Serial Communication: Two Asynchronous serial ports
LAN Chip: Auto-Sense 10/100 Mbps Fast Ethernet controller
Network Connection: 10/100 TX RJ-45 jack connector
Network Protocol: SNMP over UDP/IP, HTTP over TCP/IP, ARP, TFTP, and ICMP
EMC Statements: Class B: FCC Part 15, ICES-003, CE
Features
Features
Monitors temperature and humidity at two locations in a rack and the status of up to four additional input contact sensor devices
Mounts easily in unused side or rear channels; rugged TH-Module sensors can be mounted anywhere in the rack/enclosure
Protects critical assets from heat, humidity, smoke, water leaks or intrusion
Displays real-time environmental status to a PC, Internet-ready wireless device or network management system (NMS) software
Aggregates real-time information from up to 100 Environmental Rack Monitors and displays it a single Web page (an Eaton exclusive feature)
Scans the network (or a range of IP addresses you specify) to auto-discover other rack monitors in that subnet, and displays their real-time status in one table
Displays color graphs of heat/humidity trends, to identify areas for proactive action
Automatically notifies designated recipients by email of out-of-range conditions (warnings or alarms)
Eliminates nuisance alarms with user-configurable alarm thresholds and the ability to disable alarms during maintenance
Simplifies operations with an intuitive, Web browser interface, rich graphing of data, auto-discovery and auto-aggregation utilities, and more
Provides a clean, user-friendly interface that makes it easy to navigate and use system functions
Retains historical environmental data even when the unit is powered off, and delivers archived data for trending, troubleshooting and analysis
Supports automated, remote upgrade of firmware for multiple rack monitors in a single broadcast session
Dimensions & Weight
Dimensions
5.3" x 3.4" x 1.1"
Weight
6oz
Additional Information
Date First Available
September 11, 2020
