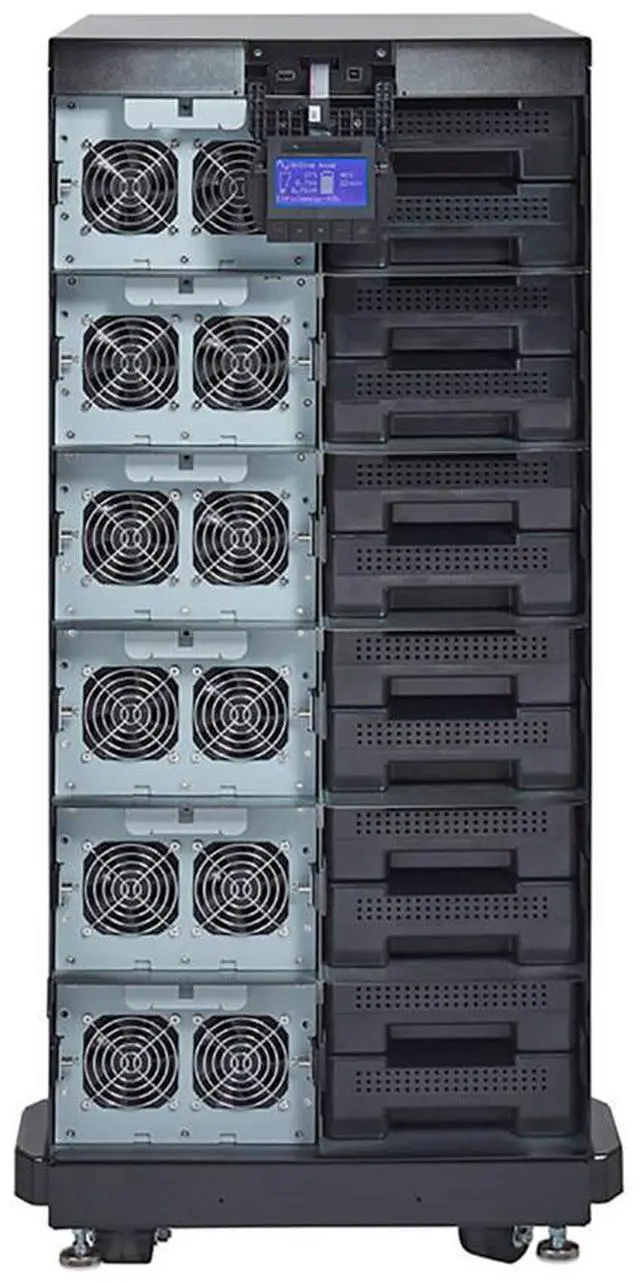

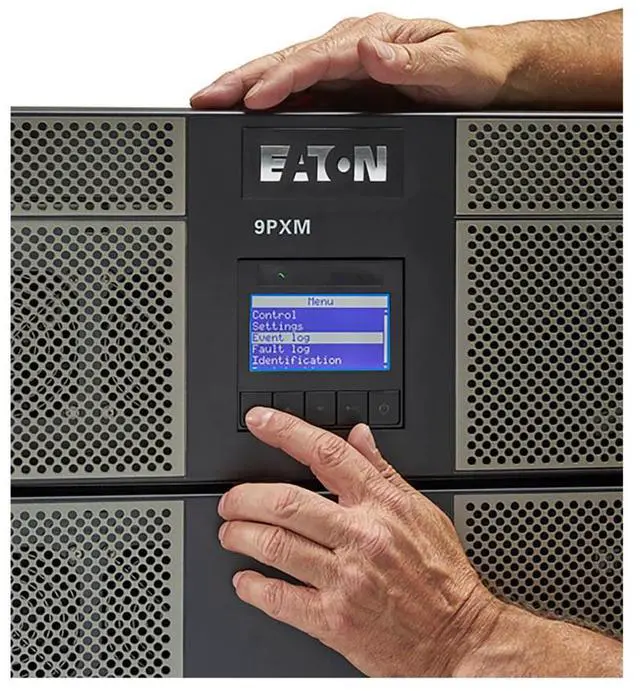

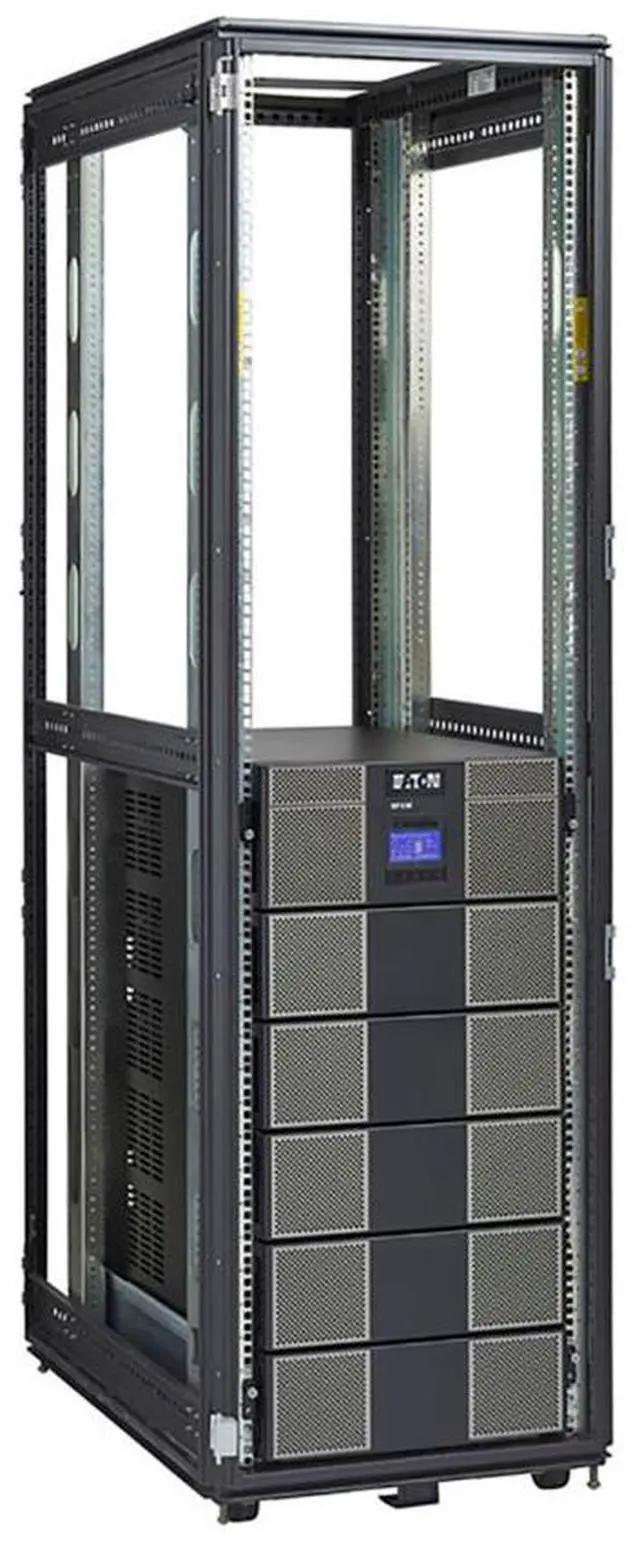

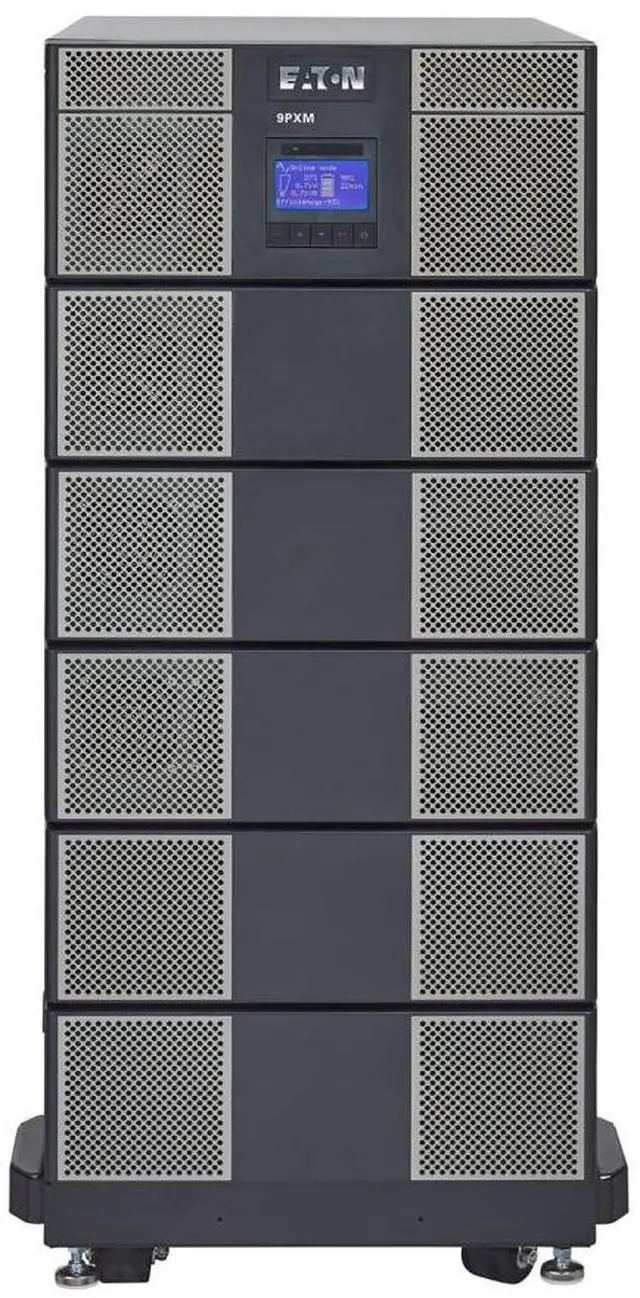

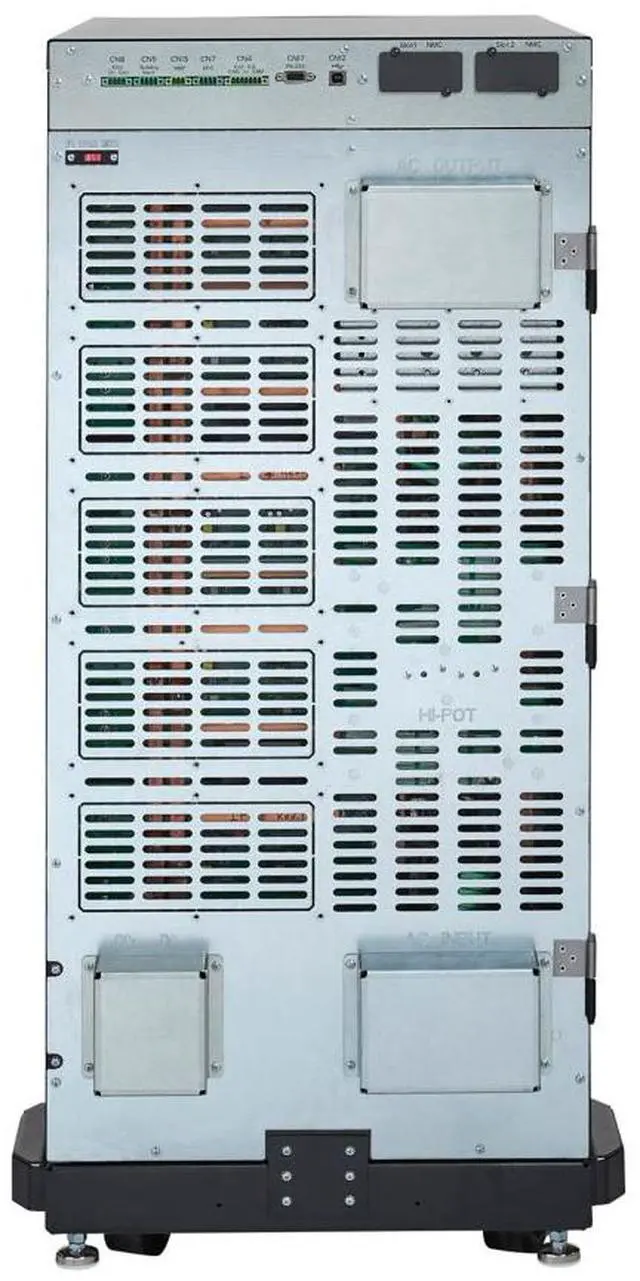

Eaton 9PXM12S20K 9PXM UPS, 20 kVA scalable to 20 kVA (N+1), Hardwired input, Hardwired output, 208-240V, Rack/Tower, 21U

Product Name Eaton 9PXM UPS
Catalog Number 9PXM12S20K
UPC 743172091512
Product Length/Depth 34.5 in
Product Height 36.5 in
Product Width 17.5 in
Product Weight 690 lb
Compliances TAA Compliant, FCC Compliant
Certifications IEC Rated, cULus Listed
Product Type UPS
Extended battery capability Yes
Input connection Hardwired
Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
Input power factor >0.99 typical
Input frequency range 60 Hz: 50–70 Hz
Receptacle Hardwired
Output frequency 60 Hz
Voltage 120/208V
Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
VA rating 20 kVA
Wattage 18 kW
Output waveform True sine wave
Output power factor 0.9
Topology Online/Double-conversion

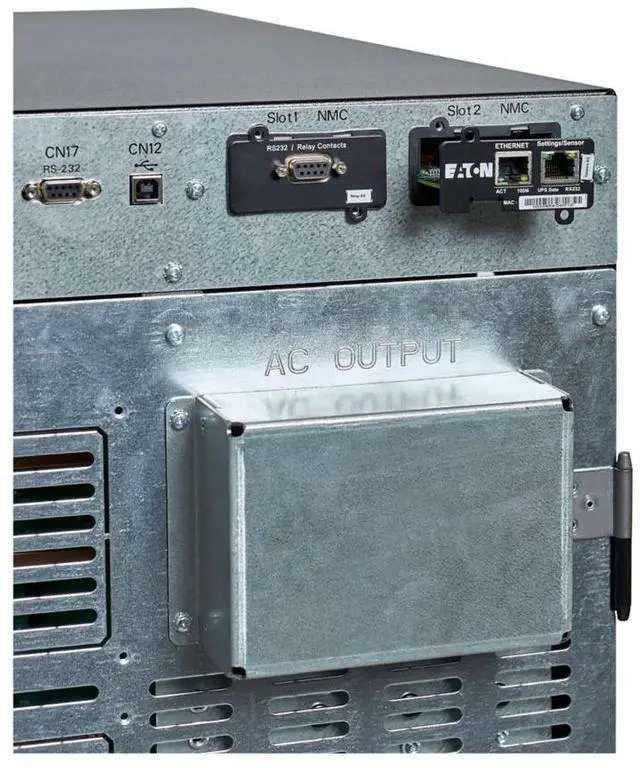

Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
Gigabit Network Card part number: NETWORK-M2
Modbus card part number: INDGW-M2
Relay card part number: RELAY-MS
Temperature range 0° to 40°C (32° to 104°F)
Relative humidity 5-95% non-condensing
Internal bypass Yes
Auto shutdown function Yes
Color Black/silver
Hot swap power Yes

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Eaton 9PXM12S20K

Model
Brand	EATON
Model	9PXM12S20K

Input
Input Voltage Range	208 V AC - 240 V AC

Output
Outlets	Hardwired

Additional Information
First Listed on Newegg	October 25, 2019
