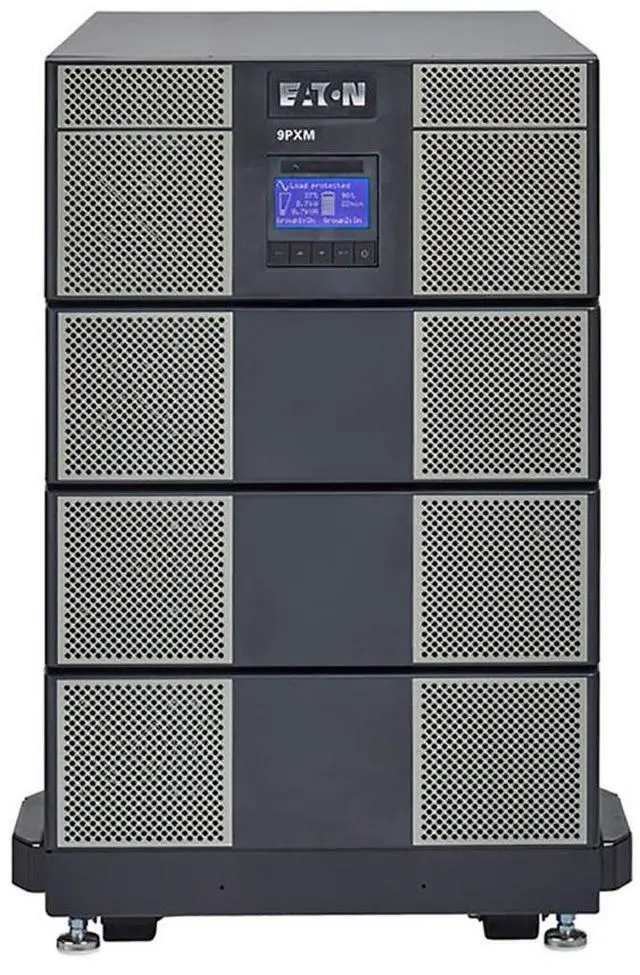

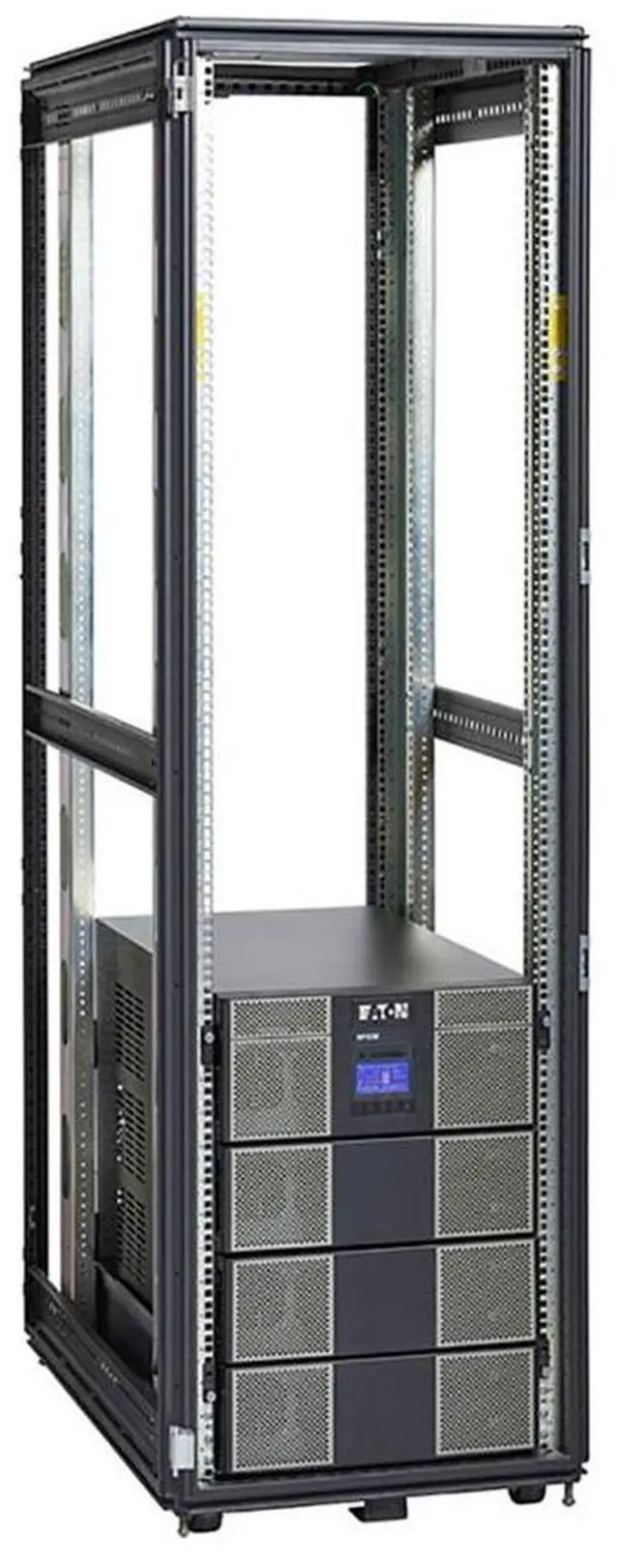

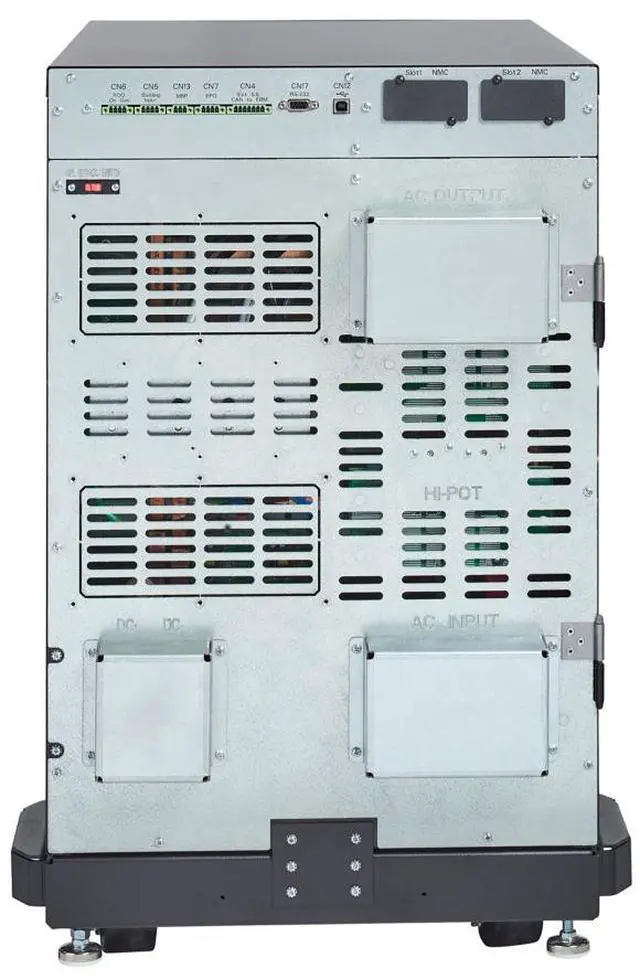

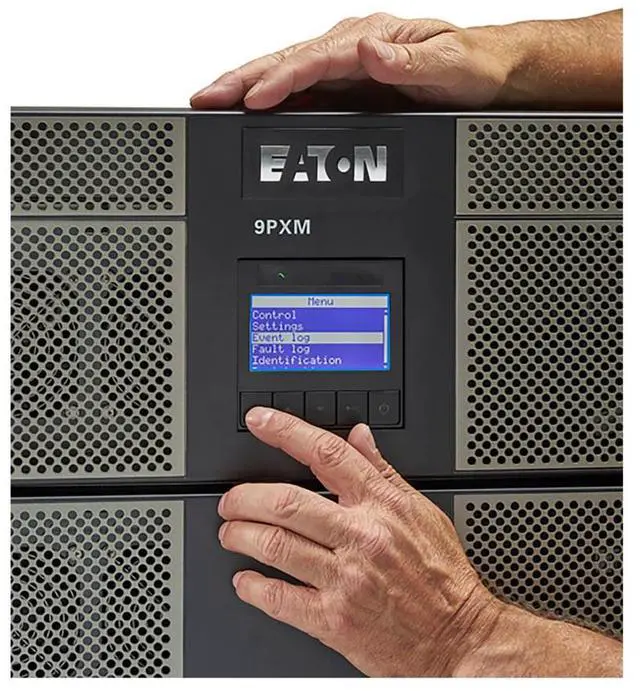

Eaton 9PXM8S12K 9PXM UPS, 12 kVA scalable to 16 kVA, Hardwired input, Hardwired output, 208-240V, Rack/Tower, 14U
- Product Name Eaton 9PXM UPS
- Catalog Number 9PXM8S12K
- UPC 743172091543
- Product Length/Depth 34.5 in
- Product Height 25 in
- Product Width 17.5 in
- Product Weight 437 lb
- Compliances TAA Compliant, FCC Compliant
- Certifications IEC Rated, cULus Listed
- Product Type UPS
- Input connection Hardwired
- Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- Input power factor >0.99 typical
- Input frequency range 60 Hz: 50–70 Hz
- Receptacle Hardwired
- Output frequency 60 Hz
- Voltage 120/208V
- Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- VA rating 12 kVA
- Wattage 10.8 kW
- Output waveform True sine wave
- Output power factor 0.9
- Topology Online/Double-conversion

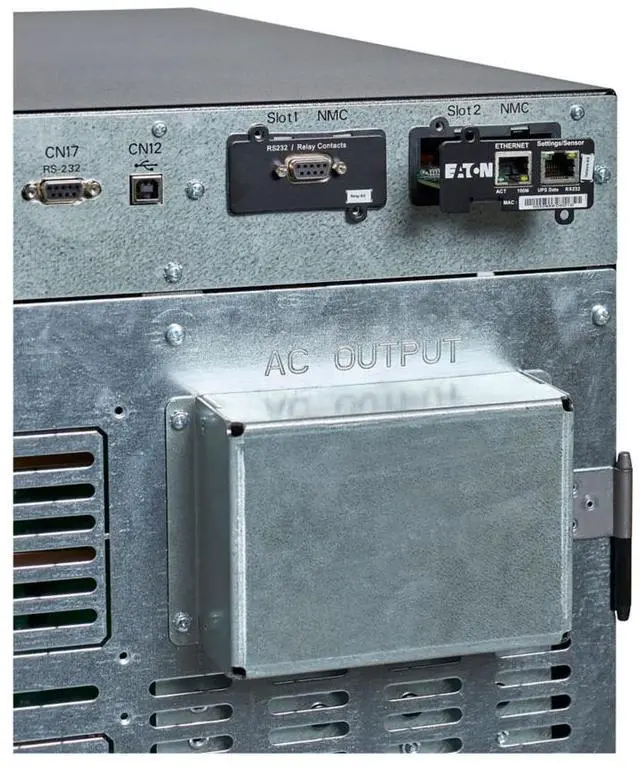

- Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
- Gigabit Network Card part number: NETWORK-M2
- Modbus card part number: INDGW-M2
- Relay card part number: RELAY-MS
- Temperature range 0° to 40°C (32° to 104°F)
- Relative humidity 5-95% non-condensing
+
+
Learn more about the Eaton 9PXM8S12K
| Brand | EATON |
|---|---|
| Model | 9PXM8S12K |
| Input Voltage Range | 208 V AC - 240 V AC |
|---|
| Outlets | Hardwired |
|---|
| First Listed on Newegg | September 22, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton 9PXM8S12K is a 12 kVA (10.8 kW) online, double-conversion UPS that can scale to 16 kVA, suited to server rooms and IT environments needing hardwired backup power and room to expand.
Recommended For
- IT teams running a small or medium data center, server room, or edge site that need online, double-conversion backup and a modular system that can scale with changing loads.
- Organizations protecting critical network closets, communications equipment, or 911 and call-center systems that need centralized backup power in a rack/tower installation.
- Retail, banking, and financial operations backing up point-of-sale, back-office, or other business-critical equipment where modular capacity and redundancy are useful.
- Facilities expecting their protected load or required runtime to grow and wanting to add power or battery modules rather than replace the whole UPS.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Backup power for hardwired equipment using 208–240 V AC input and 208 V AC output |
| Input And Output | 208–240 V AC input with 208 V AC output |
| Power Capacity | 9,600 W |
| Outlets And Connector | Hardwired outlets; IEC 320 connector type |
| Model Identifiers | Eaton; model 9PXM8S12K (model name also lists 13228465) |
| Color | Multicolor |
| Package Dimensions | 35 × 18 × 25 in (L × W × H) |
