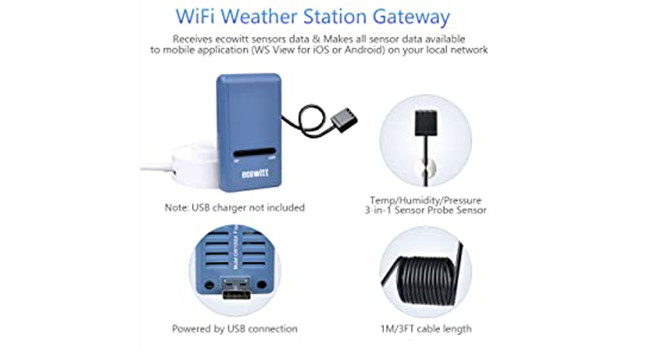

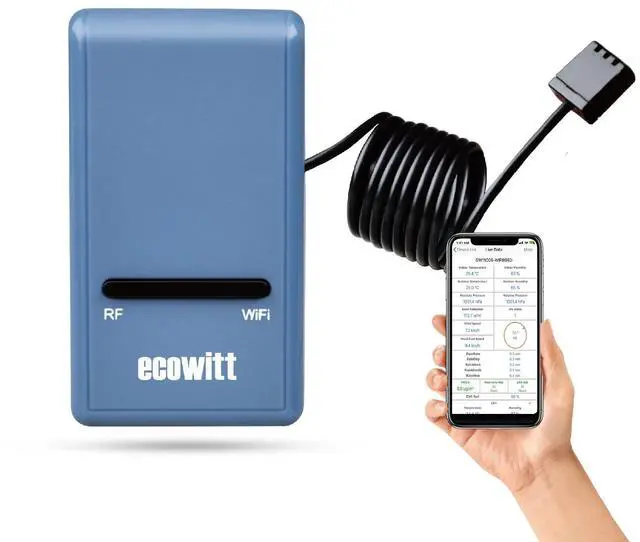

ECOWITT GW1100 Wi-Fi Gateway

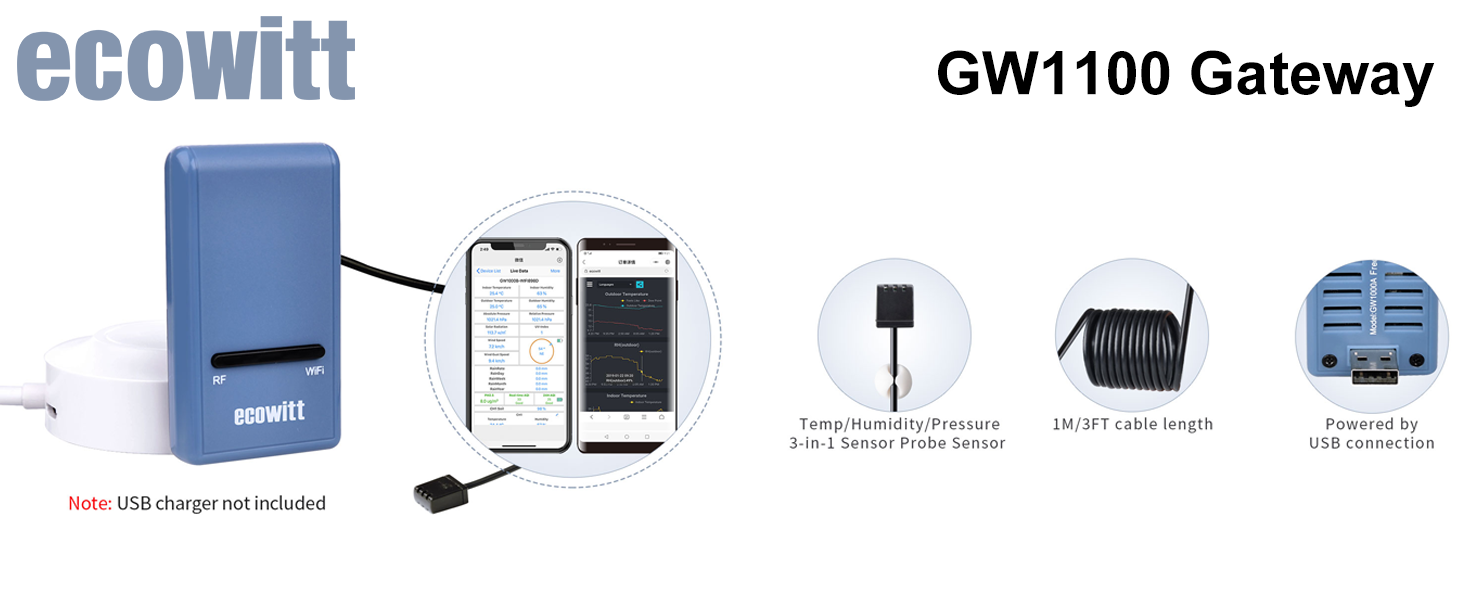

- Built-in temperature, humidity and barometric pressure 3-in-1 probe sensor.
- It integrates all different types of sensors ( sold separately) and publishes the collected data to Ecowitt's cloud server.

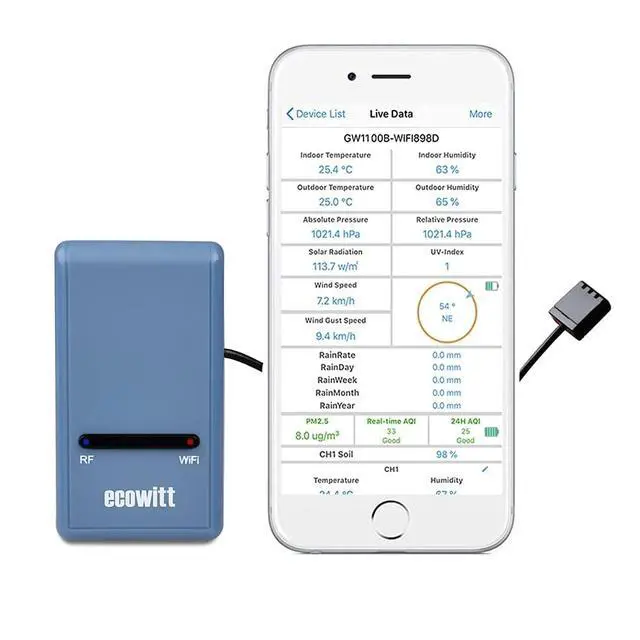

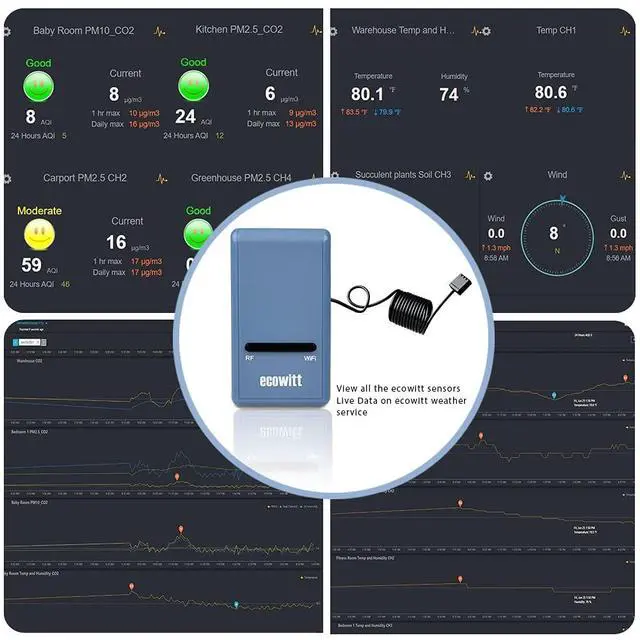

- View collected live data, manage sensor calibration setup and manage sensor selection on Ecowitt APP.
Specifications
Comparision between Ecowitt Gatweays(GW1100,GW2000, HP2560, WN1980):
 GW1100 Wi-Fi Gateway |  GW2000 Wi-Fi Hub |  GW1200 IoT Wi-Fi Gateway |  HP2560 Weather Station |  WN1980 Weather Station | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Ways of linking to Internet | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
Display | NO Display | NO Display | NO Display | 7'' TFT | 5.3'' Color LCD |
Wi-Fi Provisioning Options | ecowitt APP or Website | APP/Website/Ethernet cable | ecowitt APP or Website | On Display Console | ecowitt APP or Website |
Keys | Physical Button | Physical Button | Physical Button | Touch Buttons | Touch Screen |
Power Supply Options | USB Power Cord | USB Power Cord | USB Power Cord | Power cord | Power cord / Batteries(backup) |
SD Card | Don't Support | Don't Support | Don't Support | Up to 32GB (Card NOT Included) | Don't Support |
Measure Indoor Temperature | ? | ? | ? | ? | ? |
Measure Indoor Humidity | ? | ? | ? | ? | ? |
Measure Barometric Pressure | ? | ? | ? | ? | ? |
Support Cloud Services | ? | ? | ? | ? | ? |
Support IoT Devices | ? | ? | ? | ? | ? |
Wired LAN | ? | ? | ? | ? | ? |

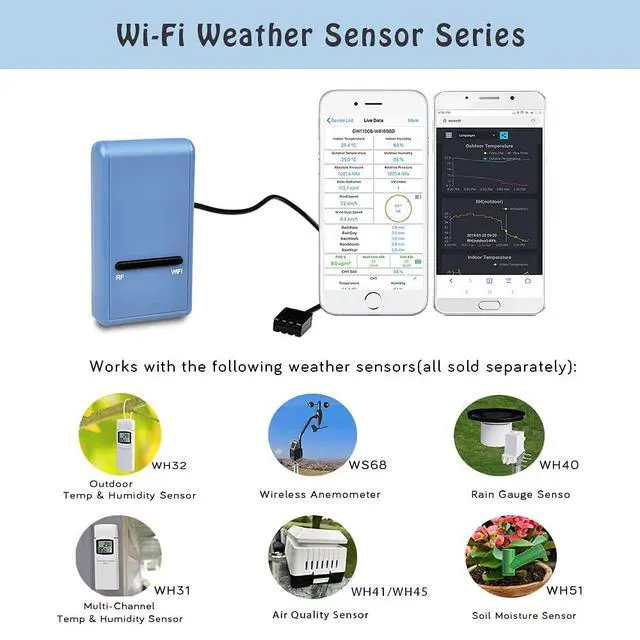

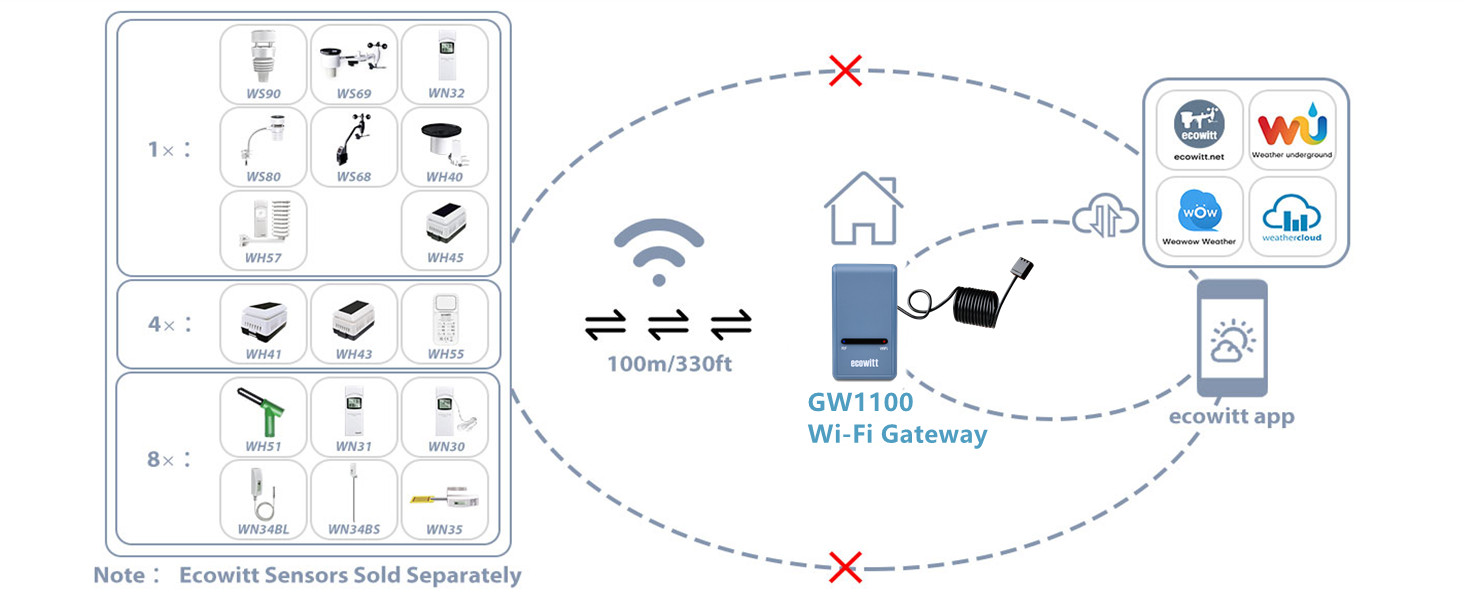

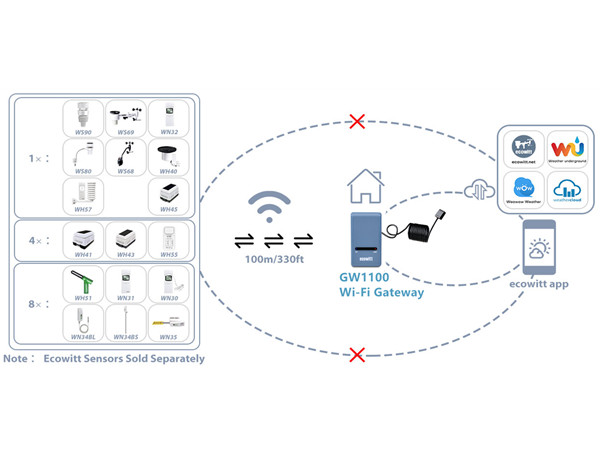

What sensors could respectively pair with Ecowitt Gateways and how many channels
GW1100 Wi-Fi Gateway | GW2000 Wi-Fi Hub | GW1200 IoT Wi-Fi Gateway | HP2560 Weather Station | WN1980 Weather Station | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
WS90 Outdoor Sensor | 1 | 1 | 1 | 1 | 1 |
WS68/WS85 Anemometer Sensor | 1 | 1 | 1 | 1 | 1 |
WH40 Rain Gauge Sensor | 1 | 1 | 1 | 1 | 1 |
WN32 Outdoor Temp Sensor | 1 | 1 | 1 | 1 | 1 |
WN30/31 Thermo-Humidity Sensor | 8 | 8 | 8 | 8 | 8 |
WH51/WH51L SoilMoisture Sensor | 8 | 8 | 8 | 8 | 8 |
WH41/43 Indoor PM2.5 Sensor | 4 | 4 | 4 | 4 | 4 |
WH45 Indoor Air Quality Sensor | 1 | 1 | 1 | 1 | 1 |
WH57 Lightning Detector Sensor | 1 | 1 | 1 | 1 | 1 |
WH55 Water Leaking Dectector | 4 | 4 | 4 | 4 | 4 |
WN34BD/L/S Temp Sensor | 8 | 8 | 8 | 8 | 8 |
IoT Devices ( WFC01/AC1100 ) | ? | 16 | 16 | 16 | 16 |
Package Content
- ? 1 * GW1100 Wi-Fi Gateway
- ? 1 * USB extension cable for powering the gateway
- ? 1 * Cable clip
- ? 1 * GW1100 Quick Start
- ? 1 * Manual
Publish to Internet Weather Services
- Weather Underground
- WOW
- Weather Cloud
- Ecowitt Weather
- Custom sites (using either Wunderground or Ecowitt protocol.)
ECOWITT GW1100 Wi-Fi Gateway
- Built-in temperature, humidity and barometric pressure 3-in-1 probe sensor.
- It integrates all different types of sensors ( sold separately) and publishes the collected data to Ecowitt's cloud server.
- View collected live data, manage sensor calibration setup and manage sensor selection on Ecowitt APP.
Specifications
| Power Supply | DC 5V 1A |
|---|---|

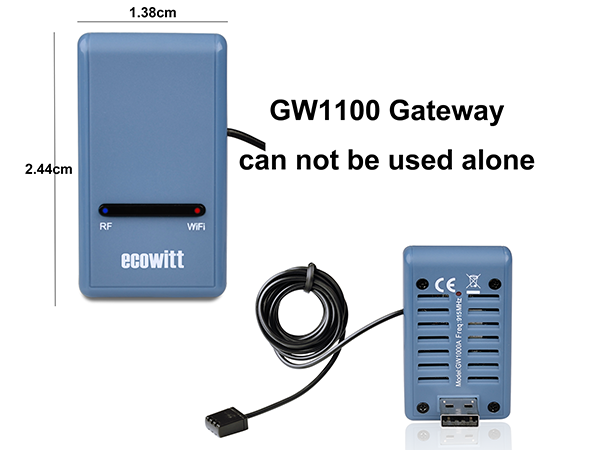

| Size | 62 x 35 x 12 mm / 2.44 x 1.38 x 0.47 inch |
| Cable Length | 1m / 3ft |
| Frequency | 915 MHz ( The items sold in North American require 915 MHz ) |
| Wireless Range | 300FT/100M in open areas when linked to external sensors |
| Temperature Range | -10°C to 60°C (14°F to 140°F) |
| Temperature Resolution | 0.1°C or 0.1°F |
| Temperature Accuracy | ± 1°C |
| Humidity Range | 1% ~ 99% |
| Humidity Resolution | 1% |
| Humidity Accuracy | ± 5% |
| Barometric Pressure Range | 300 – 1100 hPa (8.85 – 32.5 inHg) |
| Barometric Pressure Accuracy | ±3 hPa in 700 – 1100 hPa range |
| Barometric Pressure Resolution | 0.1 hPa (0.01 inHg) |
Comparision between Ecowitt Gatweays(GW1100,GW2000, HP2560, WN1980):
GW1100 Wi-Fi Gateway | GW2000 Wi-Fi Hub | GW1200 IoT Wi-Fi Gateway | HP2560 Weather Station | WN1980 Weather Station |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Ways of linking to Internet | ||||
| Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
| Display | ||||
| NO Display | NO Display | NO Display | 7'' TFT | 5.3'' Color LCD |
| Wi-Fi Provisioning Options | ||||
| ecowitt APP or Website | APP/Website/Ethernet cable | ecowitt APP or Website | On Display Console | ecowitt APP or Website |
| Keys | ||||
| Physical Button | Physical Button | Physical Button | Touch Buttons | Touch Screen |
| Power Supply Options | ||||
| USB Power Cord | USB Power Cord | USB Power Cord | Power cord | Power cord / Batteries(backup) |
| SD Card | ||||
| Don't Support | Don't Support | Don't Support | Up to 32GB (Card NOT Included) | Don't Support |
| Measure Indoor Temperature | ||||
| ? | ? | ? | ? | ? |
| Measure Indoor Humidity | ||||
| ? | ? | ? | ? | ? |
| Measure Barometric Pressure | ||||
| ? | ? | ? | ? | ? |
| Support Cloud Services | ||||
| ? | ? | ? | ? | ? |
| Support IoT Devices | ||||
| ? | ? | ? | ? | ? |
| Wired LAN | ||||
| ? | ? | ? | ? | ? |
What sensors could respectively pair with Ecowitt Gateways and how many channels
GW1100 Wi-Fi Gateway | GW2000 Wi-Fi Hub | GW1200 IoT Wi-Fi Gateway | HP2560 Weather Station | WN1980 Weather Station |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| WS90 Outdoor Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WS68/WS85 Anemometer Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WH40 Rain Gauge Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WN32 Outdoor Temp Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WN30/31 Thermo-Humidity Sensor | ||||
| 8 | 8 | 8 | 8 | 8 |
| WH51/WH51L SoilMoisture Sensor | ||||
| 8 | 8 | 8 | 8 | 8 |
| WH41/43 Indoor PM2.5 Sensor | ||||
| 4 | 4 | 4 | 4 | 4 |
| WH45 Indoor Air Quality Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WH57 Lightning Detector Sensor | ||||
| 1 | 1 | 1 | 1 | 1 |
| WH55 Water Leaking Dectector | ||||
| 4 | 4 | 4 | 4 | 4 |
| WN34BD/L/S Temp Sensor | ||||
| 8 | 8 | 8 | 8 | 8 |
| IoT Devices ( WFC01/AC1100 ) | ||||
| ? | 16 | 16 | 16 | 16 |
Package Content
- ? 1 * GW1100 Wi-Fi Gateway
- ? 1 * USB extension cable for powering the gateway
- ? 1 * Cable clip
- ? 1 * GW1100 Quick Start
- ? 1 * Manual
Publish to Internet Weather Services
- Weather Underground
- WOW
- Weather Cloud
- Ecowitt Weather
- Custom sites (using either Wunderground or Ecowitt protocol.)
