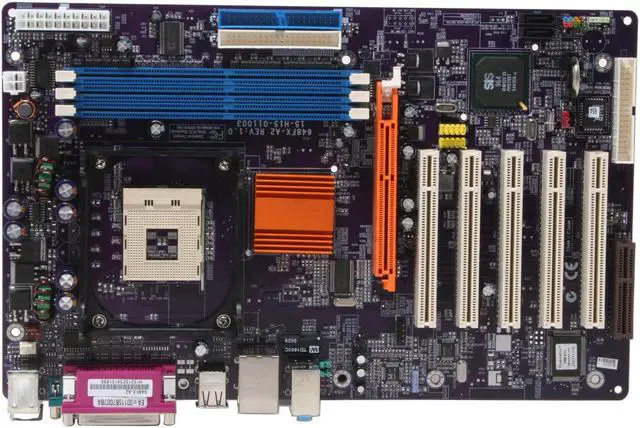

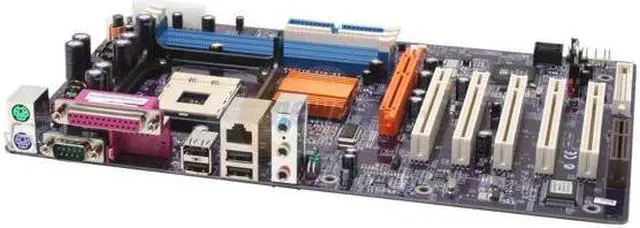

ECS 648FX-A2 1.0 Socket 478 SiS 648FX ATX Intel Motherboard
- SiS 648FX
- Pentium 4 / Celeron
- DDR 400
Specs
Reviews (31)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) 648FX-A2 1.0
| Brand | ECS |
|---|---|
| Model | 648FX-A2 1.0 |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | SiS 648FX |
|---|---|
| South Bridge | SiS 964 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 3x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | DDR DIMM socket support up to 3 GB ( DDR400 up to 2 GB ) |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201BL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 7.5" |
| Power Pin | 20 Pin |
| First Listed on Newegg | December 08, 2005 |
|---|
