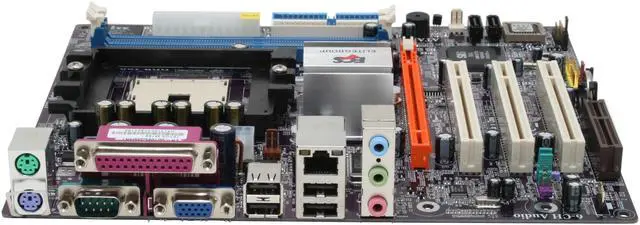

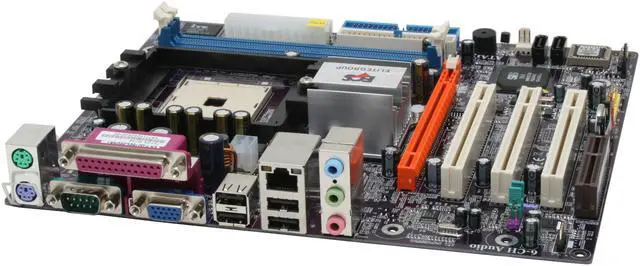

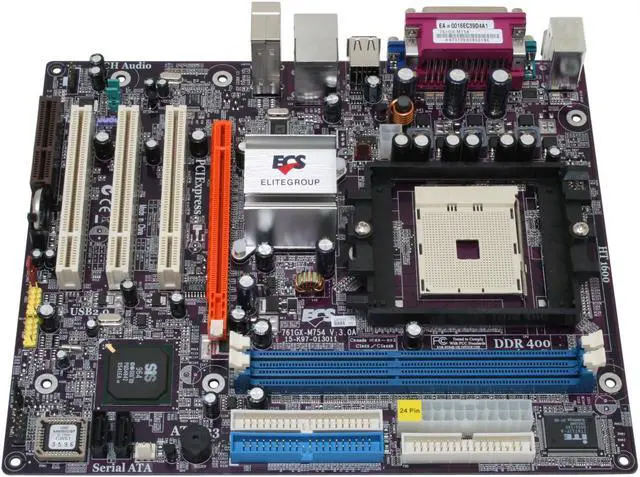

ECS 761GX-M754 (3.0A) 754 SiS 761 GX Micro ATX AMD Motherboard
- SiS 761 GX
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) 761GX-M754 (3.0A)
| Brand | ECS |
|---|---|
| Model | 761GX-M754 (3.0A) |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | SiS 761 GX |
|---|---|
| South Bridge | SiS 964 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | SiS Mirage1 Graphics |
|---|
| Audio Chipset | ADI AD1888 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.1" |
| Power Pin | 24 Pin |

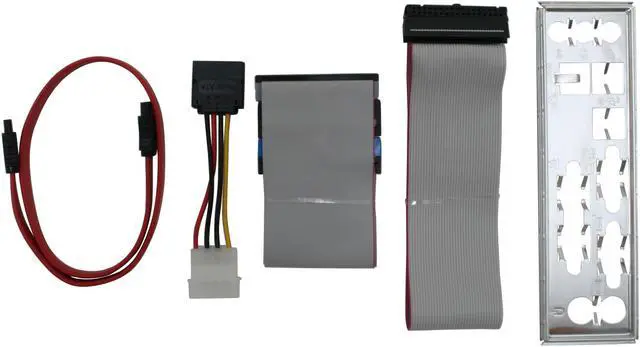

| Package Contents | 761GX-M754 (3.0A) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | November 09, 2006 |
|---|
