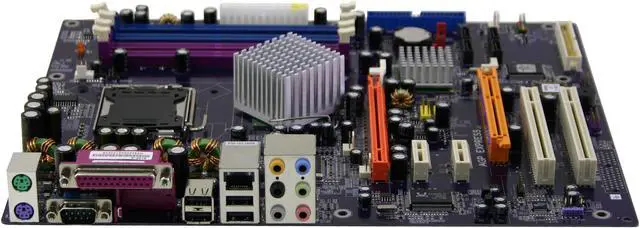

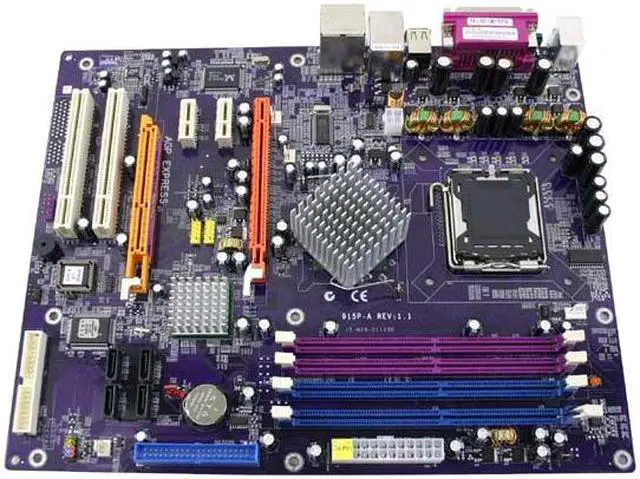

ECS 915P-A (1.1) LGA 775 Intel 915P ATX Intel Motherboard
- Intel 915P
- Pentium 4 Prescott / Celeron D
- DDR2 533 / DDR 400
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) 915P-A (1.1)
| Brand | ECS |
|---|---|
| Model | 915P-A (1.1) |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 915P |
|---|---|
| South Bridge | Intel ICH6 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x184pin + 2x240pin |
|---|---|
| Memory Standard | DDR2 533 / DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | C-Media CMI9880L |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8110S |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Date First Available | July 20, 2004 |
|---|
