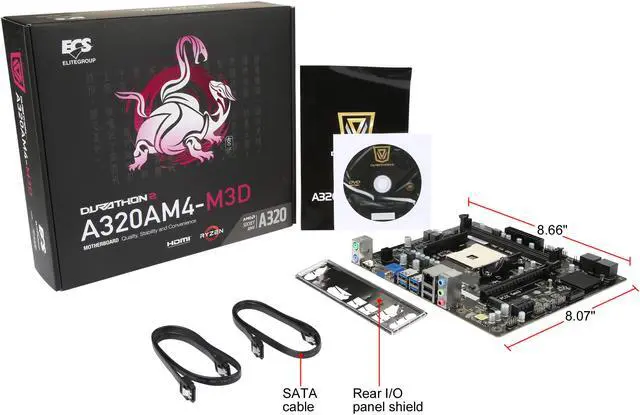

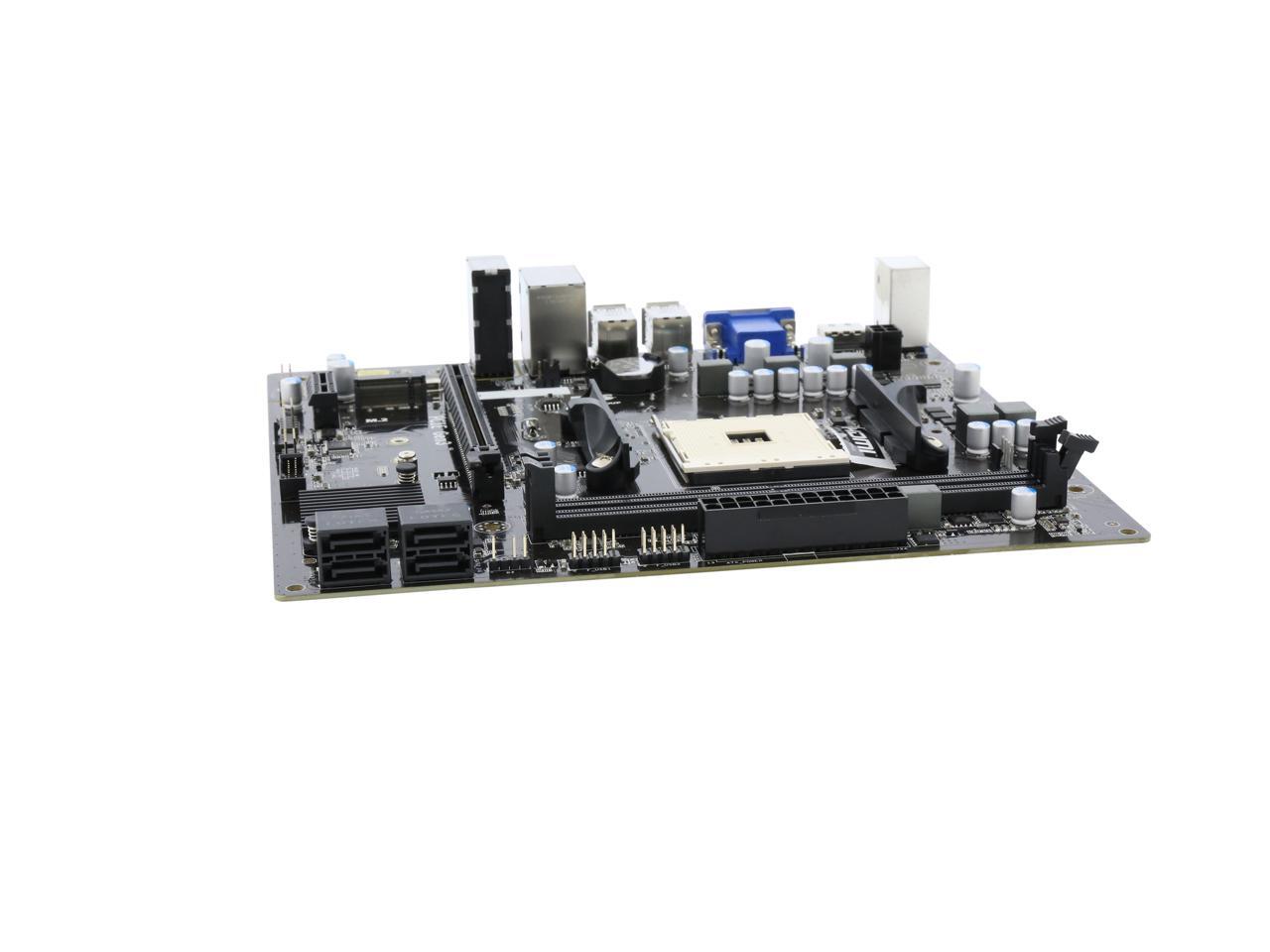

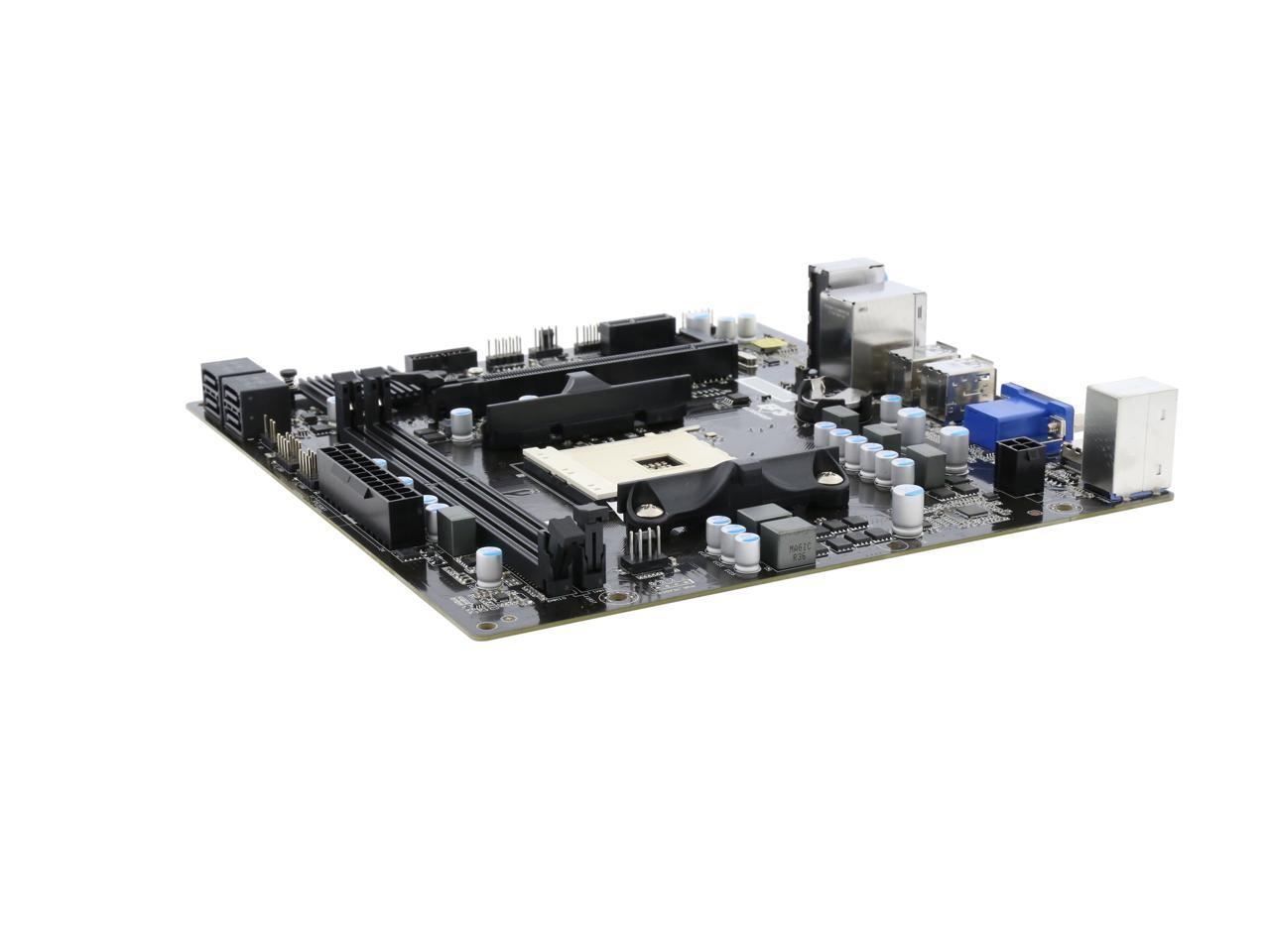

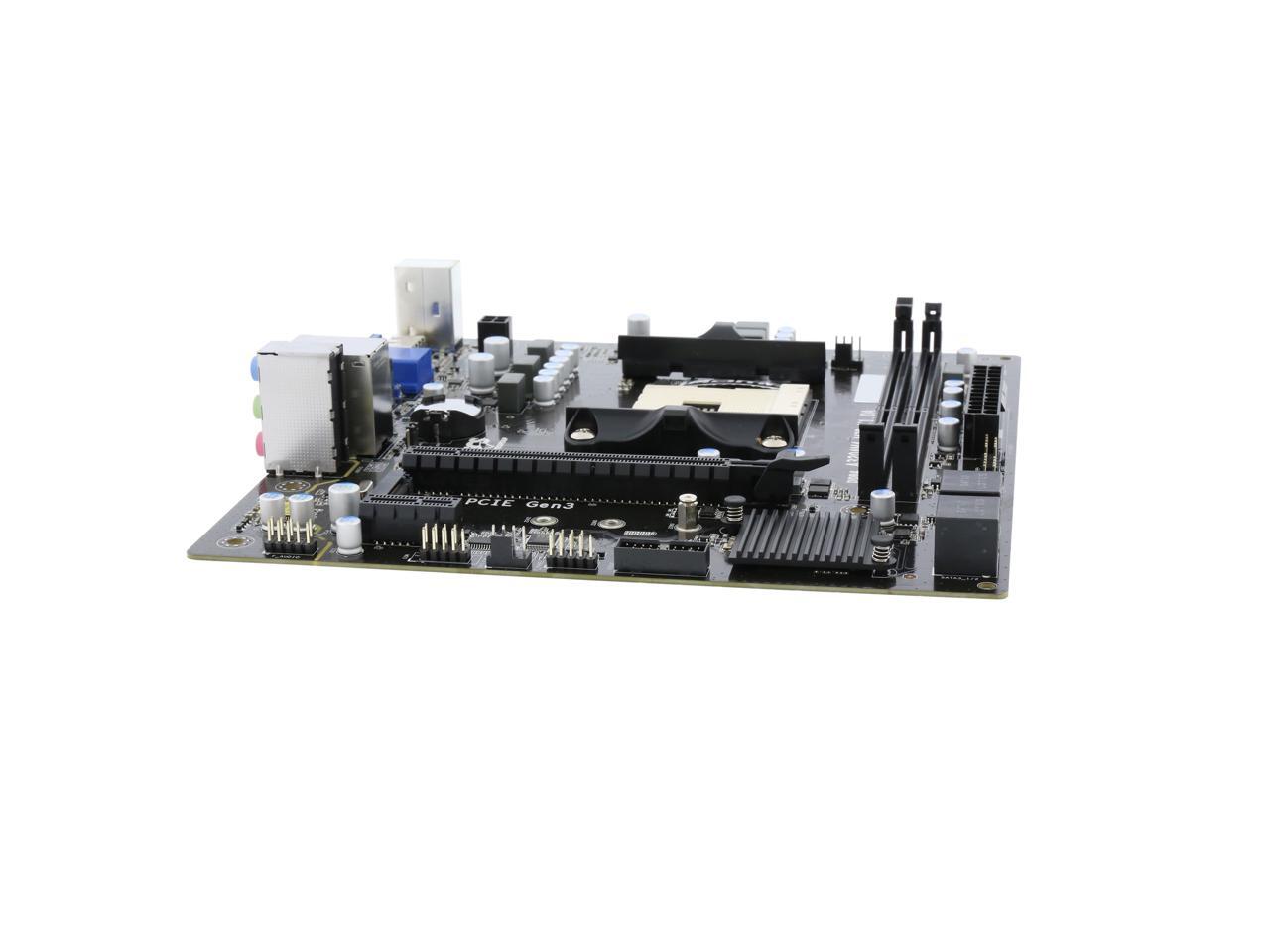

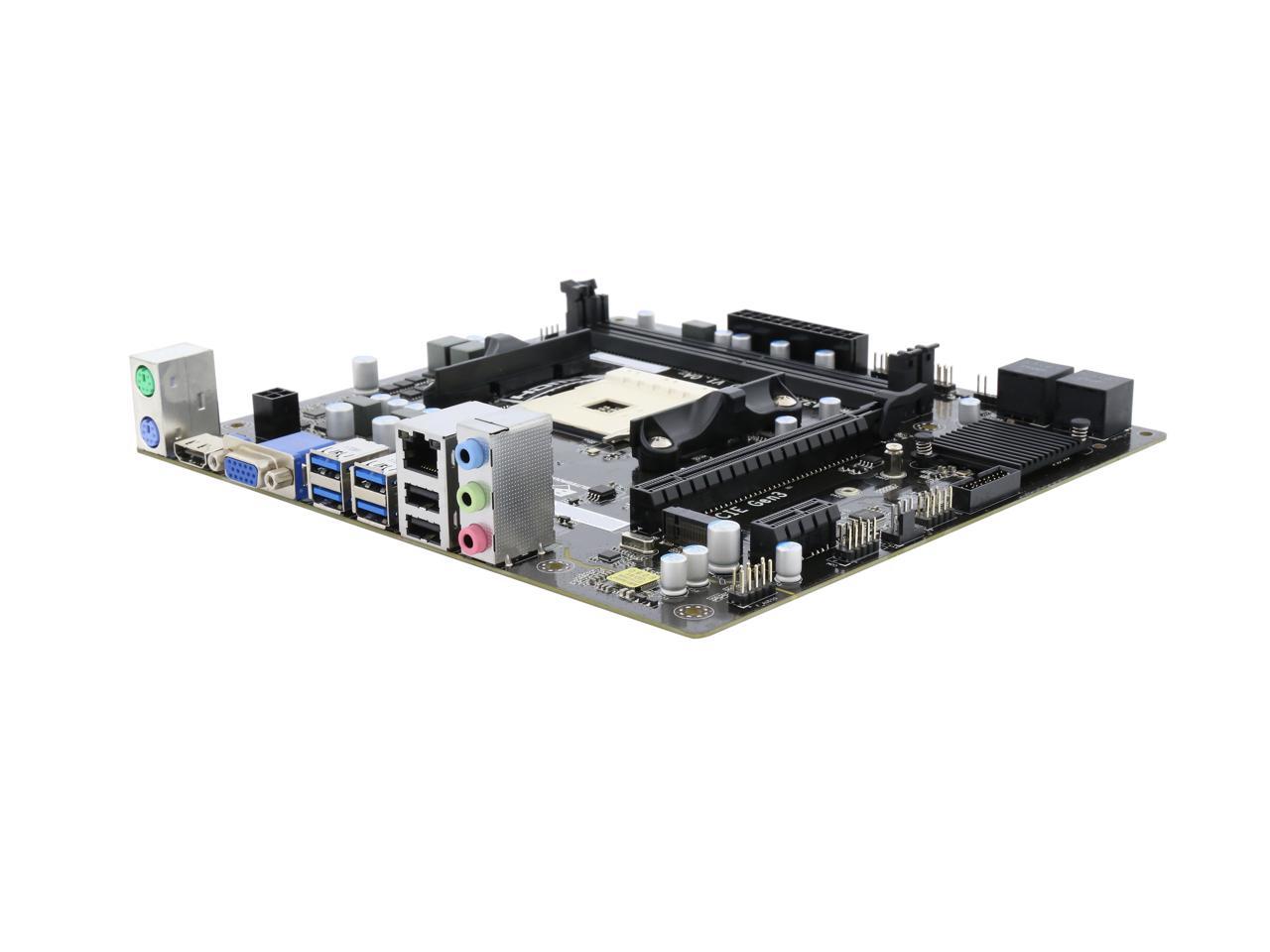

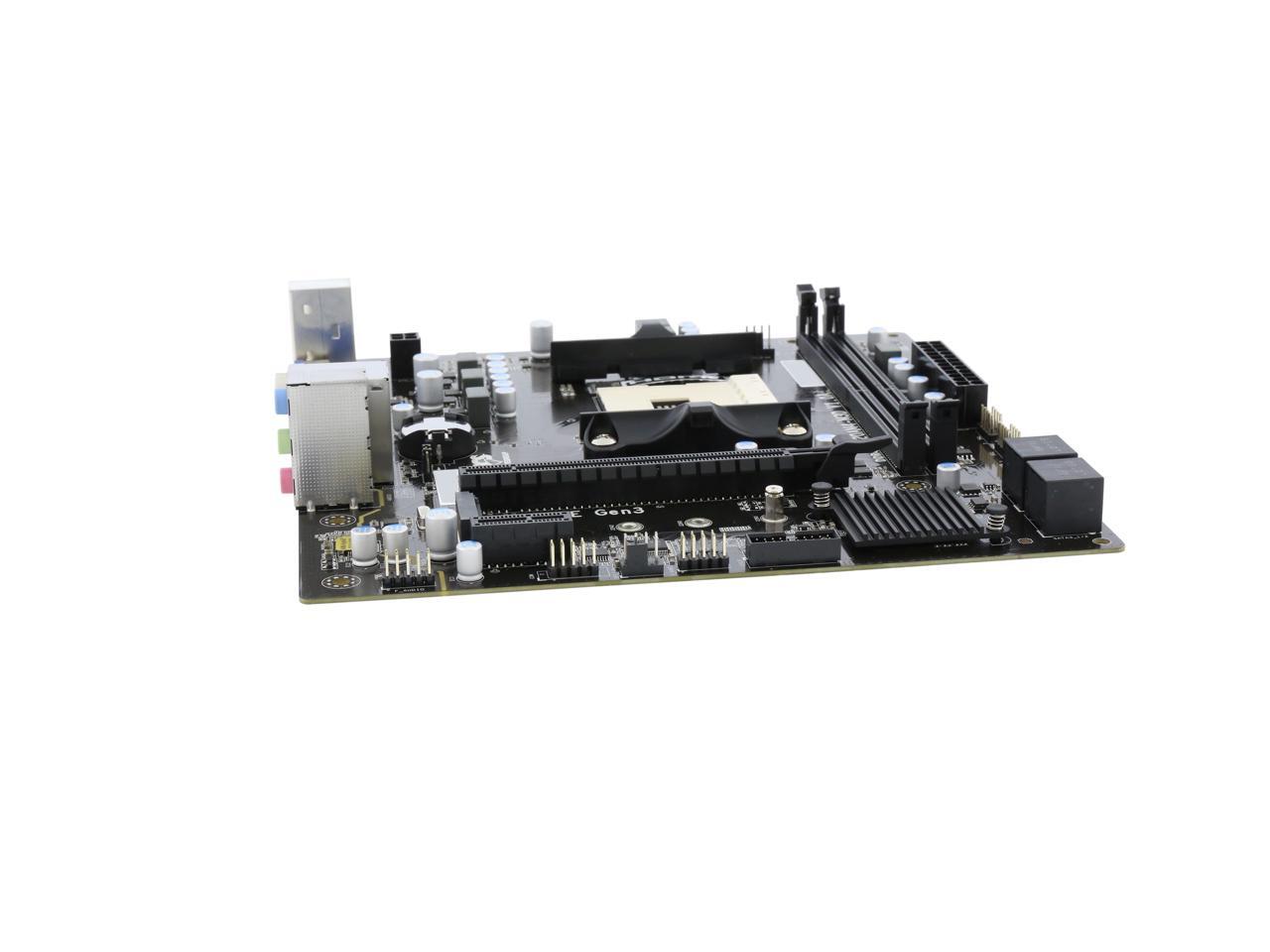

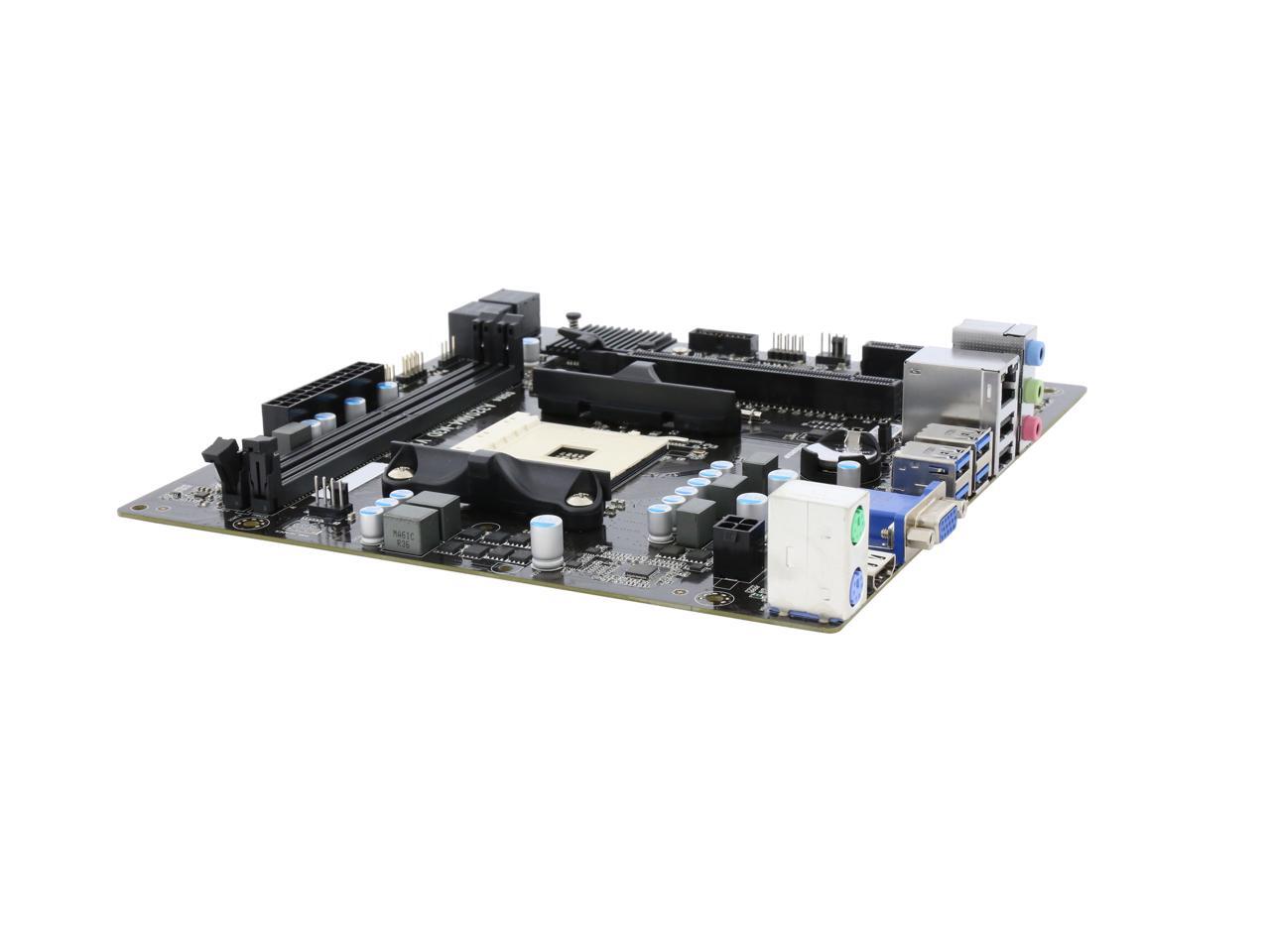

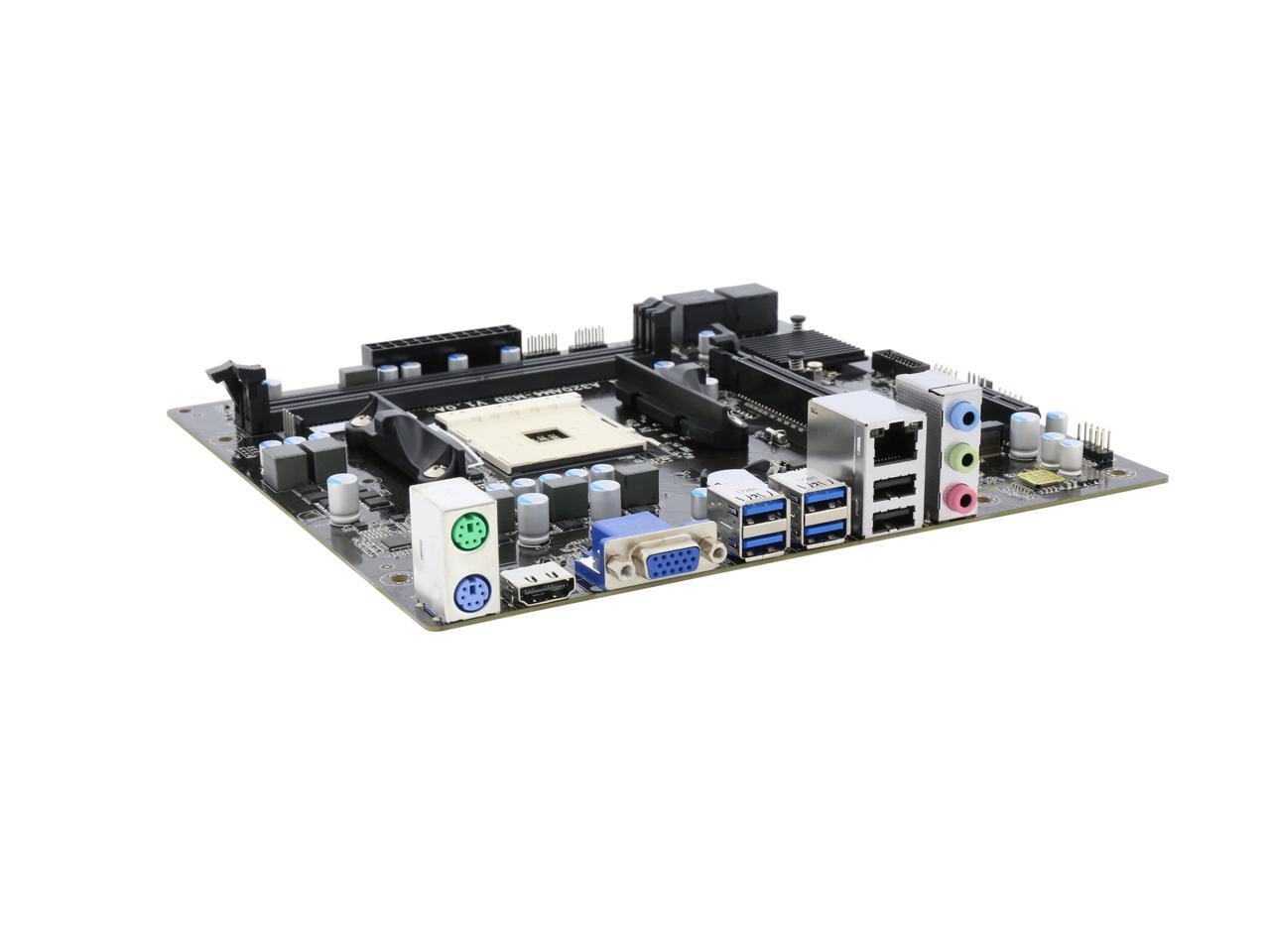

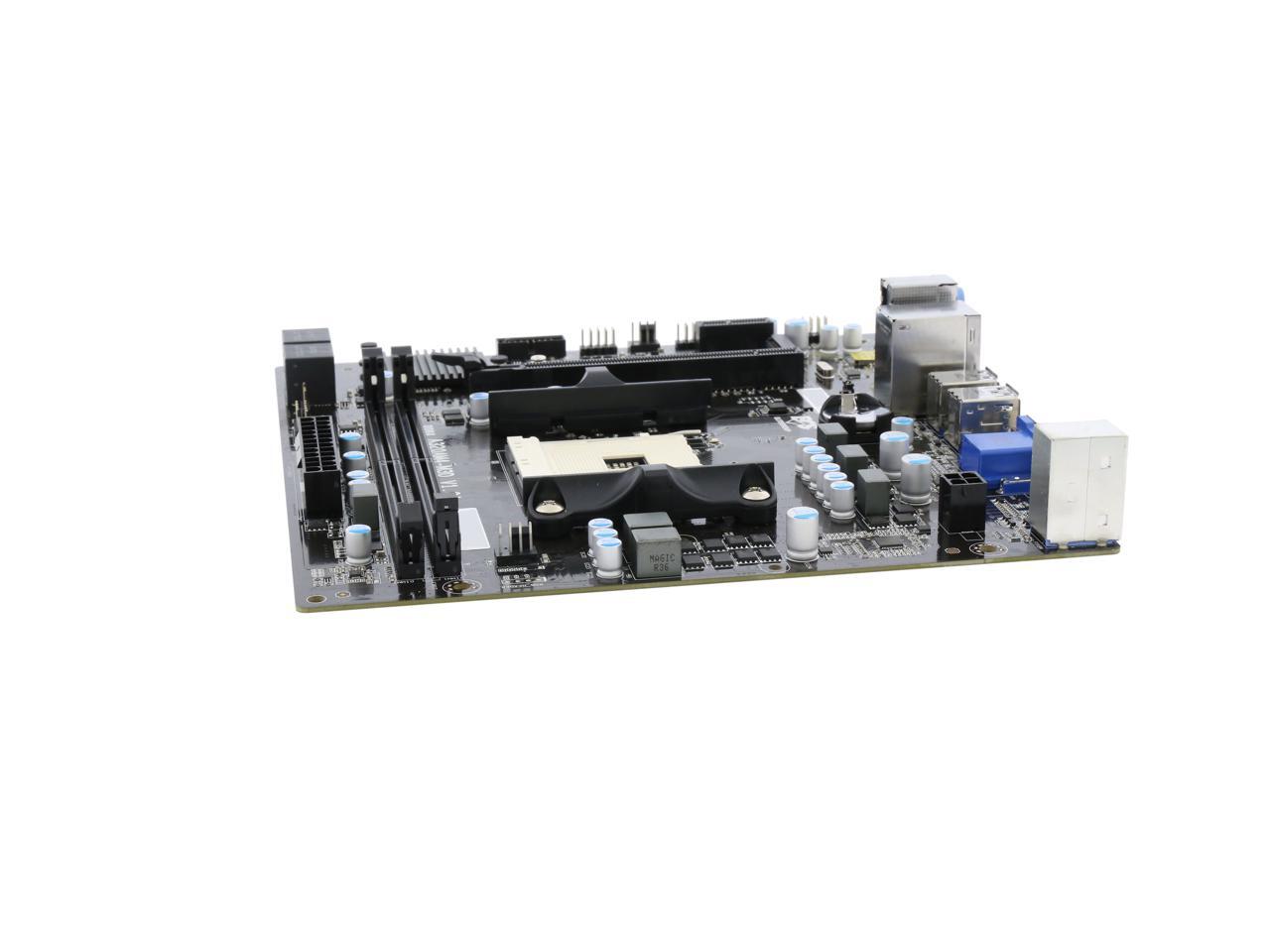

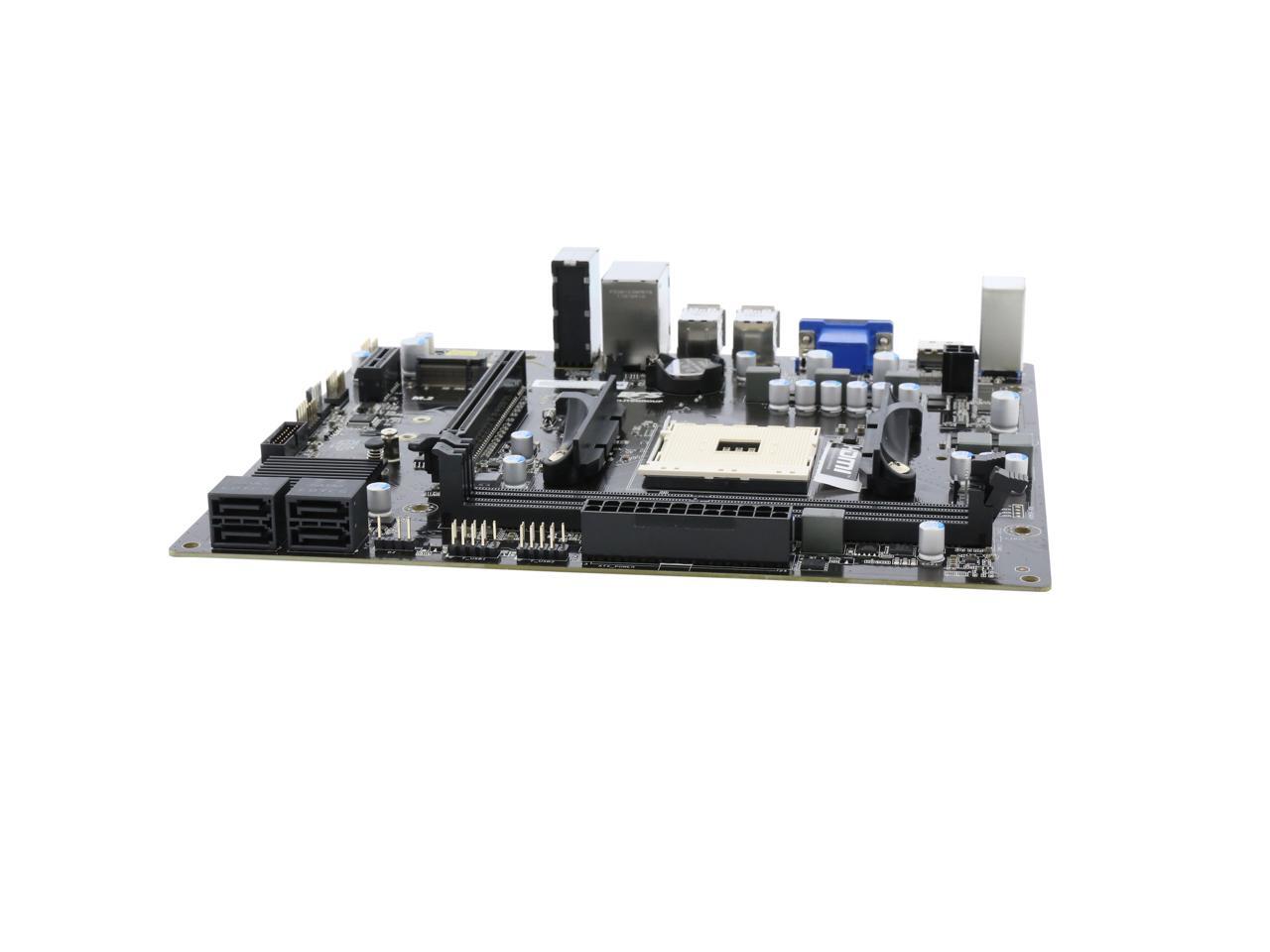

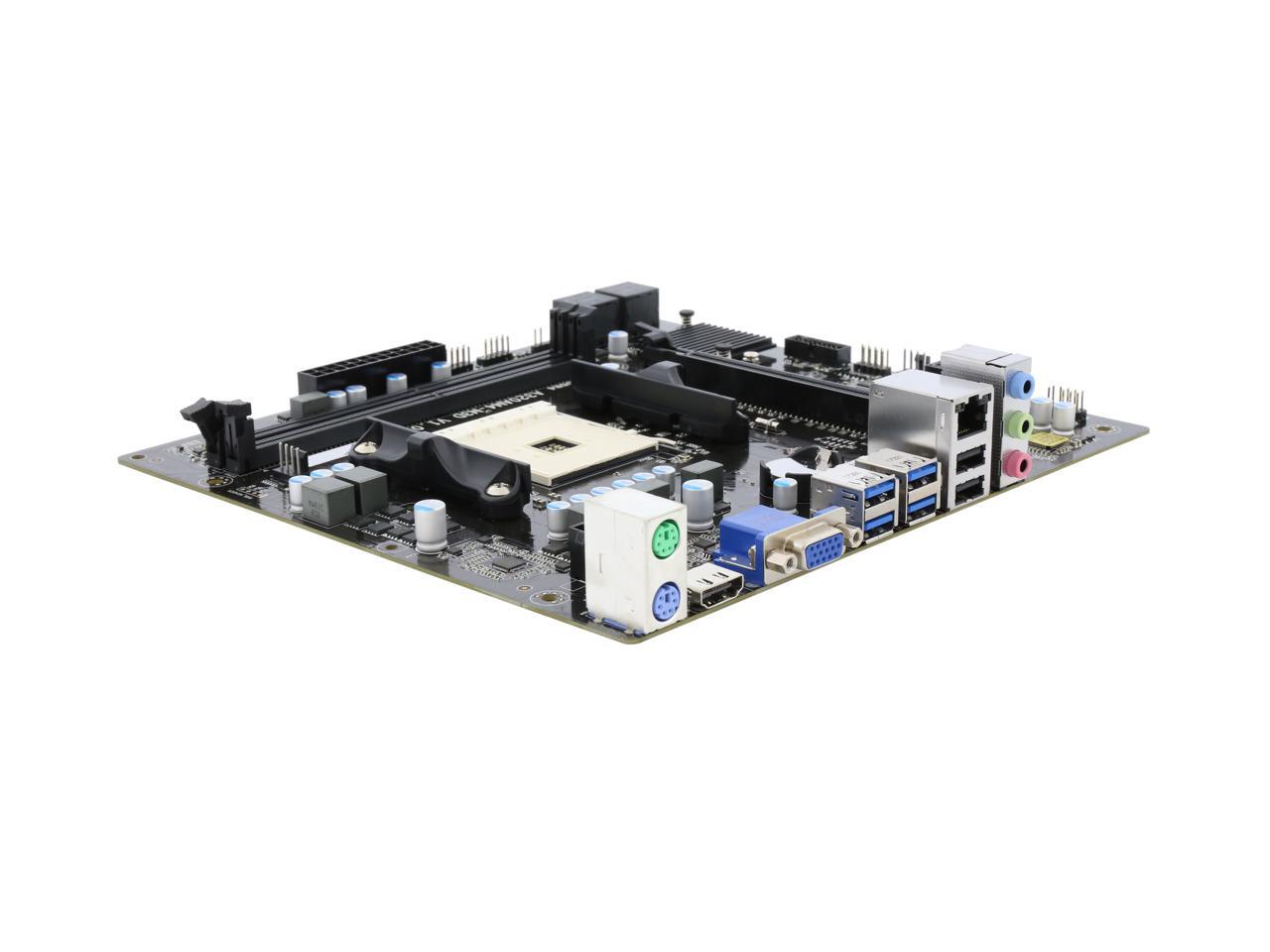

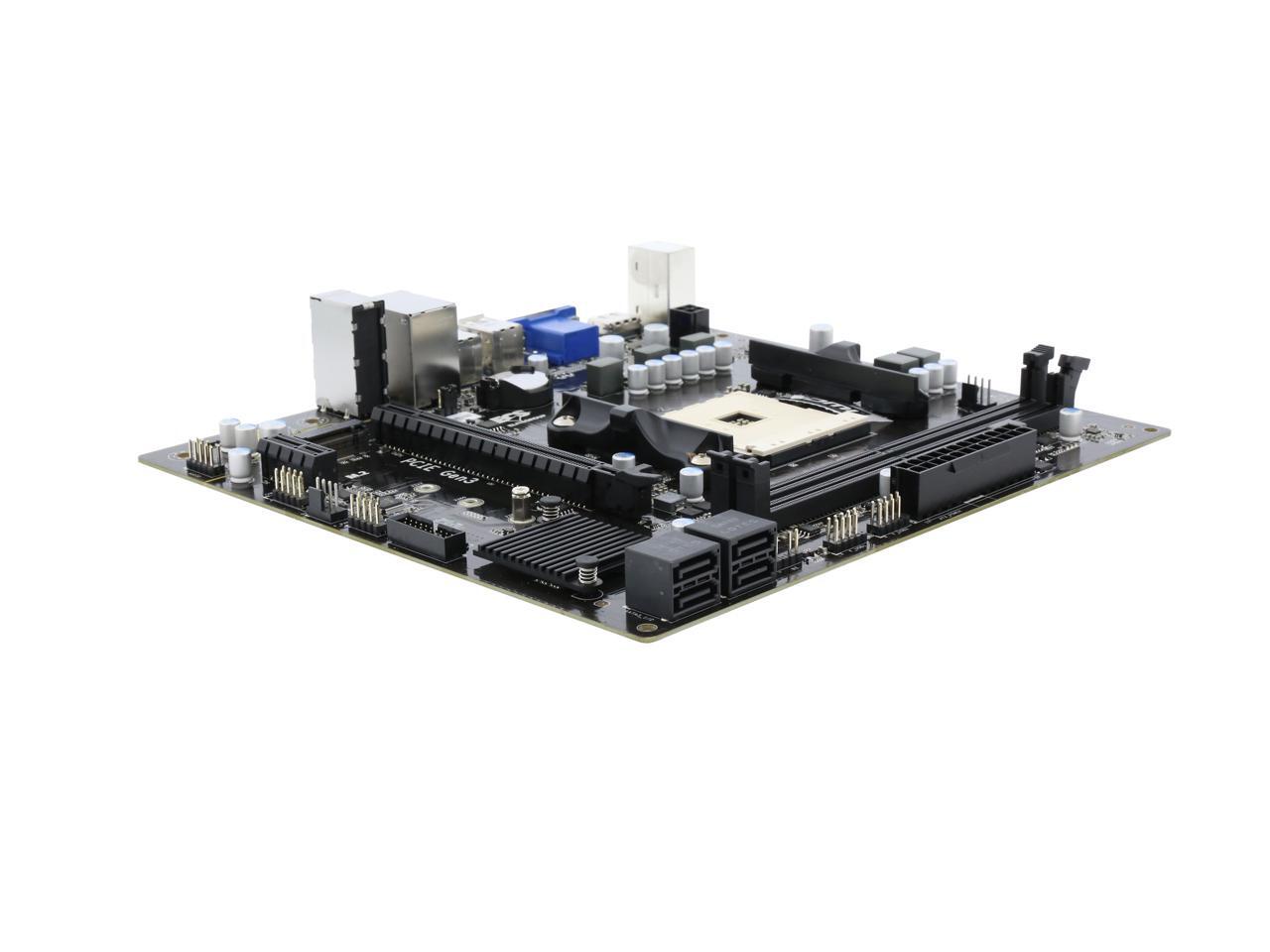

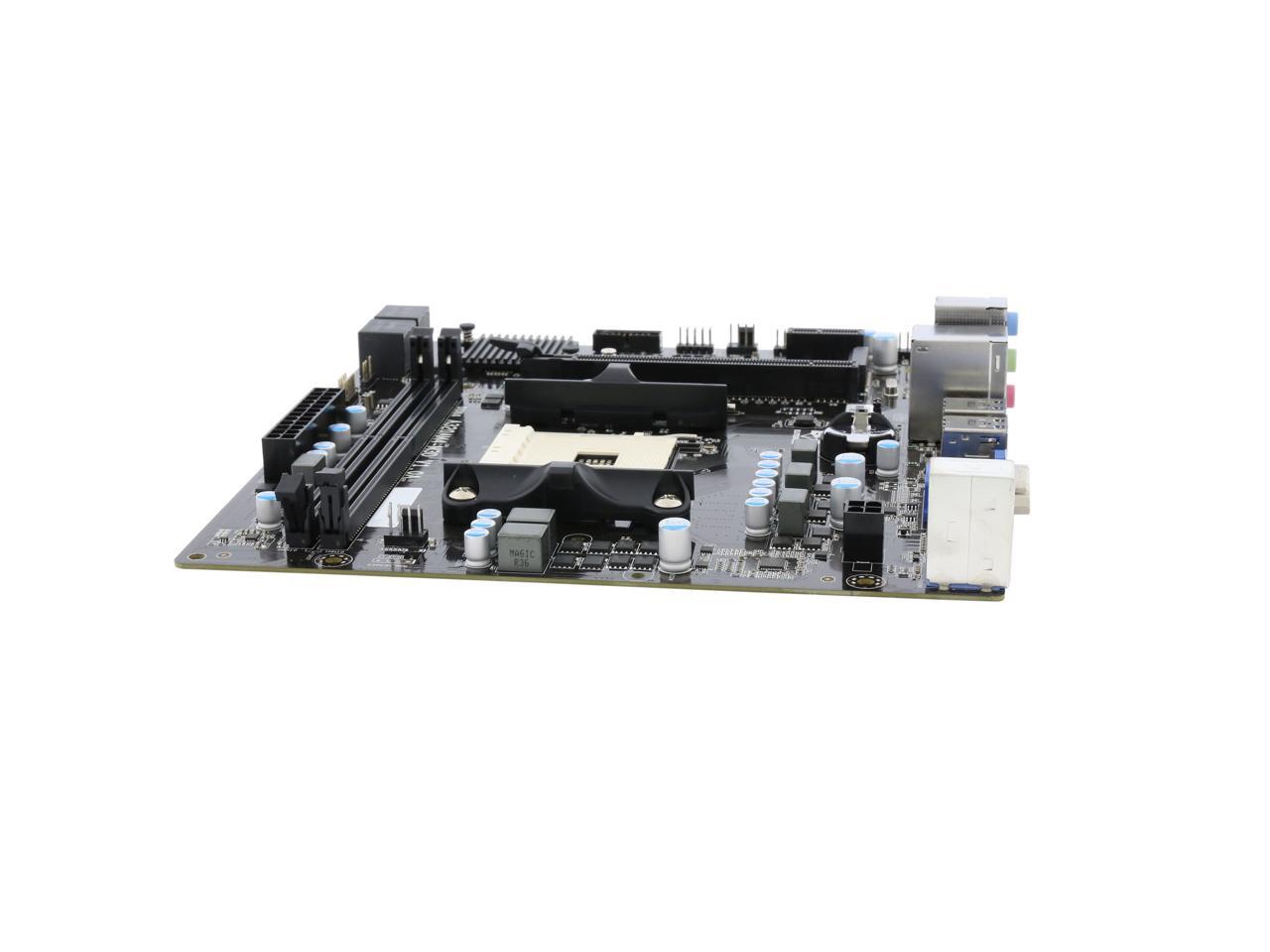

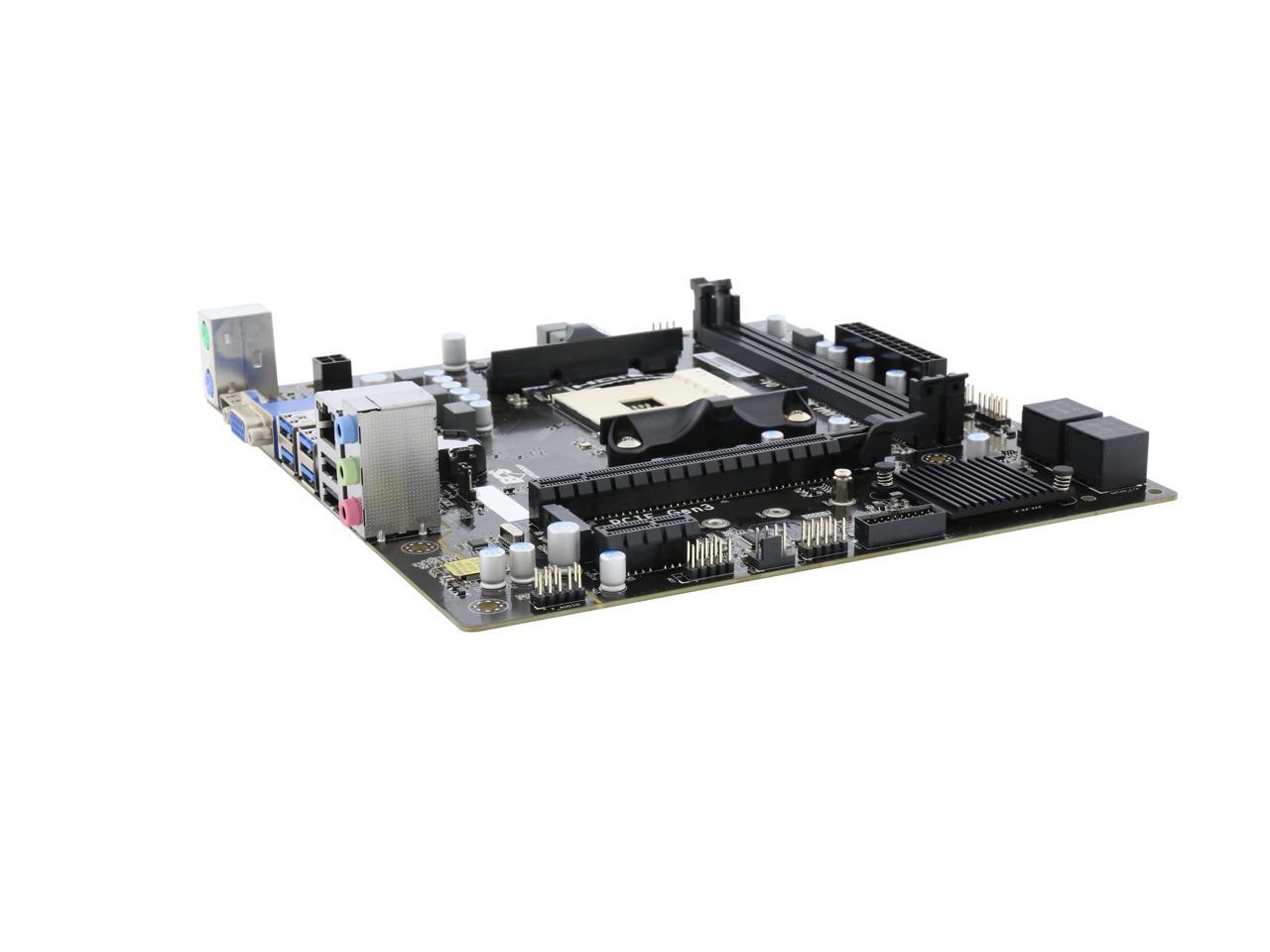

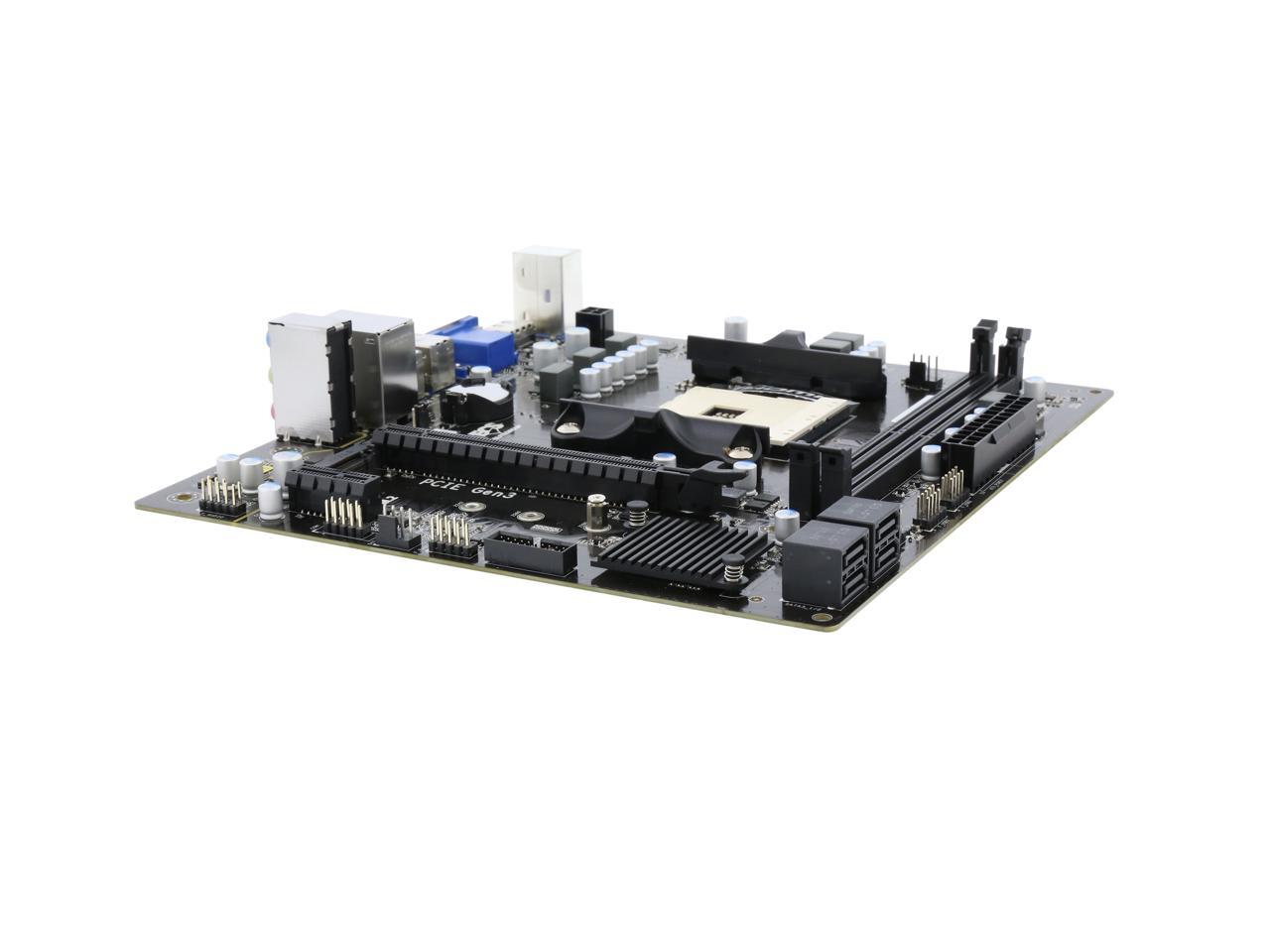

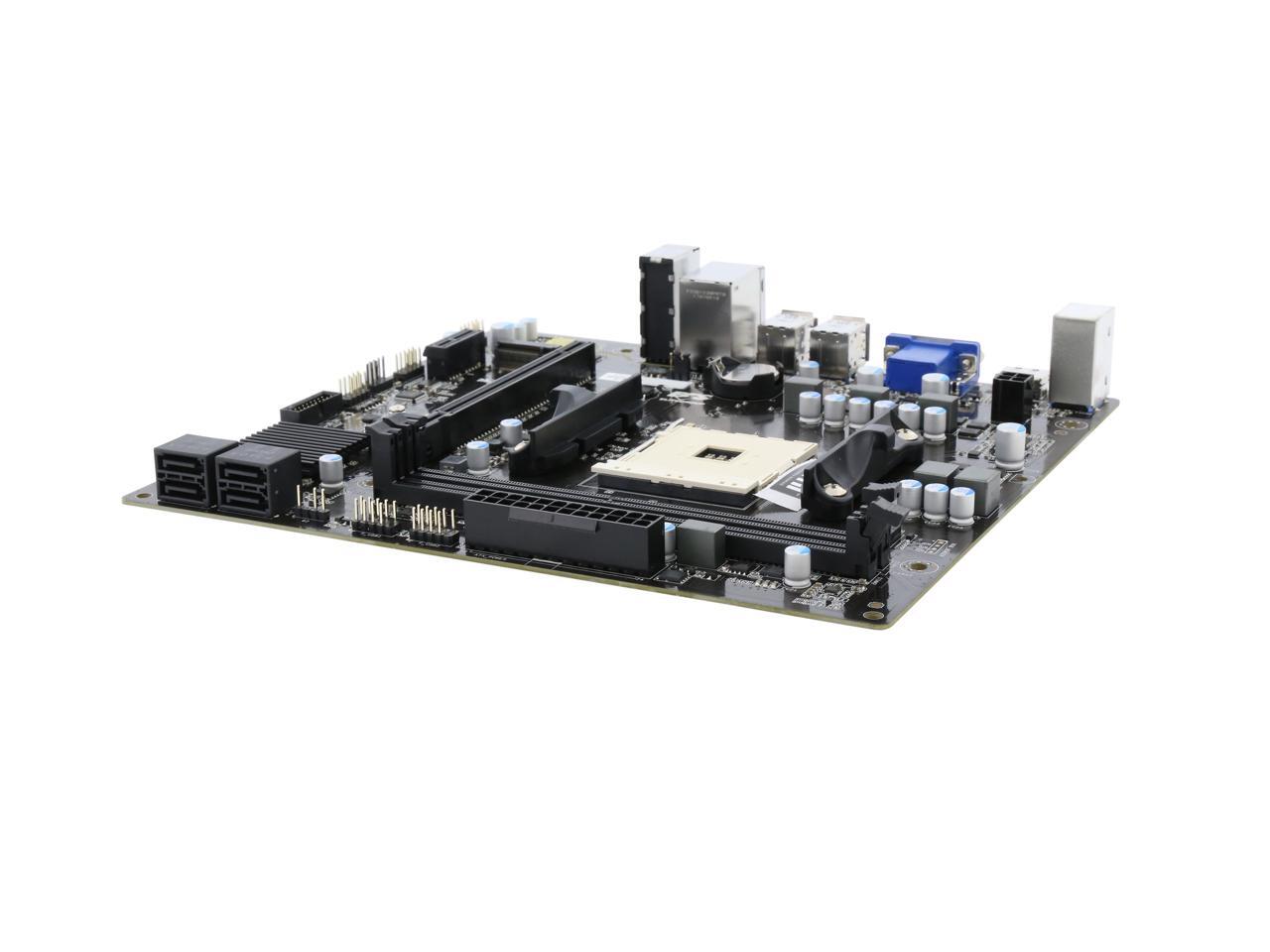

ECS A320AM4-M3D AM4 AMD A320 USB 3.0 HDMI Micro ATX AMD Motherboard
- AMD A320
- Supports AMD AM4 socket for AMD Ryzen processors and 7th Gen A-series / Athlon Processors
- DDR4 2667/ 2400/ 2133
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) A320AM4-M3D
| Brand | ECS |
|---|---|
| Model | A320AM4-M3D |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD AM4 socket for AMD Ryzen processors and 7th Gen A-series / Athlon Processors |
| Chipset | AMD A320 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2667/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 Gen 2.0 slot(s) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot for SSD For 2242/2260/2280 PCIE SSD |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

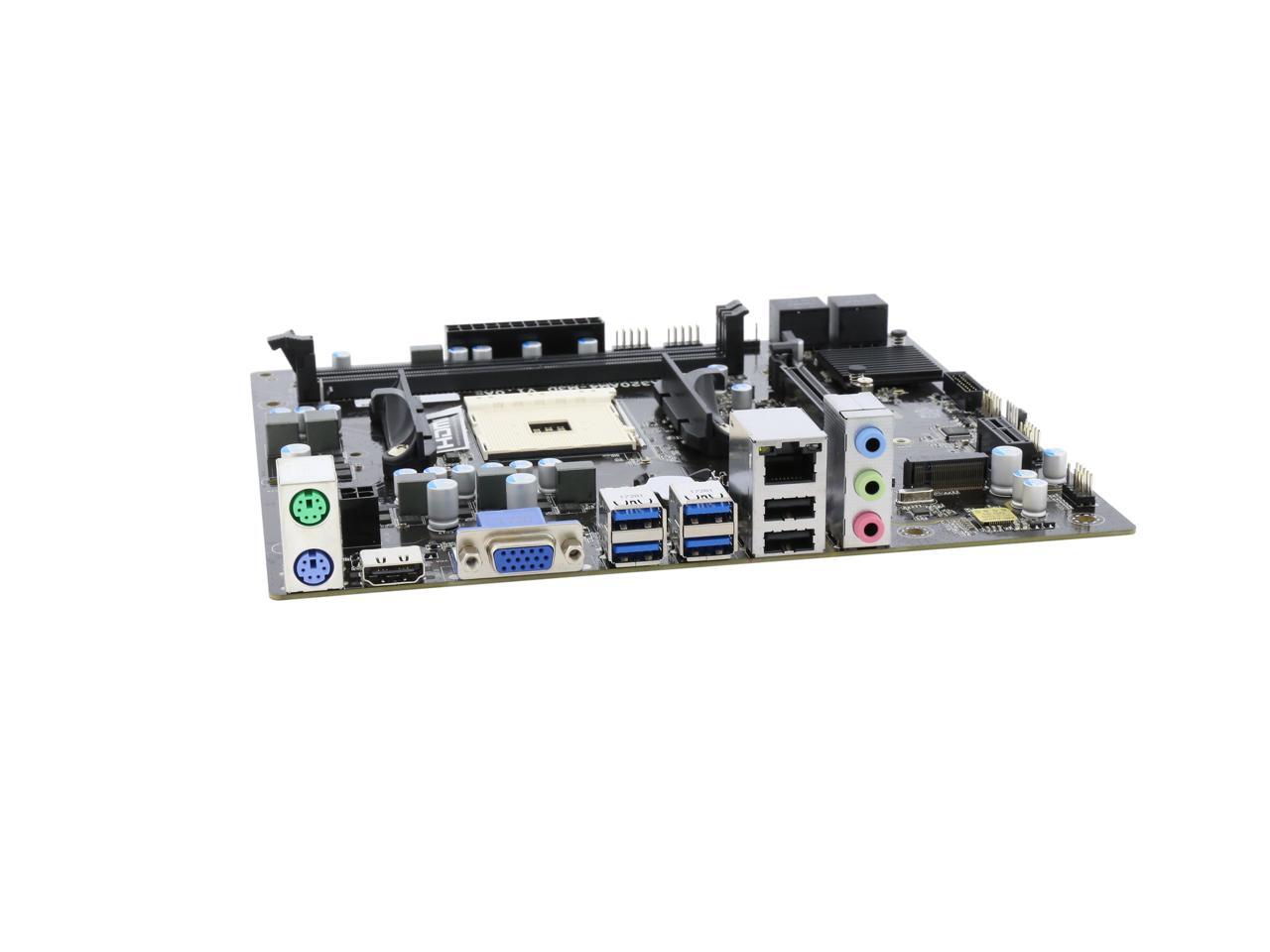

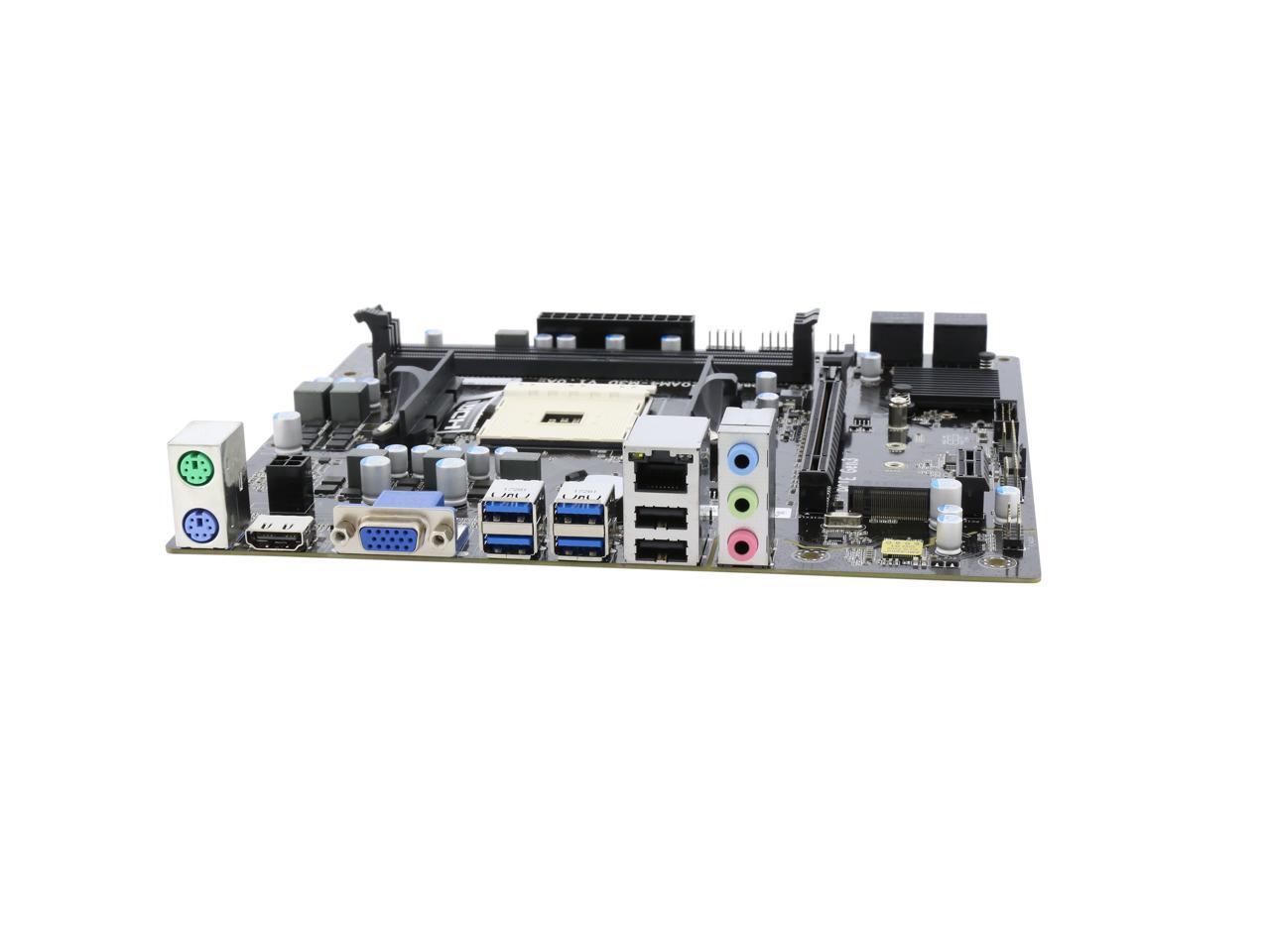

| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 1 x Audio port (Line Out/Line In/Mic In) |
| Onboard USB | 1 x USB 3.0 header Support additional 2 USB ports 2 x USB 2.0 headers Support additional 4 USB ports |
|---|---|
| Other Connectors | 1 x 4-pin CPU_FAN connector with smart fan 1 x 4-pin SYS_FAN connector with smart fan 1 x Front Panel switch/LED header 1 x Front panel audio header 1 x Speaker header 1 x CLR_CMOS header 1 x Serial port header (COM) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.7" x 8.1" |
| Power Pin | 1 x 24-pin ATX Power Supply connector 1 x 4-pin Power Connector for Graphics |
| Features | Windows 10 Workable support 3+2 Phase Power Design Applied 100% Solid capacitor design to maximize component reliability ECS Durathon Technology ensure the stability, reliability and performance of system ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi-language environment Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi-language environment Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function Supports AMD Dual Graphics Technology ECS Intelligent EZ Utility: eBLU, eDLU, eSF |
|---|
| First Listed on Newegg | October 25, 2017 |
|---|
