does it support 64 bit?

Absolutely. In fact you will not find many boards on the market that doesn't. Most Socket 478 and above support 64 bit as well as most Socket A and above for AMD support 64 bit.

Can u use a Sapphire Radeon HD 7850 1GB DDR5 gpu on this motherboard?

My little brother was using my old card (7850) with that motherboard and it worked fine. 7770 had a lot of driver error issues that with board. Should be ok.

Will a Asus H61M-E Intel H61(B3) Motherboard be a direct replacement for this motherboard?

Of course not. The AMD CPU you're using with this board will obviously not fit in an Intel socket.

I have installed an A6 6400K processor on this board & have run the driver install disk. I am only seeing Standard Graphic Adapter in device manager. What am I missing here? Thanks.

Ug, wish I could help you -- I assume you're using Windows; I have installed Ubuntu Linux.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

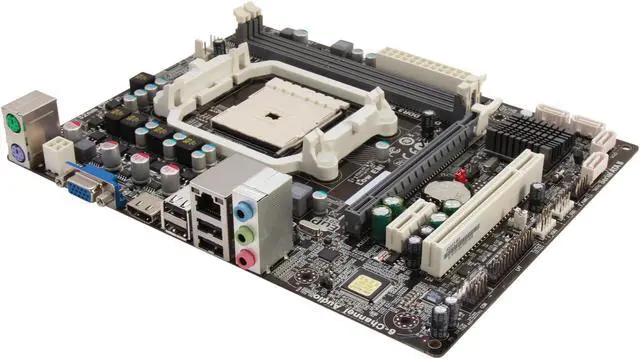

Main image of ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

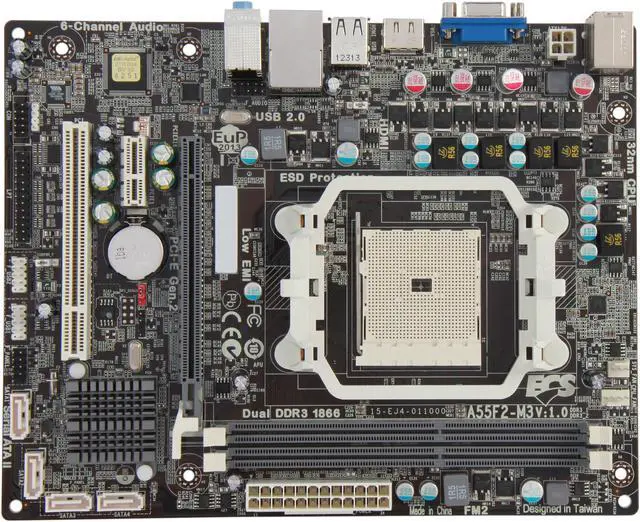

Alt view image 2 of 5 - ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

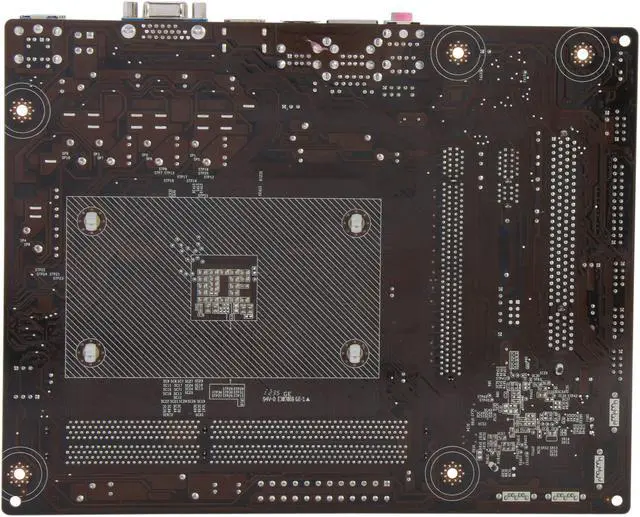

Alt view image 3 of 5 - ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

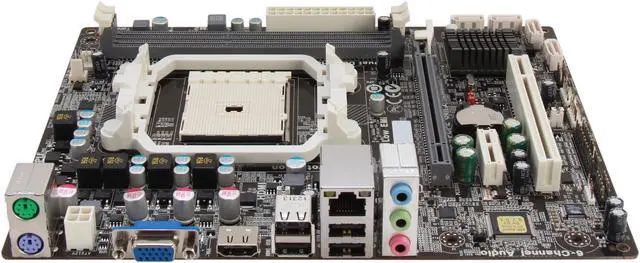

Alt view image 4 of 5 - ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

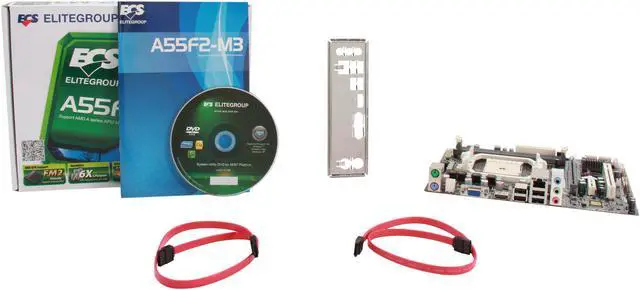

Alt view image 5 of 5 - ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

Shop All ECS (EliteGroup) Products

ECS A55F2-M3(1.0) FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

(15) Write a Review

AMD A55 (Hudson D2)
APU (FM2 Socket)
DDR3 1866/1600

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (15)

Learn more about the ECS (EliteGroup) A55F2-M3(1.0)

Model
Brand	ECS
Model	A55F2-M3(1.0)

Supported CPU
CPU Socket Type	FM2
CPU Type	APU (FM2 Socket)

Chipsets
Chipset	AMD A55 (Hudson D2)

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1333/1600/1866
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	VIA VT1705
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8105E
Max LAN Speed	100Mbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX Power Supply Connector 1 x 4-pin CPU_FAN connector 1 x 3-pin SYS_FAN connector 1 x COM header 1 x LPT header 1 x Front panel audio header 1 x Case Open header 1 x Speaker header 1 x Clear CMOS header 1 x SPDIF out header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.06" x 7.09"
Power Pin	24 Pin

Features
Features	Microsoft Windows 8 support 3+2 Phase Power Design Up to 100W Thermal Design Power support ECS Intelligent EZ Utility : eBLU, eDLU, eSF Supports AMD UVD 3.0 Engine Supports AMD FM2 APU Supports AMP (AMD Memory Profile) Support AMD Turbo Core 3.0 Applied 100% Solid capacitor design to maximize component reliability ECS MIB III - A friendly interface for overclocking Supports EZ BIOS for tweaking BIOS in Graphical interface within a multi language environment ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version

Additional Information
Date First Available	October 10, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-456-9836
Support Email: [email protected]
Support Website
View other products from ECS (EliteGroup)

Item#: N82E16813135327
