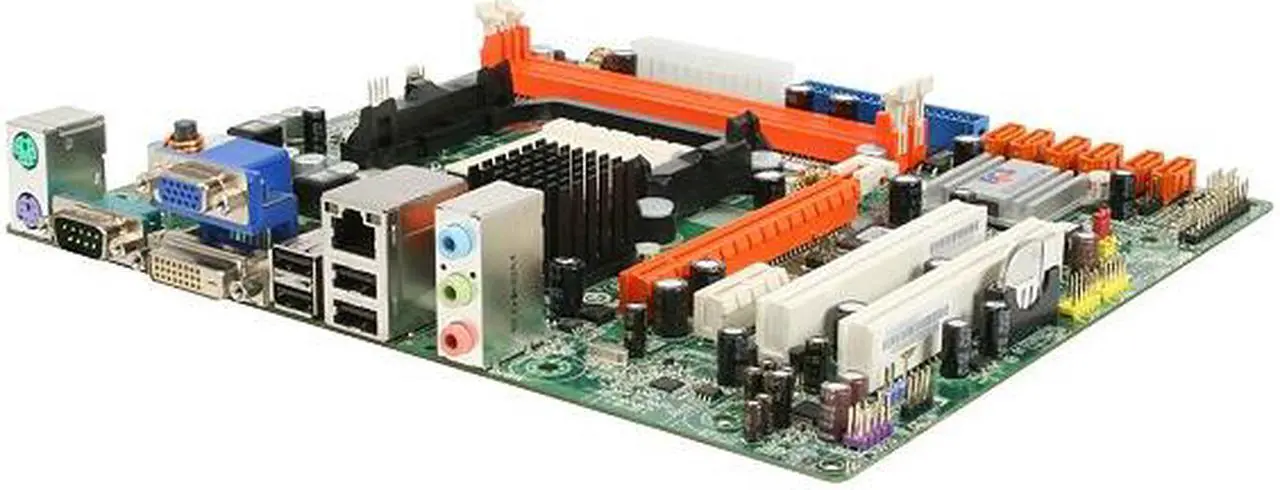

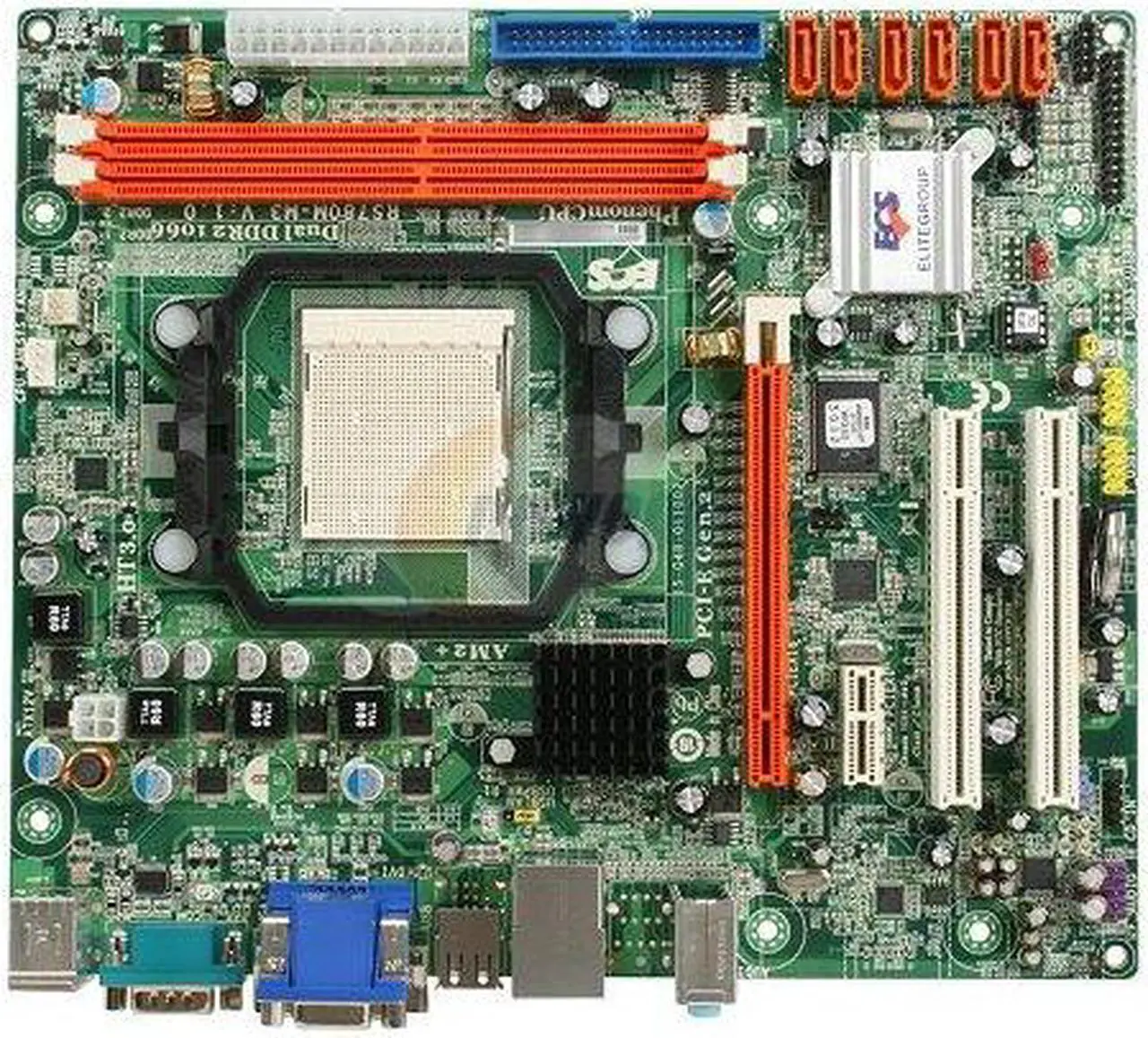

ECS A780GM-M3 AM3/AM2+ AMD 780G Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 780G
  • PhenomII / Phenom / Athlon 64 X2 Dual Core/ Athlon 64 / Sempron ( Note: This board supports CPU up to 95W TDP only )
  • DDR2 1066
Specs
Reviews

Learn more about the ECS (EliteGroup) A780GM-M3

Model
Brand ECS
Model A780GM-M3
Supported CPU
CPU Socket Type AM3/AM2+
CPU Type PhenomII / Phenom / Athlon 64 X2 Dual Core/ Athlon 64 / Sempron

( Note: This board supports CPU up to 95W TDP only )
FSB 2600 MHz
Chipsets
Chipset AMD 780G
South Bridge AMD SB700
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR2 1066
Maximum Memory Supported 16GB ( 4G tested )
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 3200
Onboard Audio
Audio Chipset IDT 92HD202
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Atheros AR8121
Max LAN Speed 10/100/1000Mbps

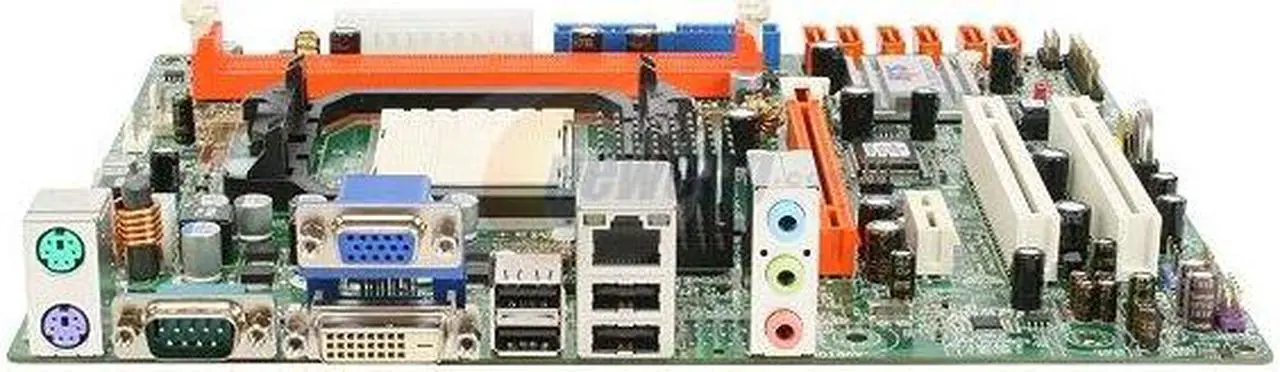

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 headers support additional 4 USB Ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.27"
Power Pin 24 Pin
Additional Information
Date First Available May 04, 2009
