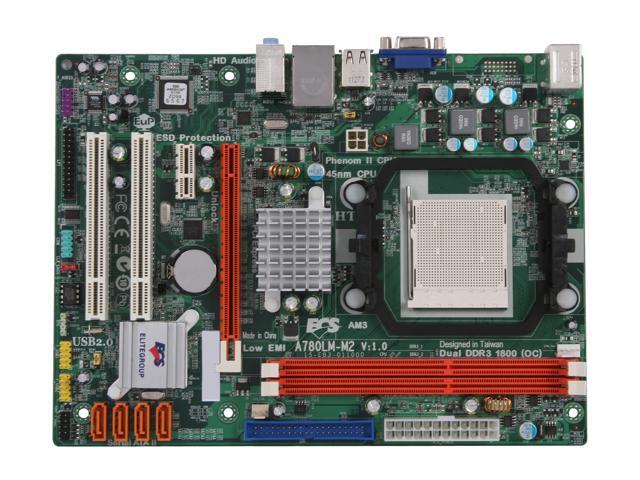

ECS A780LM-M2 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard
Check more best sellers of "AMD Motherboards"
Check more lowest price of "AMD Motherboards"
OUT OF STOCK.
- AMD 760G
- Phenom II / Athlon II / Sempron 100 Series
- DDR3 1800(OC)/1600(OC)
Specs
Reviews
Learn more about the ECS (EliteGroup) A780LM-M2
| Brand | ECS |
|---|---|
| Model | A780LM-M2 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| Chipset | AMD 760G + SB710 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1800(OC)/1600(OC)/1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 4 x SATA 3Gb/s |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI Radeon 3000 |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8105E |
|---|---|
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Connector 1 x 4pin CPU_FAN connectors 1 x 3-pin SYS_FAN connector 1 x IDE connector 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Clear CMOS header 1 x Serial port header 1 x Parallel Header 1 x Chassis intrusion header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.09" |
| Power Pin | 24 Pin |
| Features | This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU. |
|---|
| Date First Available | June 14, 2012 |
|---|
