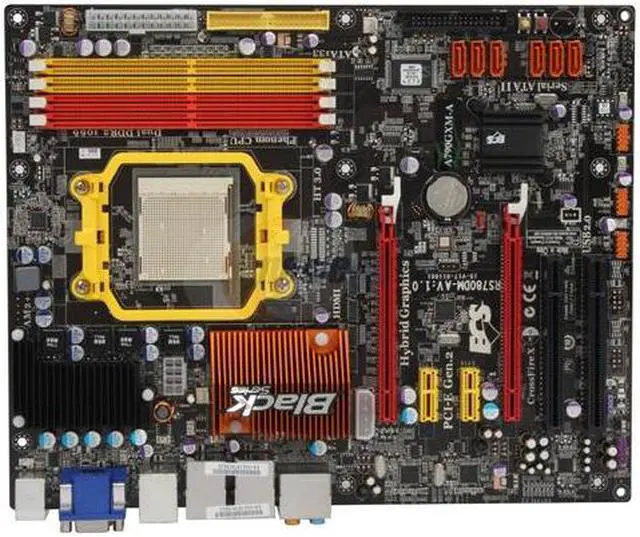

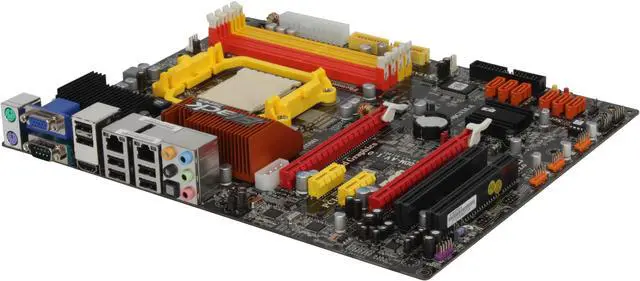

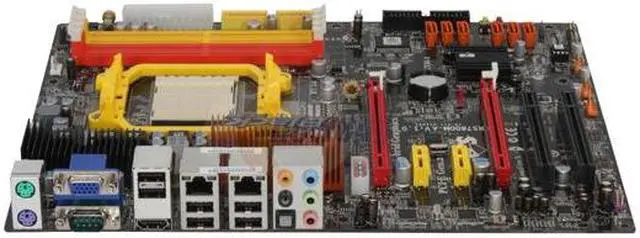

ECS Black Series A790GXM-A AM3/AM2+/AM2 AMD 790GX HDMI ATX AMD Motherboard
- AM3/AM2+/AM2
- AMD 790GX
- 4×240pin DDR2 1066*/800/667/533/400
- * DDR2 1066 memory speed is supported by AM2+ CPU
Specs
Reviews (59)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) A790GXM-A
| Brand | ECS |
|---|---|
| Model | A790GXM-A |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 790GX |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066*/800/667/533/400 * DDR2 1066 memory speed is supported by AM2+ CPU |
| Maximum Memory Supported | 32GB (8GB tested) |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD 3300 |
|---|
| Audio Chipset | Realtek ALC888S |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Second LAN Chipset | Realtek 8111C |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 3 x USB 2.0 headers support additional 6 USB ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports ATI CrossFireX |
|---|
| First Listed on Newegg | November 17, 2008 |
|---|
