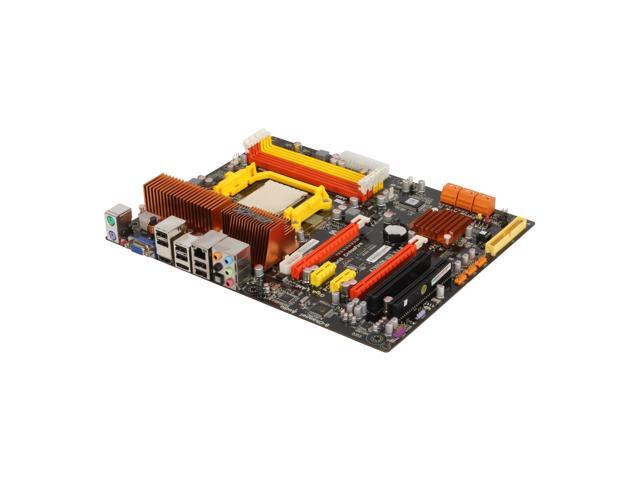

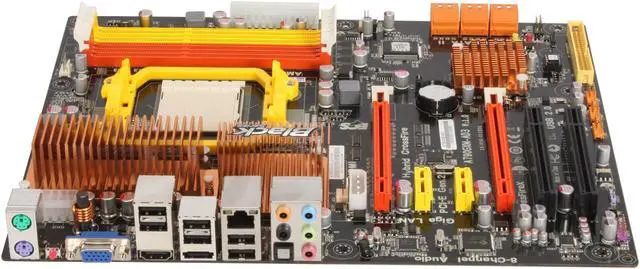

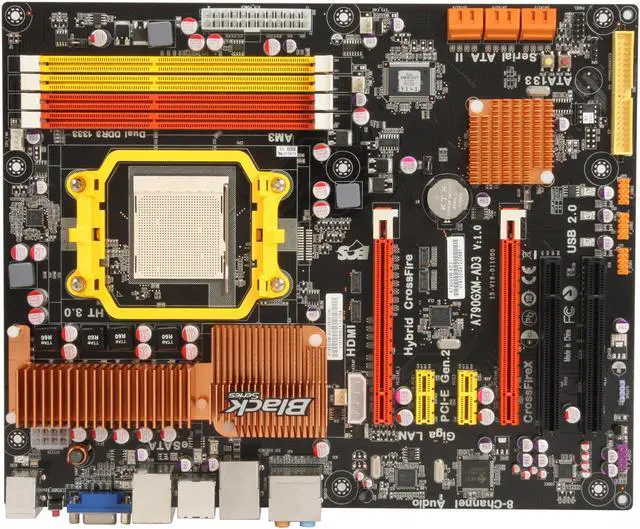

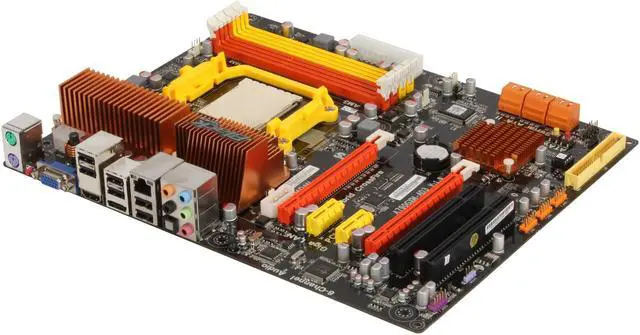

ECS BLACK SERIES A790GXM-AD3 AM3 AMD 790GX HDMI ATX AMD Motherboard

OUT OF STOCK.
  • AMD 790GX
  • Phenom II (Note: This board supports CPU up to 140W TDP only)
  • DDR3 1333
Specs
Reviews

Learn more about the ECS (EliteGroup) A790GXM-AD3

Model
Brand ECS
Model A790GXM-AD3
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II

(Note: This board supports CPU up to 140W TDP only)
FSB 2600 MHz
Chipsets
Chipset AMD 790GX
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 32GB (8GB tested)
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 3300
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers support additional 6 USB ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available April 14, 2009
