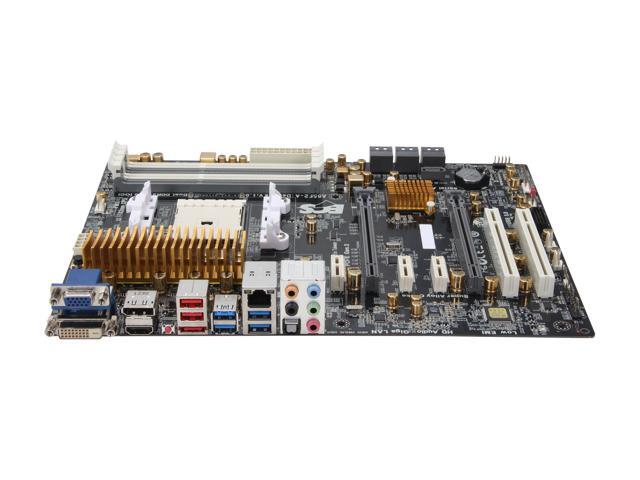

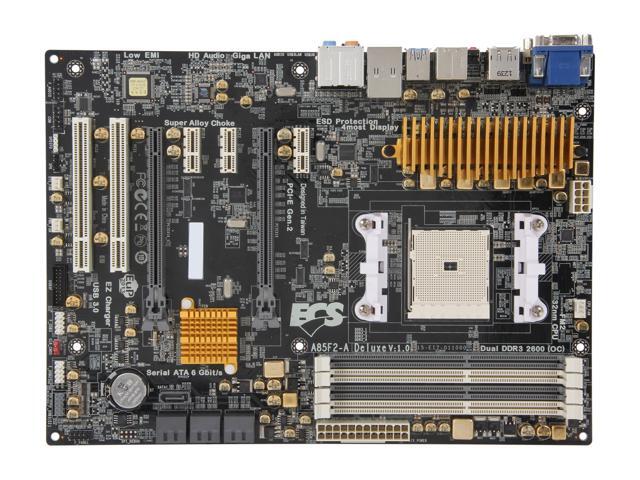

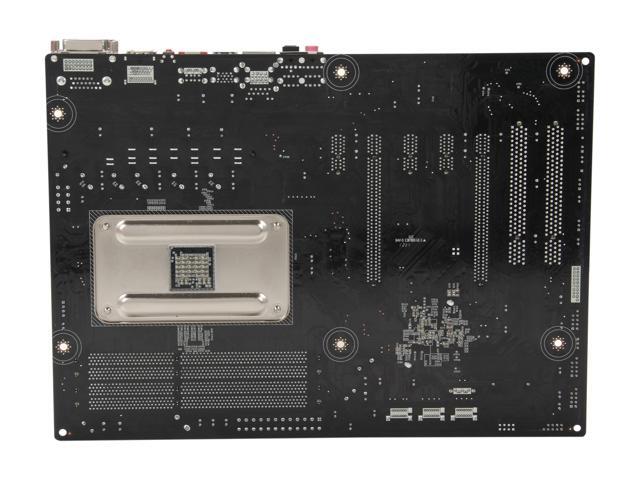

ECS A85F2-A DELUXE(1.0) FM2 AMD A85X (Hudson D4) SATA 6Gb/s USB 3.0 HDMI ATX AMD Motherboard

  • AMD A85X (Hudson D4)
  • APU (FM2 Socket)
  • DDR3 1333/1600

Learn more about the ECS (EliteGroup) A85F2-A DELUXE(1.0)

Brand ECS
Model A85F2-A DELUXE(1.0)
Supported CPU
CPU Socket Type FM2
CPU Type APU (FM2 Socket)
Chipset AMD A85X (Hudson D4)
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333/1600/1866/2133(OC)/2400(OC)/2600(OC)
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16/0 or x8/x8)
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA 6Gb/s 7 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset VIA VT1819S
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Video Ports D-Sub + DVI
DisplayPort 1 x DisplayPort
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
eSATA 1 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 8-pin ATX 12V Power Connector
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x 3-pin PWR_FAN connector
1 x COM header
1 x Clear CMOS header
1 x Front panel audio header
1 x Front panel header
1 x Speaker header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.66"
Power Pin 24 Pin
Features Microsoft Windows 8 support

Up to 140W Thermal Design Power support

Supports AMD UVD 3.0 Engine

Supports AMD Turbo Core 3.0

Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products

Supports ECS 4most display for providing more flexible output interface

Supports AMD AMP & Intel XMP memory profile

Supports EZ BIOS for tweaking BIOS in Graphical interface within a multi-language environment

ECS MIB X - A friendly interface for overclocking, expecially for gamer

Applied 100% Solid capacitor design to maXimize component reliability

ECS EZ charger provide fast way to charge your smart devices, even if the PC is off

ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan

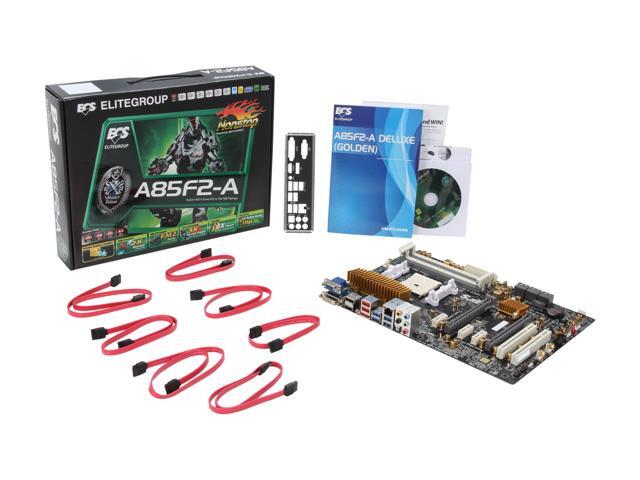

Free Bundle: THX , Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
Additional Information
Date First Available November 05, 2012
