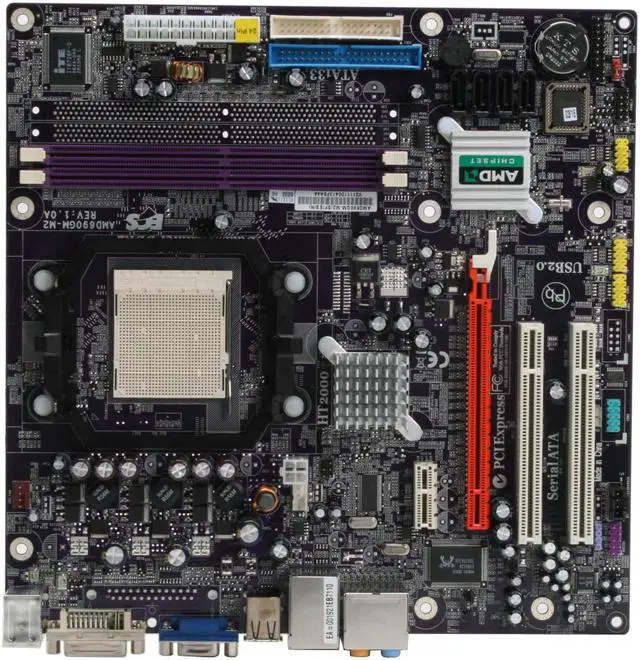

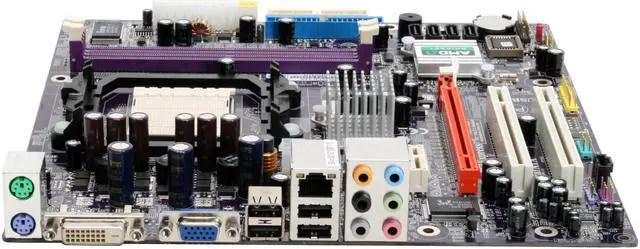

ECS AMD690GM-M2 AM2 AMD 690G Micro ATX AMD Motherboard

(151) Write a Review
  • AMD 690G
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (151)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) AMD690GM-M2

Model
Brand ECS
Model AMD690GM-M2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset AMD 690G
South Bridge AMD SB600
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon Xpress 1250
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek RTL8110SC Giga LAN Controller
Max LAN Speed 1Gbps
Rear Panel Ports

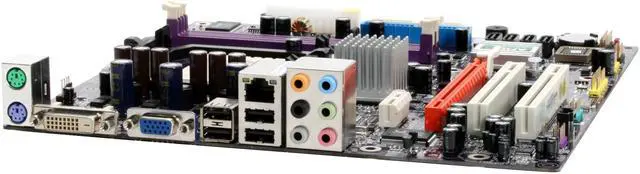

Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features The AMD690GM-M2 motherboard, supporting the most powerful and energy efficient AM2 processors, is based on AMD 690G CHIPSET with ATI RADEON X1250 GRAPHICS. The integrated graphics features DVI connection, enabling users to experience faster graphics performance and higher video quality.
Packaging

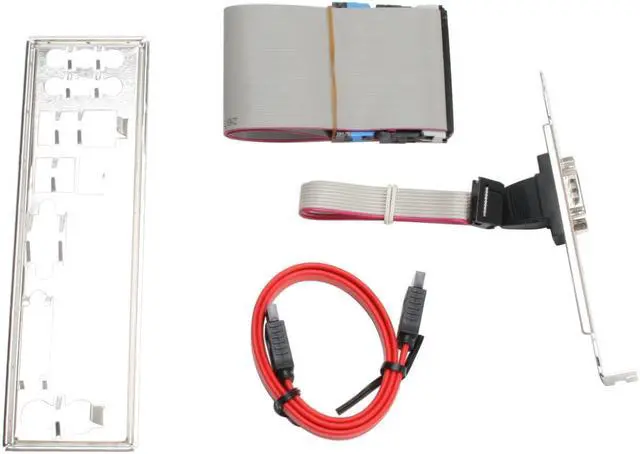

Package Contents AMD690GM-M2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
Bracket
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available April 03, 2007
