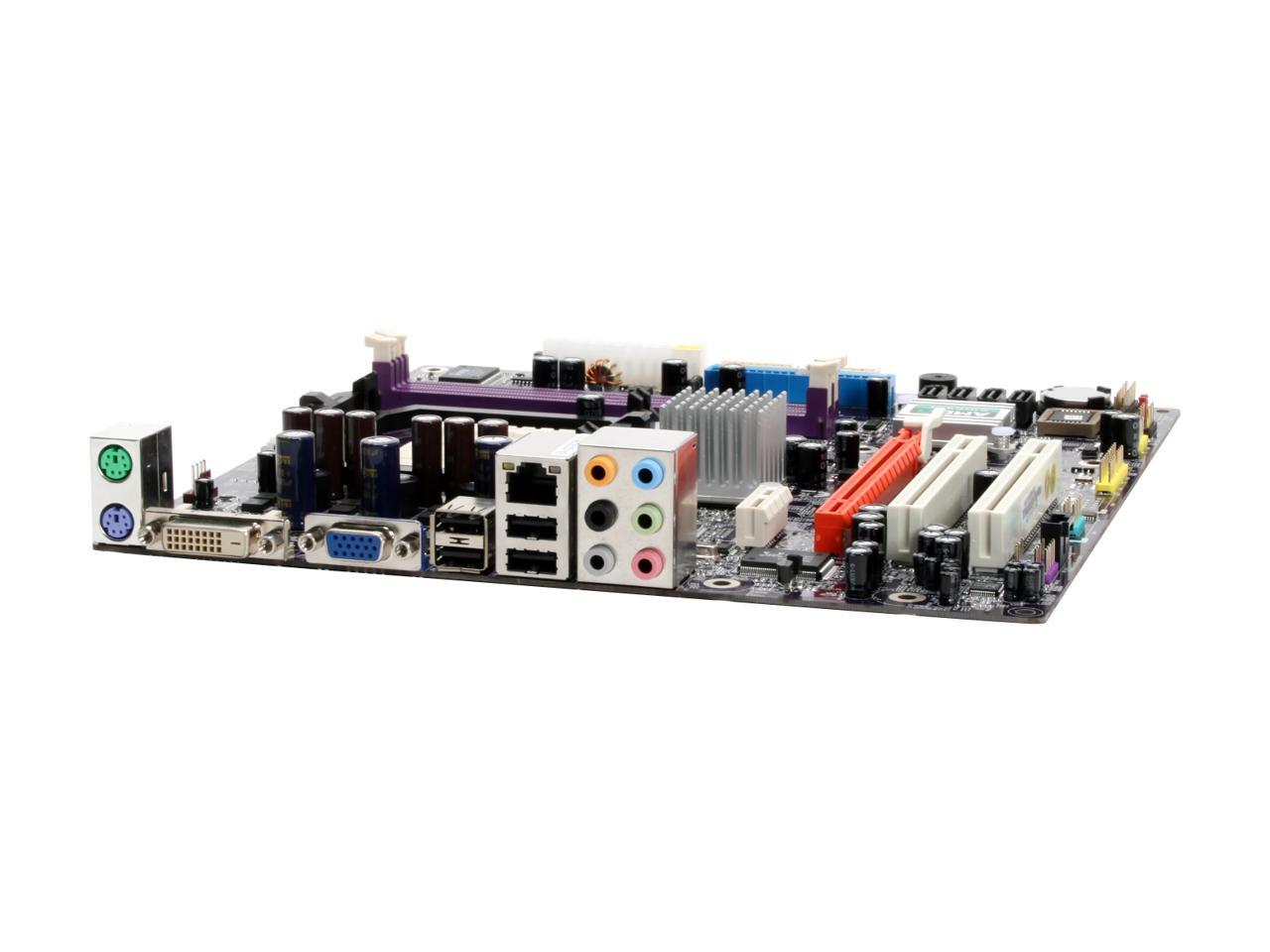

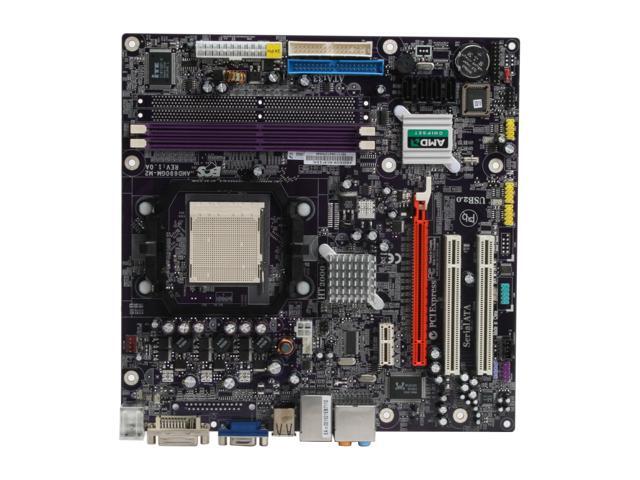

ECS AMD690GM-M2 AM2 AMD 690G Micro ATX AMD Motherboard

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (151)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) AMD690GM-M2

Model
Brand	ECS
Model	AMD690GM-M2

Supported CPU
CPU Socket Type	AM2
CPU Type	Athlon 64 X2 / Athlon 64 FX / Athlon 64

Chipsets
Chipset	AMD 690G
South Bridge	AMD SB600

Storage Devices
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	ATI Radeon Xpress 1250

Onboard Audio
Audio Chipset	Realtek ALC883
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek RTL8110SC Giga LAN Controller
Max LAN Speed	1Gbps

Rear Panel Ports

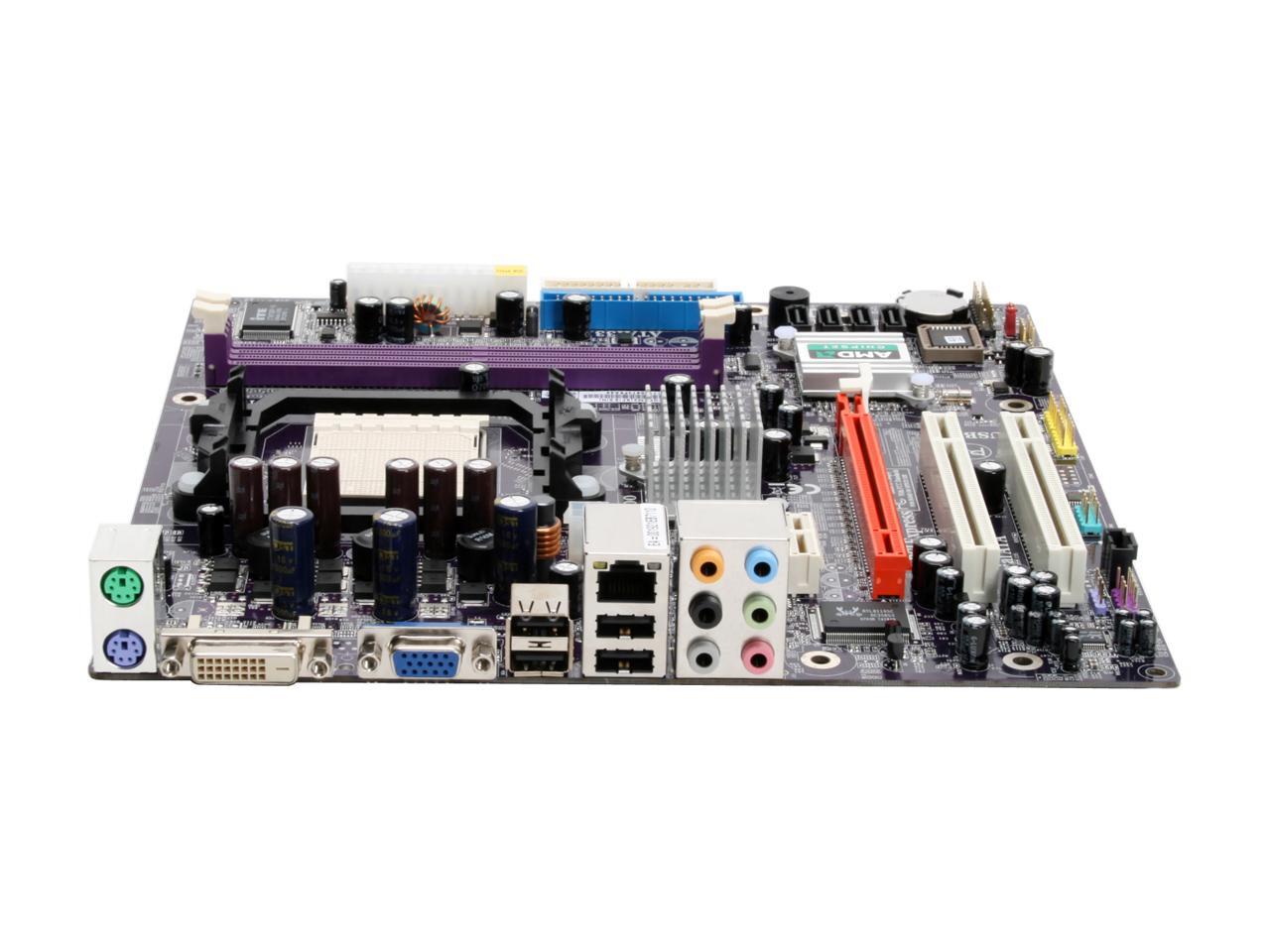

Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	3 x USB 2.0 connectors support 6 ports

Features
Features	The AMD690GM-M2 motherboard, supporting the most powerful and energy efficient AM2 processors, is based on AMD 690G CHIPSET with ATI RADEON X1250 GRAPHICS. The integrated graphics features DVI connection, enabling users to experience faster graphics performance and higher video quality.

Packaging

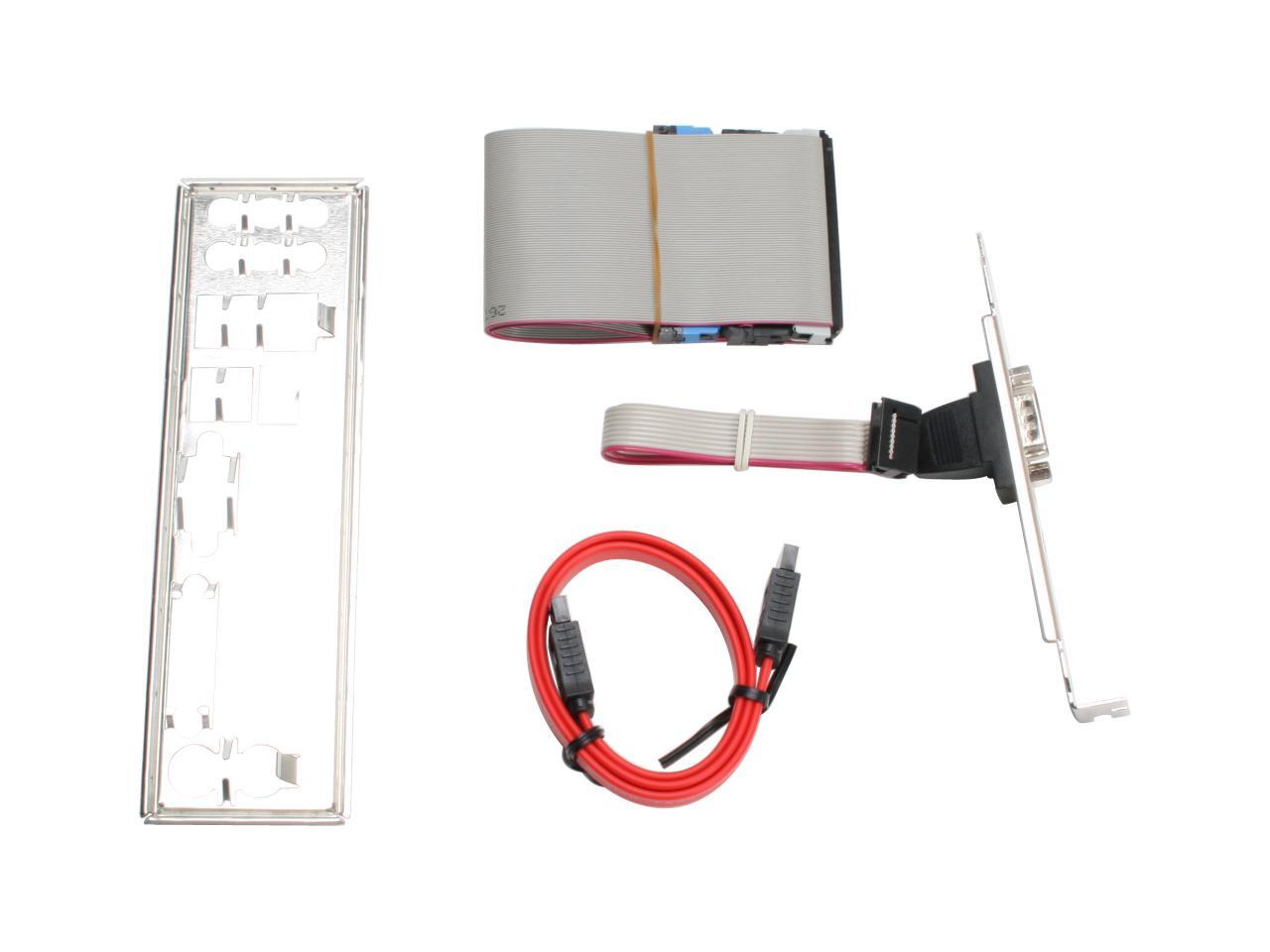

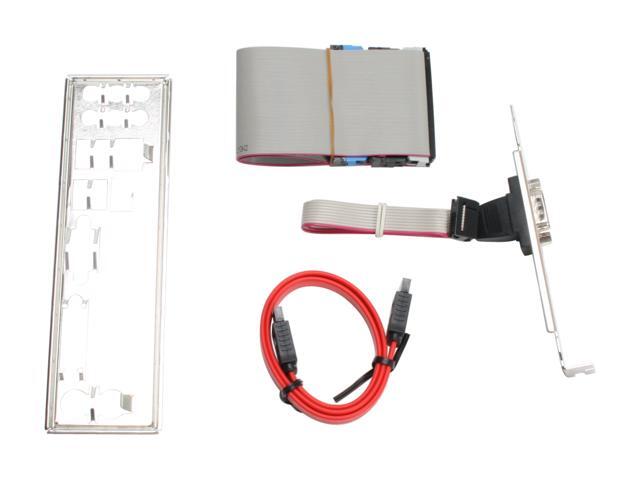

Package Contents	AMD690GM-M2 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable Bracket

Additional Information
First Listed on Newegg	April 03, 2007
