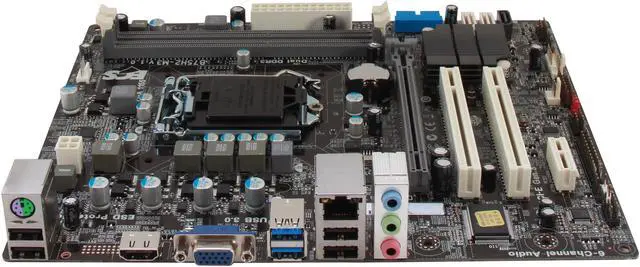

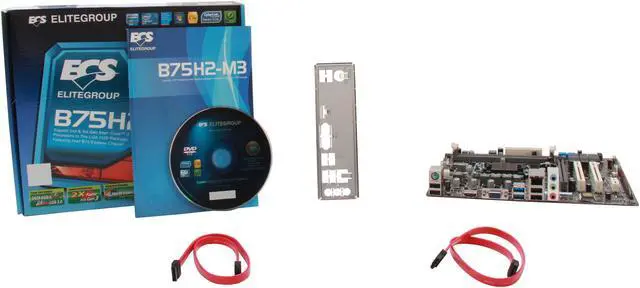

ECS B75H2-M3(1.0) LGA 1155 Intel B75 HDMI USB 3.0 Micro ATX Intel Motherboard
- Intel B75
- Core i7 / i5 / i3 (LGA1155)
- DDR3 1066/1333
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) B75H2-M3(1.0)
| Brand | ECS |
|---|---|
| Model | B75H2-M3(1.0) |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel B75 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1066/1333/1600(with Ivy Bridge) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 1 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC666 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 2 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Power connector 1 x 4pin CPU_FAN connectors 1 x 3-pin PWR_FAN connector 1 x 3-pin SYS_FAN connector 1 x Speaker header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x S/PDIF header 1 x Clear CMOS header 1 x Serial Header(COM) 1 x Parallel port header (LPT) 1 x TPM header 1 x Me_Unlock header 1 x Chassis intrusion header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.87" |
| Power Pin | 24 Pin |
| Features | Microsoft Windows 8 support Supports Intel unlock CPU Supports Intel 22nm CPU support Supports GUI UEF & Multi-Language BIOS Supports Intel Small Business Advantage Supports HDCP function Supports HDMI 1.4a Technology (resolution up to 1920x1200) Supports DirectX 11 for accelerated Blu-Ray 3D and DivX decoding Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Applied Solid Capacitor for CPU side Thermal Design Power up to 95W support ECS MIB III - A friendly interface for overclocking ECS Intelligent EZ Untility : eBLU, eDLU, eOC, eSF Free Bundle: Norton Internet Security, CyberLink PowerDVD, CyberLink PowerDirector 9 & Muzee with trial version ESD Protection prevent your computers from electrostatic discharge damage to enhance its durability and lifespan |
|---|
| First Listed on Newegg | September 28, 2012 |
|---|
