Build your next PC with a motherboard that offers attractive features, excellent performance and an affordable price!
The ECS P45T-A 775 allows you to bring your computer up to speed with the latest LGA775 socket processors, like Intel Core 2 Quad and Core 2 Duo. You'll also experience faster performance in your favorite programs with DDR2 memory and dual channel technology. Storage won't be a problem with 6 SATA connections. You'll also appreciate the onboard Gigabit LAN for staying connected to the Internet with fast data rates. ECS provides you with everything you need for a strong system.
Build your next PC with a motherboard that offers attractive features, excellent performance and an affordable price!
The ECS P45T-A 775 allows you to bring your computer up to speed with the latest LGA775 socket processors, like Intel Core 2 Quad and Core 2 Duo. You'll also experience faster performance in your favorite programs with DDR2 memory and dual channel technology. Storage won't be a problem with 6 SATA connections. You'll also appreciate the onboard Gigabit LAN for staying connected to the Internet with fast data rates. ECS provides you with everything you need for a strong system.
Intel P45 Express Chipset for Intel LGA 775 CPUBased on the Intel P45 Express chipset, the ECS Black Series P45T-A supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
Innovative ECS Technology UtilitiesThe ECS Black Series P45T-A features a plethora of exclusive ECS technology including the M.I.B. OC BIOS utility that assists beginners to overclock effortlessly and the unique eJiffy Linux solution which once selected from the BIOS can allow you to by-pass your OS and access eWeb (Internet access).
ATi CrossFireX Multi-GPU Technology SupportATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
Learn more about the ECS (EliteGroup) Black Series P45T-A
Model
Brand
ECS
Model
Black Series P45T-A
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB
1333/1066 MHz
Chipsets
Chipset
Intel P45
South Bridge
Intel ICH10R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 800
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 x PCI Express 2.0 x16
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC883
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Athlos L1
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x eSATA 3GB/S / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2
2
COM
1
USB 1.1/2.0
6 x USB 2.0
eSATA
1 x eSATA 3Gb/s
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
3 x USB 2.0 headers support additional 6 USB ports
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Packaging
Package Contents

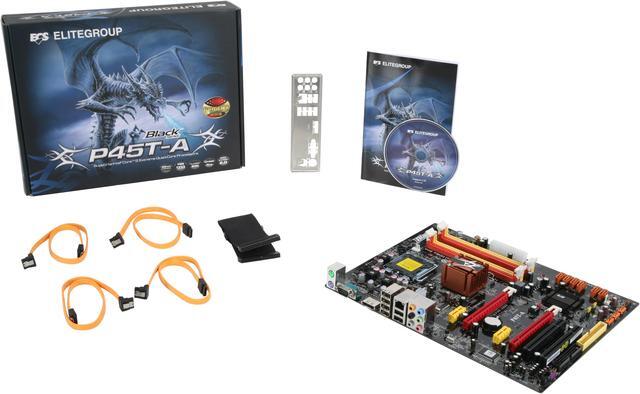

P45T-A Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable
Additional Information
Date First Available
July 11, 2008
