ECS Geforce6100PM-M2 AM2+/AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard
- NVIDIA GeForce 6100
- Phenom / Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 800
Specs
Reviews (209)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) Geforce6100PM-M2
| Brand | ECS |
|---|---|
| Model | Geforce6100PM-M2 |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6100 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom AC131 PHY |
|---|---|
| Max LAN Speed | 100Mbps |

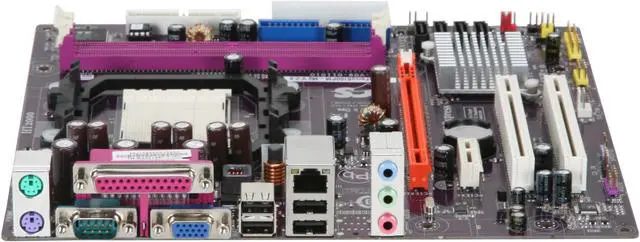

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.4" |
| Power Pin | 24 Pin |

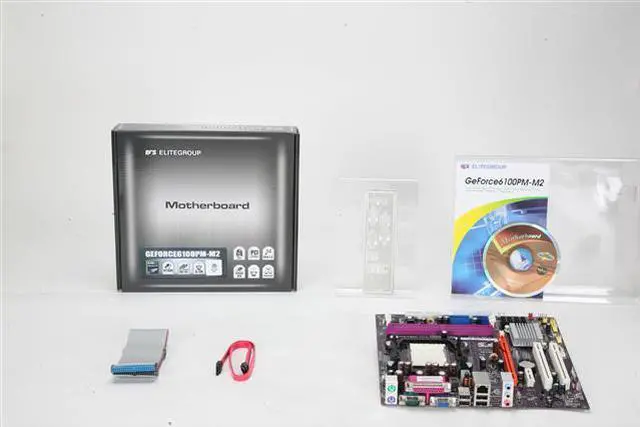

| Package Contents | Geforce6100PM-M2 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | January 22, 2008 |
|---|
