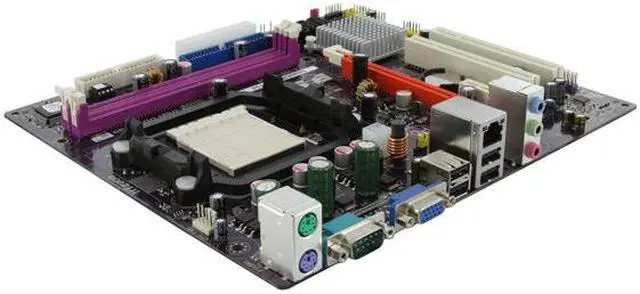

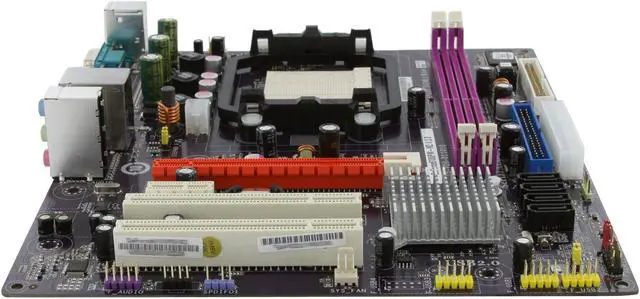

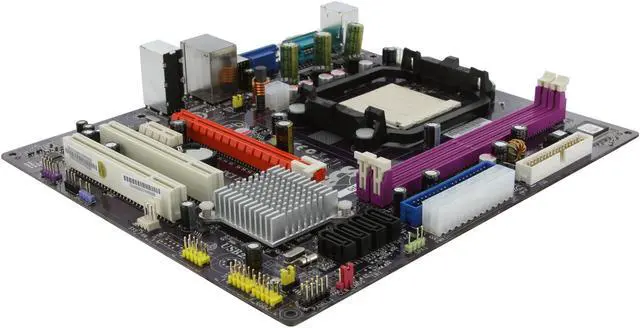

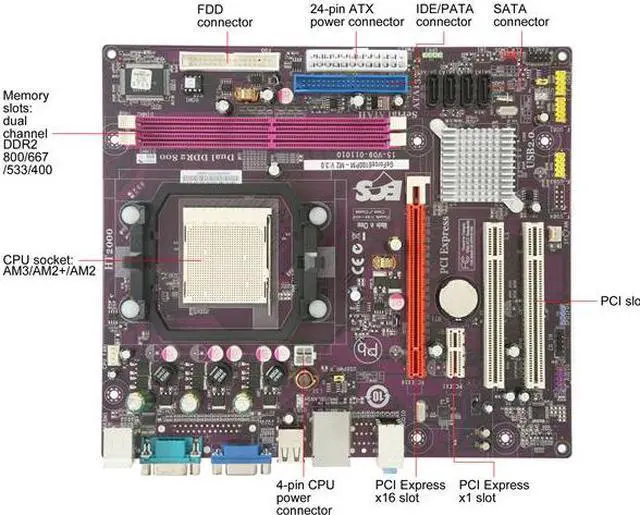

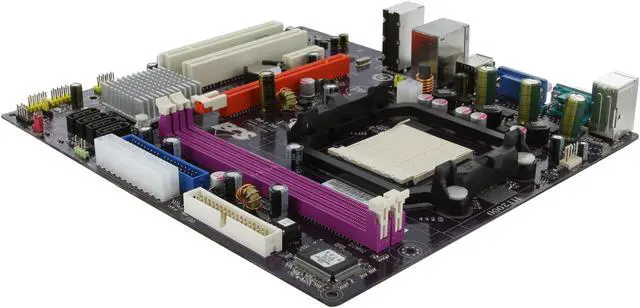

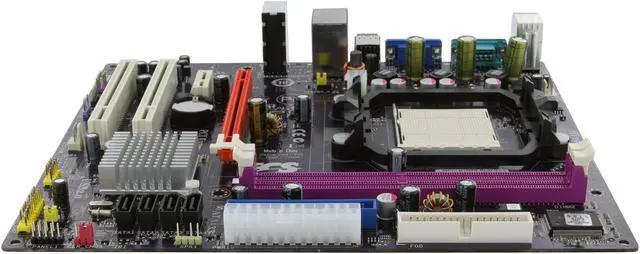

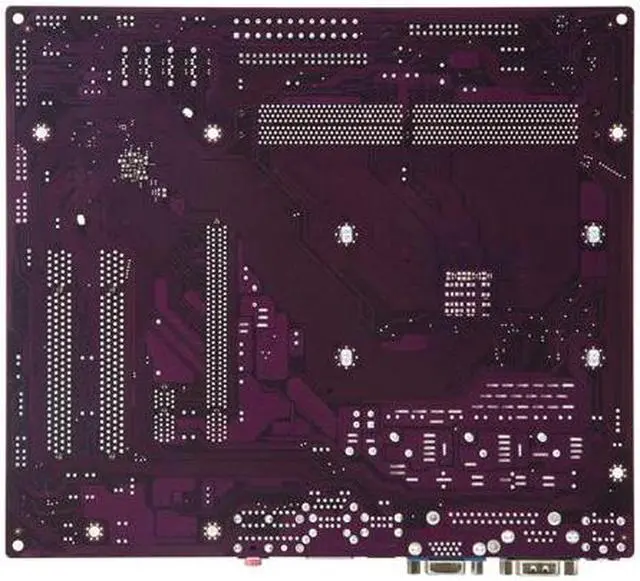

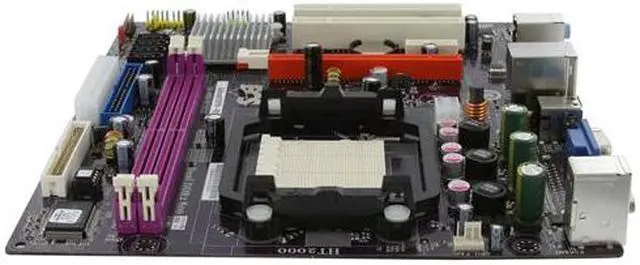

ECS GeForce6100PM-M2(V3.0) AM3/AM2+/AM2 NVIDIA GeForce 6150SE/nForce 430 Micro ATX AMD Motherboard
- NVIDIA GeForce 6150SE/nForce 430
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron Supports CPU up to 95W
- DDR2 800/667/533/400
Specs
Reviews (80)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) GeForce6100PM-M2(V3.0)
| Brand | ECS |
|---|---|
| Model | GeForce6100PM-M2(V3.0) |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron Supports CPU up to 95W |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6150SE/nForce 430 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800/667/533/400 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | NVIDIA GeForce 6150SE |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom AC131 |
|---|---|
| Max LAN Speed | 100Mbps |

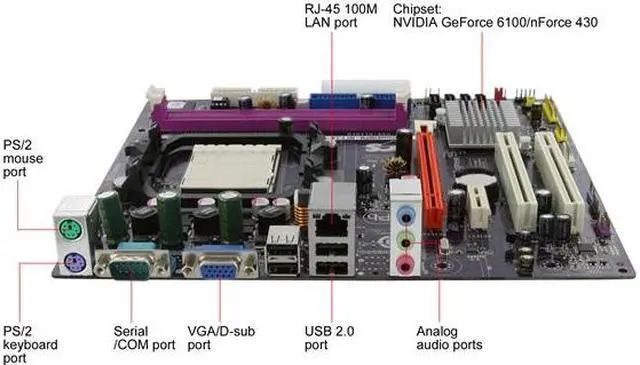

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 headers support additional 6 USB ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.43" |
| Power Pin | 24 Pin |
| Date First Available | September 01, 2009 |
|---|
