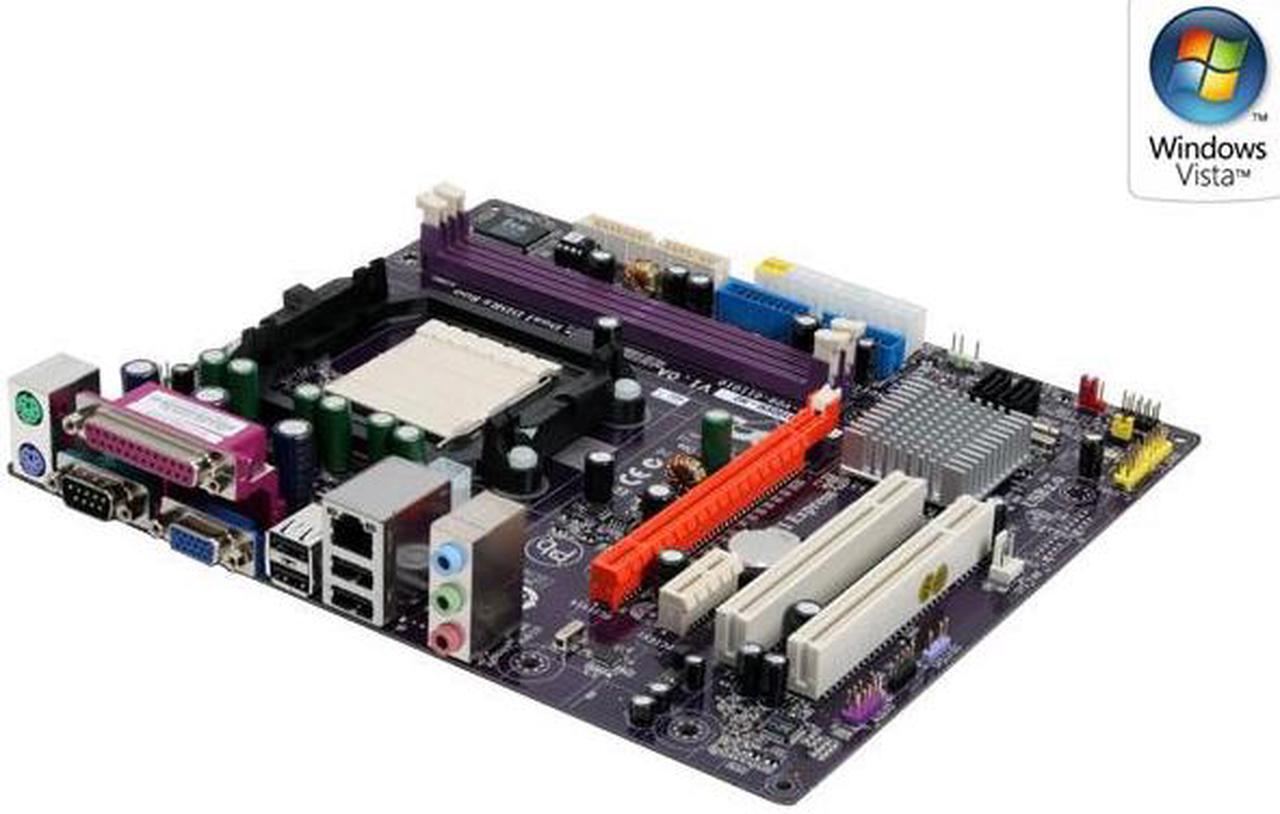

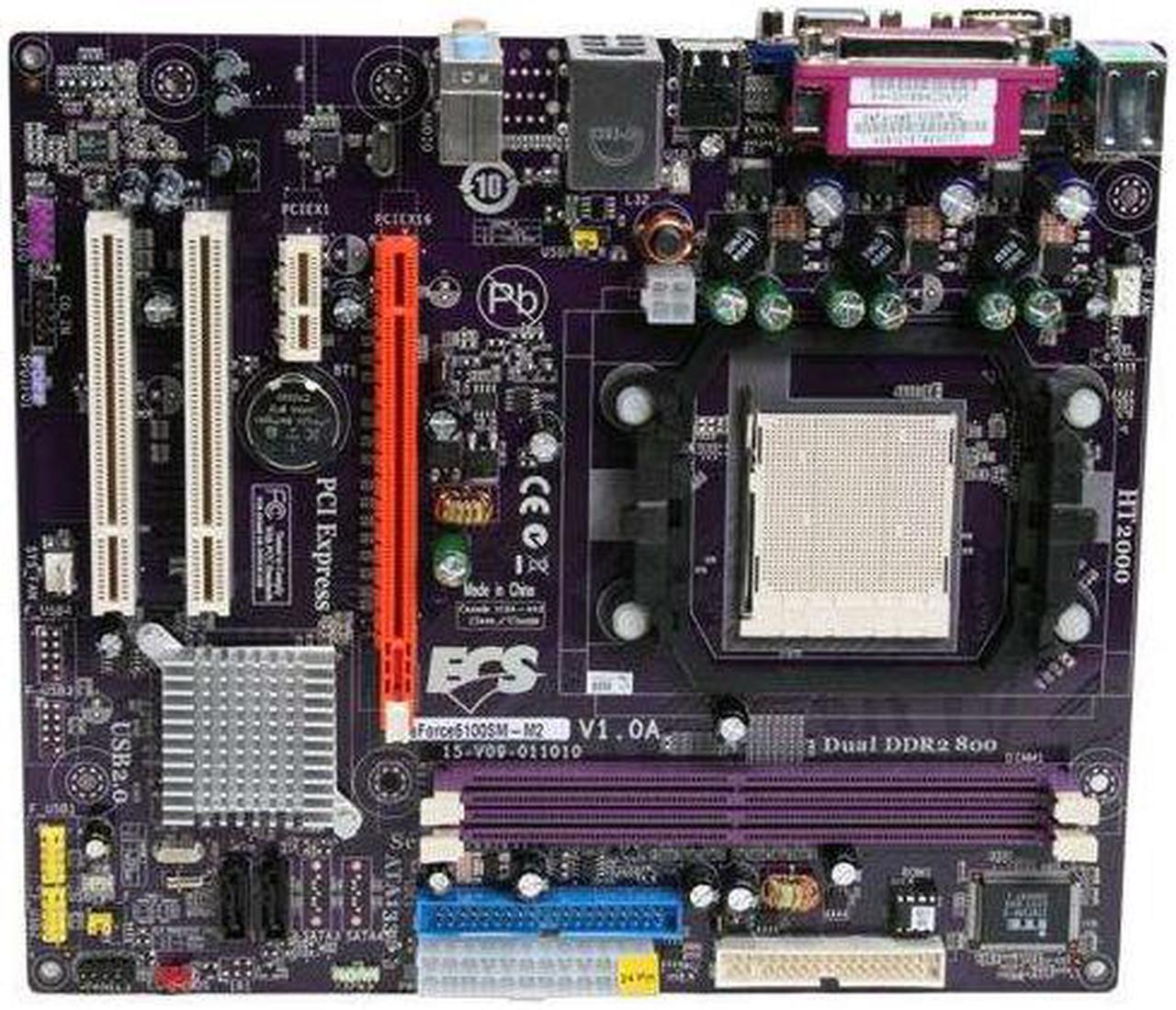

ECS GeForce6100SM-M2 (V1.0A) AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard

Name: ECS GeForce6100SM-M2 (V1.0A) AM2 Micro ATX AMD Motherboard
Brand: ECS (EliteGroup)
SKU: N82E16813135067
Rating: 4 (35 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (35)

Learn more about the ECS (EliteGroup) GeForce6100SM-M2 (V1.0A)

Model
Brand	ECS
Model	GeForce6100SM-M2 (V1.0A)

Chipsets
Chipset	NVIDIA GeForce 6100
South Bridge	NVIDIA nForce 405

Expansion Slots
PCI Express x16	1 x PCI Express x16 slot (runs in x8 mode)
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1

Onboard Video
Onboard Video Chipset	NVIDIA GeForce 6100

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Broadcom AC131 PHY
Max LAN Speed	100Mbps

Rear Panel Ports

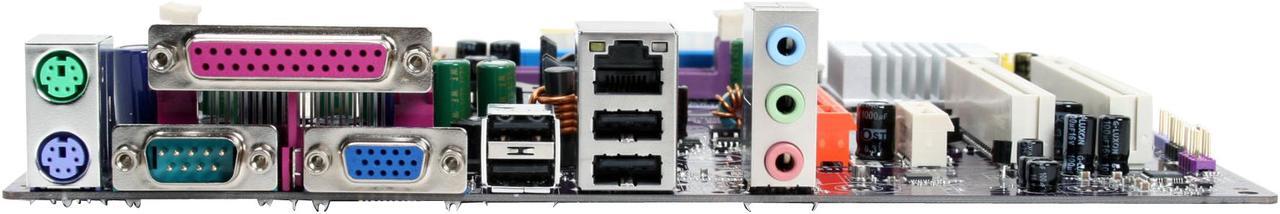

Back I/O Ports	1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Packaging

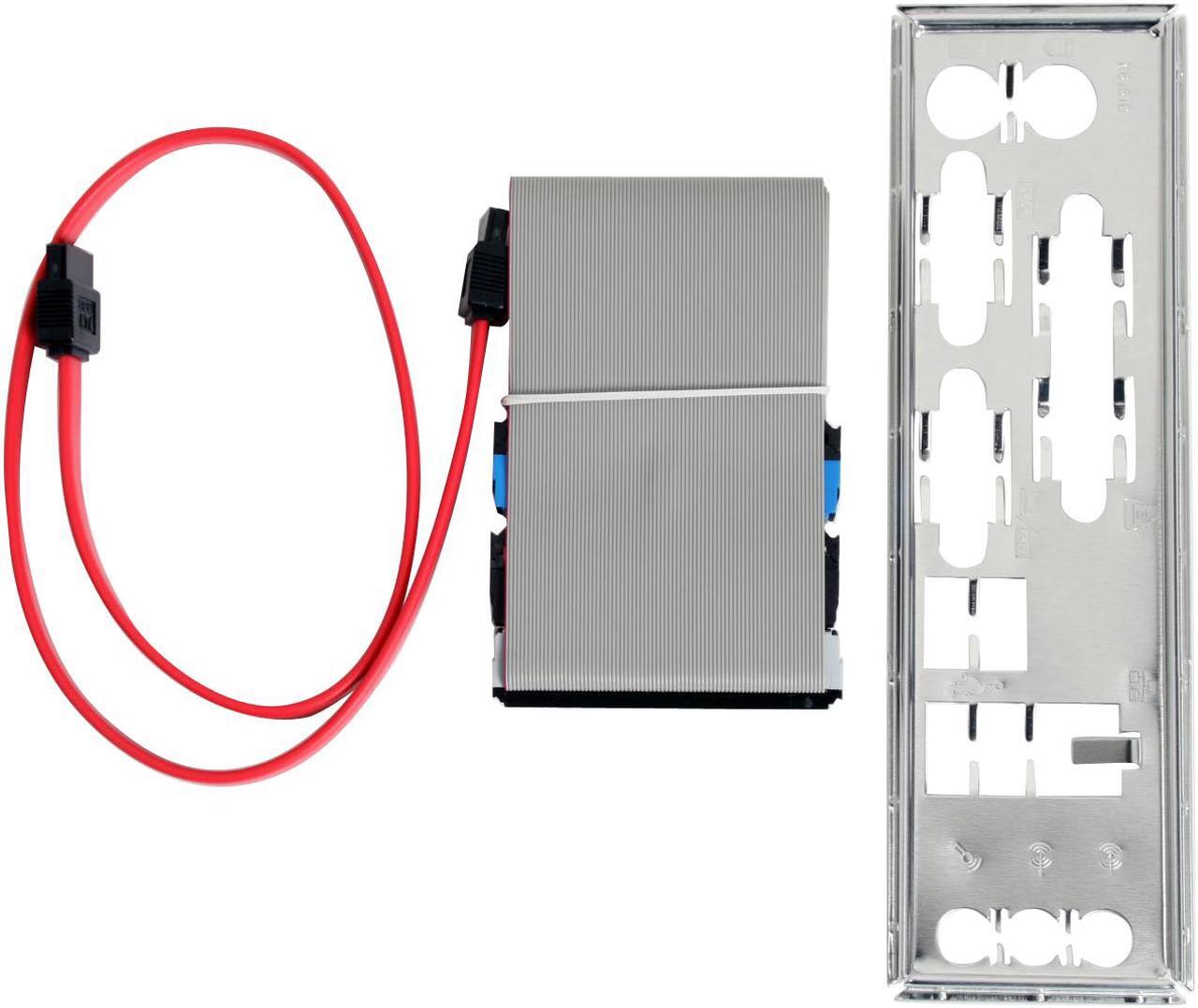

Package Contents	GeForce6100SM-M2 (V1.0A) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable

Physical Spec
Windows Vista	Certified for Windows Vista

Additional Information
Date First Available	November 29, 2007
