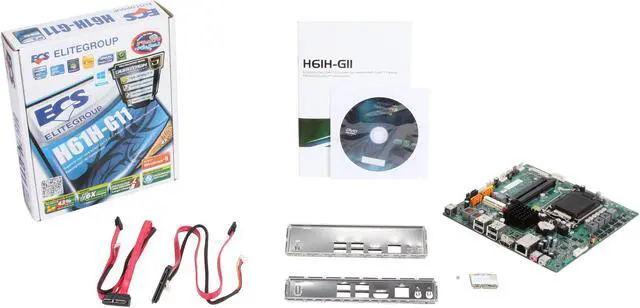

ECS H61H-G11 (V7.1) LGA 1155 Intel H61 HDMI Thin Mini-ITX Intel Motherboard
- Intel H61
- 2nd & 3rd gen Intel Core i7/i5/i3/Pentium/Celeron(LGA 1155)
- DDR3 1333/1066
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) H61H-G11 (V7.1)
| Brand | ECS |
|---|---|
| Model | H61H-G11 (V7.1) |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | 2nd & 3rd gen Intel Core i7/i5/i3/Pentium/Celeron(LGA 1155) |
| Chipset | Intel H61 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| Mini Card Slots | 1 x Mini PCI Express x1 slot for Wi-Fi /Blutooth modules |
|---|
| Audio Channels | 2 Channels |
|---|
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 4 x USB 2.0/1.1 |
|---|---|
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 2 Ports |
| Onboard USB | 5 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 4-pin CPU_FAN connector 1 x 4-pin SYS_FAN connector 1 x 4-pin SYS_FAN connector with smart fan 1 x Front Panel switch/LED header 1 x Front Panel MIC/Line-Out header 1 x Speaker header 1 x CLR_CMOS header 1 x Chassis intrusion header 1 x HDD Power connector 1 x ODD Power connector 1 x Inverter header 1 x LVDS connector (optional) |
| Form Factor | Thin Mini-ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Features | Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment Microsoft Windows 8 Certified Intel 22nm Multi-Core CPU support Intel VRD 12 Ready Supports DirectX 11 to enhance graphical performance Supports Intel HD Graphics Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function |
|---|
| First Listed on Newegg | November 14, 2013 |
|---|
