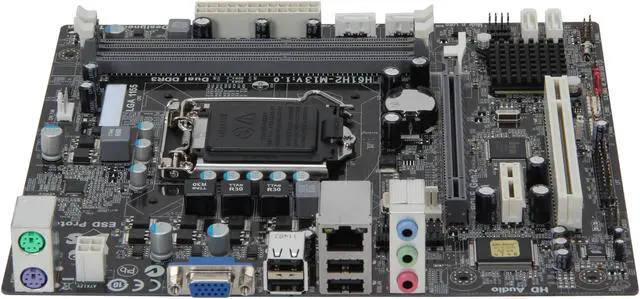

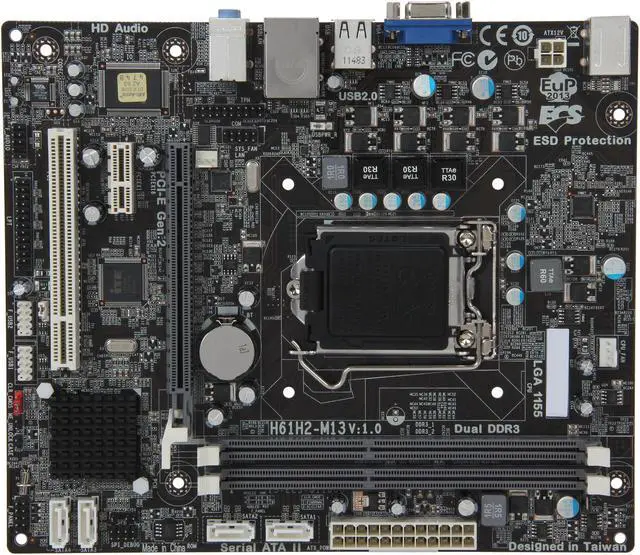

ECS H61H2-M13 LGA 1155 Intel H61 Micro ATX Intel Motherboard

(3) Write a Review
  • Intel H61
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • DDR3 1066/1333/1600(with Ivy Bridge)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) H61H2-M13

Model
Brand ECS
Model H61H2-M13
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1066/1333/1600(with Ivy Bridge)
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x 4pin CPU_FAN connectors
1 x 3-pin SYS_FAN connector
1 x LPT header
1 x COM header
1 x Case Open header
1 x TPM header
1 x Front panel audio header
1 x Front panel switch/LED header
1 x Speaker header
1 x Clear CMOS header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.86" x 7.48"
Power Pin 24 Pin
Additional Information
First Listed on Newegg May 30, 2012
