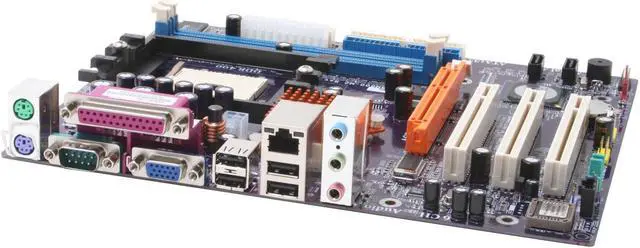

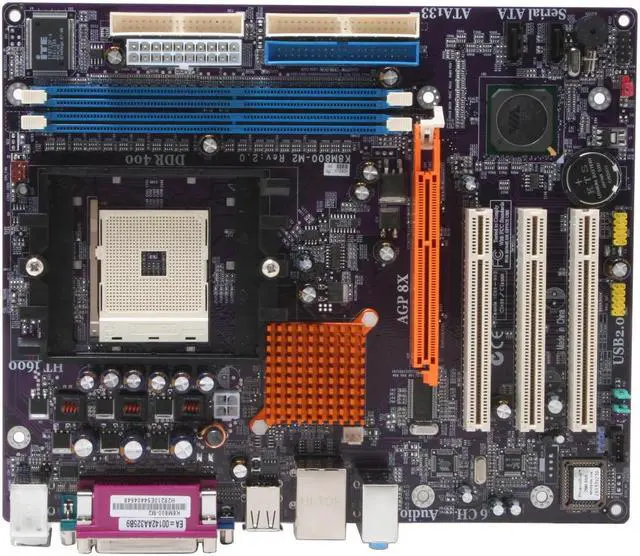

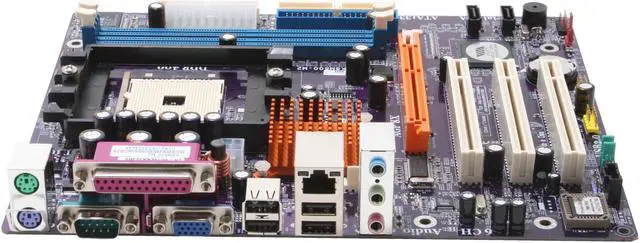

ECS K8M800-M2 (2.0) 754 VIA K8M800 Micro ATX AMD Motherboard

(107) Write a Review
  • VIA K8M800
  • Athlon 64 / Sempron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (107)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) K8M800-M2 (2.0)

Model
Brand ECS
Model K8M800-M2 (2.0)
Supported CPU
CPU Socket Type 754
CPU Type Athlon 64 / Sempron
FSB 800 MHz
Chipsets
Chipset VIA K8M800
South Bridge VIA VT8237
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset S3 Graphics UniChrome Pro IGP
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6103L
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.9"
Power Pin 20 Pin
Packaging

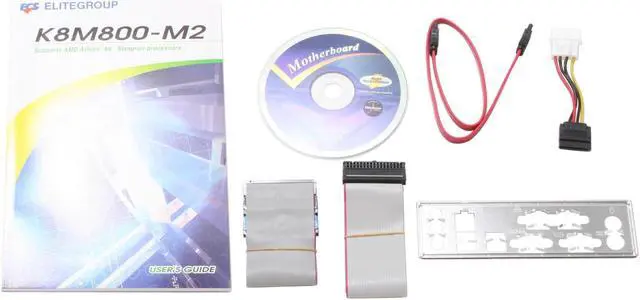

Package Contents K8M800-M2 (2.0)
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
First Listed on Newegg November 22, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
