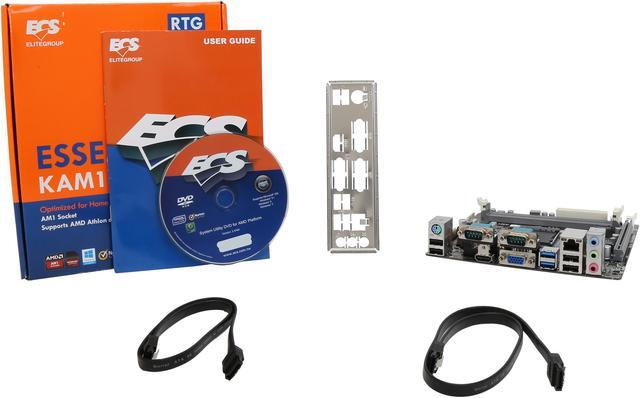

Images from RETAIL item, box contents may vary.

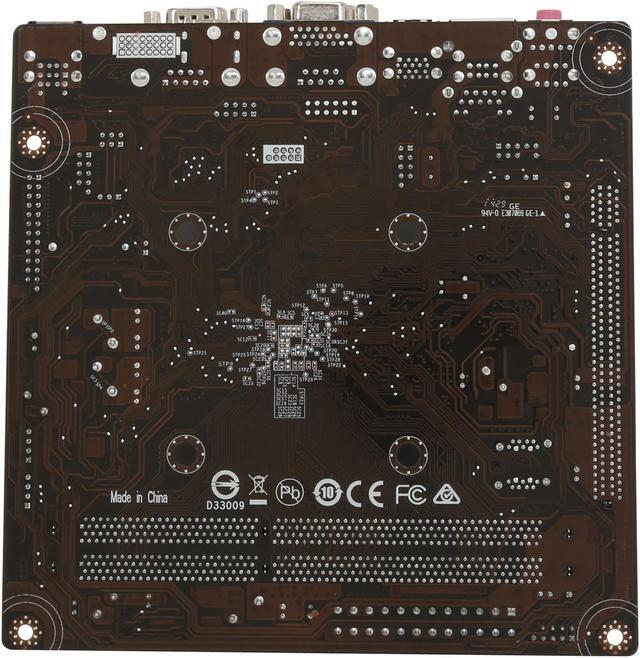

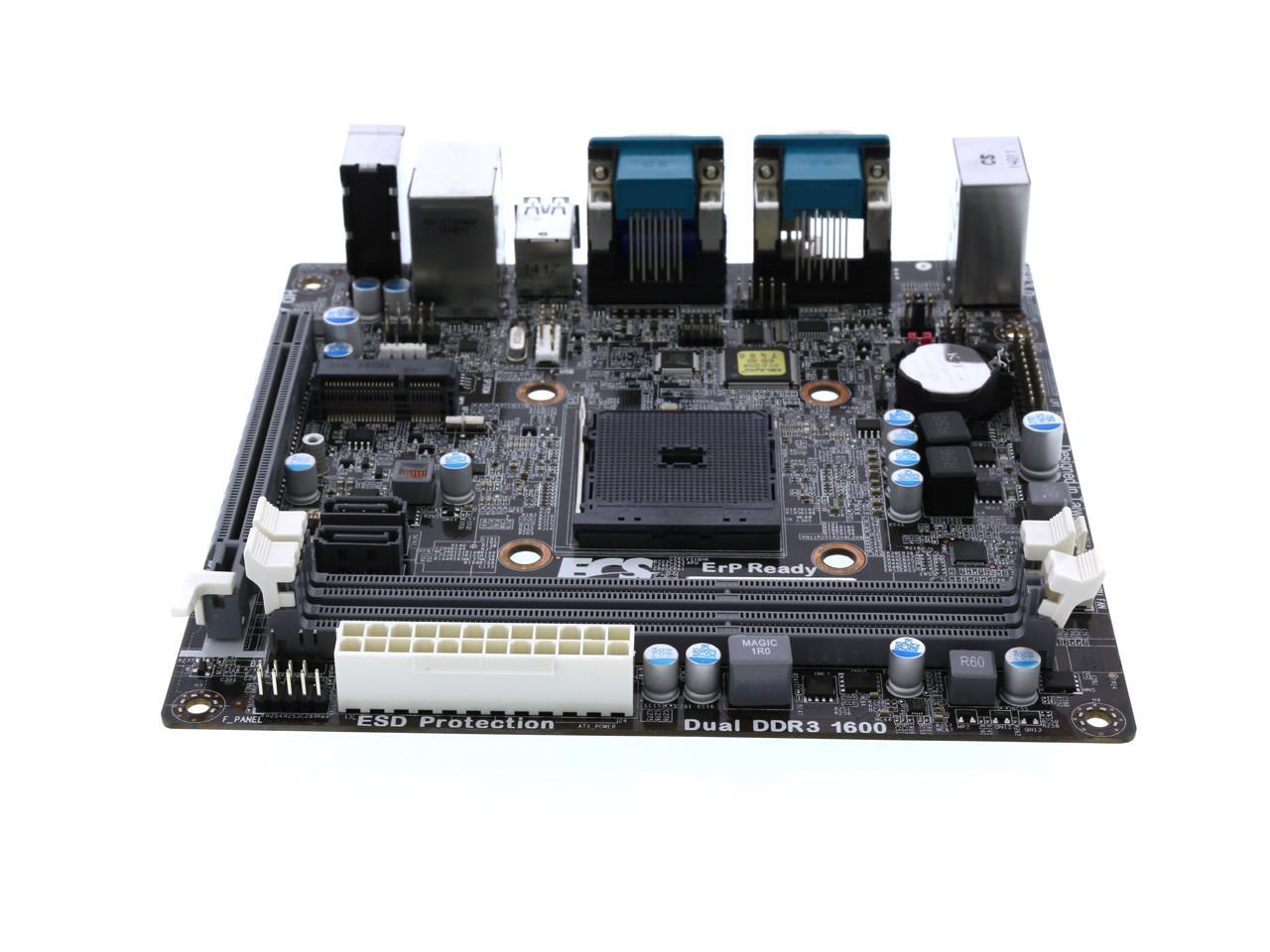

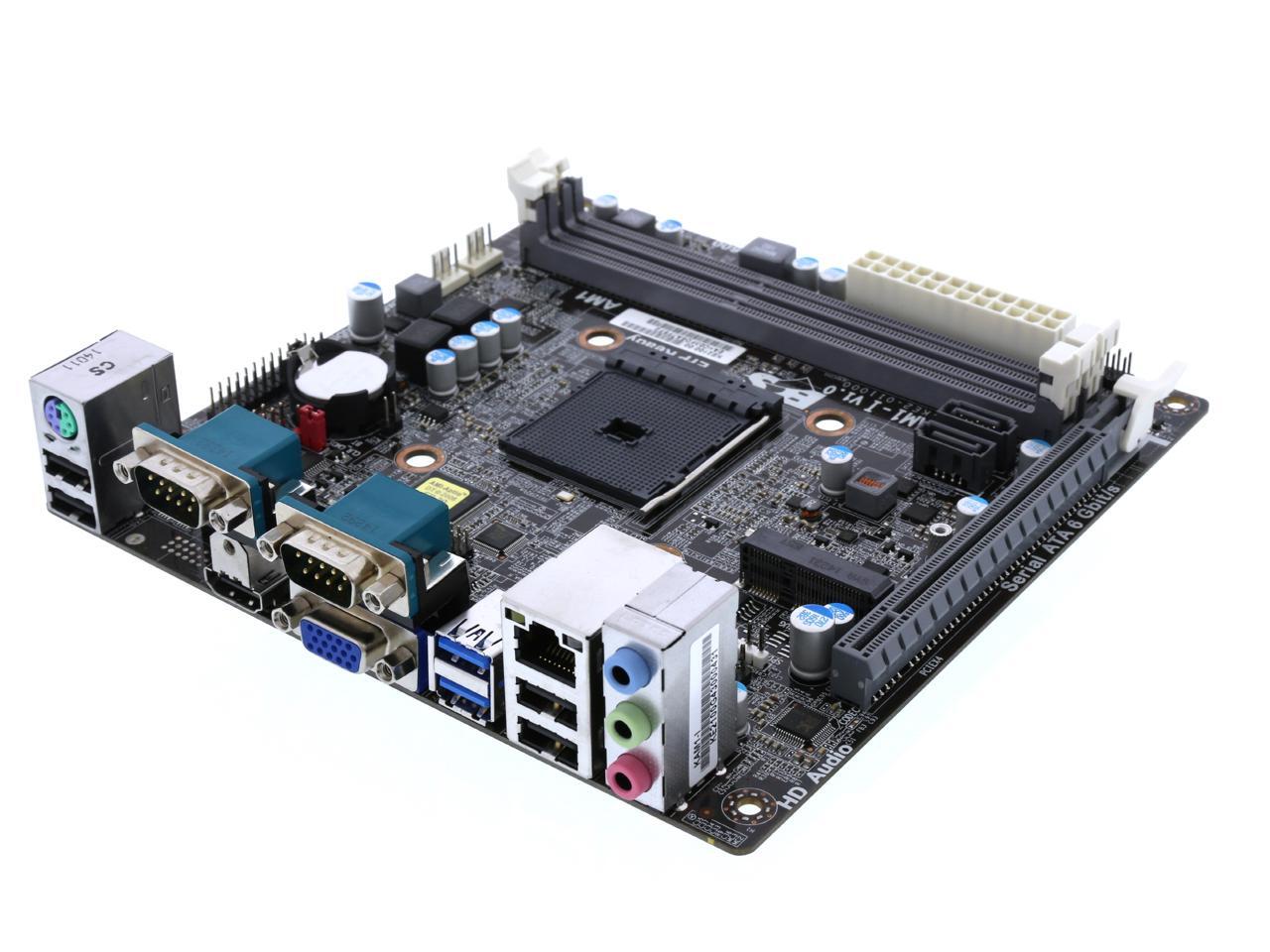

ECS KAM1-I (V1.0) AM1 USB 3.0 HDMI Mini ITX AMD Motherboard

OPEN BOX

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) KAM1-I (V1.0)

Model
Brand	ECS
Model	KAM1-I (V1.0)

Supported CPU
CPU Socket Type	AM1
CPU Type	Athlon / Sempron

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
Mini Card Slots	1 x Mini PCI Express x1 slot(s) Mini PCI Express X1 slot(s) doesn't support Mini SATA

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111G
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x COM (Serial Port) / 1 x D-Sub / 1 x DVI-I / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
COM	1
Video Ports	1 x DVI-I port(s) (optional) 1 x D-Sub (VGA) port(s)
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	1 x Audio port (Line Out/Line In/Mic In)

Internal I/O Connectors
Onboard USB	2 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 4-pin CPU_FAN connector with smart fan 1 x 4-pin SYS_FAN connector 1 x Clear_CMOS button 1 x Front panel audio header 1 x Onboard Buzzer 1 x S/PDIF out header 2 x SATA III 6Gb/s connector(s) 1 x CLR_CMOS header 1 x Parallel port header (LPT) 1 x Chassis intrusion header 1 x VGA header (optional)

Physical Spec
Form Factor	Mini ITX
Power Pin	24 Pin

Features
Features	2-Way multi-graphics solution Applied 100% Solid capacitor design to maximize component reliability ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment Microsoft Windows 8 Certified Microsoft Windows 8.1 Certified ECS Intelligent EZ Utility : eBLU, eDLU, eSF Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version

Additional Information
Date First Available	February 10, 2015
