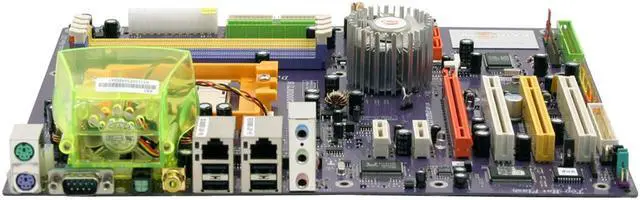

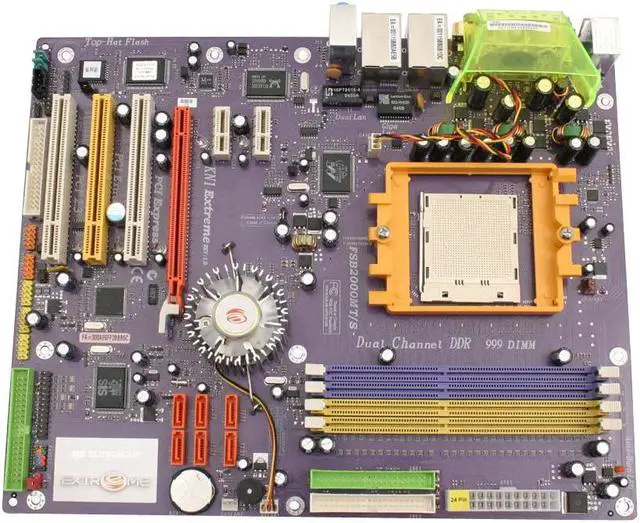

ECS KN1 Extreme 939 NVIDIA nForce4 Ultra ATX AMD Motherboard

(99) Write a Review
  • NVIDIA nForce4 Ultra
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (99)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) KN1 Extreme

Model
Brand ECS
Model KN1 Extreme
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce4 Ultra
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 3 x ATA100 6 Dev Max.
PATA RAID NV RAID 0/1/0+1 JBOD
SATA RAID NV RAID 0/1/0+1 JBOD
Additional RAID Controller SIS 180
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8100C
Second LAN Chipset Marvell 88E1111
Max LAN Speed 1Gbps + 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 2 x 1394a connectors support 2 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

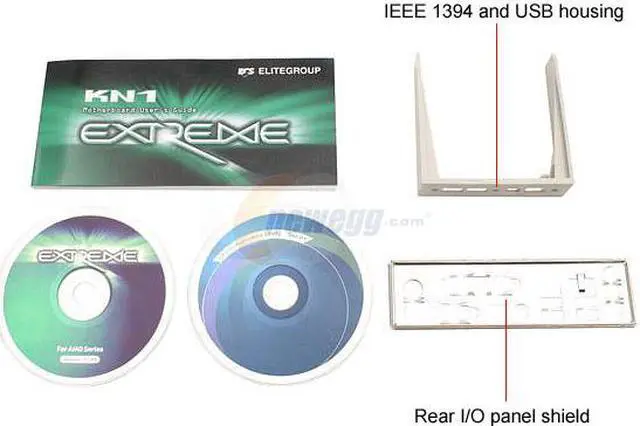

Package Contents KN1 Extreme
Driver Disk
User Manual
Software Disk
Rear I/O Panel Shield

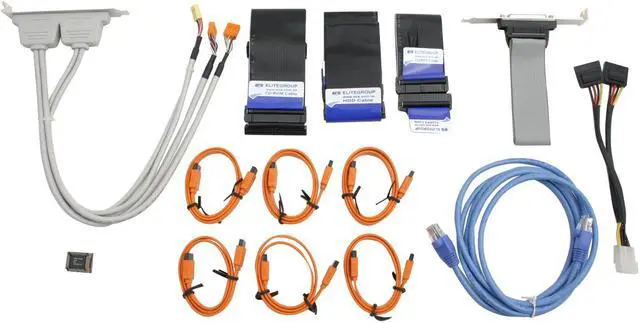

2 x IDE/PATA Cable
FDD Cable
6 x SATA Cable
4-pin to SATA Power Cable
Top Hat Flash
Cross Over Ethernet Cable
Parallel/LPT Bracket
IEEE 1394 and USB Bracket
IEEE 1394 and USB Bracket Housing
Additional Information
First Listed on Newegg February 21, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
