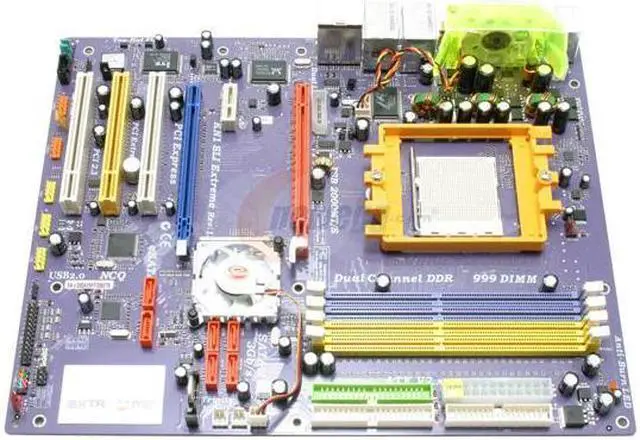

ECS KN1 SLI Extreme (1.0A) 939 NVIDIA nForce4 SLI ATX AMD Motherboard

(54) Write a Review
  • NVIDIA nForce4 SLI
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (54)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) KN1 SLI Extreme (1.0A)

Model
Brand ECS
Model KN1 SLI Extreme (1.0A)
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce4 SLI
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16 slot (SLI mode: x8+x8, single PCI-E is x8 mode)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
PATA RAID 0/1/0+1
SATA RAID 0/1/0+1
Additional RAID Controller Sil 3132
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E1111 PHY
Second LAN Chipset Realtek 8100C
Max LAN Speed 1Gbps + 100Mbps
Rear Panel Ports

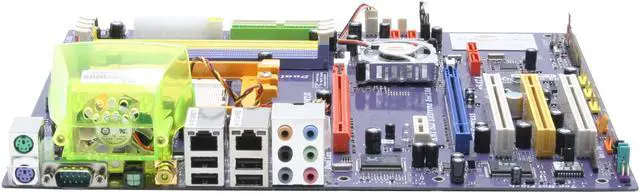

Back I/O Ports 1 x COM (Serial Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 2 x 1394a connectors support 2 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents KN1 SLI Extreme (1.0A)
2 x Driver Disk
User Manual
Rear I/O Panel Shield

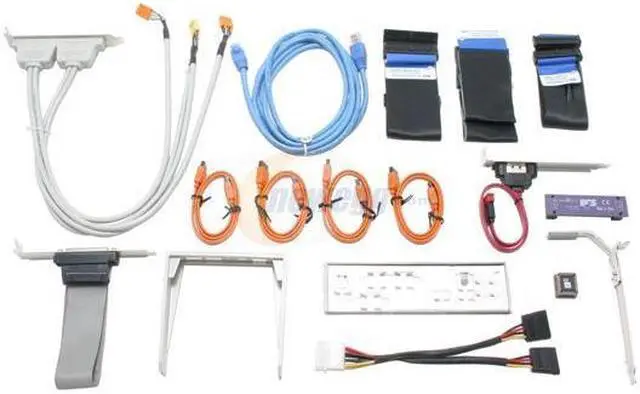

IDE/PATA Cable
FDD Cable
4 x SATA Cable
Power Cable
IEEE 1394 and USB Bracket
IEEE 1394 and USB Bracket Housing
RJ45 Cable
SLI Bridge
SLI Retention Bracket
Other Accessories
Additional Information
Date First Available August 18, 2005
