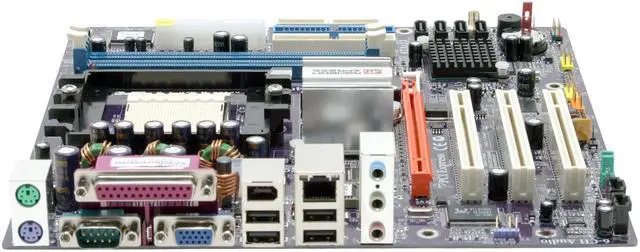

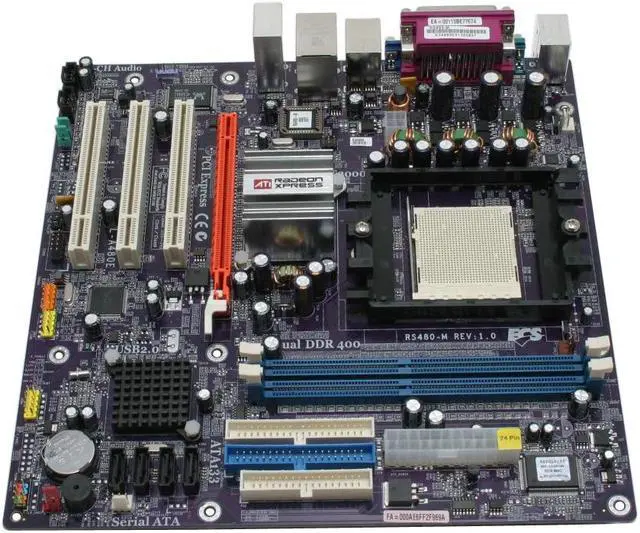

ECS RS480-M V1.0 939 ATI Radeon Xpress 200 Micro ATX AMD Motherboard

(87) Write a Review
  • ATI Radeon Xpress 200
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (87)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) RS480-M V1.0

Model
Brand ECS
Model RS480-M V1.0
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset ATI Radeon Xpress 200
South Bridge ATI SB400
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset ATI Radeon X300-based 2D/3D
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8100C
Max LAN Speed 100Mbps

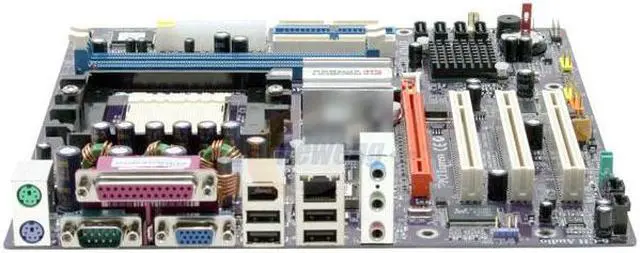

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging

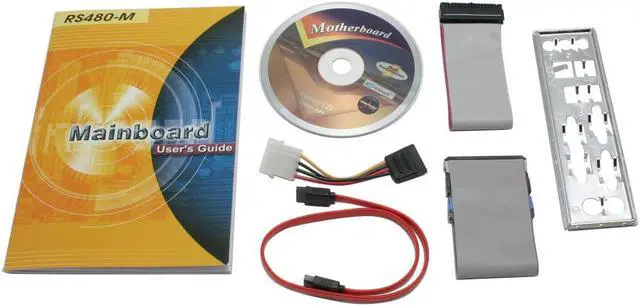

Package Contents RS480-M V1.0
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Power Cable
Additional Information
Date First Available April 11, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
