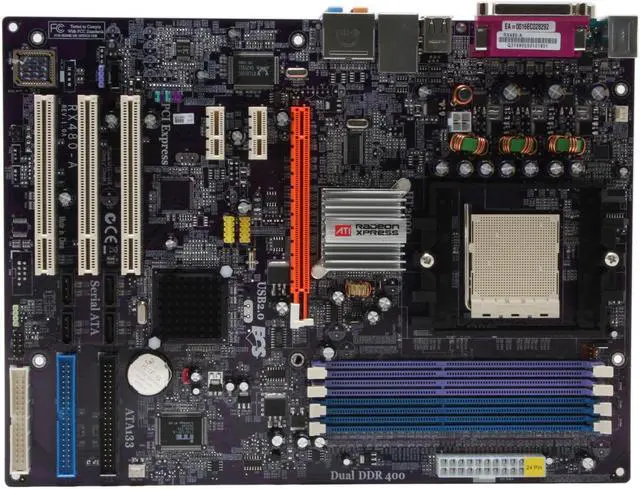

ECS RX480-A (1.0) 939 ATI Radeon Xpress 200P ATX AMD Motherboard

OPEN BOX Product Type
  • ATI Radeon Xpress 200P
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ECS (EliteGroup) RX480-A (1.0)

Model
Brand ECS
Model RX480-A (1.0)
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset ATI Radeon Xpress 200P
South Bridge ATI SB400
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8100C
Max LAN Speed 100Mbps

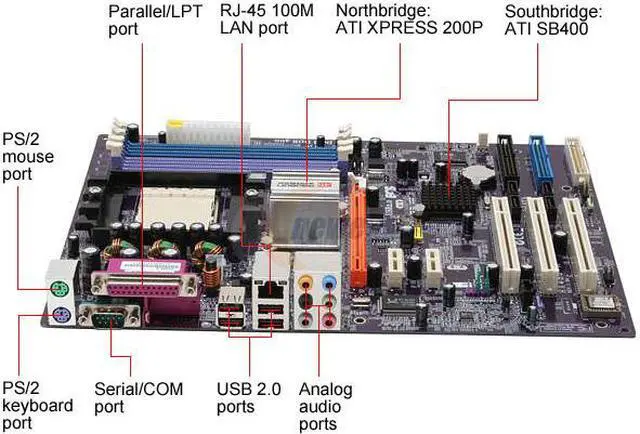

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
First Listed on Newegg September 18, 2006
