What is included with the mobo?

It's a bare-bones shipment. I believe it was just 2 SATA cables and a driver CD. I've used gigabyte boards in the past, and they tend to include lots of goodies. I built a Win 8 machine, and the driver CD autorun did not work and there was not a Win 8 folder on the CD. I gave up and went to manufacturer website to check for updated drivers, and some of those installs failed, but mobo appears to work fine, so apparently all the drivers needed must be in Win 8 install.

Not including memory, 50 watts would be a liberal budget. Again, not counting the memory, around 3-4 amps at 5 volts handles USB, north, south, ata controller, etc. 35nM CPU uses much more power than a 22nM CPU, with a 22nM you could run everything but extra video in 150 watts.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 2 of 5 - ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 3 of 5 - ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

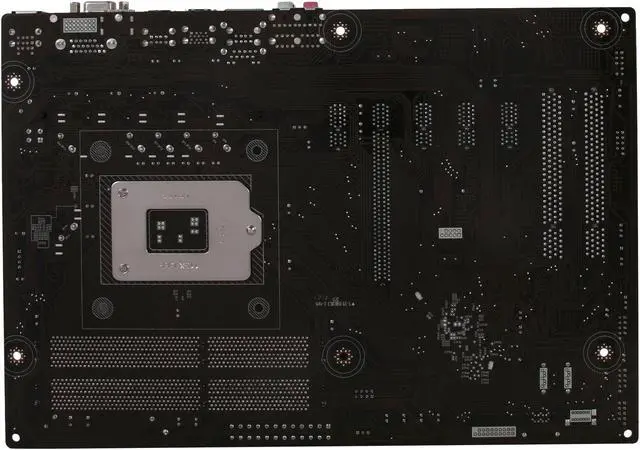

Alt view image 4 of 5 - ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

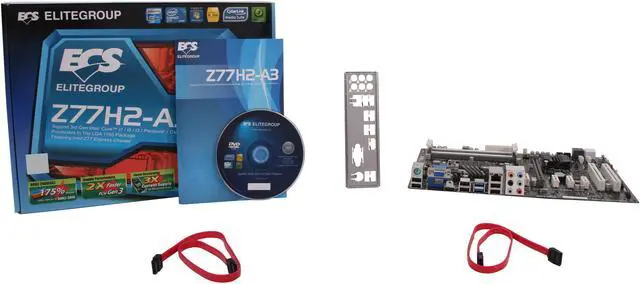

Alt view image 5 of 5 - ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Shop All ECS (EliteGroup) Products

ECS Z77H2-A3(1.2) LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

(8) Write a Review

Intel Z77
Core i7 / i5 / i3 (LGA1155)
DDR3 2800(OC)/2600(OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (8)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) Z77H2-A3(1.2)

Model
Brand	ECS
Model	Z77H2-A3(1.2)

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 (LGA1155)

Chipsets
Chipset	Intel Z77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	4 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	6 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX Power Supply Connector 1 x 4pin CPU_FAN connectors 2 x 3-pin SYS_FAN connector 1 x 3-pin PWR_FAN connector 1 x COM header 1 x Case Open header 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Clear CMOS header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12" x 8.27"
Power Pin	24 Pin

Additional Information
First Listed on Newegg	June 18, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-456-9836
Support Email: [email protected]
Support Website
View other products from ECS (EliteGroup)

Item#: N82E16813135308
