Q & A:
Q: Where can I download the CPS or APP?
A: You can download the CPS from official Baofeng site: baofengradio. com.
For the mobile APP, simply search “Walkie Talkie Tool” in the App Store or Google Play Store and download it directly.
Q: Do I have to log in the app to program my UV-28 Plus?
A: No, programming the radio does not require to login.
Q: Can I use CHIRP to program the UV-28 Plus?
A: Sure, select the model "UV-28Plus" and then you can setup your UV-28 Plus on CHIRP.

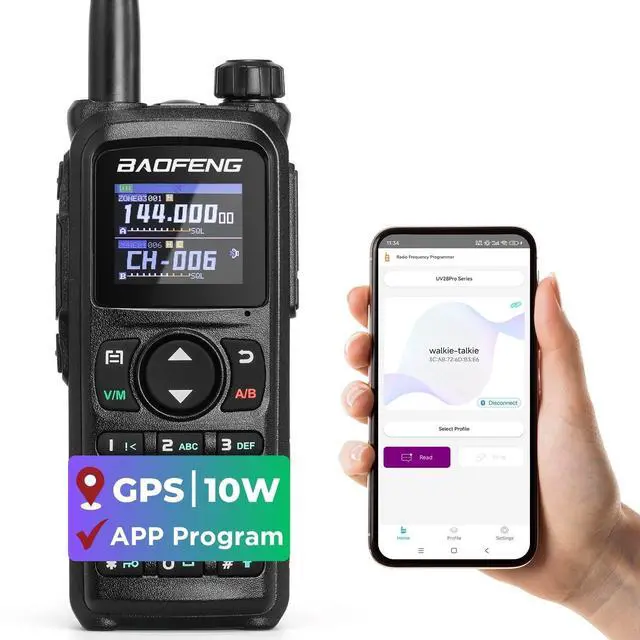

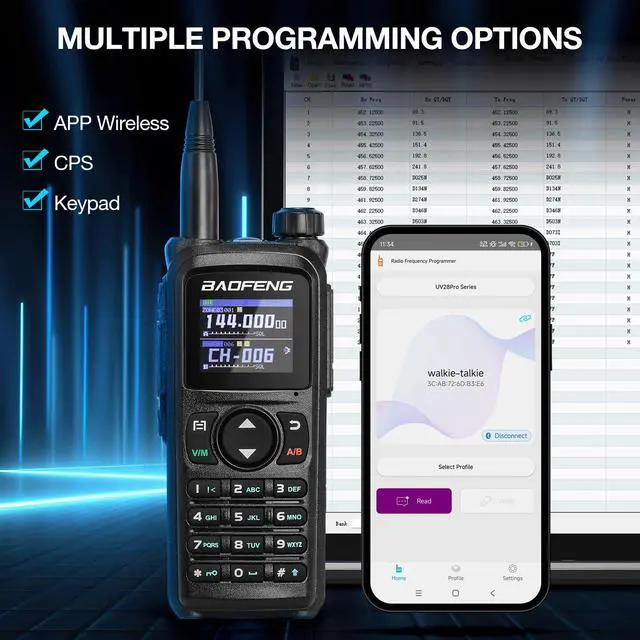

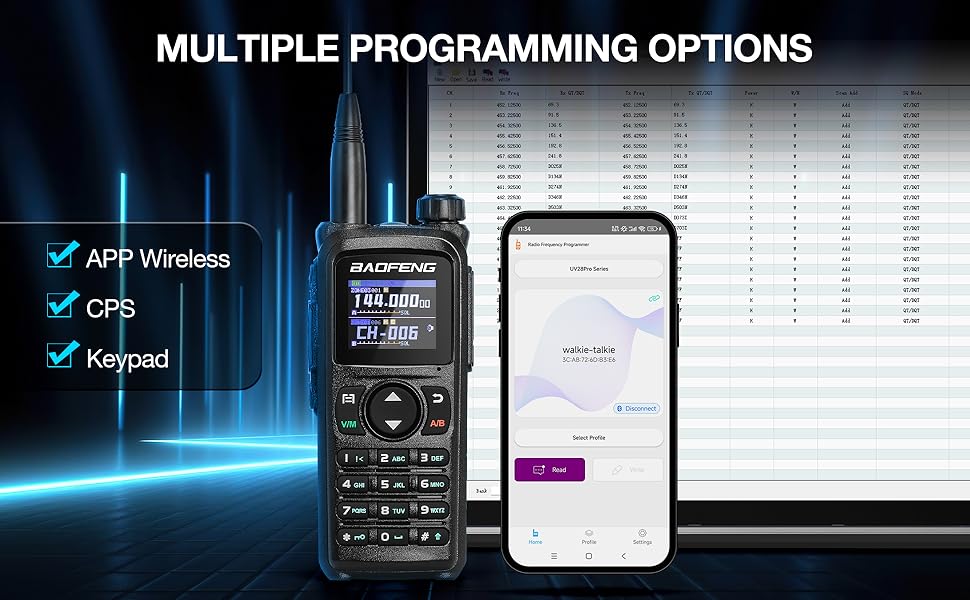

Q: How to connect the radio with the APP for programming?
- Turn on the BT function in the UV-28 Plus menu.
- Enable BT on your phone and ensure no other device is currently connected.
- Open the APP, select “UV-28”.
- Click "Connect" and select device to match with the radio.
- Wait about 10 seconds until it displays “Connection Successful”.
- Return to the homepage and you can start reading and programming the radio.
Tips: If you still experience setup or using issues, feel free to get to us through official BAOFENG site or via "Ask A Ques tion"on our Store"Sharkoo"

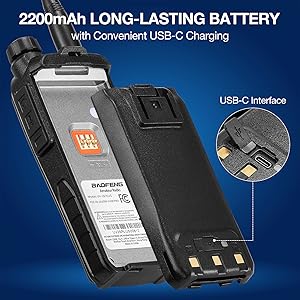

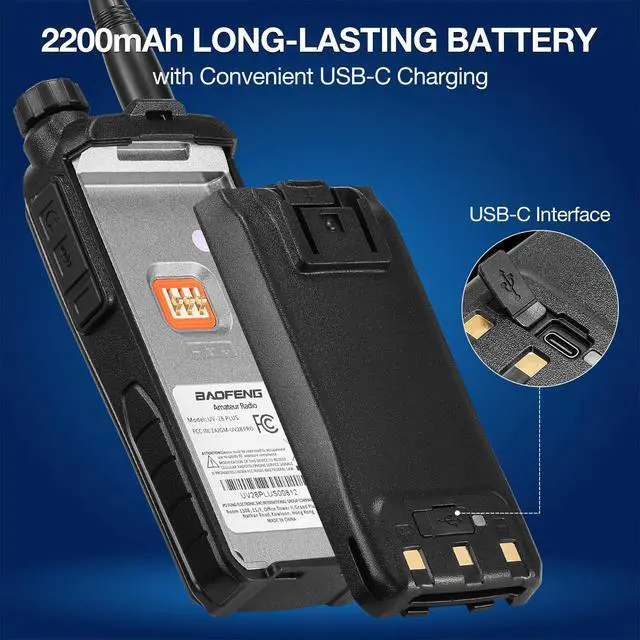

2200mAh Battery
Stay powered up for longer communication with a large-capacity 2200mAh battery, providing extended use for your toughest outdoor adventures

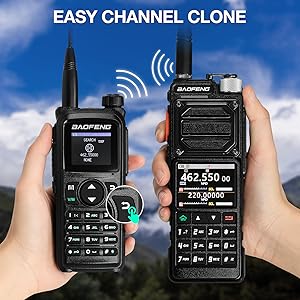

One-Key Frequency Copy
Effortlessly copy and save frequencies along with CTCSS/DCS codes from another radio with a single button, simplifying setup and ensuring convenience on the go

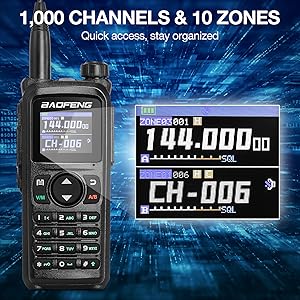

1000 Channels & 10 Zones
Access 1000 channels organized into 10 customizable zones, making it easy to manage and efficiently switch between channels for both personal and professional use

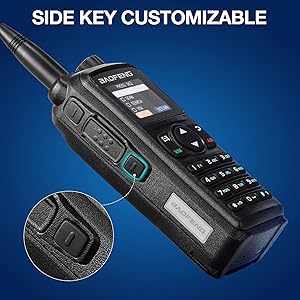

Customizable Side Key
Personalize your device with the programmable SK2 key, allowing quick access to FM, search, scan, and VOX functions, enhancing flexibility and user experience

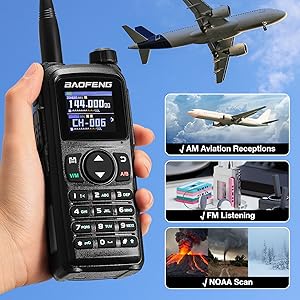

Versatile Reception
Enjoy AM, NOAA, and Airband reception for real-time weather updates, emergency alerts, and seamless access to aviation frequencies, ensuring you stay informed in any situation

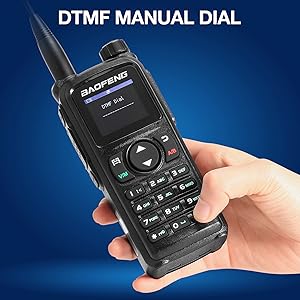

DTMF Manual Dial
Make direct, reliable calls or send preset messages effortlessly using the DTMF (Dual-Tone Multi-Frequency) manual dial for quick and efficient communication
Specifications
- Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
- Memory Channel: 1,000 Channels / 10 zones
- Operation Voltage: DC 7.4 V ±10%
- Operating Temperature: -10°C to 60°C
- ANT Impedance: 50O
- Frequency Stability: ±2.5 ppm
- Spurious Emission: -16 dBm<1GHz, -16 dBm>1GHz
- Audio Distortion: =5%
- Rated Audio Power Output: 0.75 Watts @ 16 O
- Connection for Accessories: 2-pin Kenwood jack

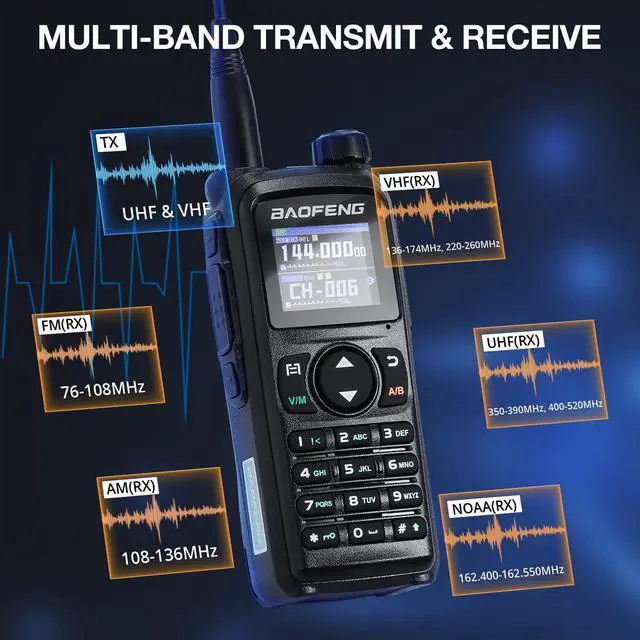

Frequency Range
- TX: UHF VHF
- RX: FM 76-108 MHz; AM 108-136MHz, VHF 136-174MHz, 220-260MHz, UHF350-390MHz, 400-520MHz
What's in the box?
- 1 x UV-28 PLUS Ham Radio
- 1 x 2200mAh Li-ion Battery
- 1 x High-Gain ANT
- 1 x Headset
- 1 x Belt Clip
- 1 x Wrist Strap
- 1 x Desktop Charger with Adapter
 UV-28 Plus |  UV-25 Plus |  UV-5RM PLUS GPS |  K5PLUS |  UV-5RM Plus |  GT-5R [UV-5R FCC Compliant Version] | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| TX Frequency Range | UHF VHF | UHF VHF | UHF VHF | UHF VHF 1.25M | UHF VHF | UHF VHF |
| RX Frequency Range | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF |

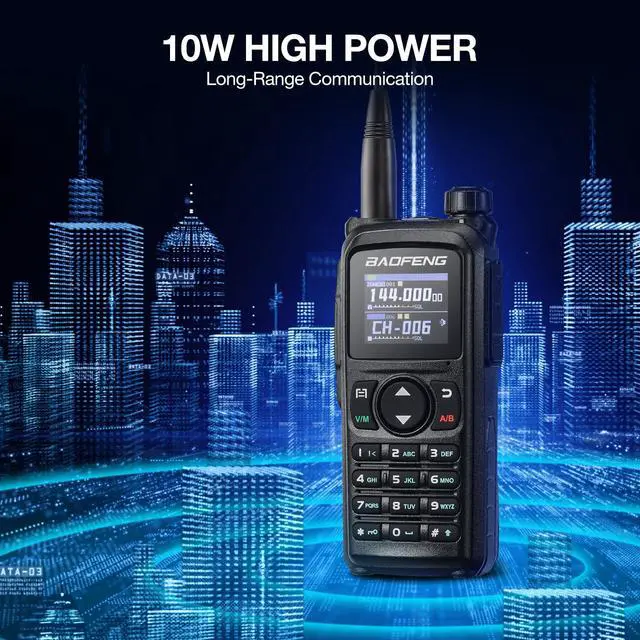

| Power | 10W | 10W | 10W | 10W | 10W | 5W |
| Battery | 2200mAh | 5200mAh | 2500mAh | 2500mAh | 2500mAh | 1800mAh |
| USB-C Rechargeable | ? | ? | ? | ? | ? | no data |
| Channel Storage | 1000CH, 10 Zones | 1000CH, 10 Zones | 640CH, 10 Zones | 999CH | 999CH | 128CH |
| GPS | ? | ? | ? | no data | no data | no data |
| Wireless APP Programming | ? | no data | no data | no data | no data | no data |
![[UV-5R FCC Compliant Version] BAOFENG GT-5R Dual Band Two Way Radio, UHF VHF Ham Radio Handheld f...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/8980a2d4bc206a1d654b4d9c2e449199d81a916aa4e6ec9f807e599861df3a77.jpg)
![[5 Packs] Baofeng UV-5R Two Way Radio Dual Band 144-148/420-450Mhz Walkie Talkie with 1800mAh Li-...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/fdd3553999fe901ccd23191562fcb641f4d9df017e9c718d17152cc4a861d928.jpg)
![BAOFENG [USB-C Rechargeable] BL-5 1800mAh Battery for UV-5R Series, Type-C Charging Port, Compati...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/0cdbf962037ec65be528b09761cc2abb4872082eb56fe4ab6d5cde0088743295.jpg)
Q & A:
Q: Where can I download the CPS or APP?
A: You can download the CPS from official Baofeng site: baofengradio. com.
For the mobile APP, simply search “Walkie Talkie Tool” in the App Store or Google Play Store and download it directly.
Q: Do I have to log in the app to program my UV-28 Plus?
A: No, programming the radio does not require to login.
Q: Can I use CHIRP to program the UV-28 Plus?
A: Sure, select the model "UV-28Plus" and then you can setup your UV-28 Plus on CHIRP.
Q: How to connect the radio with the APP for programming?
- Turn on the BT function in the UV-28 Plus menu.
- Enable BT on your phone and ensure no other device is currently connected.
- Open the APP, select “UV-28”.
- Click "Connect" and select device to match with the radio.
- Wait about 10 seconds until it displays “Connection Successful”.
- Return to the homepage and you can start reading and programming the radio.
Tips: If you still experience setup or using issues, feel free to get to us through official BAOFENG site or via "Ask A Ques tion"on our Store"Sharkoo"
2200mAh Battery
Stay powered up for longer communication with a large-capacity 2200mAh battery, providing extended use for your toughest outdoor adventures
One-Key Frequency Copy
Effortlessly copy and save frequencies along with CTCSS/DCS codes from another radio with a single button, simplifying setup and ensuring convenience on the go
1000 Channels & 10 Zones
Access 1000 channels organized into 10 customizable zones, making it easy to manage and efficiently switch between channels for both personal and professional use
Customizable Side Key
Personalize your device with the programmable SK2 key, allowing quick access to FM, search, scan, and VOX functions, enhancing flexibility and user experience
Versatile Reception
Enjoy AM, NOAA, and Airband reception for real-time weather updates, emergency alerts, and seamless access to aviation frequencies, ensuring you stay informed in any situation
DTMF Manual Dial
Make direct, reliable calls or send preset messages effortlessly using the DTMF (Dual-Tone Multi-Frequency) manual dial for quick and efficient communication
Specifications
- Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
- Memory Channel: 1,000 Channels / 10 zones
- Operation Voltage: DC 7.4 V ±10%
- Operating Temperature: -10°C to 60°C
- ANT Impedance: 50O
- Frequency Stability: ±2.5 ppm
- Spurious Emission: -16 dBm<1GHz, -16 dBm>1GHz
- Audio Distortion: =5%
- Rated Audio Power Output: 0.75 Watts @ 16 O
- Connection for Accessories: 2-pin Kenwood jack
Frequency Range
- TX: UHF VHF
- RX: FM 76-108 MHz; AM 108-136MHz, VHF 136-174MHz, 220-260MHz, UHF350-390MHz, 400-520MHz
What's in the box?
- 1 x UV-28 PLUS Ham Radio
- 1 x 2200mAh Li-ion Battery
- 1 x High-Gain ANT
- 1 x Headset
- 1 x Belt Clip
- 1 x Wrist Strap
- 1 x Desktop Charger with Adapter
UV-28 Plus | UV-25 Plus | UV-5RM PLUS GPS | K5PLUS | UV-5RM Plus | GT-5R [UV-5R FCC Compliant Version] | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| TX Frequency Range | UHF VHF | UHF VHF | UHF VHF | UHF VHF 1.25M | UHF VHF | UHF VHF |
| RX Frequency Range | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF FM AM(Aviation) NOAA | UHF VHF |
| Power | 10W | 10W | 10W | 10W | 10W | 5W |
| Battery | 2200mAh | 5200mAh | 2500mAh | 2500mAh | 2500mAh | 1800mAh |
| USB-C Rechargeable | ? | ? | ? | ? | ? | no data |
| Channel Storage | 1000CH, 10 Zones | 1000CH, 10 Zones | 640CH, 10 Zones | 999CH | 999CH | 128CH |
| GPS | ? | ? | ? | no data | no data | no data |
| Wireless APP Programming | ? | no data | no data | no data | no data | no data |
