REVOLUTION ATX 3.0
FULLY MODULAR ATX POWER SUPPLIES
FULLY COMPATIBLE WITH INTEL ATX 3.0 SPECIFICATIONS
REVOLUTION ATX 3.0 series is fully compatible with Intel ATX 3.0 specification which will unlock the full power potential of next-generation hardware. Each power will come with a native 12+4 pin (12VHPWER) cable and extra dual 8 pin to12+4 pin (12VHPWER) cable to offer you the most advanced performance.
ATX 3.0 WITH POWER EXCURSION TO 200%
The new specifications of ATX 3.0 will have a positive impact for power and performance improvements across all desktop segments. It can sustain up to 200% power load for power excursion, reach 60%-70% efficiency even during low loading and shorter power-on time to make you power up your system faster.
FULL POWER POTENTIAL WITH PCIe GEN 5.0 NATIVE CABLE
REVOLUTION ATX 3.0 comes with native 12+4 pin 12VHPWR cable that directly supply up to 600W to the latest NVIDIA graphics cards for gamers and creators to have the most stable and powerful system they will ever have.
EXTRA CABLE TO SUPPORT TWO GRAPHIC CARDS
REVOLUTION ATX 3.0 will also come with another Dual PCIe 8pin to 12VHPWR cable in the box for you to install up to two of the latest NVIDIA graphics cards to get an even better performance and experience.
Dual 8 pin to 12+4 pin (12VHPWER) cable
* Please be aware of the total wattage requirement when you connect more than 1 GPU.
HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE
Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending.

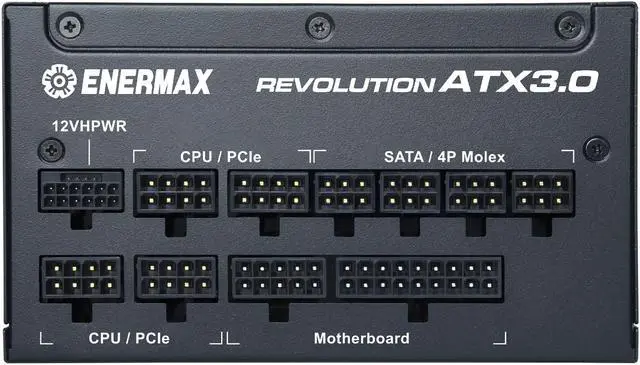

BUILD FOR ALL GRAPHICS CARDS
With the need of extra power for graphics cards, the REVOLUTION ATX 3.0 is designed to support all of the NVIDIA, AMD and Intel graphics cards according to their different types of power connectors.
1 GPU Power Connector
2 GPU Power Connector
12+4pin GPU Power Connector (Extra Cable for Another GPU)
SUPERIOR EFFICIENCY AND THE BEST QUALITY
With up to 92% efficiency and the best quality Japanese electrolytic capacitors to reduce unnecessary power consumption, save energy and create lower temperature.
PUSH FOR ABSOLUTE SILENCE

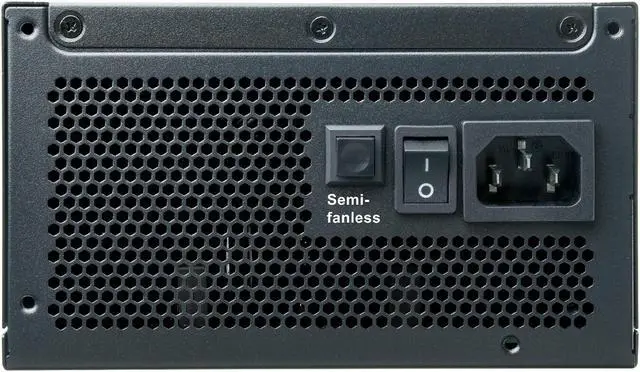

Designed with ENERMAX Semi-Fanless Tech, fan will be completely off until the load exceeds 30% for you to enjoy absolute silence of 0 dB(A) during minimum load. The fan control button next to the power switch allows you to turn off the function as you need and ensure active cooling for all time.
RELIABLE AND SAFE FOR YOUR SYSTEM
REVOLUTION ATX 3.0 applied advanced LLC and Synchronous Rectifier (SR) design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.
CABLE AND POWER AS YOU NEED
Only connect the cable you need with full modular design. REVOLUTION ATX 3.0 will also deliver the power you need for the best compatibility and avoid overloading with single rail +12V design.
