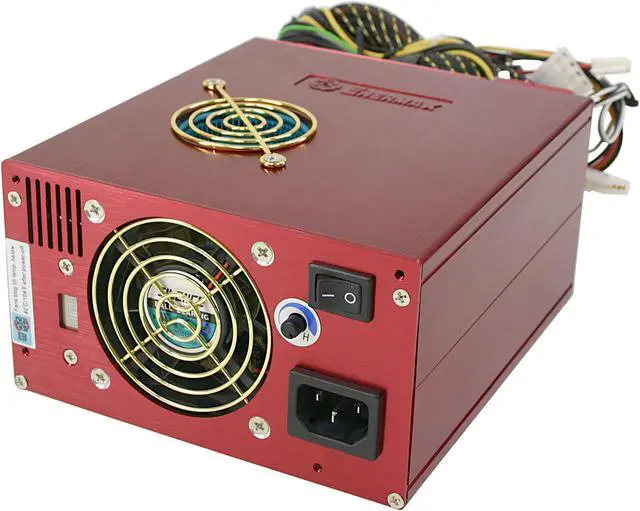

ENERMAX Coolergiant EG485AX-VHB SFMA 2.0 480 W ATX12V Active PFC Power Supply

(4) Write a Review
  • ATX12V
  • 100 - 240 V 50/60 Hz
  • +3.3V@34A; +5V@40A; +12V1@16A; +12V2@15A; -12V@0.8A; +5VSB@2.5A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (4)

Learn more about the ENERMAX EG485AX-VHB SFMA 2.0

General
Brand ENERMAX
Series Coolergiant
Model EG485AX-VHB SFMA 2.0
Details
Type ATX12V
Maximum Power 480 W
Fans 3
PFC Active
Main Connector 24Pin
+12V Rails Yes
PCI-Express Connector 1 x 6-Pin
SLI No
Modular No
Hold-up Time 17ms min.
Over Voltage Protection +5V: 5.5V~7.0V; +3.3V: 3.76V~4.3V; +12V1 & +12V2: 13.4V~15.6V
Overload Protection 105%~160%
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 3.5/ 7.5A

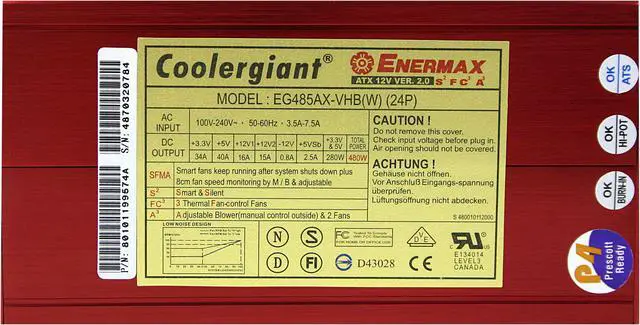

Output +3.3V@34A; +5V@40A; +12V1@16A; +12V2@15A; -12V@0.8A; +5VSB@2.5A
MTBF 100K hours at 25 C
Approvals UL (Level 3), cUL (Level 3), VDE, CB, NEMKO, SEMKO, DEMKO, FIMKO

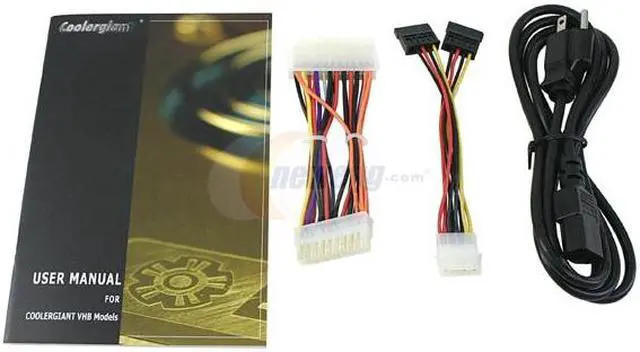

Connectors 24Pin to 20Pin adapter
Additional Information
First Listed on Newegg September 09, 2004

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
