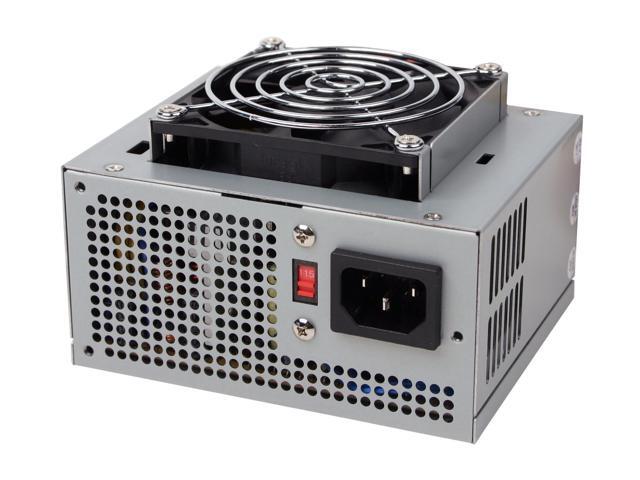

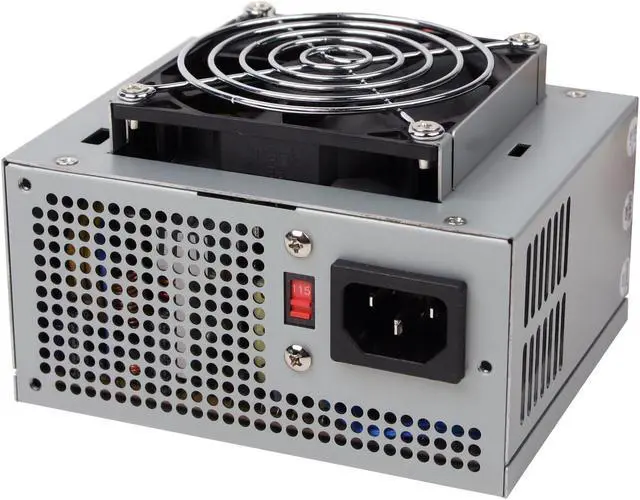

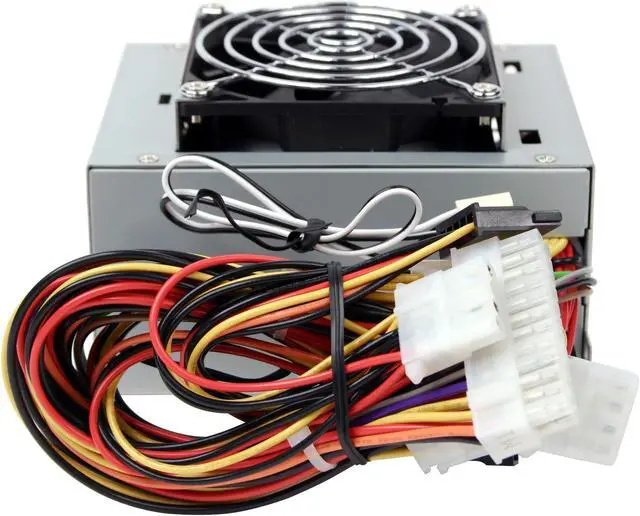

ENERMAX EG285S-VB 24P 270 W SFX12V Power Supply

OUT OF STOCK.
  • SFX12V
  • 115 / 230 V 50/60 Hz
  • +3.3V@20A, +5V@22A, +12V@20A, -12V@0.5A, +5VSB@2.2A
Specs
Reviews

Learn more about the Enermax EG285S-VB 24P

General
Brand ENERMAX
Model EG285S-VB 24P
Details
Type SFX12V
Maximum Power 270 W
Fans 1
PFC No
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector No
SLI No
CrossFire No
Modular No
Hold-up Time 16ms at 115VAC or 230VAC, full load
Over Voltage Protection +5V: 5.5V~7.0V, +3.3V: 3.7V~4.3V, +12V: 13.2V~15.6V
Overload Protection 110~160% of max load
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 8/3A

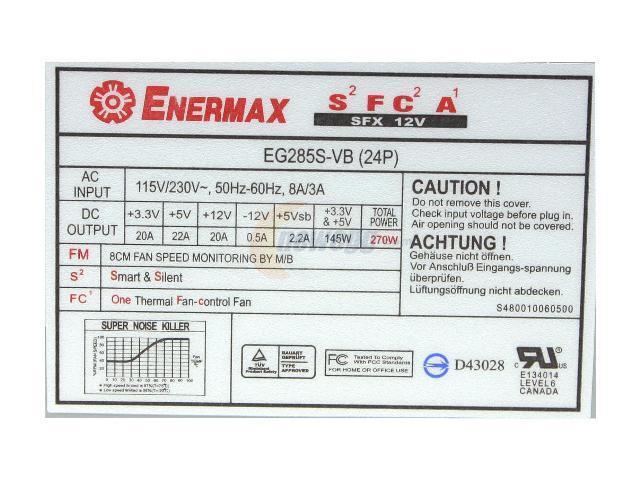

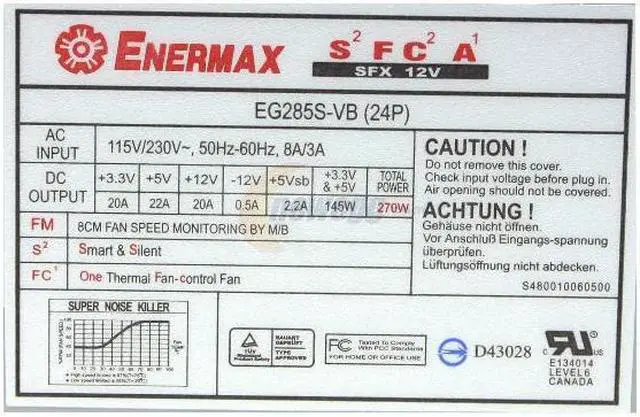

Output +3.3V@20A, +5V@22A, +12V@20A, -12V@0.5A, +5VSB@2.2A
MTBF Greater than 100K hours at 70% of full rated load; 115VAC / 60Hz input; 25C ambient; 45%~85% relative humidity;
Approvals UL, cUL, TUV, NEMKO

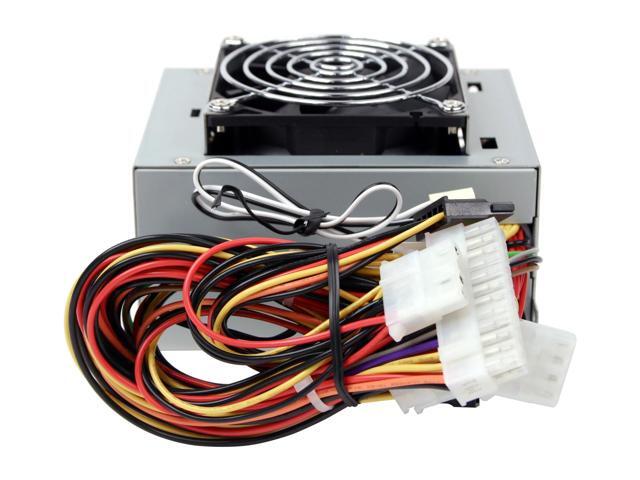

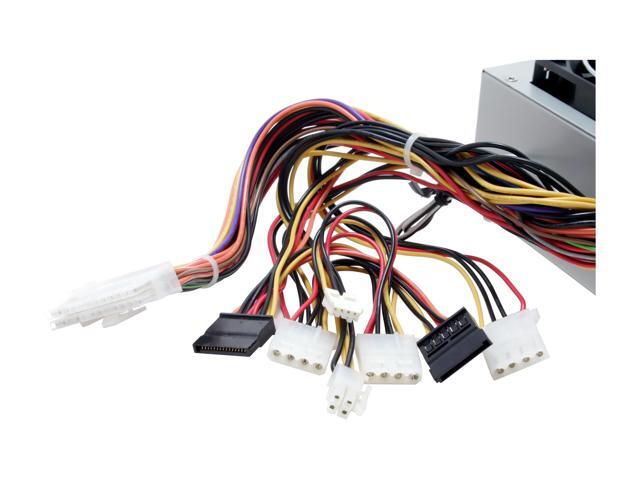

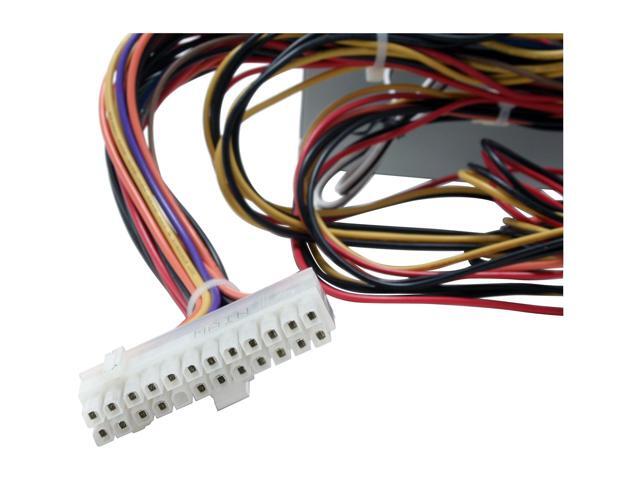

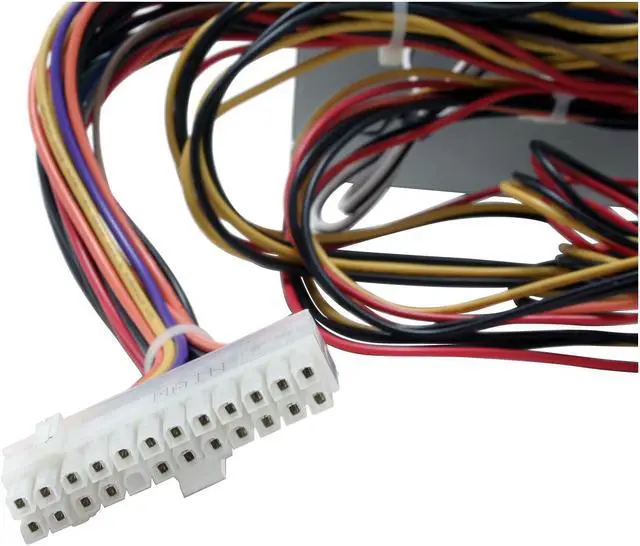

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
3 x peripheral
2 x SATA
1 x Floppy
Additional Information
Date First Available November 10, 2004
