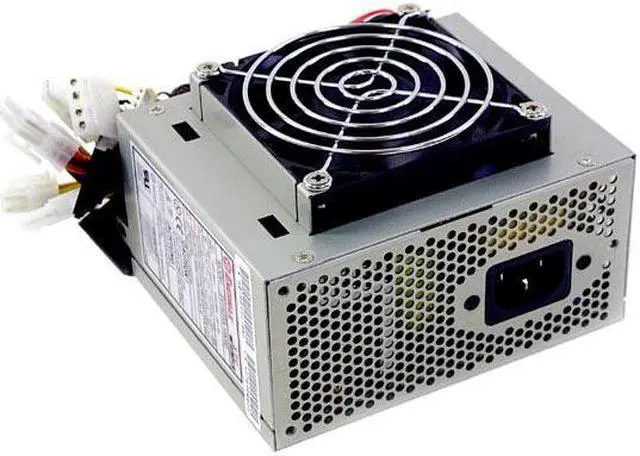

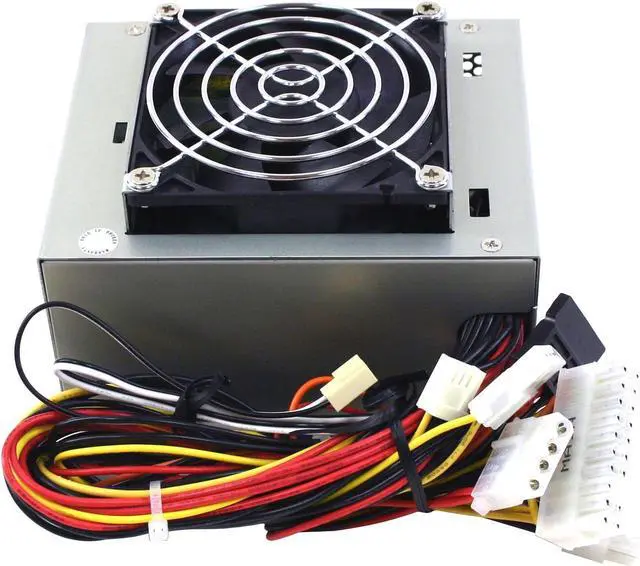

ENERMAX EG285SX-VB(W)SFM 270 W SFX12V Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (4)

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the ENERMAX EG285SX-VB(W)SFM

General
Brand	ENERMAX
Model	EG285SX-VB(W)SFM

Details
Type	SFX12V
Maximum Power	270 W
Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
SLI	No
Modular	No
Hold-up Time	16ms min.
Efficiency	> 70%
Over Voltage Protection	+5V: 5.5V~7.0V +3.3V: 3.7V~4.3V +12V: 13.2V~15.6V
Overload Protection	110~160% of max load
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	4/ 1.5A

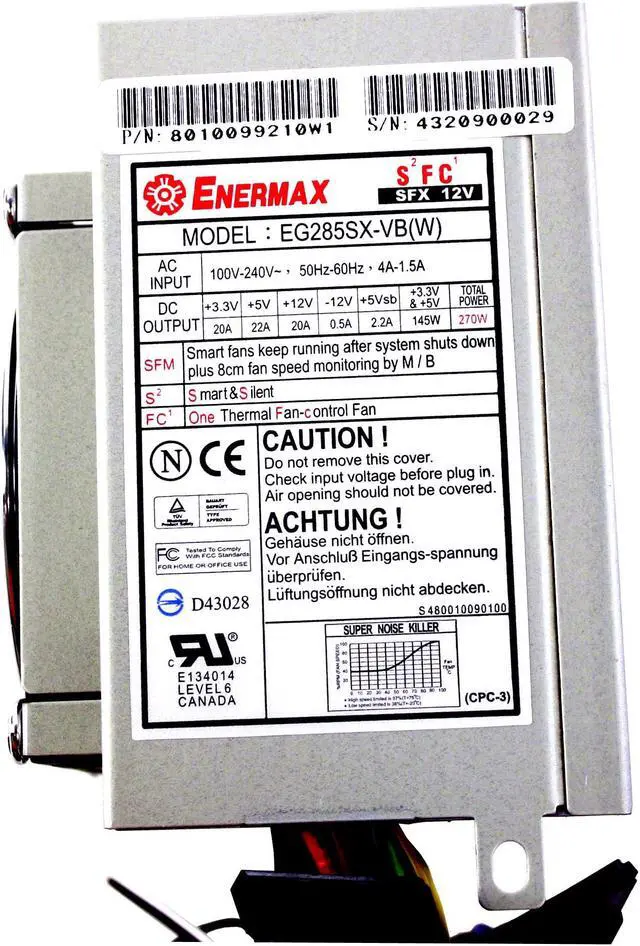

Output	+3.3V@20A, +5A@22A, +12V@20A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL cUL TUV DEMKO NEMKO SEMKO FIMKO

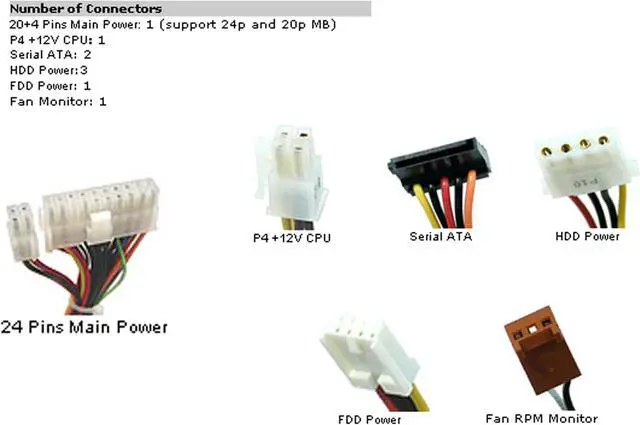

Connectors	1 x Main connector (20+4 pin) 1 x 12V (P4) 3 x peripheral 2 x SATA 1 x Floppy

Additional Information
First Listed on Newegg	May 06, 2004
