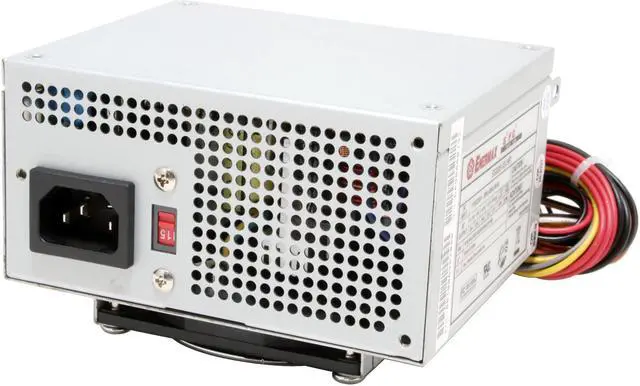

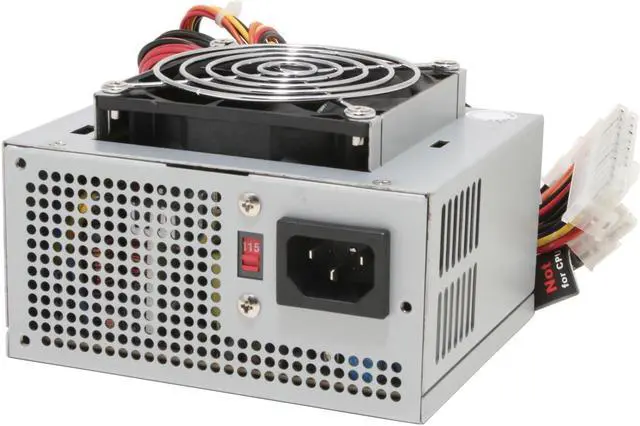

ENERMAX EG320S-VB (24P) 320 W SFX12V Power Supply
- SFX12V
- 115 / 230 V 50/60 Hz
- +3.3V@20A,+5V@22A,+12V@24A,[email protected],[email protected]
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ENERMAX EG320S-VB (24P)
| Brand | ENERMAX |
|---|---|
| Model | EG320S-VB (24P) |
| Type | SFX12V |
|---|---|
| Maximum Power | 320 W |
| Fans | 1 |
| PFC | No |

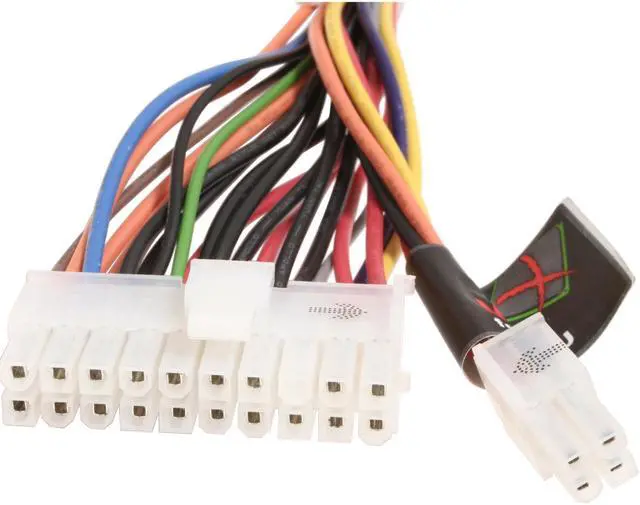

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | No |
| SLI | No |
| Modular | No |
| Hold-up Time | 16ms at 115VAC or 230VAC, full load |
| Over Voltage Protection | +5V: 5.5V~7.0V; +3.3V:3.76V~4.3V; +12V : 13.4V~15.6V |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8A @ 115V, 4A @ 230V |

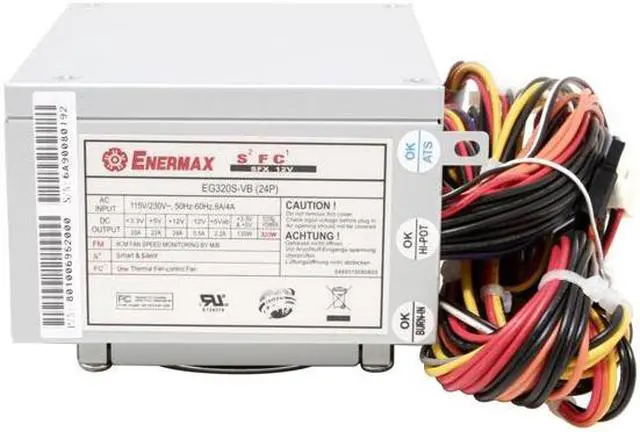

| Output | +3.3V@20A,+5V@22A,+12V@24A,[email protected],[email protected] |
| MTBF | >100,000 Hours |
| Approvals | UL, cUL, TUV, FCC |

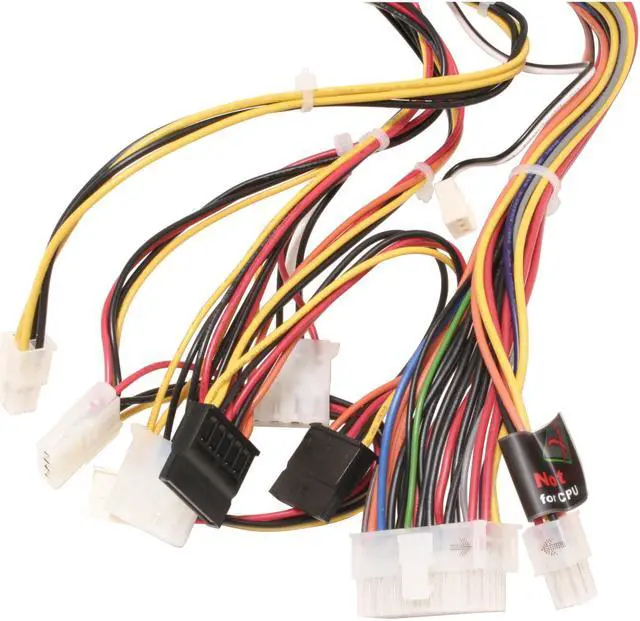

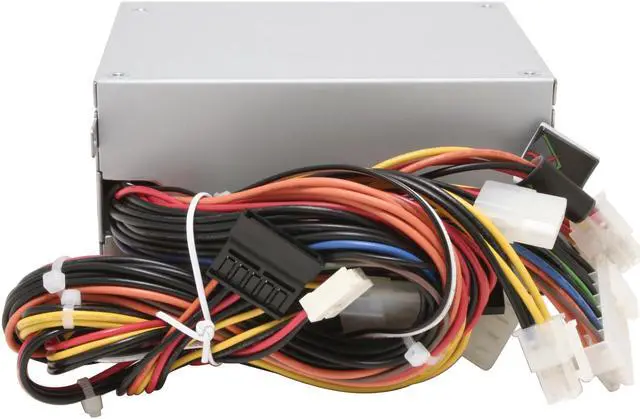

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 3 x peripheral 2 x SATA 1 x Floppy |
| Features | Support processors up to Intel P4 Prescott & AMD X2 64/64 FX CPU RoHS Compliance EMC Compatible with FCC, CNS directives |
|---|
| First Listed on Newegg | December 01, 2006 |
|---|
