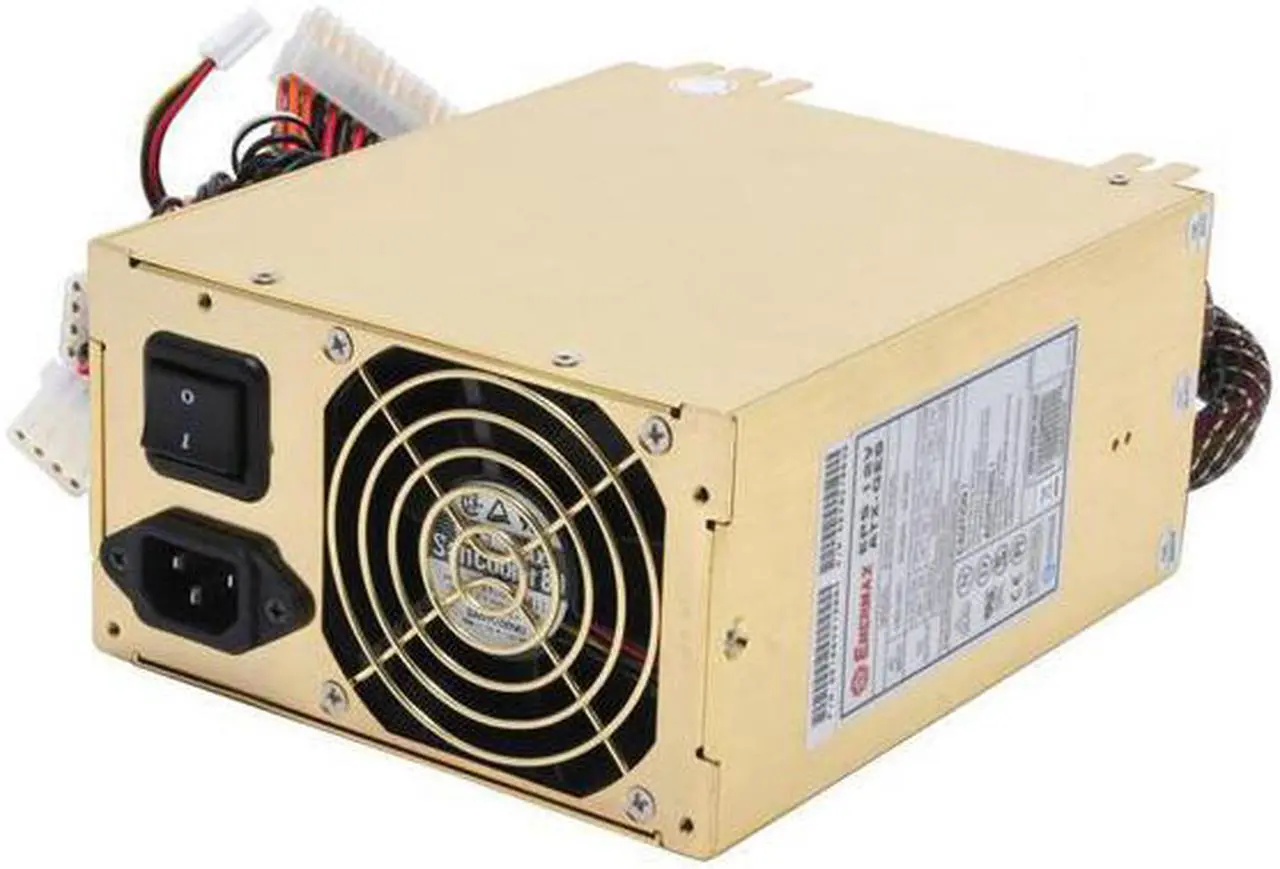

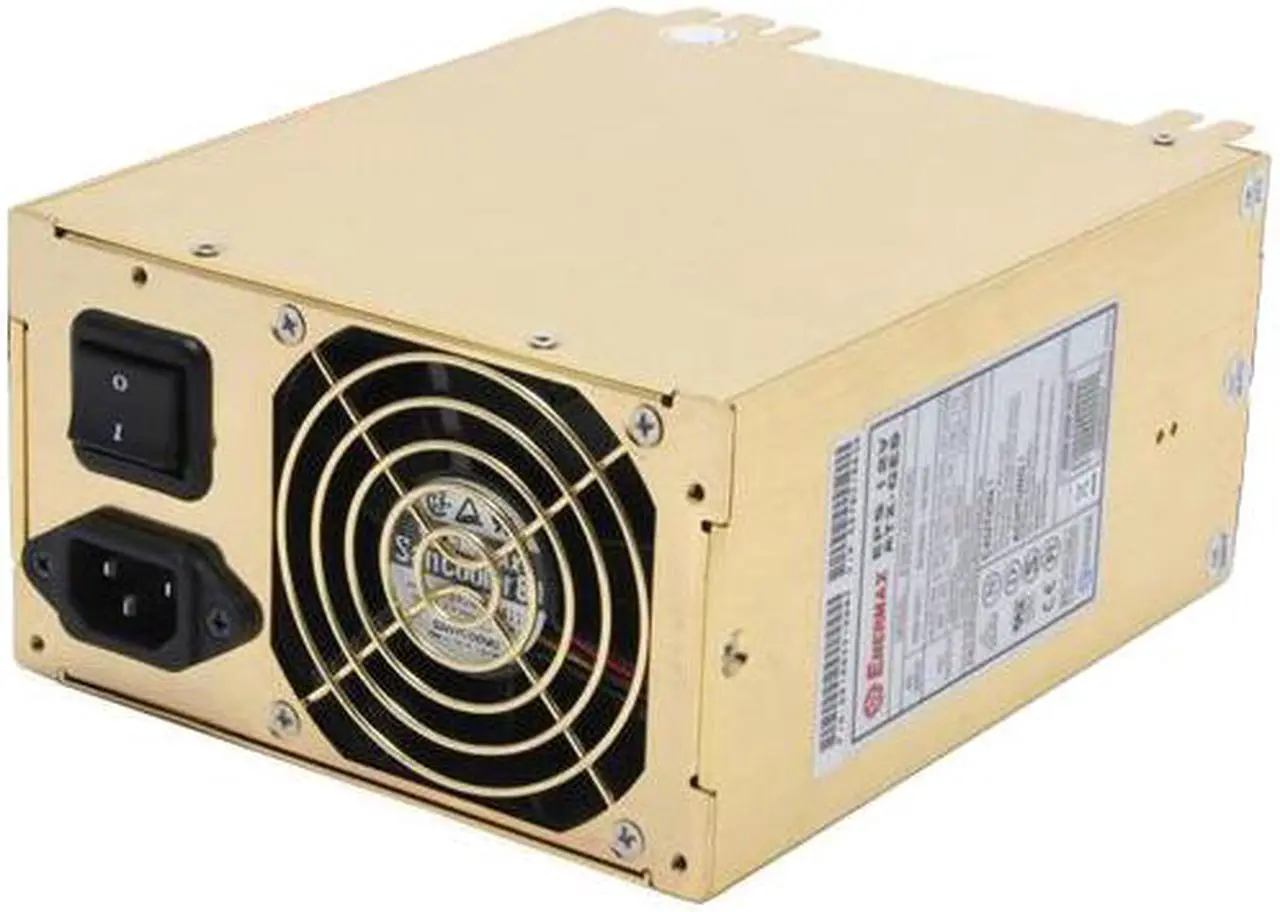

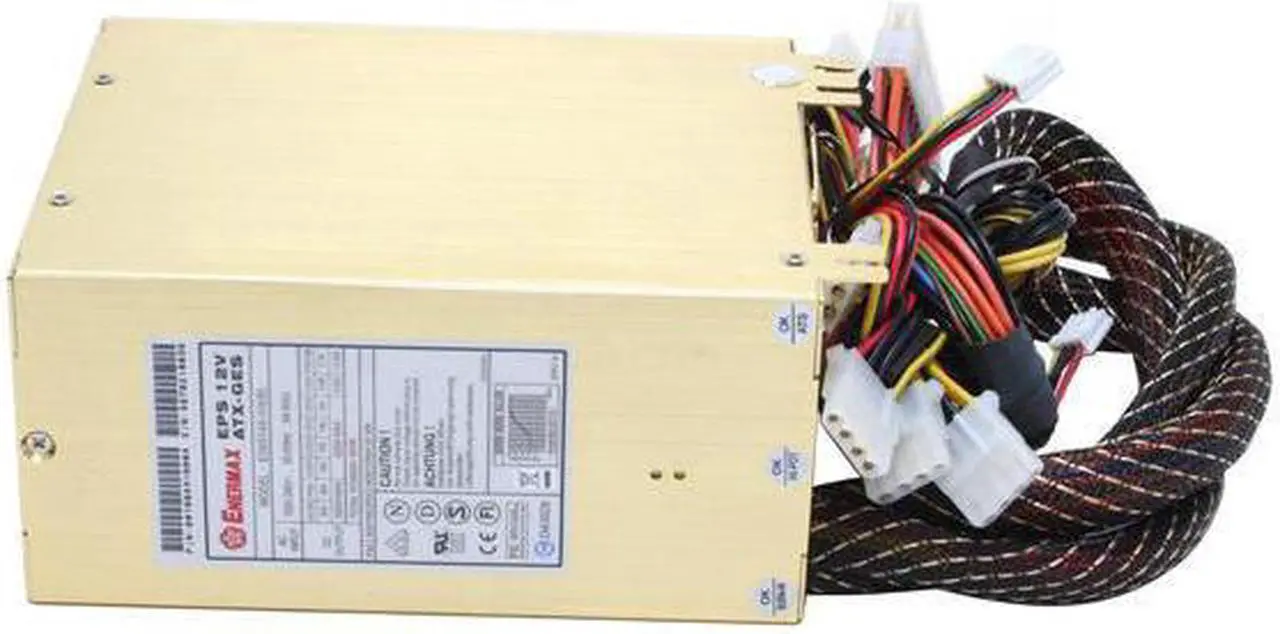

ENERMAX EG651AX-VH 550 W EPS12V SLI Certified CrossFire Ready 80 PLUS SILVER Certified Active PFC Power Supply

Name: ENERMAX EG651AX-VH 550 W Power Supply
Brand: ENERMAX
SKU: N82E16817103447
Rating: 4 (11 reviews)

EPS12V
80 PLUS SILVER Certified
90 - 264 V 47 - 63 Hz
+3.3V@36A, +5V@36A, +12V1@14A, +12V2@16A, +12V3@16A, +12V4@14A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (11)

Learn more about the ENERMAX EG651AX-VH

General
Brand	ENERMAX
Model	EG651AX-VH

Details
Type	EPS12V
Maximum Power	550 W
Fans	2
PFC	Active

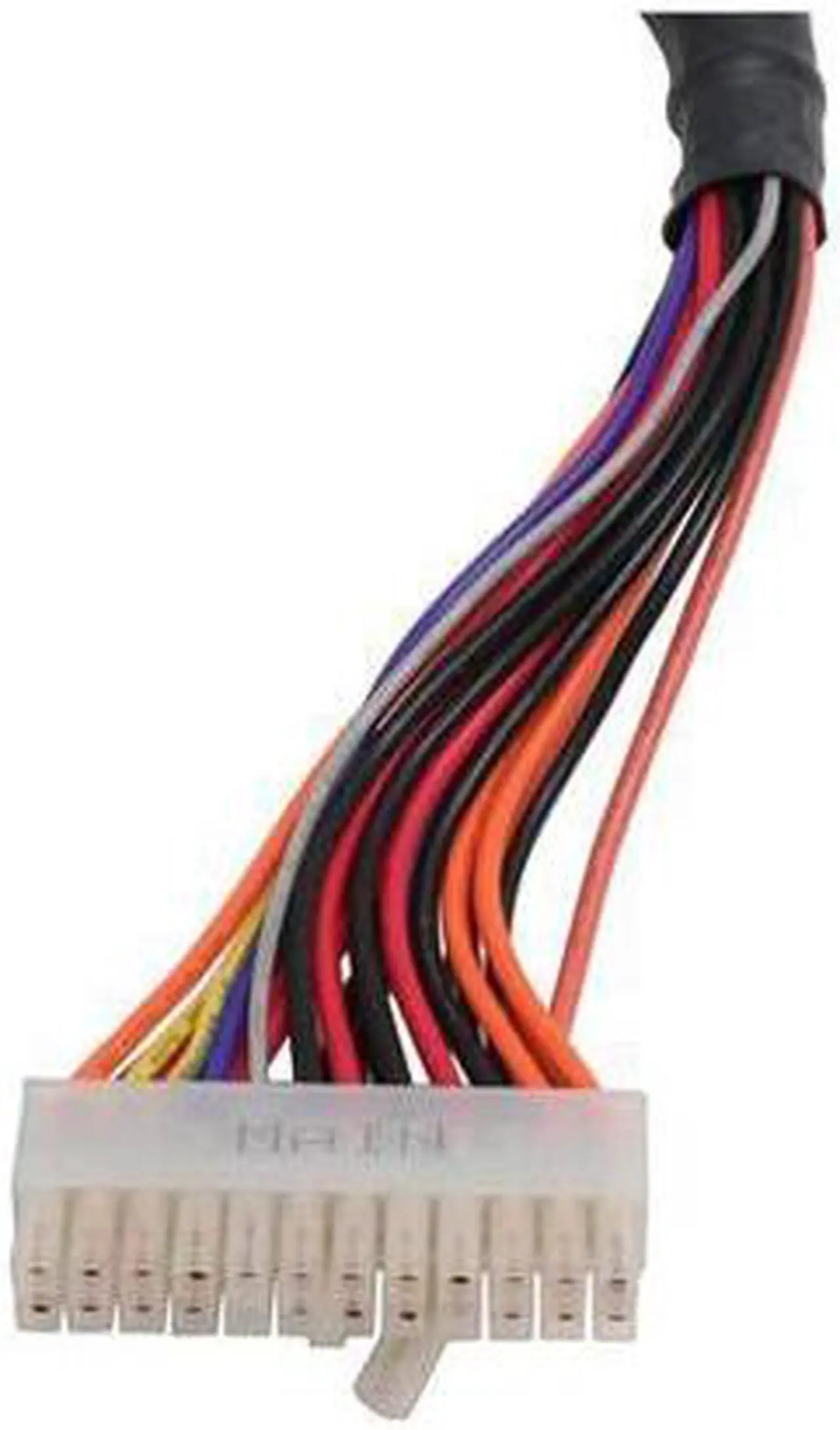

Main Connector	24Pin
+12V Rails	4
PCI-Express Connector	2 x 6-Pin
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	No
Power Good Signal	100-500ms
Hold-up Time	18ms min.
Efficiency	> 75%
Energy-Efficient	80 PLUS SILVER Certified
Over Voltage Protection	+3.3V: 3.9V~4.5V; +5V: 5.7V~6.5V; +12V: 13.3V~14.5V
Overload Protection	+3.3V: 55A max, +5V: 48A max, +12V1.2.3.4: 20A max
Input Voltage	90 - 264 V
Input Frequency Range	47 - 63 Hz
Input Current	10A

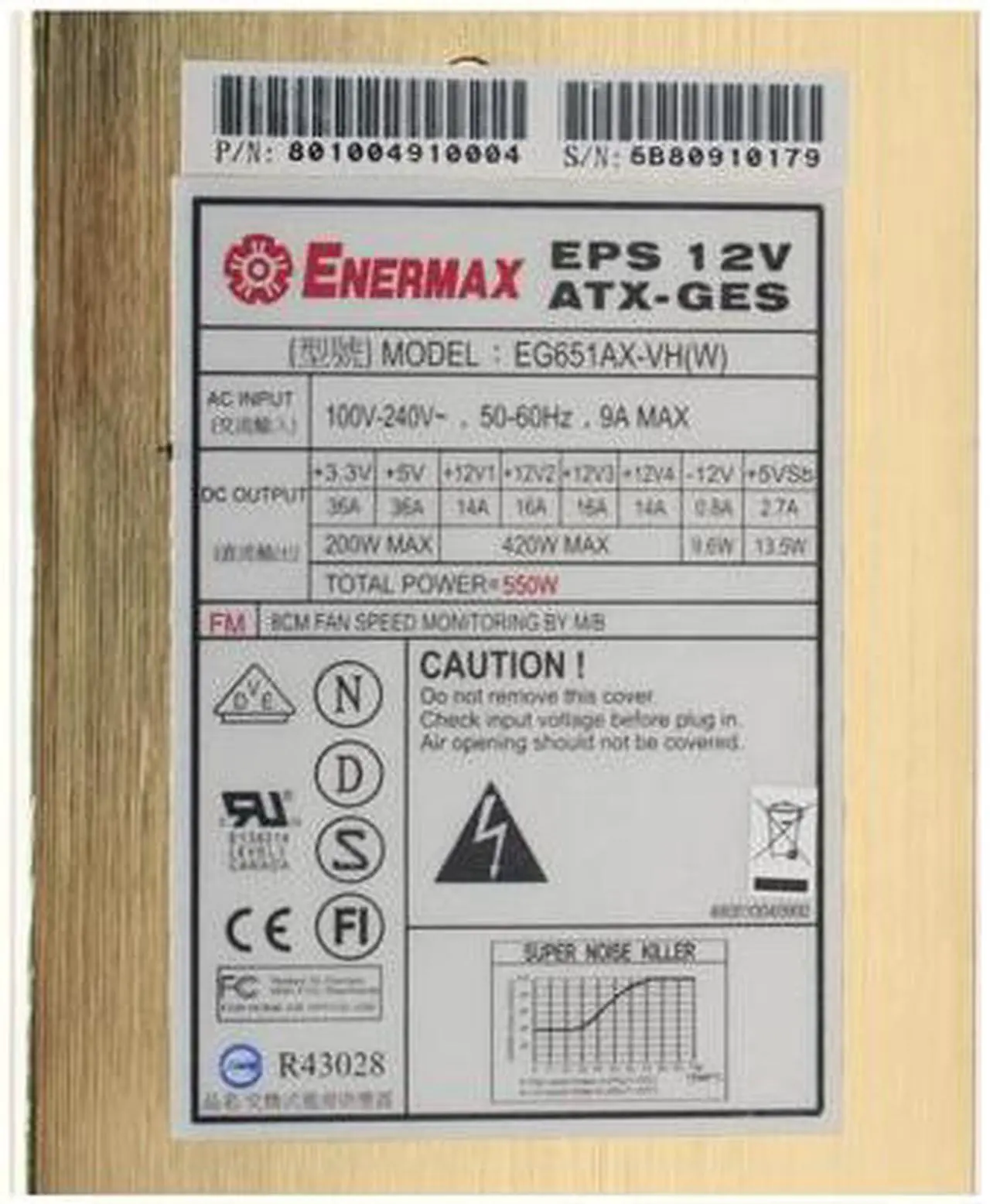

Output	+3.3V@36A, +5V@36A, +12V1@14A, +12V2@16A, +12V3@16A, +12V4@14A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL, cUL, VDE, DEMKO, NEMKO, SEMKO, FIMKO

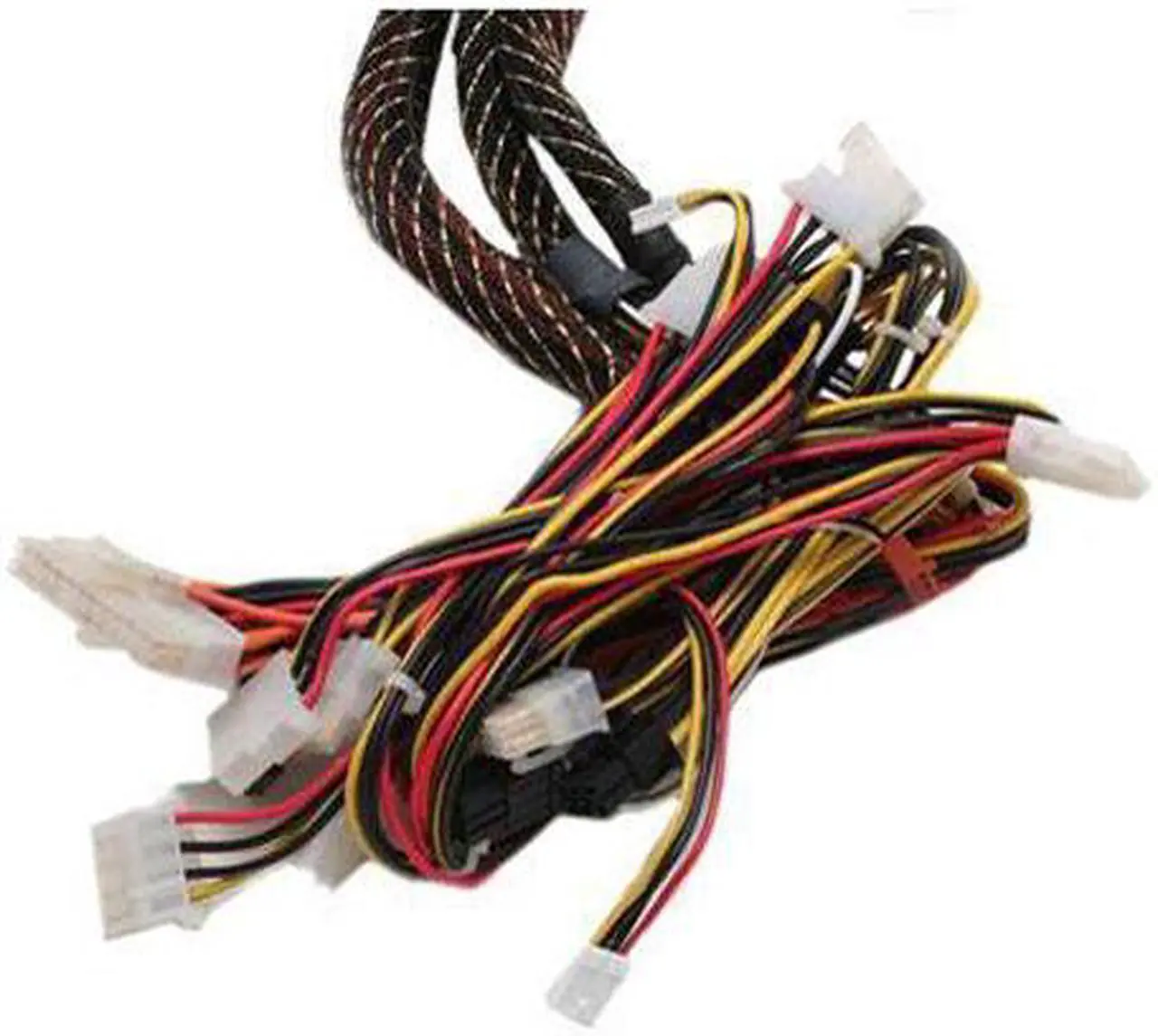

Connectors	1 x Main connector (24Pin) 1 x 12V(8Pin) 8 x peripheral 2 x SATA 2 x Floppy 2 x PCI-E

Dimension & Weight
Dimensions	5.9" x 3.39" x 7.09"

Additional Information
Date First Available	January 15, 2004
