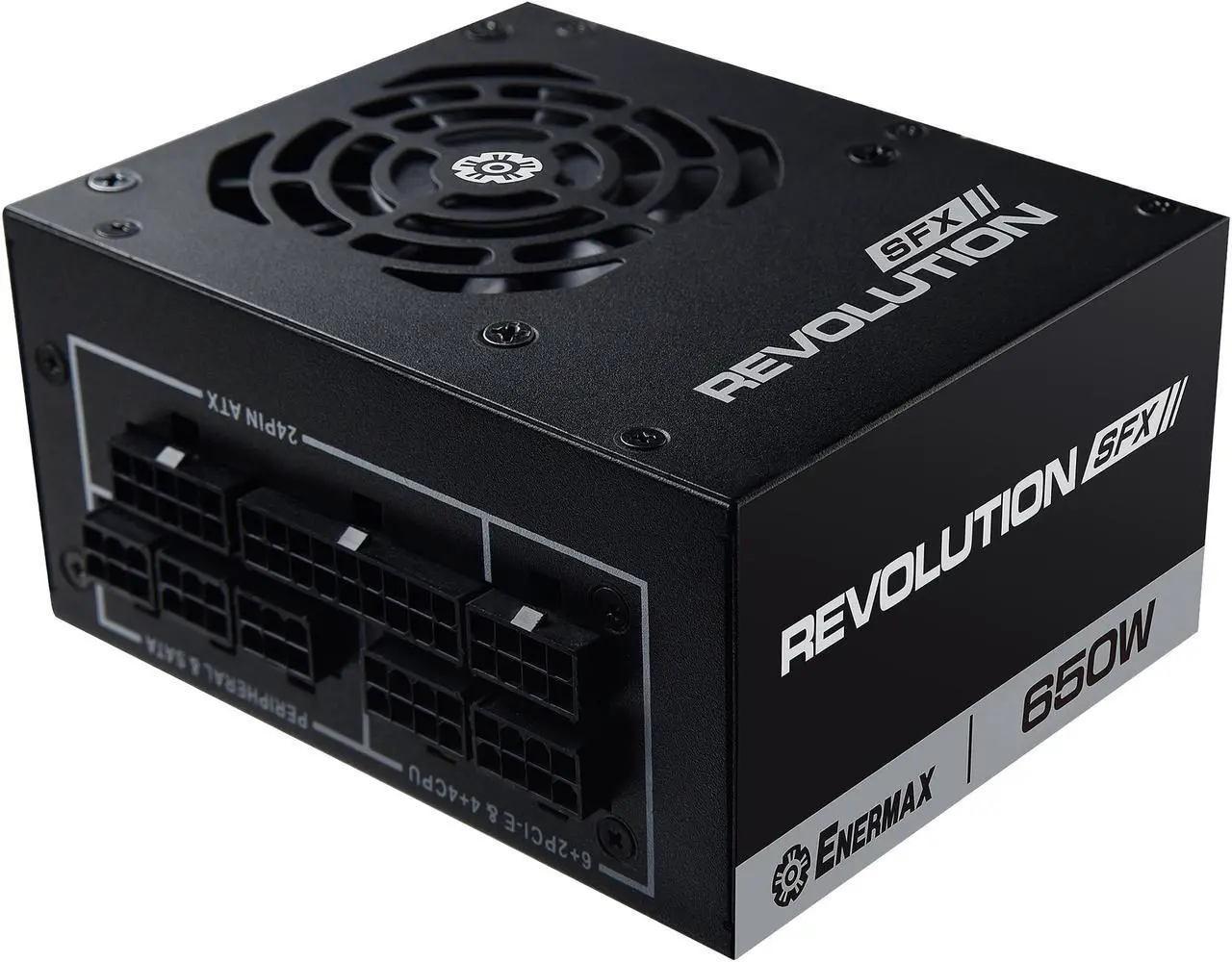

Main image of Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

Alt view image 2 of 5 - Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

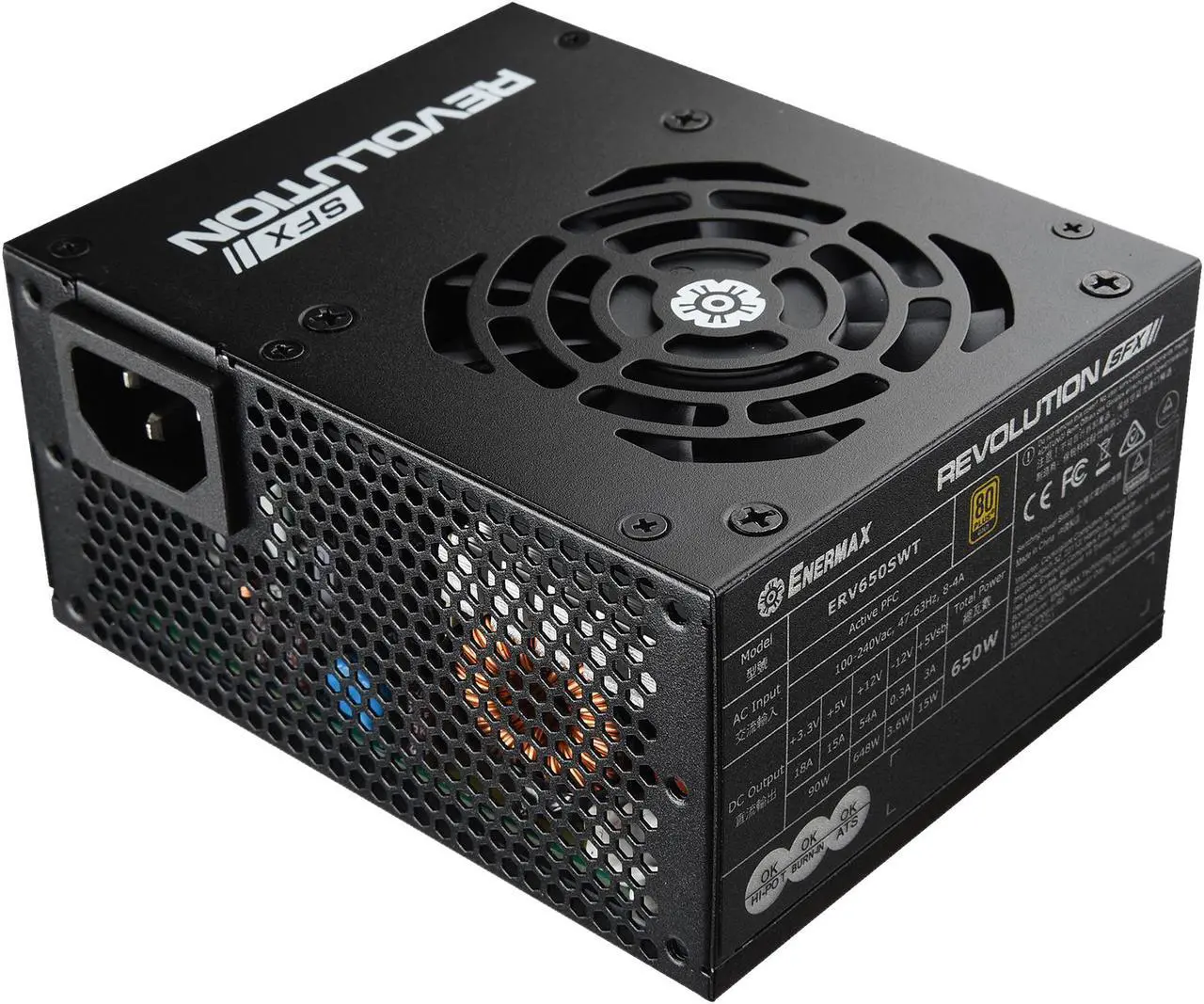

Alt view image 3 of 5 - Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

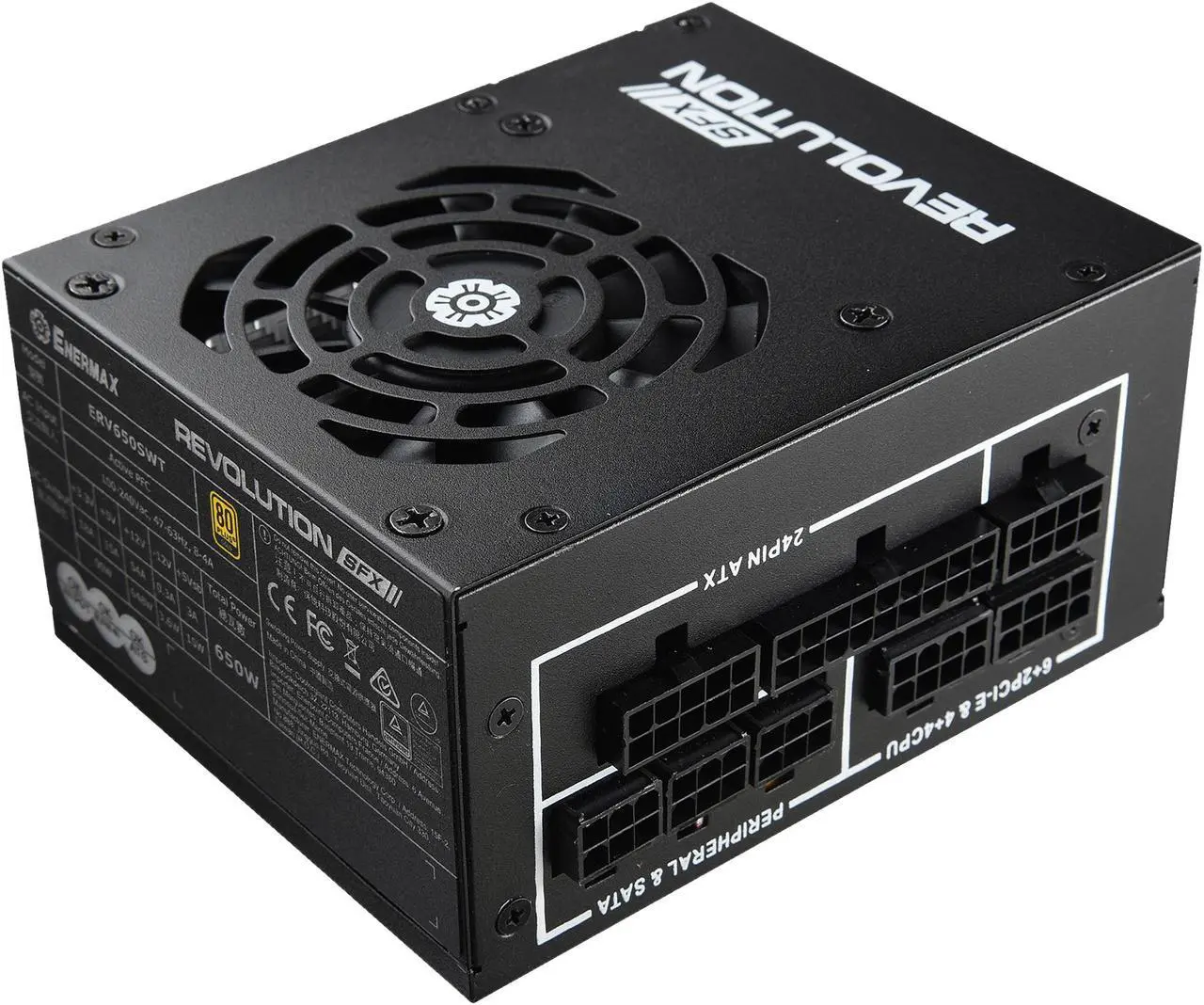

Alt view image 4 of 5 - Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

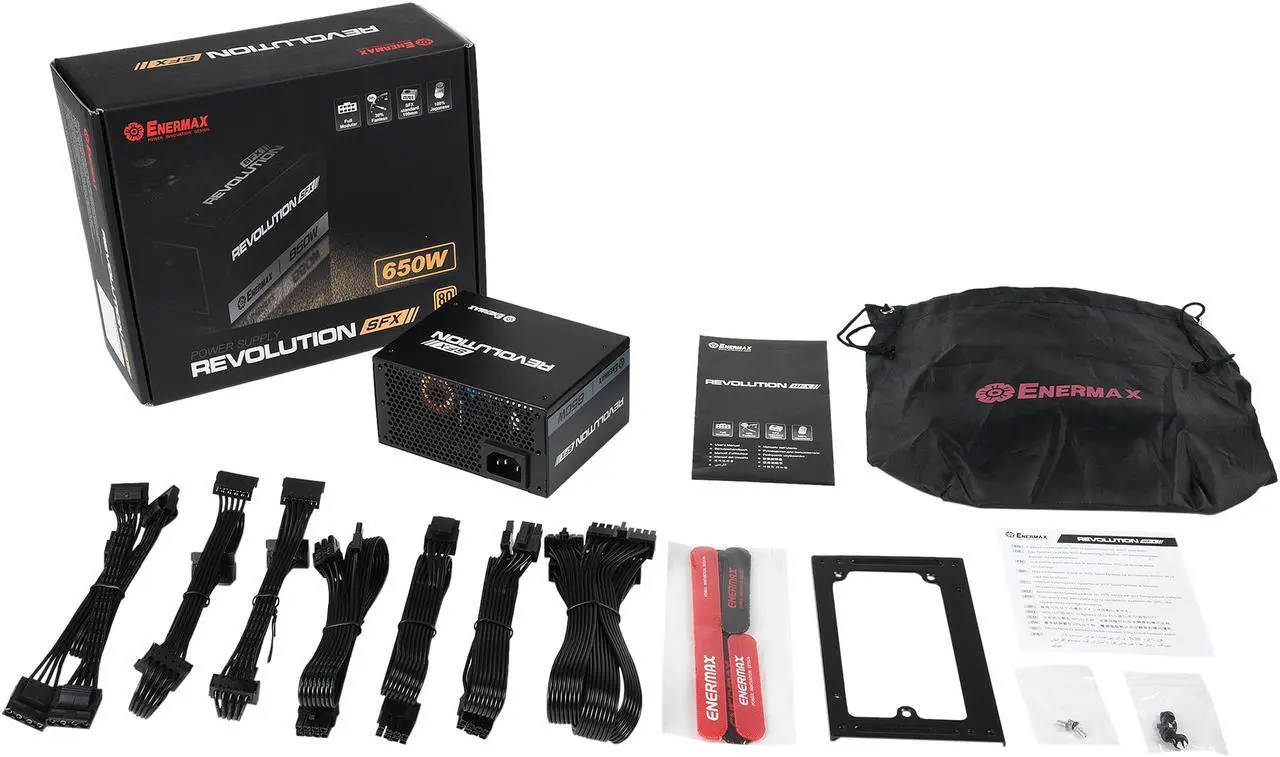

Alt view image 5 of 5 - Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

Shop All ENERMAX Products

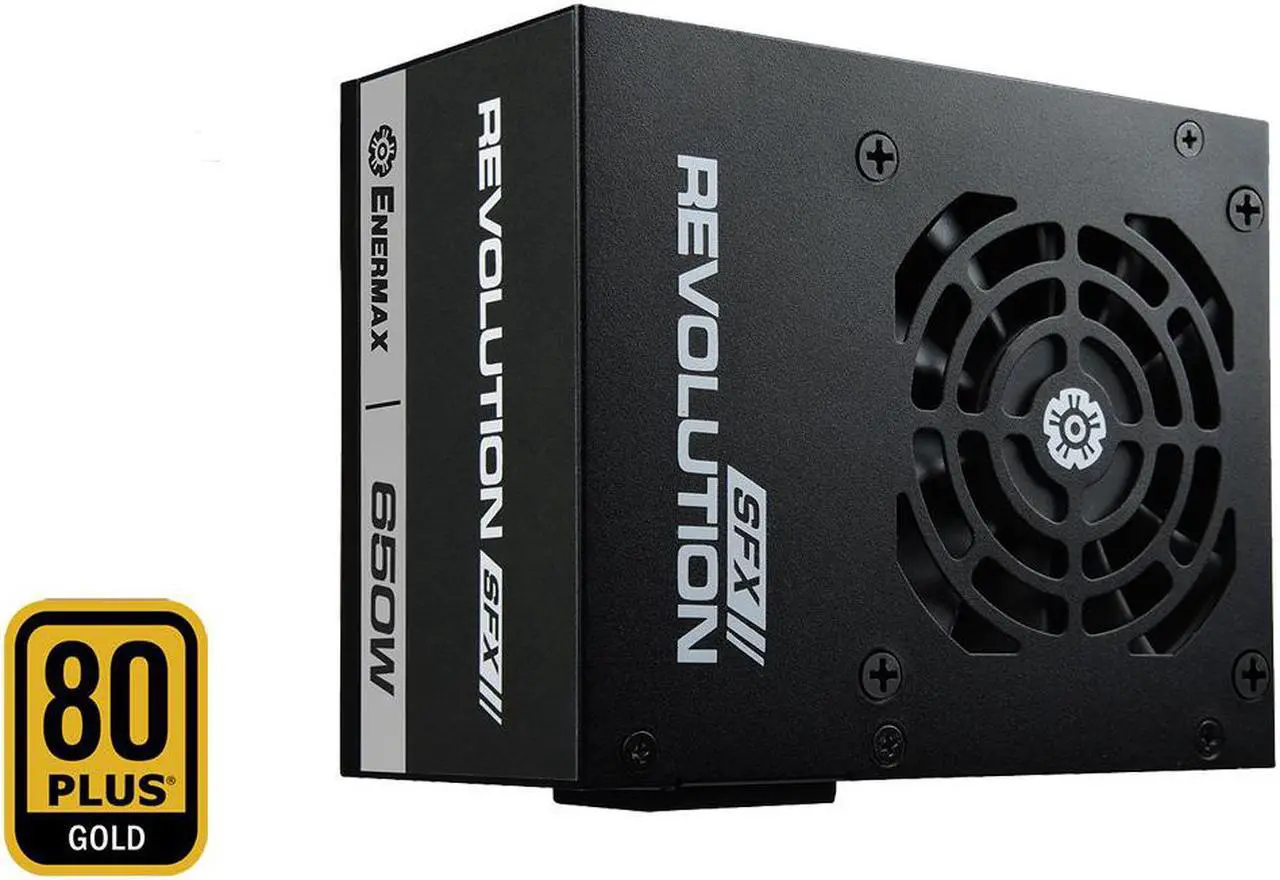

Enermax Revolution SFX 650W 80+ Gold Certified, Full Modular, 7 Year Warranty, Power Supply, ERV650SWT

(2) Write a Review

Compact & powerful SFX form factor for small but high-performance system
Smart semi-fanless control - fanless under 30% load
100% 105°C Japanese electrolytic capacitors

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Compact & powerful SFX form factor for small but high-performance system
Smart semi-fanless control — fanless under 30% load
100% 105°C Japanese electrolytic capacitors

Features

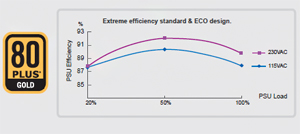

80 PLUS® Gold certified

Up to 92% efficiency, compliant with 80 PLUS® Gold efficiency requirement

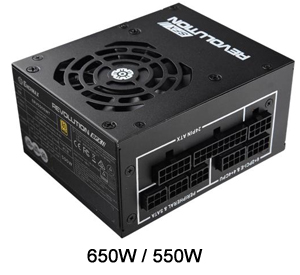

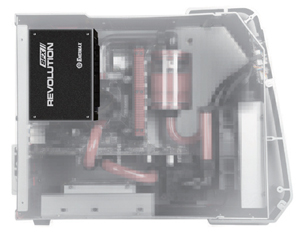

Compact & powerful SFX form factor

High density PCB design with standard SFX 100mm depth makes it a perfect power supply for compact and high-performance system

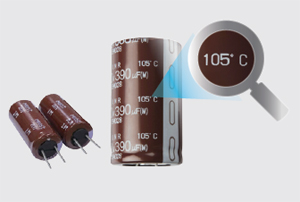

100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability

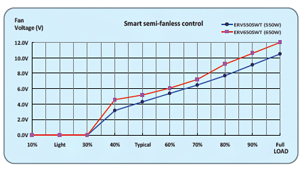

Smart semi-fanless control

Fanless mode before 30% of system load for silent operation. Once surpassing the pre-defined limit, the fan starts to spin and the fan RPM is automatically regulated according to the system load

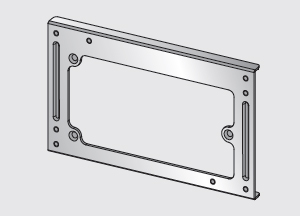

SFX-to-ATX compatible installation

Handy SFX-to-ATX PSU adapter bracket is included for installation in ATX or Micro-ATX chassis*

*It is recommended to check if the length of cable is sufficient for your PC cases before purchase / installation

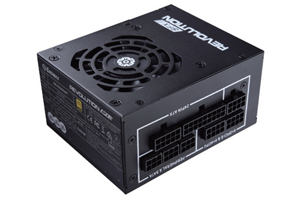

Full modular & 100% flexible flat cables

Full modular with flat cable design facilitates system installation and cable management

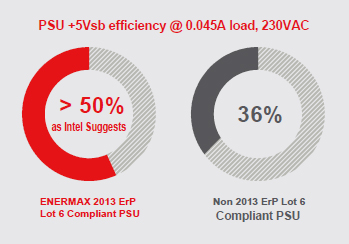

2013 ErP Lot 6 ready

Help system meet 2013 ErP Lot 6 (<0.5W at standby mode) with high efficiency +5Vsb circuitry (when used with a 2013 ErP Lot 6-enabled motherboard)

Zero load ready!

DC to DC converter circuit provides stable output voltage and higher efficiency

SafeGuard

Multiple protection circuitry of OPP, OVP, UVP, OCP (+3.3V/+5V), OTP, SCP, and SIP ensures your system safety

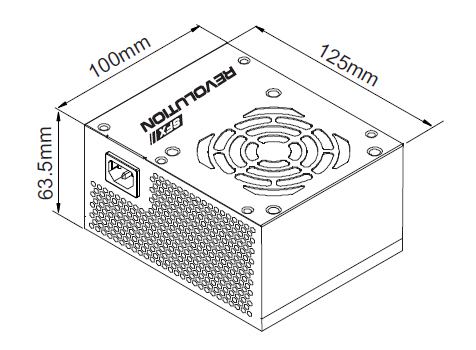

Dimensions

100(L) * 125(W) * 63.5(H) mm

Cables & Connectors

Model	Mainboard 24P (300mm)	CPU 4+4P (8P) (400mm)	PCI-E 6+2P (8P) (400mm)	SATA (200/150/150mm)	4P Molex (200/150/150/150mm)
ERV650SWT	1	1	2	6	4
ERV550SWT	1	1	2	6	4

*It is recommended to check if the length of cable is sufficient for your PC cases before purchase/ installation

Specifications

Model	AC Input	DC Output
		+3.3V	+5V	+12V	-12V	+5Vsb	Total Power
ERV650SWT	100-240VAC 47-63Hz 8A	18A	15A	54A	0.3A	3A	650W
		90W		648W	3.6W	15W
ERV550SWT	100-240VAC 47-63Hz 6A	18A	15A	45.8A	0.3A	3A	550W
		90W		549.6W	3.6W	15W

Shipping Information
Model		ERV550SWT	ERV650SWT
Bar code	EAN	4713157722614	4713157722621
	UPC	816163008834	816163008841
Box dimensions		24020090mm
Gross Weight / unit		1.0kg	1.2kg
Carton dimensions		430386265mm
Q'ty / carton		8
Gross Weight / carton		8.8kg	10.4kg

80 PLUS® Gold certified Up to 92% efficiency, compliant with 80 PLUS® Gold efficiency requirement Compact & powerful SFX form factor High density PCB design with standard SFX 100mm depth makes it a perfect power supply for compact and high-performance system 100% 105°C Japanese electrolytic capacitors Highest component standards for maximum durability and stability Smart semi-fanless control Fanless mode before 30% of system load for silent operation. Once surpassing the pre-defined limit, the 80mm fan starts to spin and the fan RPM is automatically regulated according to the system load SFX-to-ATX compatible installation Handy SFX-to-ATX PSU adapter bracket is included for installation in ATX or Micro-ATX chassis Full modular & 100% flexible flat cables Full modular with flat cable design facilitates system installation and cable management.

Type	SFX12V
Maximum Power	650 W
Fans	1 x 80 mm
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
Max PSU Length	125 mm
Efficiency	Up to 92%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	8A
Output	+3.3V@18A, +5V@15A, +12V@54A, [email protected], +5Vsb@3A
Connectors	1 x Mainboard 24P 1 x CPU 4+4P (8P) 2 x PCI-E 6+2P (8P) 6 x SATA 4 x 4P Molex

PFC	Active
SLI	No
CrossFire	No
