Brand | ENERMAX |
---|---|
Series | GALAXY |
Model | EGA1000EWL |
Type | ATX / BTX |
---|---|
Maximum Power | 1000 W |
Fans | 2 |
PFC | Active |

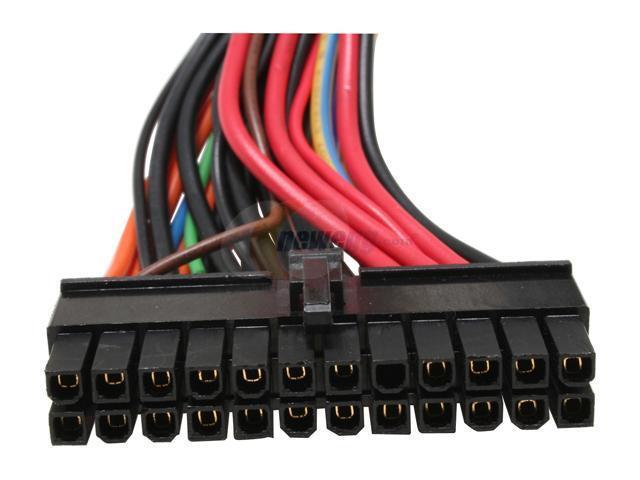

Main Connector | 24Pin |
+12V Rails | Yes |
PCI-Express Connector | 4 x 6-Pin |
SLI | SLI Ready |
Modular | Modular |
Efficiency | 85% |
Energy-Efficient | 80 PLUS Certified |
Over Voltage Protection | Yes |
Overload Protection | Yes |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 15A max |

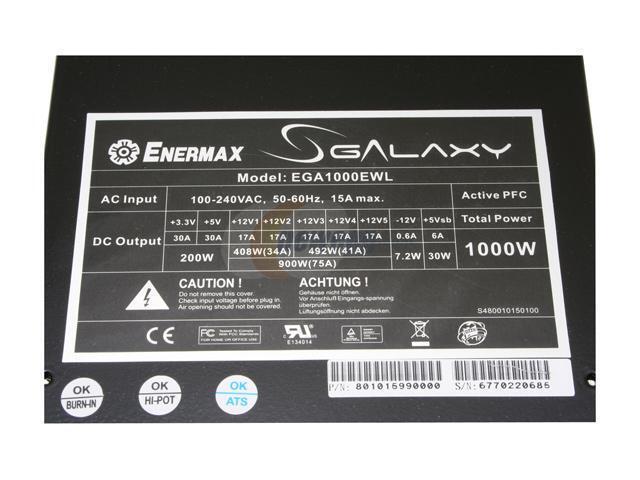

Output | +3.3V@30A,+5V@30A,+12V1@17A,+12V2@17A,+12V3@17A, +12V4@17A,+12V5@17A,-12V@0.6A,+5VSB@6A |
Approvals | CE, FCC, UL, TUV |

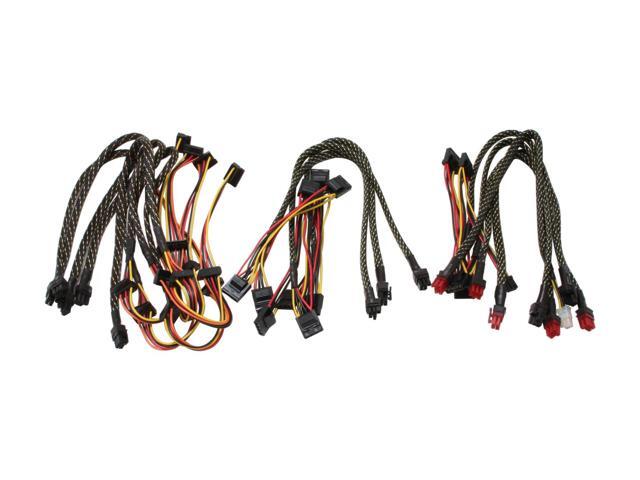

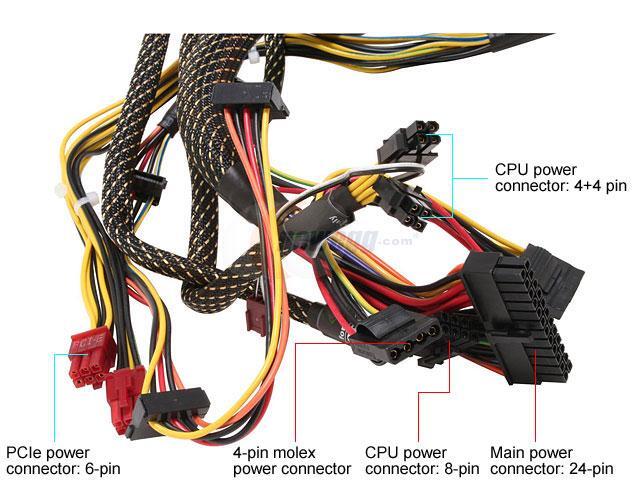

Connectors | Native Cables 1 x Main connector (24Pin) 1 x 12V (8Pin) 1 x 12V (4+4Pin) 3 x 4P Molex 3 x SATA 2 x PCI-E 1 x Fan RPM Modular Cables 5 x 3 SATA 3 x 3 4P Molex 2 x 2 4P Molex + FDD 2 x PCI-E 1 x 12V(2 x 2) |
Date First Available | August 10, 2006 |
---|
Pros: While the stats on this power supply are impressive you should wait to buy.
Cons: Power supply was built missing the main CPU 8 pin cable. The manufactor admitted the error to me on the phone and said I could return the unit and wait until late February to get the new models being built to replace the bad first batch.
Overall Review: I actually bought this unit early January and did not want to wait almost two months for them to send me a new one. One note is that the unit does come with a 4+4 auxillary CPU cable that others seem to be using in place of the proper cable. However I know of at least one reveiw of a person who fried his motherboard using the 4+4 connector. Enermax will not replace your motherboard if you fry it using the auxillary cable and good luck getting your motherboard company to replace the board when you used an improper power cable.
