Brand | ENERMAX |
---|---|
Series | NAXN 82+ |
Model | ENM750AWT |
Type | ATX12V v2.3 |
---|---|
Maximum Power | 750 W |

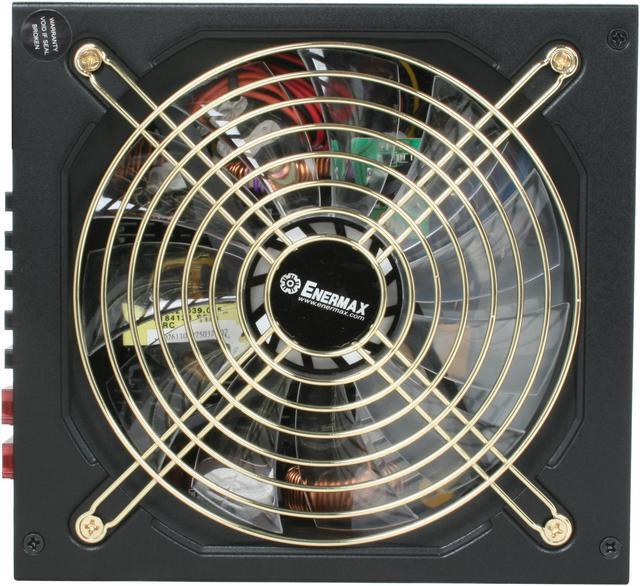

Fans | 1 x 120mm fan |
PFC | Active |
Main Connector | 24Pin |
+12V Rails | 2 |
PCI-Express Connector | 4 x 6+2-Pin |
SATA Power Connector | 10 |
SLI | SLI Ready |
CrossFire | CrossFire Ready |
Modular | Modular |
Efficiency | 82% - 88% efficiency @ 20% - 100% load |
Energy-Efficient | 80 PLUS BRONZE Certified |
Over Voltage Protection | Yes |
Input Voltage | 100 - 240 V |
Input Frequency Range | 47 - 63 Hz |
Input Current | 10A |

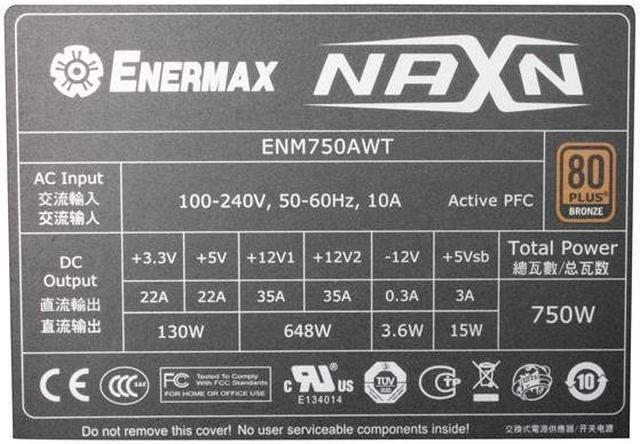

Output | +3.3V@22A, +5V@22A, +12V1@35A, +12V2@35A, -12V@0.3A, +5VSB@3.0A |

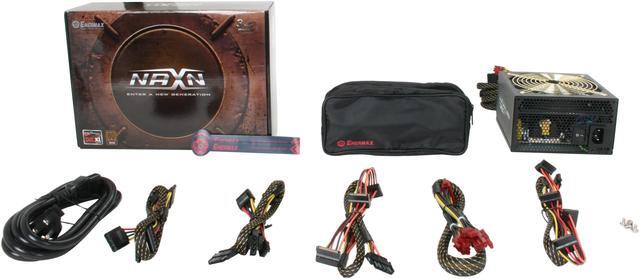

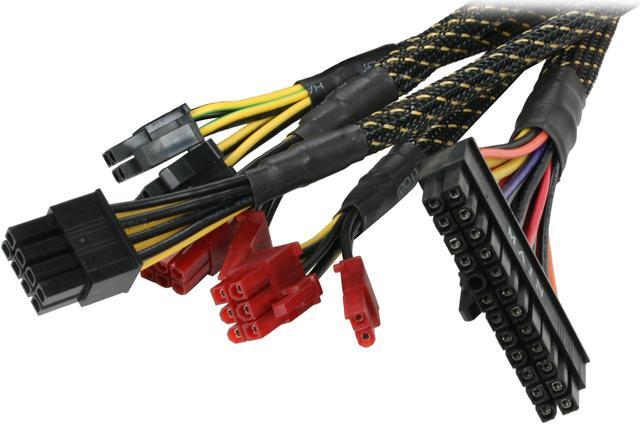

Connectors | 1 x Main connector (24Pin) 1 x 4+4 Pin CPU 1 x 8 Pin CPU 5 x Peripheral 10 x SATA 1 x Floppy 4 x PCI-E 2.0 |
Features | 82PLUS ready! - 82-88% efficiency @ 20-100% load. Compliant with 80 PLUS Bronze efficiency requirements. DXXI ready! - 100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards. FUTURE ready! - 12P modular socket design for possibly upcoming new CPU’s and graphics 10 and/or 12P connectors. HeatGuard - Keep PSU fan running for 30-60 seconds after shutdown to dissipate the remaining system heat and prolong system lifetime. SafeGuard - Multiple protection circuitry of OVP, UVP, SCP, OPP, and SIP protect your system. GAMING ready! - ATX12V v2.3 support for latest INTEL Core 2 Duo/Quad/Extreme/i7/i5 and AMD Athlon 64X2, Phenom II, SLI and CrossFireX SILENT ready! - Ultra silent 12cm fan with intelligent RPM control guarantees cool performance and silent operation. 24/7 ready! - High Quality components and dual 12V rails design enable non-stop usage with stable and reliable current. World ready! - 100-240VAC input with automatic adjustment and Active PFC for global usage. |
---|
Dimensions | 5.9" x 3.4" x 6.3" |
---|
Dimensions | 150 x 86 x 160mm |
---|
Date First Available | February 28, 2011 |
---|
