ENERMAX NAXN ENP550AWT 550 W ATX12V Active PFC Power Supply
- ATX12V
- 100 - 240 V
- Active PFC
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ENERMAX ENP550AWT
| Brand | ENERMAX |
|---|---|
| Series | NAXN |
| Model | ENP550AWT |
| Type | ATX12V |
|---|---|
| Maximum Power | 550 W |

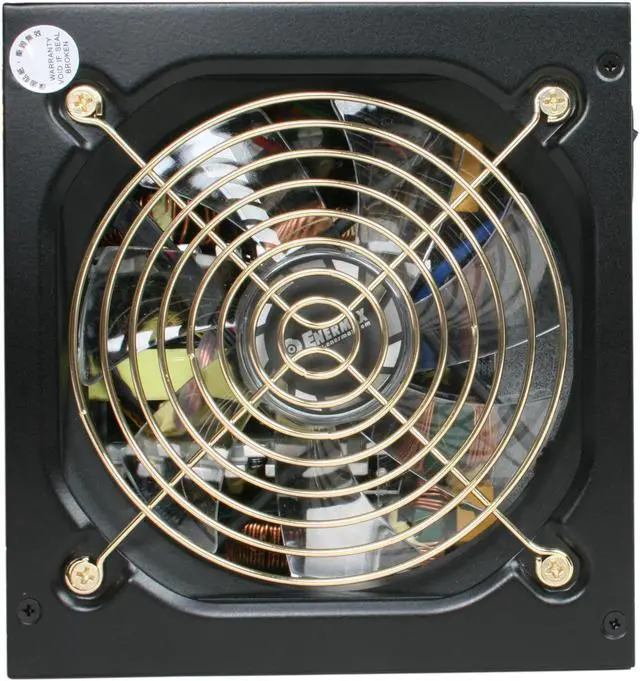

| Fans | 1 x 120mm fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 6-Pin, 1 x 6+2-Pin |
| SATA Power Connector | 5 |
| Modular | No |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 8A |

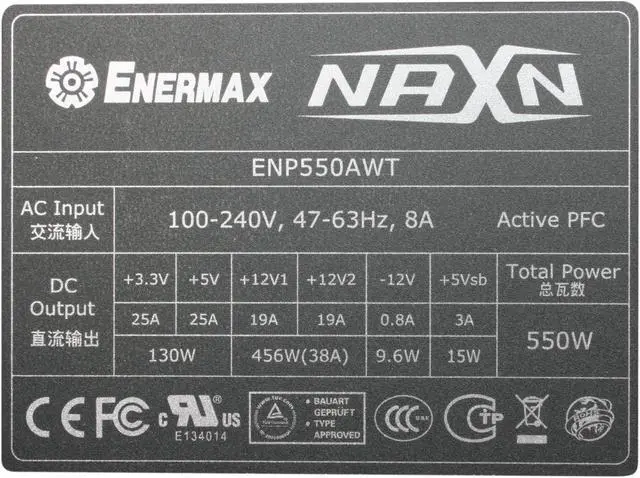

| Output | +3.3V@25A, +5V@20A, +12V1@19A, +12V2@19A, [email protected], [email protected] |

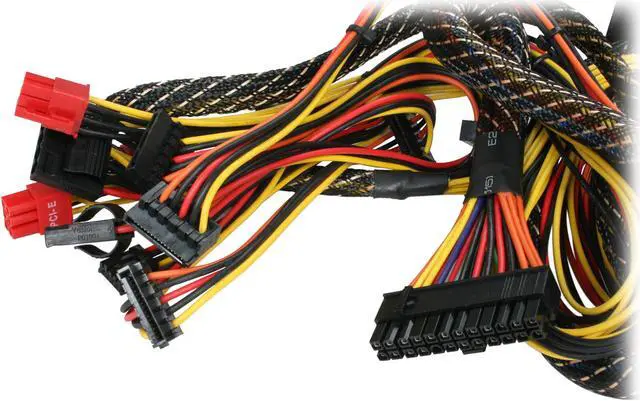

| Connectors | 1 x Main connector (24Pin) 1 x 4+4 Pin CPU 4 x Peripheral 5 x SATA 1 x Floppy 2 x PCI-E 2.0 |
| Features | ErP Lot 6 (EuP) 2010 ready! - Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency 5Vsb circuitry. AirGuard - Air-inlet with optimal aero-dynamical design reduces noisy air turbulences. SafeGuard - Multiple protection circuitry of OVP, UVP, SCP, OPP, and SIP protect your system. MULTI ready - Ready for next-gen MULTI CORE systems as INTEL CoreTM 2 Duo / Quad / Extreme / i7 / i5 and AMD AthlonTM 64X2, PhenomTM II. SILENT ready - Ultra silent 12cm fan with intelligent RPM control guarantees cool performance and silent operation. 24/7 ready - High-Quality components and dual 12V rails design enable non-stop usage with stable and reliable current. Active PFC inside - Active Power Factor correction improves PF value up to 0.99 and minimizes reactive power waste. |
|---|
| Dimensions | 6" x 3.5" x 5.5" |
|---|
| Dimensions | 150 x 86 x 140 mm |
|---|
| First Listed on Newegg | February 24, 2011 |
|---|
