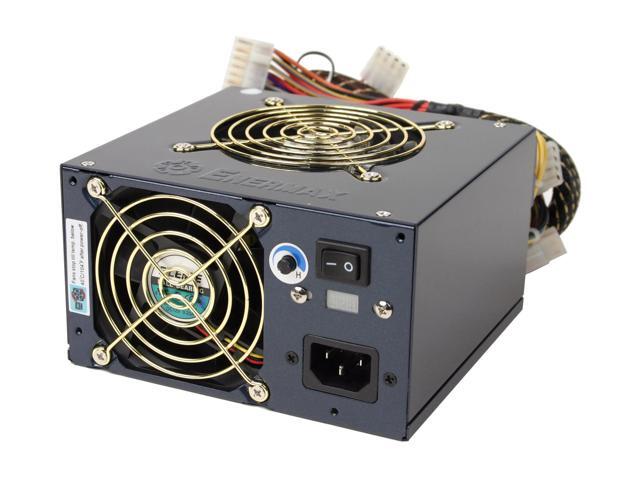

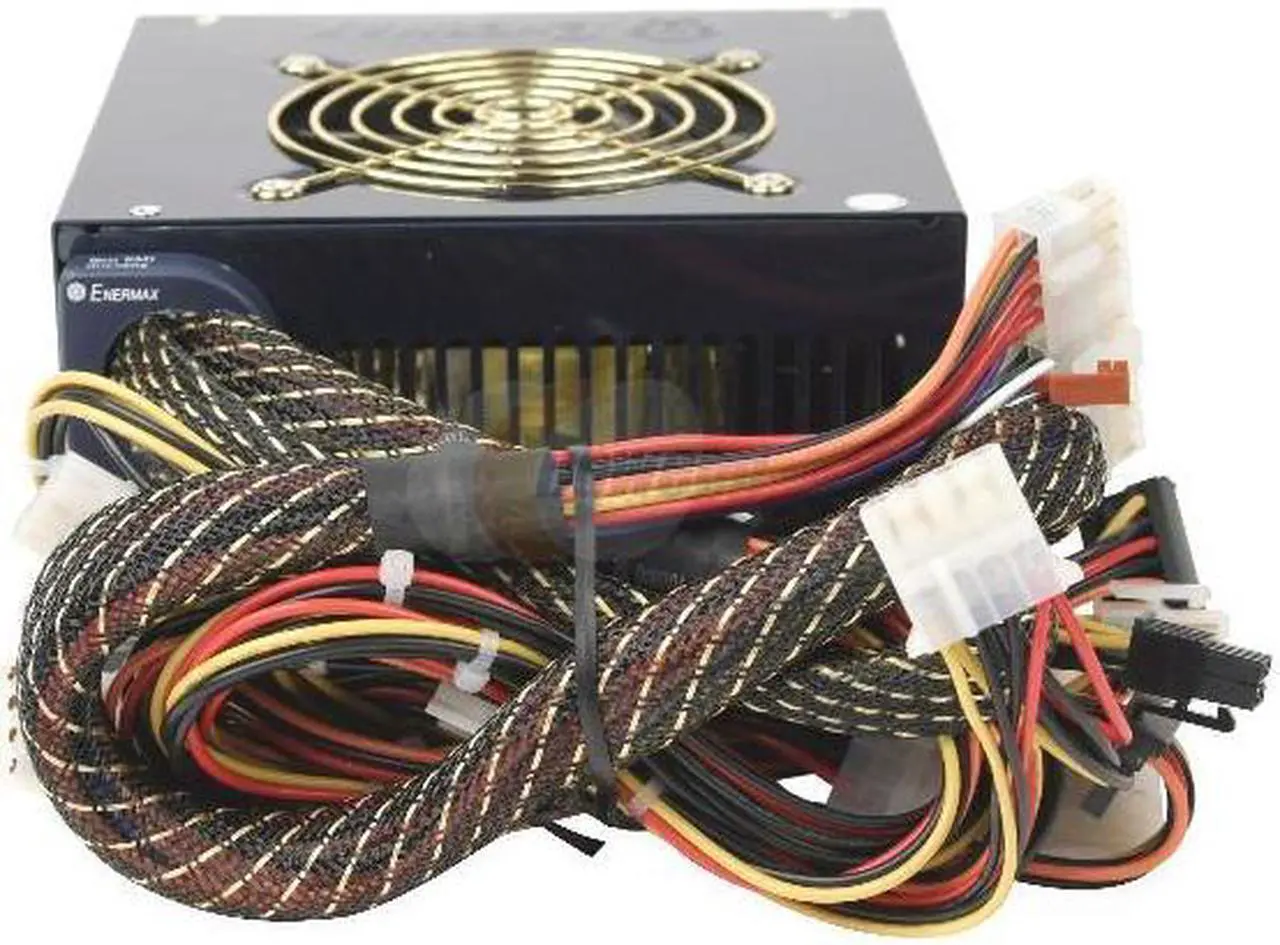

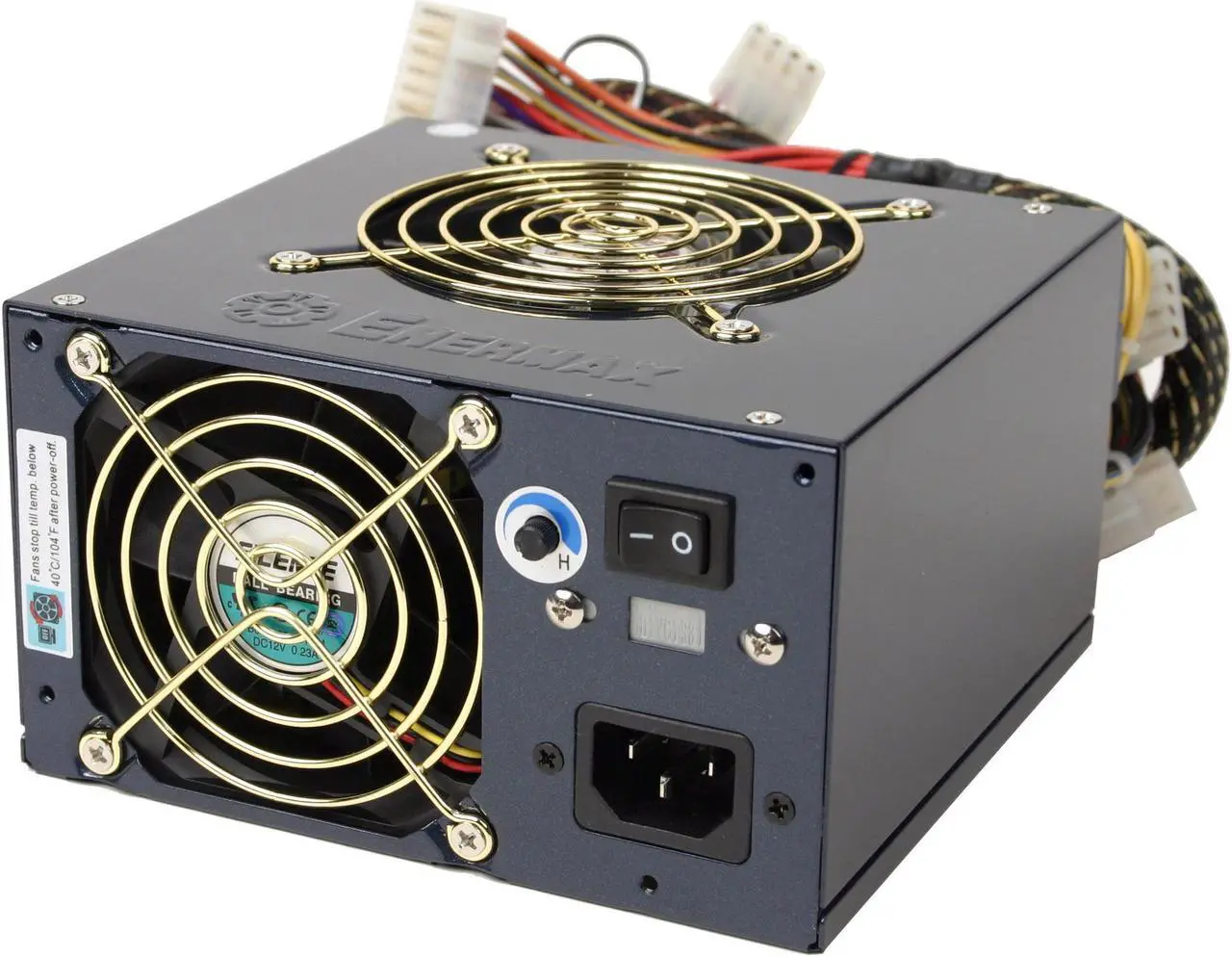

ENERMAX Noisetaker AX Series EG495AX-VE SFMA 2.0 485W ATX12V Active PFC Power Supply
OUT OF STOCK.
- ATX12V
- 100 - 240 V 50/60 Hz
- +3.3V@32A, +5V@32A, +12V1@18A, +12V2@18A, -12V@0.8A, +5VSB@2.5A
Specs
Reviews
Learn more about the Enermax EG495AX-VE SFMA 2.0
Brand | ENERMAX |
---|---|
Model | EG495AX-VE SFMA 2.0 |
Series | Noisetaker AX Series |
Type | ATX12V |
---|---|
Maximum Power | 485W |
Fans | 2 |
PFC | Active |

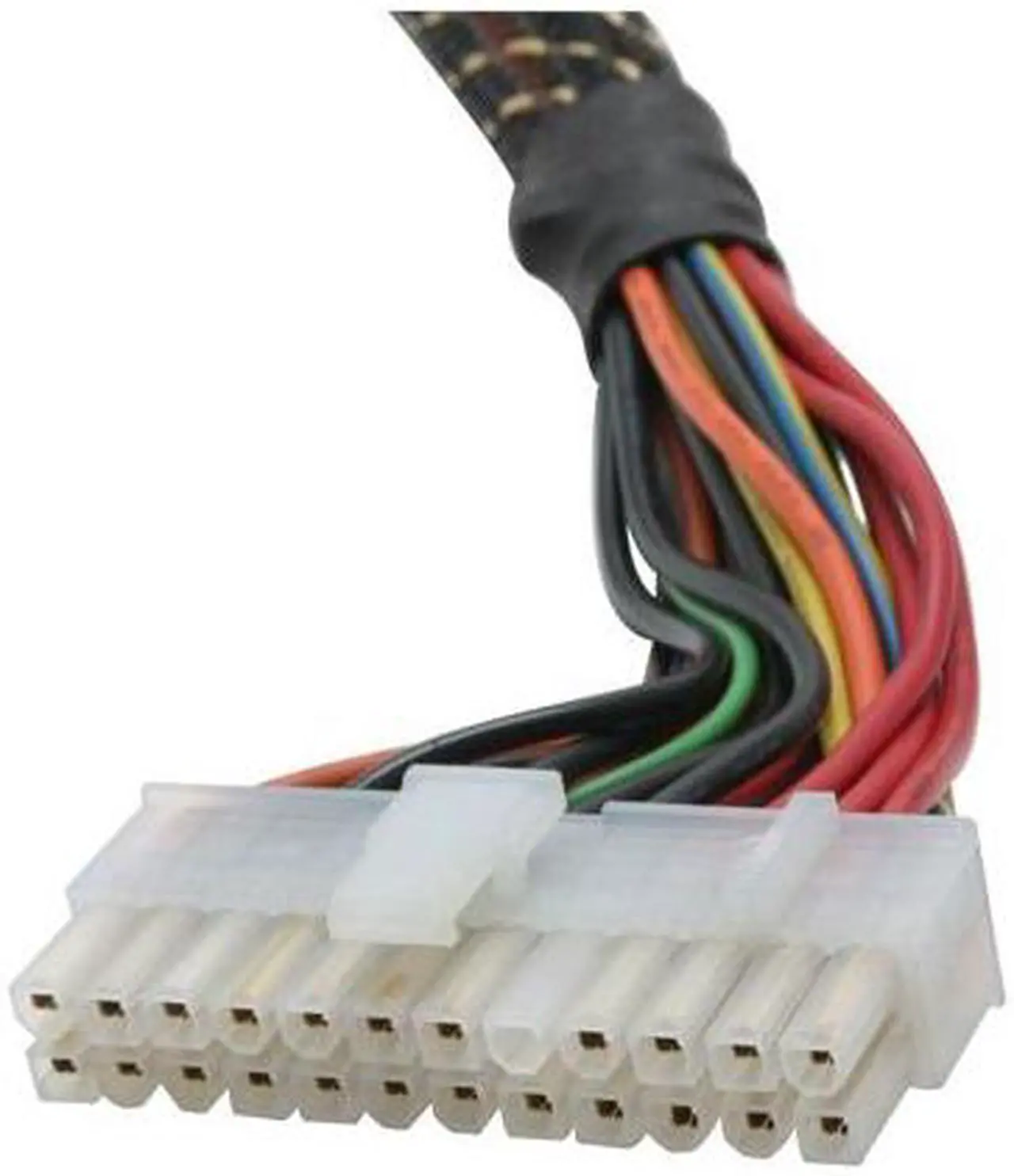

Main Connector | 20+4Pin |
+12V Rails | Yes |
SLI | No |
Modular | No |
Hold-up Time | 17ms at 115VAC or 230VAC, full load |
Over Voltage Protection | +5V: 5.5V~7.0V +3.3V: 3.76V~4.3V +12V1 & +12V2: 13.4V~15.6V |
Overload Protection | 110~160% of max load |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 7.5A~3.5A |

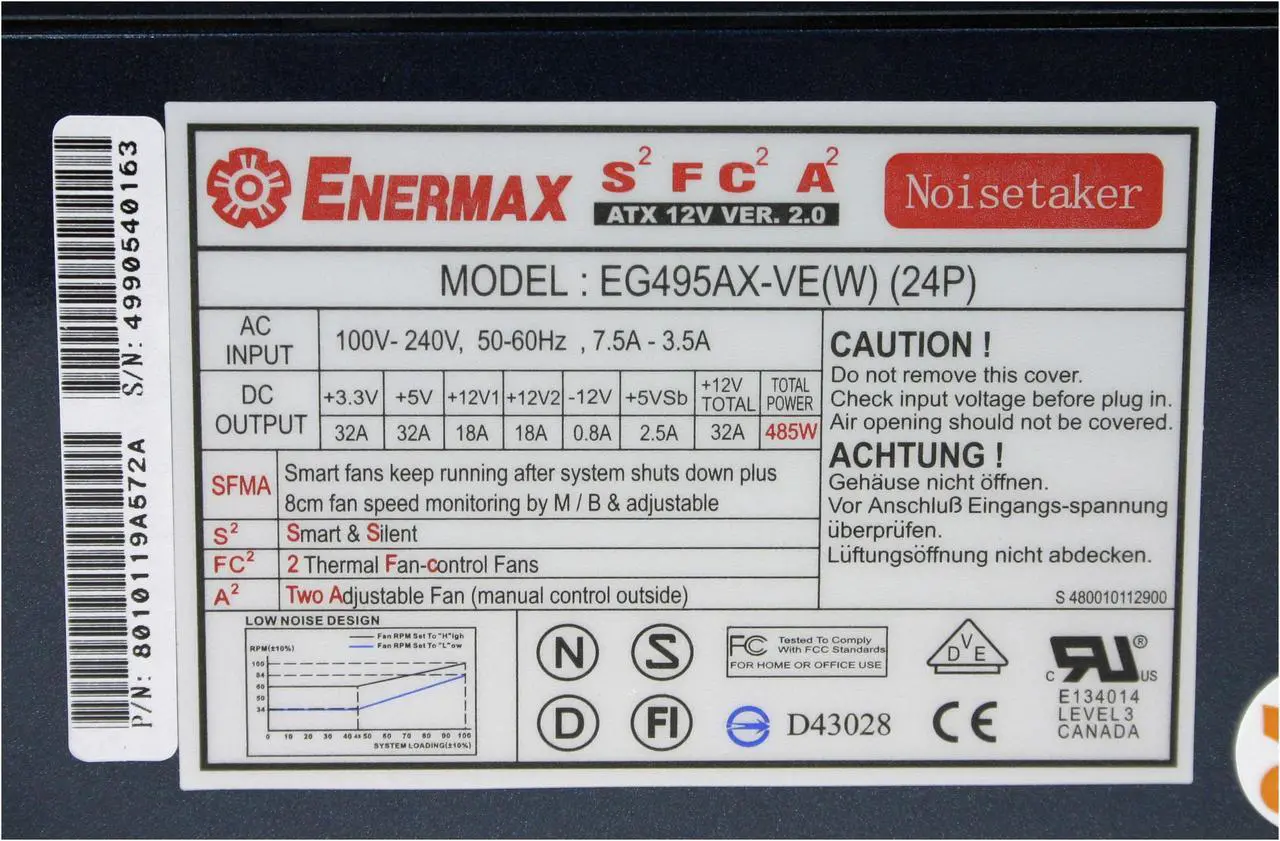

Output | +3.3V@32A, +5V@32A, +12V1@18A, +12V2@18A, -12V@0.8A, +5VSB@2.5A |
MTBF | greater than 100k hours at 70% of full rated load; 230 VAC / 50Hz input; 25°C ambient |
Approvals | UL (Level 3), cUL (Level 3), VDE, CB, NEMKO, SEMKO, DEMKO |

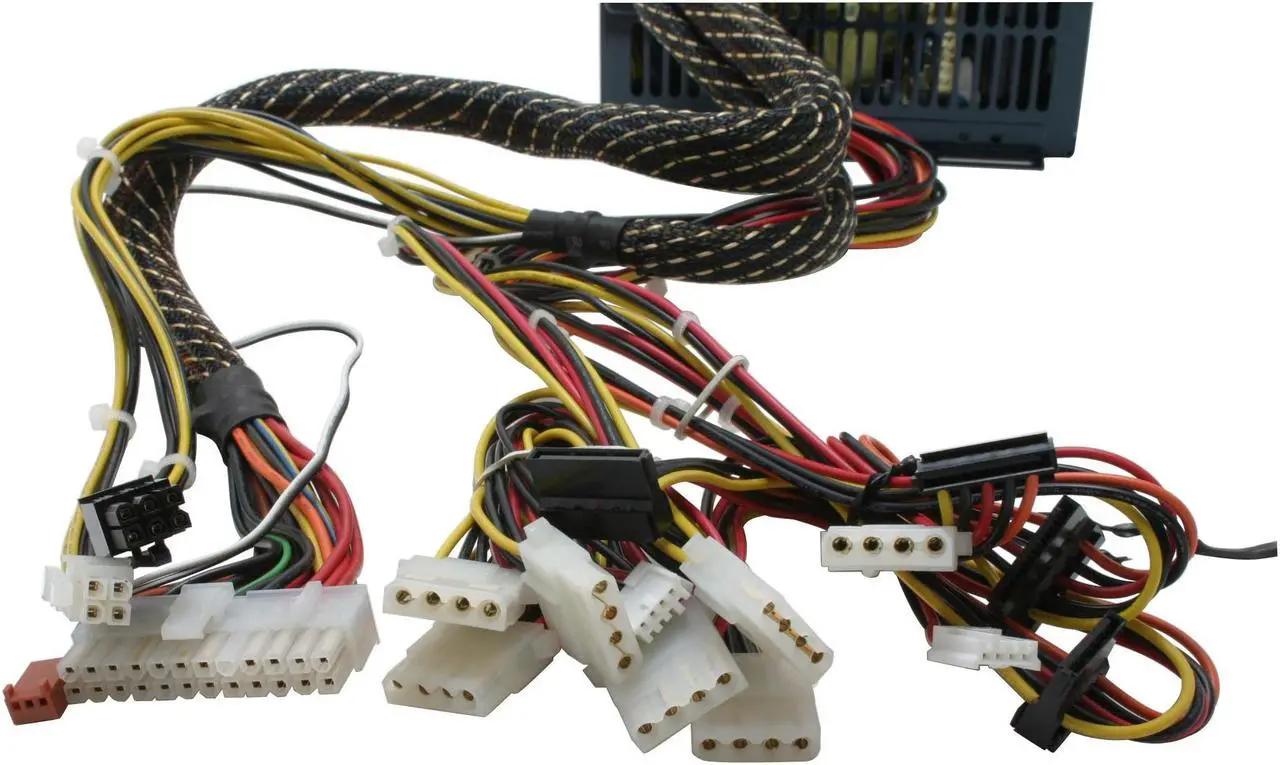

Connectors | 1 x Main connector (20+4 pin) 1 x 12V (P4) 7 x peripheral 4 x SATA 2 x Floppy 1 x PCI-E |
---|---|
Features | smart fan function,ring core technology |
Date First Available | November 23, 2004 |
---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-913-8899
- Support Email: support@enermaxusa.com
- Support Website
- View other products from Enermax
LOADING...
Pros: -Quiet enough that it's unlikely to be heard over anything else in your system. -Rails are quite stable: +12v and +3.3v never produced more than a 1.5% deviation, and the +5v never deviated by more than 3% while testing with a multimeter. -Decent airflow with the 80mm and 120mm fans -Able to run quite well with a high-end P4, 3GB DDR2-667, 7800GT, 2x SATA drives, 2x DVD burners, 4x 80mm case fans, and an Audigy 2
Cons: -Seems to be putting out a little heat on it's own, but not too bad - +5v rail went as high as 5.15v (3% dev), which was a little higher than I expected on a higher-end PSU -Would have been nice to have SLI support in case I ever want it
Overall Review: Despite a little bit of variance on the +5v rail, I'm quite pleased with the unit
