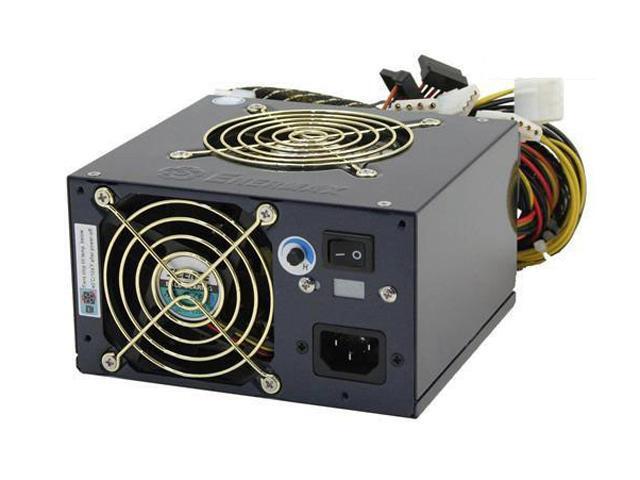

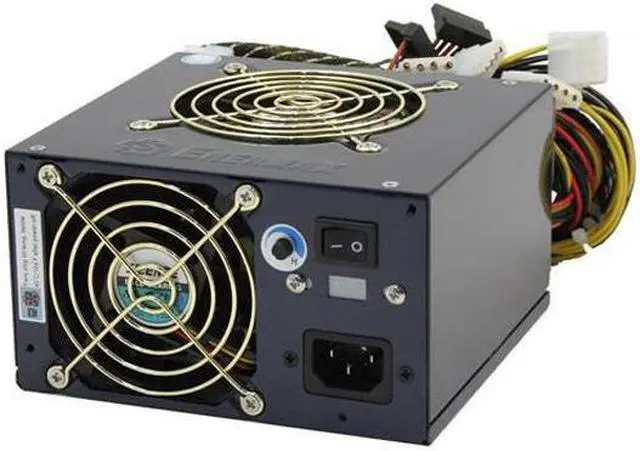

Brand | ENERMAX |
---|---|
Series | Noisetaker |
Model | EG701AX-VE SFMA(24P) |
Type | EPS12V |
---|---|
Maximum Power | 600 W |
Fans | 2 |
PFC | Active |

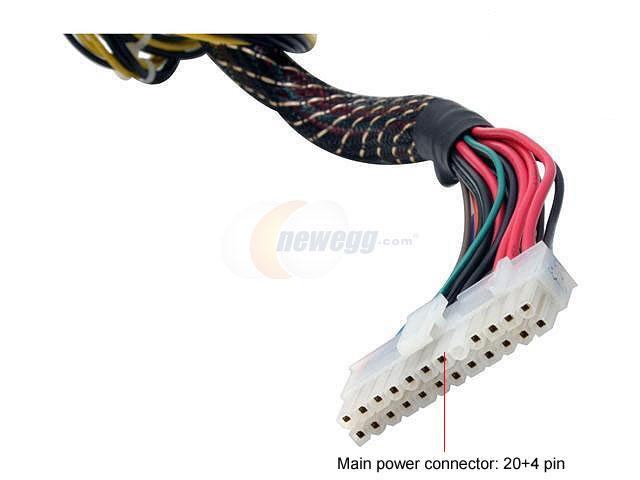

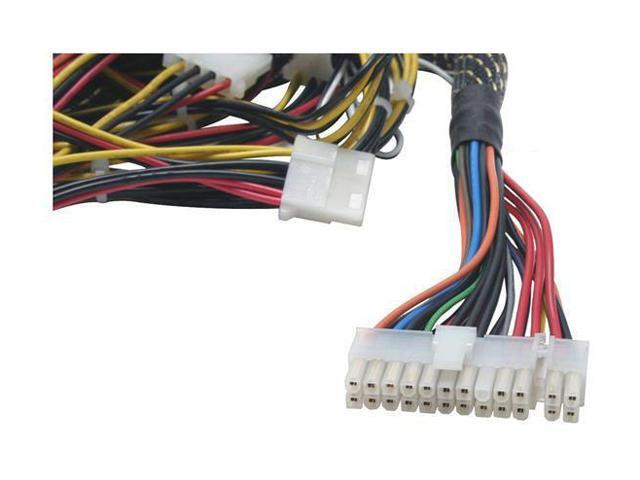

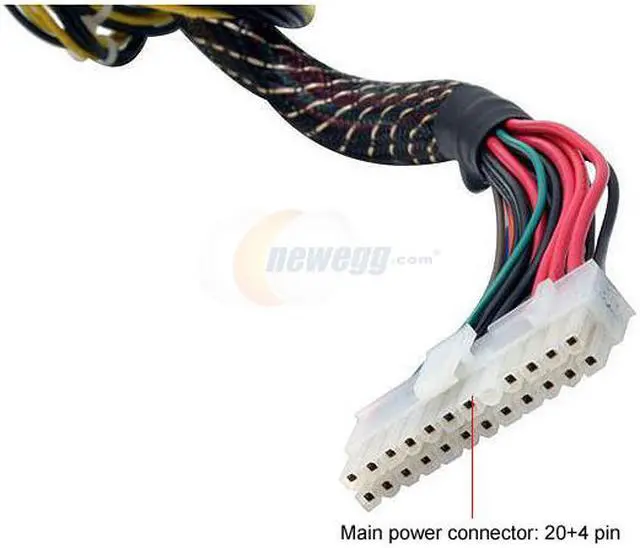

Main Connector | 20+4Pin |
+12V Rails | 2 |
PCI-Express Connector | 2 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |
Modular | No |
Hold-up Time | 17ms at 115VAC or 230VAC, full load |
Efficiency | 80% |
Over Voltage Protection | +5V: 5.5V~7.0V +3.3V: 3.76V~4.3V +12V1 & +12V2: 13.4V~15.6V |
Overload Protection | 110~160% of max load |
Input Voltage | 90~265V(Adjusted Automatically) |
Input Frequency Range | 47 - 63 Hz |
Input Current | 9.5~4A |
Output | +3.3V@36A, +5V@45A, +12V1@18A, +12V2@18A, -12V@0.8A, +5VSB@2.5A |
MTBF | Greater than 100K hours at 70% of full rated load; 230VAC / 50Hz input; 25°C ambient |
Approvals | UL (Level 3), cUL (Level 3), VDE, CB, NEMKO, SEMKO, DEMKO, FIMKO |

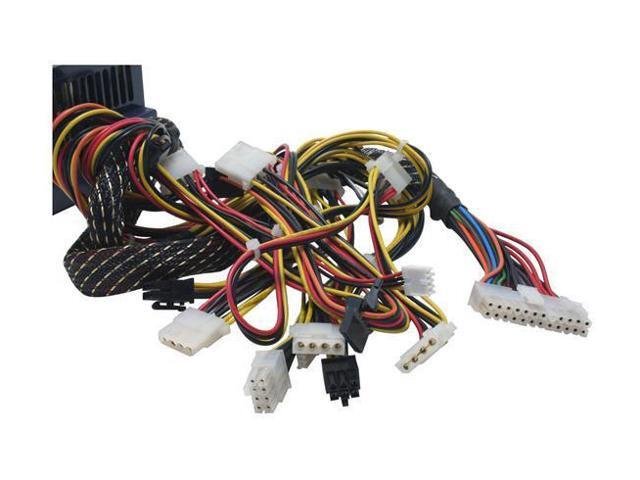

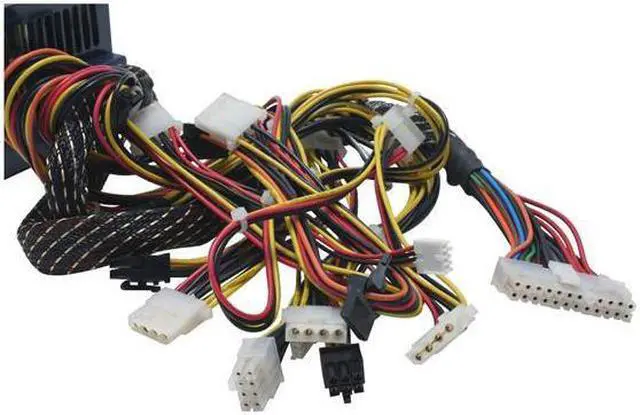

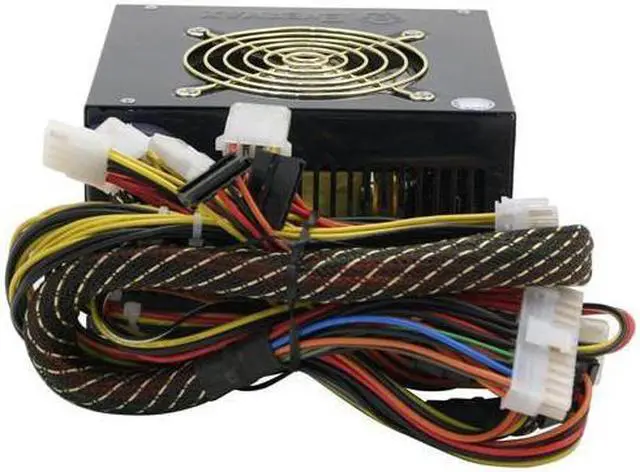

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(8Pin) 7 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E |
Features | smart fan function ring core technology |
---|
Date First Available | March 15, 2005 |
---|
Pros: Lots of Power.
Cons: None that I can Think of.
Overall Review: In reference to he whom wrote questionable problems. If you researched correctly, you would have known that Enermax called back a whole Lot # because of a fault in the power supply.
