Enermax Platimax 1350W 80 Plus Platinum Certified, Full Modular, ATX12V/EPS12V SLI Ready, Server Ready, 10 Year Warranty, Power Supply, EPM1350EWT
- World’s leading modular cable PSU series with 89-94% efficiency @ 20-100% load. Compliant with 80PLUS® PLATINUM efficiency requirement.
- Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability.
- Extreme Density Transformer
- Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.

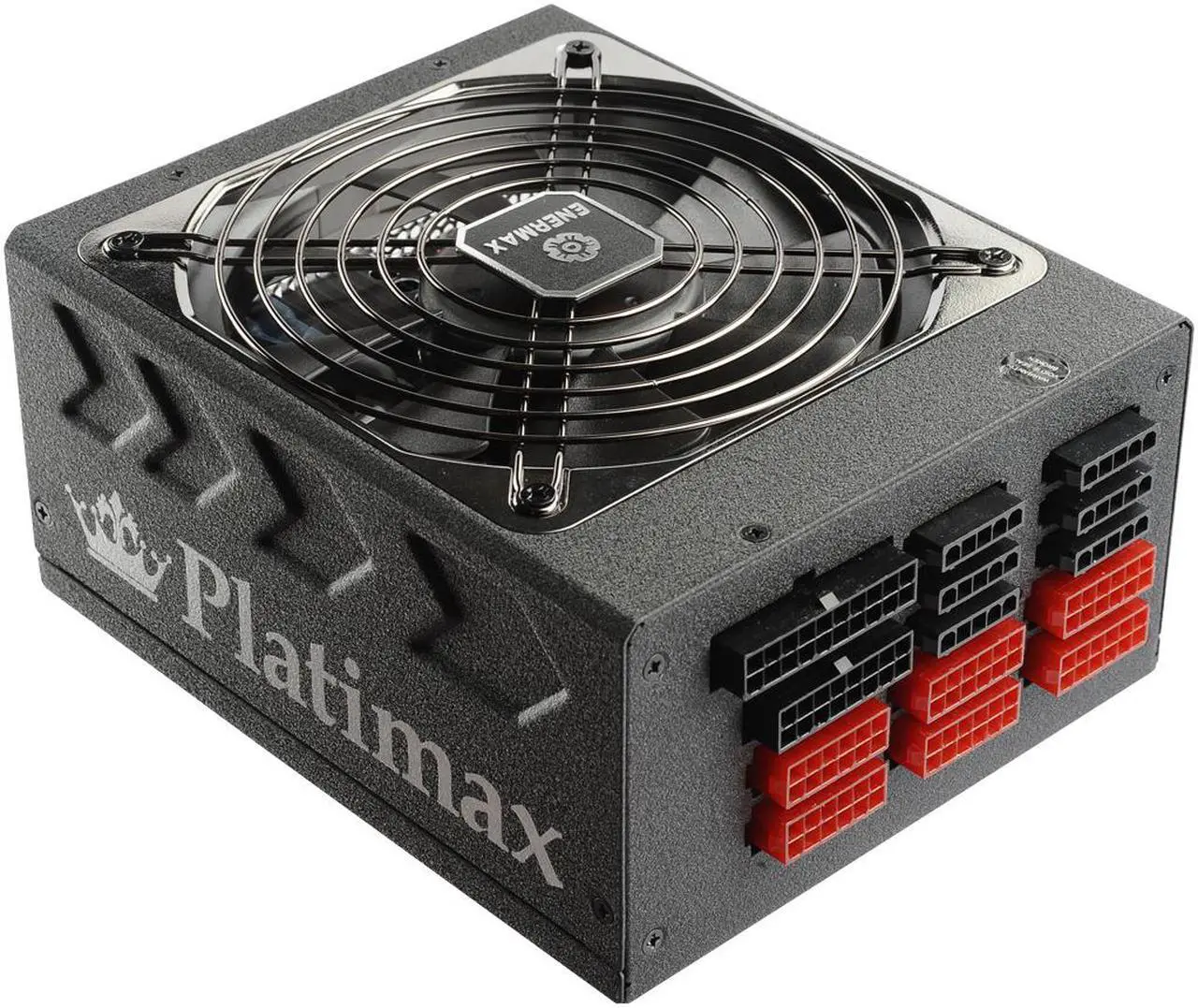

- Full modular cable design for easy customized support for various peripheral settings.
- Unique one-piece shape design ensures uniform heat distribution and increases air flow.
Overview
Specs
Reviews (46)
Technical Information
- Specification Compliance: ATX12V/EPS12V
- Efficiency: 94%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Protection Type: Over Current
- Protection Type: Over Voltage
- Protection Type: Over Power
- Protection Type: Short Circuit
- Protection Type: Over Temperature
- Protection Type: Surge
- Protection Type: Inrush Current
- Protection Type: Under Voltage
- Modular: Yes
- ATI CrossFire Supported: Yes
- NVIDIA SLI Supported: Yes
- Number of +12V Rails: 6
- Input Voltage Type: AC
- Input Voltage: 110 V AC
- Input Voltage: 220 V AC
- Input Voltage Range: 100 V AC to 264 V AC
- Output Voltage: 3.3 V DC @ 24 A
- Output Voltage: 5 V DC @ 24 A
- Output Voltage: 12 V DC @ 20 A
- Output Voltage: 12 V DC @ 30 A
- Output Voltage: -12 V DC @ 500 mA
- Output Voltage: 5 V DC @ 3 A
- Input Current: 14 A @ 110V
- Input Current: 6.50 A @ 220V
- Output Power: 1350 W
- Receptacles: 2 x 4-pin SP4 Floppy Drive
- Receptacles: 8 x 4-pin LP4 Peripheral Device
- Receptacles: 12 x Serial ATA
- Receptacles: 8 x 6+2pin PCI-E
- Receptacles: 1 x 8-pin EPS12V Motherboard
- Receptacles: 1 x 4+4pin ATX12V Motherboard
- Receptacles: 1 x 20+4pin ATX Motherboard
- Color: Gray
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 7.1"
- Length: 13"
- Weight (Approximate): 4.96 lb
- Environmentally Friendly: Yes
- Environmental Certification: 80 Plus Platinum
- Environmental Certification: ErP Lot 6
- Limited Warranty: 5 Year
Enermax EPM1350EWT Platimax 1350W 80 PLUS Modular PSU
Enermax Platimax 1350W Power Supply. Power supplies are the devices that power computer, servers and data center devices. They convert AC power from electric utilities into DC power used in most electronics. The 80 PLUS performance specification requires power supplies in computers and servers to be 80% or greater energy efficient at 10, 20, 50 and 100% of rated load with a true power factor of 0.9 or greater. This makes an 80 PLUS certified power supply substantially more efficient than typical power supplies.
Features
-
FMQ Design
Fully utilize transformer's quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability. -
80 PLUS Ready!
World's leading fully modular cable PSU series with 89 - 94% efficiency @20 - 100% load. Compliant with 80 PLUS Platinum standard. -
ErP Lot 6 ready
Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency +5Vsb circuitry. (With ErP Lot 6 enabled motherboard.) -
Copper-Bridge Array Transmission
Unique Copper-Bridge Array creating wider conduction path greatly helps reduce airflow resistance, voltage drop and energy loss. -
C6 & Hybrid Ready!
Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD Design. -
DXXI ready!
100% 6 + 2-Pin (8P) PCI-E connector to support new generation DXXI graphic cards. -
Modular Ready!
Full modular cable design for easy customized support for various peripheral settings. -
Server Ready!
SSI PSDG support for latest Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8. -
HeatGuard / SpeedGuard
Keeping PSU fan running for 30 - 60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
The world's leading patented fan control starting with unmatched 600RPM to a maximum of 1500RPM for optimal cooling and minimum noise. -
Twister Fan Inside!
13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented Twister Bearing Technology)
Gallery
Specifications
| Type | ATX12V / EPS12V | Maximum Power | 1350W |
|---|---|---|---|
| Fans | 13.5cm two ball bearing fan | PFC | Active |
| Input | 110 ~ 240VAC, 50 - 60Hz, 14 - 6.5A | SLI & CrossFire | Ready |
 |
|||

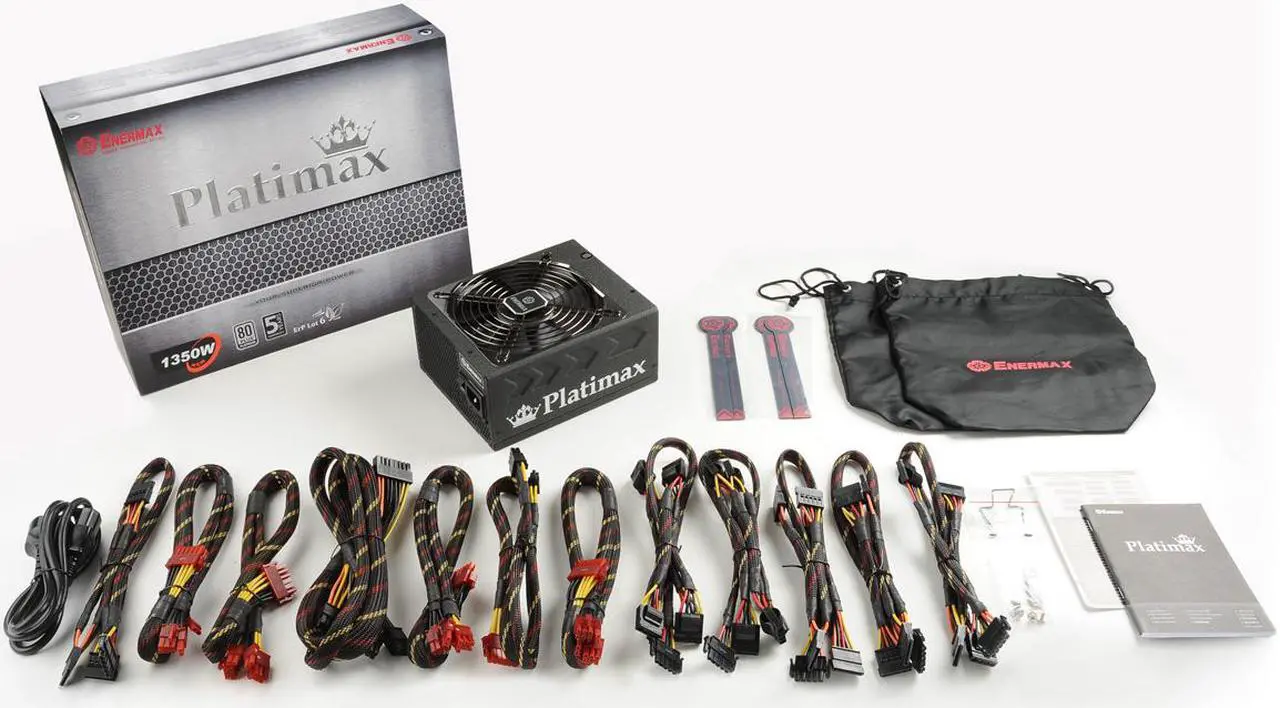

What's in the Box
- Enermax Power Supply
- AC Power Cord
- Power Cables
- Carrying Bag
- Cable Ties
