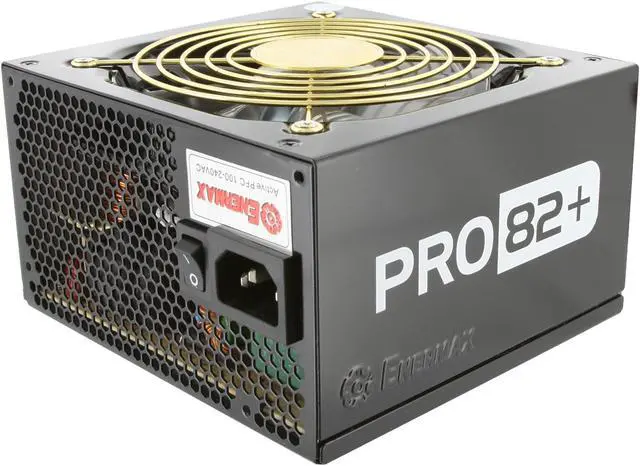

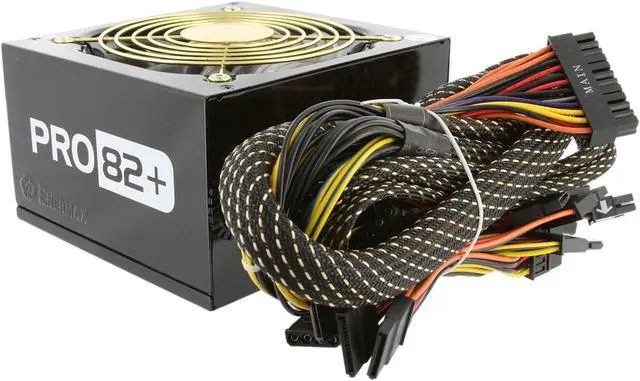

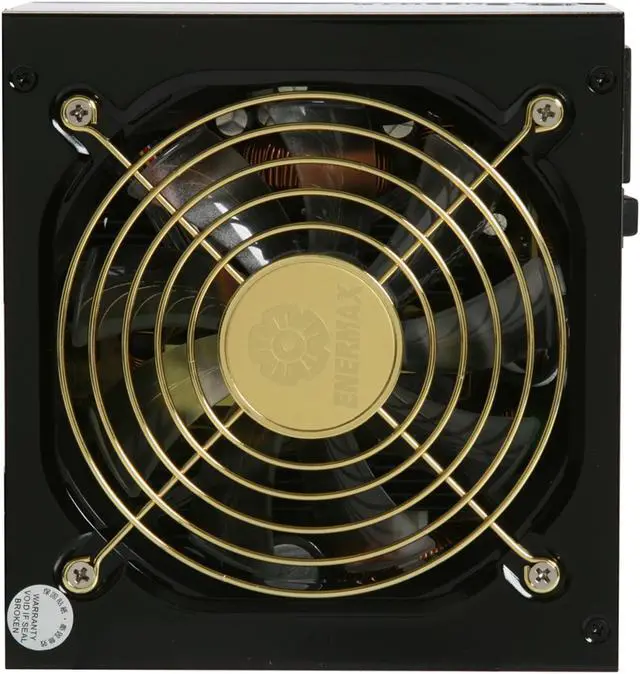

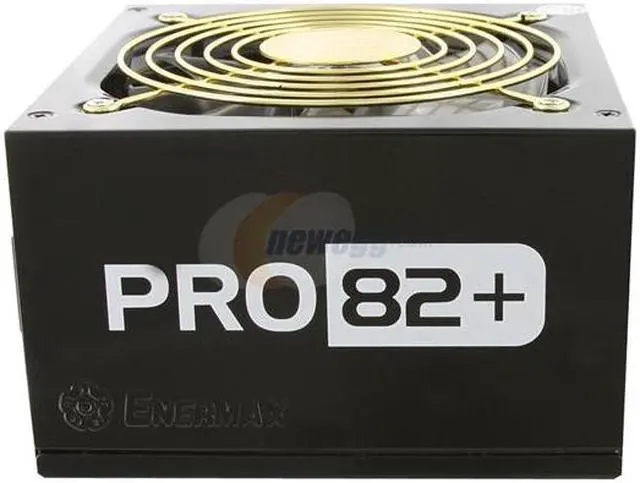

ENERMAX PRO82+ EPR625AWT 625W ATX12V Ver.2.3 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Compatible w/Core i7 Active PFC Power Supply

(11) Write a Review
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (11)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ENERMAX EPR625AWT

General
Brand ENERMAX
Series PRO82+
Model EPR625AWT
Details
Type ATX12V Ver.2.3
Maximum Power 625 W
Fans 1
PFC Active

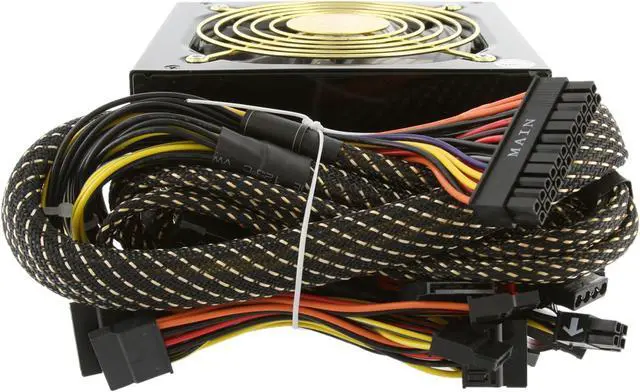

Main Connector 24Pin
+12V Rails 3

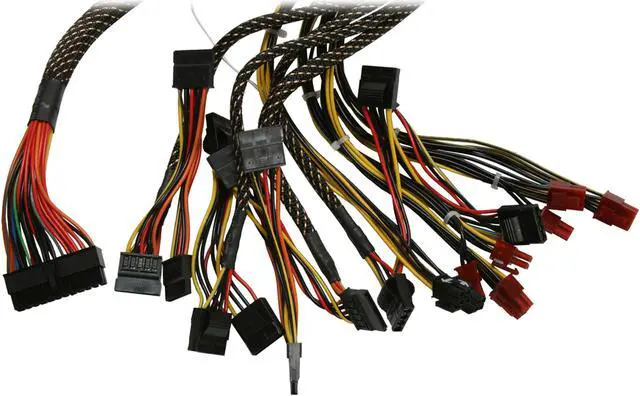

PCI-Express Connector 2 x 6-Pin, 2 x 6+2-Pin
SLI SLI Ready
CrossFire CrossFire Ready
Modular No
Efficiency 82 - 88%
Energy-Efficient 80 PLUS BRONZE Certified
Over Voltage Protection Yes

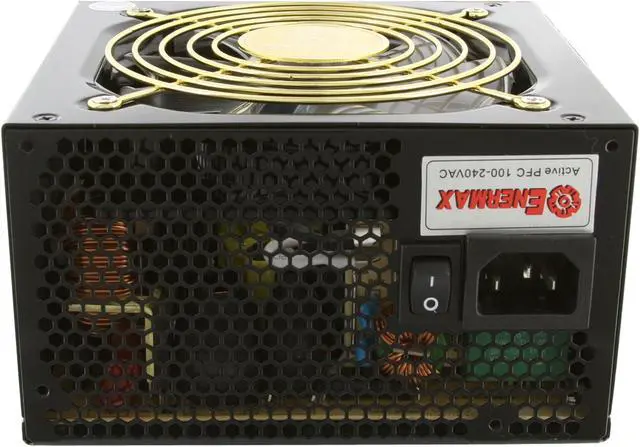

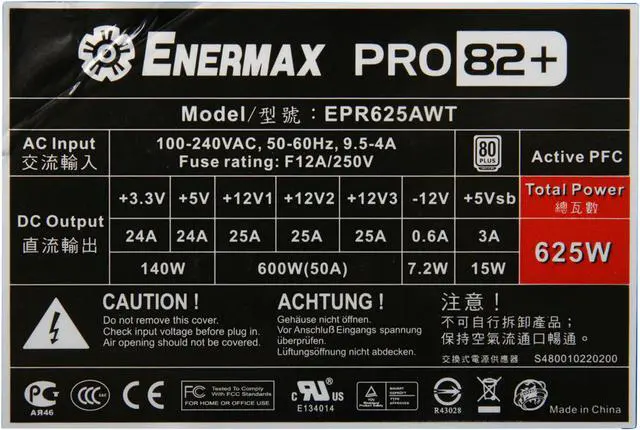

Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 9.5/ 4A
Output +3.3V@24A,+5V@24A,+12V1@25A,+12V2@25A,
+12V3@25A,[email protected],[email protected]
Approvals UL, cUL, TUV, CB, RoHS
Features
Features ATX12V v2.3: Compliant with the newest standard for desktop power supplies.

82PLUS: 82-88% efficiency @ 20-100% load. Compliant with ENERGY STAR® 4.0 and Blue Angel and 80 PLUS® efficiency requirements.

24/7 @ 40°C: Non-stop industrial class performance at 40°C/104°F.

DXX Ready: For PCI Express 2.0 / DXX next generation graphic cards with 6+2P (8P) PCI-E connectors

Gaming Ready: ATX12V v2.3 support, Intel® Core 2 Duo™/Quad™/Extreme™, AMD® Athlon™ 64X2/X4 & Phenom™, SLI™ or CrossFire X™.

EMC: Full scale electromagnetic filtering protects your system against radiation interferences; CE EMC EN61204-3 compliance.

AirGuard: air-inlet with optimal aero-dynamical design reducing noisy air turbulences by up to 2 dBA.

SafeGuard: Industry leading sixtuple protection circuitry of OCP, OVP, UVP, OPP, OTP & SCP protects your system.

SpeedGuard: Advanced fuzzy logic 12cm fan speed control for optimal cooling, reduces noise up to 5 dBA.
Additional Information
First Listed on Newegg March 17, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
